These stainless steel mounts are designed to properly secure the lift pump to the bottom of the fuel cell. There are mounts on this page specific to both the FCST and the FCST-X.

FCST-X LIFT PUMP MOUNTS

The mounts below are specific to the FCST-X ONLY

• 20-1990-XX
• 20-1991-00
• 20-1992-XX
• 20-1993-00
• 20-1995-00

NOTES

• Lift pump mounting information for the older FCST (20-014X-XX, 20-04XX-XX, 20-06XX-XX, and 20-09XX-XX) can be found towards the top of this page
• There are 2 sets of lift pump brackets included with the purchase of a FCST-X for shallow and mid-depth
• The kits below include 2 laser cut polished stainless steel brackets and 2 large locking pump bands

20-1212 FCST-X LIFT PUMP MOUNTS, SHALLOW DEPTH

These lift pump mounts come standard with the 20-1990-XX, 20-1992-XX, 20-1993-00, and 20-1995-00 FCST-X. They were designed specifically for 39mm OD fuel pumps installed into 6 gallon, 10 gallon, and 10.5 gallon Radium Engineering fuel cells. The internal depth of these fuel cells is 7.7" (196mm). This is measured from the underside of the fill plate to the bottom of the lift pump filter sock. But these brackets are very forgiving with respect to fuel cell depth.

20-1213 FCST-X LIFT PUMP MOUNTS, MID DEPTH

These lift pump mounts come standard with the 20-1990-XX, 20-1992-XX, 20-1993-00, and 20-1995-00 FCST-X. They were designed specifically for 39mm OD fuel pumps installed into 14 gallon, and 22 gallon Radium Engineering fuel cells. The internal depth of these fuel cells is 11.4" (290mm). This is measured from the underside of the fill plate to the bottom of the lift pump filter sock. But these brackets are very forgiving with respect to fuel cell depth.

20-1214 FCST-X LIFT PUMP MOUNTS, ALL DEPTHS

These lift pump mounts do not come standard with any FCST-X. They were designed specifically for 39mm OD fuel pumps. But because these brackets are so long, different diameter pumps can be used. These lift pump mounts permit an additional 4-1/8" (105mm) over the long 20-1213 mounts provided with the 20-1990-XX, 20-1992-XX, 20-1993-00, and 20-1995-00 FCST-X. This is measured from the underside of the fill plate to the bottom of the lift pump filter sock. But these brackets are very forgiving with respect to fuel cell depth. If modifying to a specific fuel cell depth, simply cut to length using a band saw, cut-off wheel, etc. NOTE: Longer hose and/or wiring may be necessary.

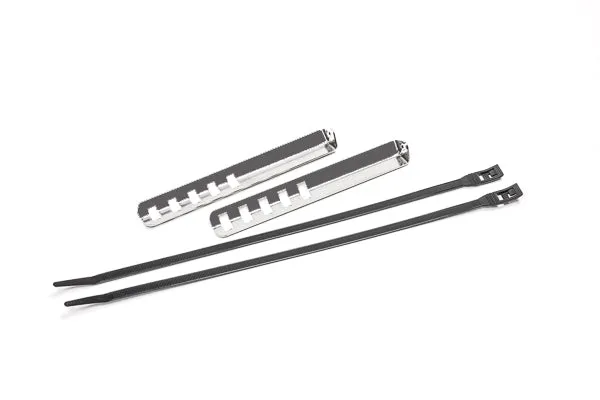

20-1215 FCST-X LIFT PUMP MOUNTS, SHALLOW-MID DEPTH, BOSCH BR540 OR DW400

These lift pump mounts come standard with the 20-1991-00 FCST-X. They were designed specifically for 46mm OD fuel pumps installed into 6 gallon, 10 gallon, and 10.5 gallon Radium Engineering fuel cells. The internal depth of these fuel cells is 7.7" (196mm). This is measured from the underside of the fill plate to the bottom of the lift pump filter sock. But these brackets are very forgiving with respect to fuel cell depth.

20-1216 FCST-X LIFT PUMP MOUNTS, MID-DEEP DEPTH, BOSCH BR540 OR DW400

These lift pump mounts come standard with the 20-1991-00 FCST-X. They were designed specifically for 46mm OD fuel pumps installed into 14 gallon, and 22 gallon Radium Engineering fuel cells. The internal depth of these fuel cells is 11.4" (290mm). This is measured from the underside of the fill plate to the bottom of the lift pump filter sock. But these brackets are very forgiving with respect to fuel cell depth.

20-0214 FCST LIFT PUMP MOUNTS, ALL DEPTHS

These mounts are specific to the following FCSTs ONLY: 20-014X-XX, 20-049X-XX, 20-069X-XX, and 20-099X-XX. The kits include 2 laser cut polished stainless steel brackets. These lift pump mounts permit an additional 8" (203mm) over the standard mounts provided with the FCST. They will properly place the lift pump at a fuel cell depth up to 17" (432mm). If modifying to a specific fuel cell depth, simply cut to length using a band saw, cut-off wheel, etc.

NOTES

• Lift pump mounting information for the newer FCST-X (20-199X-XX) can be found towards the bottom of this page
• The lift pump mounts included with the purchase of a FCST are designed for fuel cells no deeper than 9" (229mm). This is measured from the underside of the fill plate to the bottom of the lift pump filter sock
• Longer hose and/or wiring may be necessary
