Description

COMPATIBILITY

  • 94-01 Acura Integra (All models/trims/RHD/LHD)
  • 92-00 Honda Civic (All models/trims/RHD/LHD)

OVERVIEW

This Radium Engineering fuel hanger replaces the stock fuel pump assembly. No cutting or modifying of the vehicle's sheet metal or fuel tank is required for installation. An optional dual pump add-on kit is available to add a second fuel pump to your hanger.

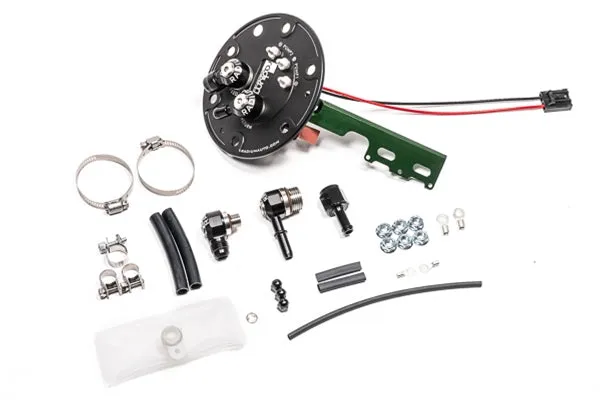

20-0790-00 Fuel Hanger Integra Civic Fits Walbro GSS342 or AEM 50-1200

This Radium Engineering fuel hanger replaces the stock fuel pump assembly. No cutting or modifying of the vehicle's sheet metal or fuel tank is required for installation.

The fuel pump is positioned in the factory collector bowl for fuel starvation protection.

PORTS & FITTINGS

The fuel pump outlet is tapped for 8AN ORB (3/4"-16) female threads on the top plate. There are multiple adapter fittings included for the outlet.

  • The preinstalled -6AN male fitting permits an aftermarket feed line.
  • The 8.5mm barbed adapter fitting permits the (94-95 Integra/92-95 Civic) OEM feed line to be reused.
  • The SAE quick connect fitting permits the (96-01 Integra/96-00 Civic) OEM feed line to be reused.

The return inlet is tapped for 4AN ORB (7/16"-20) female threads on the top plate. There are 2 fittings included for the return port.

  • The preinstalled 6.5mm barbed fitting permits the OEM return line to be reused.
  • The provided -6AN male fitting permits an aftermarket return line.

All fittings are machined low enough to clear the fuel pump access cover. The 96-01 Integra and 96-00 Civic require the OEM return hose to be extended to reach the hanger.

PUMP COMPATIBILITY

The hanger is configured to be used with 1 aftermarket fuel pump. If 2 aftermarket pumps are required, the supplementary dual pump add-on 20-0796-00 must also be purchased. Choosing the best fuel pump(s) is based on the expected engine power output, fuel type (gasoline, E85, etc.), and fuel pressure. The following pumps are compatible:

  • AEM 50-1000
  • AEM 50-1200
  • AEM 50-1230(1)
  • AEM 50-1235(1)
  • Walbro GSS342

(1)These pumps do NOT feature a check valve. NOTE: This cannot be used on the second pump.

ELECTRICAL

The custom designed anti-rotation stainless steel electrical studs easily handle the high current demand that compact multi-pin bulkhead connectors lack. These serviceable connections are hermetically sealed and impervious to all standard and exotic fuels. Non-conductive anodized aluminum acorn nuts are provided to prevent any accidental short circuiting. Furthermore, the in-tank wiring is insulated with high quality chemically resistant ETFE.

NOTES

  • Single Walbro GSS342 (255LPH) fuel pump installations can re-use the OEM fuel pump wiring.
  • It is recommended to upgrade OEM wiring to ensure the pumps are receiving full power and operating at their full potential.
  • Universal fuel pump wiring kits.

FEATURES

  • Drop-In Installation
  • Anodized Aluminum Construction
  • Merged 8AN ORB Female Pump-Out Port
  • Fittings for Aftermarket and OEM Lines
  • Capable of 2 Pumps with Add-On
  • Compatible with Various Pumps
  • Included Fuel Pump Filter Sock
  • High Current Electrical Hardware
  • Stainless Steel Hardware and Clamps
  • Gasoline, Methanol, and E85 Compliant
  • New Anti-rotation Electrical Terminals

20-0792-00 Fuel Hanger Integra Civic Fits Walbro F90000267/274/285

This Radium Engineering fuel hanger replaces the stock fuel pump assembly. No cutting or modifying of the vehicle's sheet metal or fuel tank is required for installation.

The fuel pump is positioned in the factory collector bowl for fuel starvation protection.

PORTS & FITTINGS

The fuel pump outlet is tapped for 8AN ORB (3/4"-16) female threads on the top plate. There are multiple adapter fittings included for the outlet.

  • The preinstalled -6AN male fitting permits an aftermarket feed line.
  • The 8.5mm barbed adapter fitting permits the (94-95 Integra/92-95 Civic) OEM feed line to be reused.
  • The SAE quick connect fitting permits the (96-01 Integra/96-00 Civic) OEM feed line to be reused.

The return inlet is tapped for 4AN ORB (7/16"-20) female threads on the top plate. There are 2 fittings included for the return port.

  • The preinstalled 6.5mm barbed fitting permits the OEM return line to be reused.
  • The provided -6AN male fitting permits an aftermarket return line.

All fittings are machined low enough to clear the fuel pump access cover. The 96-01 Integra and 96-00 Civic require the OEM return hose to be extended to reach the hanger.

PUMP COMPATIBILITY

The hanger is configured to be used with 1 aftermarket fuel pump. If 2 aftermarket pumps are required, the supplementary dual pump add-on 20-0797-00 must also be purchased. Choosing the best fuel pump(s) is based on the expected engine power output, fuel type (gasoline, E85, etc.), and fuel pressure. The following pumps are compatible:

  • Walbro F90000267
  • Walbro F90000274
  • Walbro F90000285
  • Walbro F90000295(2)

(2)These pumps do NOT feature a check valve. NOTE: This cannot be used on the second pump.

ELECTRICAL

The custom designed anti-rotation stainless steel electrical studs easily handle the high current demand that compact multi-pin bulkhead connectors lack. These serviceable connections are hermetically sealed and impervious to all standard and exotic fuels. Non-conductive anodized aluminum acorn nuts are provided to prevent any accidental short circuiting. Furthermore, the in-tank wiring is insulated with high quality chemically resistant ETFE.

NOTES

  • It is recommended to upgrade OEM wiring to ensure the pumps are receiving full power and operating at their full potential.

FEATURES

  • Drop-In Installation
  • Anodized Aluminum Construction
  • Merged 8AN ORB Female Pump-Out Port
  • Fittings for Aftermarket and OEM Lines
  • Capable of 2 Pumps with Add-On
  • Compatible with Various Pumps
  • Included Fuel Pump Filter Sock
  • High Current Electrical Hardware
  • Stainless Steel Hardware and Clamps
  • Gasoline, Methanol, and E85 Compliant
  • New Anti-rotation Electrical Terminals

20-0796-00 Dual Pump Add-On Fits Walbro GSS342 or AEM 50-1200

These dual pump add-on kits allow you to install a second fuel pump onto your Radium fuel pump hanger. This kit requires hanger part number 20-0790-00.

The architecture of this Honda fuel tank is very unique. Because the opening is so small, 2 pumps cannot fit through at the same time. Additionally, the angle of insertion combined with the tall collector bowl and shallow tank make dual pump installation rather difficult.

It is NOT possible to fit 2 Walbro 39/50 DCSS fuel pumps (F90000267/274/285) next to each other in the Honda fuel tank. The internal OEM collector bowl is physically too narrow. But when installed inline, these large base pumps can fit, as shown.

The rear pump assembly is placed in the tank first. A tool is provided to keep this pump back and away while inserting the front pump. An electrical plug and a SAE quick connector eliminate the need to perform tedious assembly before dropping the entire assembly into the tank. Both fuel pumps merge into the single 8AN ORB outlet of the fuel hat. And because of the integrated check valves, fuel pump staging is permitted.

PUMP COMPATIBILITY

Choosing the best fuel pump is based on the expected engine power output, fuel type (gasoline, E85, etc.), and fuel pressure. The following pumps are compatible:

  • AEM 50-1000
  • AEM 50-1200
  • Walbro GSS342

FEATURES

  • Gasoline, Methanol, and E85 Compliant
  • Compatible with Various Pumps
  • Included Fuel Pump Filter Sock
  • Plug and Play Installation
  • Bolt-On Stainless Pump Bracket
  • Polished Installation Tool

20-0797-00 Dual Pump Add-On Fits Walbro F90000267/274/285

These dual pump add-on kits allow you to install a second fuel pump onto your Radium fuel pump hanger. This kit requires hanger part number 20-0792-00.

The architecture of this Honda fuel tank is very unique. Because the opening is so small, 2 pumps cannot fit through at the same time. Additionally, the angle of insertion combined with the tall collector bowl and shallow tank make dual pump installation rather difficult. Furthermore, it is NOT possible to fit 2 Walbro 39/50 DCSS fuel pumps (F90000267/274/285) next to each other in the Honda fuel tank. The internal OEM collector bowl is physically too narrow. But when installed inline, these large base pumps can fit, as shown.

The rear pump assembly is placed in the tank first. A tool is provided to keep this pump back and away while inserting the front pump. An electrical plug and a SAE quick connector eliminate the need to perform tedious assembly before dropping the entire assembly into the tank. Both fuel pumps merge into the single 8AN ORB outlet of the fuel hat. And because of the integrated check valves, fuel pump staging is permitted.

PUMP COMPATIBILITY

Choosing the best fuel pump is based on the expected engine power output, fuel type (gasoline, E85, etc.), and fuel pressure. The following pumps are compatible:

  • Walbro F90000267
  • Walbro F90000274
  • Walbro F90000285

FEATURES

  • Gasoline, Methanol, and E85 Compliant
  • Compatible with Various Pumps
  • Included Fuel Pump Filter Sock
  • Plug and Play Installation
  • Bolt-On Stainless Pump Bracket
  • Polished Installation Tool

Specifications

Compatibility

  • 1992 Honda Civic EG EK
  • 2001 Honda Integra DC2

COMPATIBILITY

  • 94-01 Acura Integra (All models/trims/RHD/LHD)
  • 92-00 Honda Civic (All models/trims/RHD/LHD)

OVERVIEW

This Radium Engineering fuel hanger replaces the stock fuel pump assembly. No cutting or modifying of the vehicle's sheet metal or fuel tank is required for installation. An optional dual pump add-on kit is available to add a second fuel pump to your hanger.

20-0790-00 Fuel Hanger Integra Civic Fits Walbro GSS342 or AEM 50-1200

This Radium Engineering fuel hanger replaces the stock fuel pump assembly. No cutting or modifying of the vehicle's sheet metal or fuel tank is required for installation.

The fuel pump is positioned in the factory collector bowl for fuel starvation protection.

PORTS & FITTINGS

The fuel pump outlet is tapped for 8AN ORB (3/4"-16) female threads on the top plate. There are multiple adapter fittings included for the outlet.

  • The preinstalled -6AN male fitting permits an aftermarket feed line.
  • The 8.5mm barbed adapter fitting permits the (94-95 Integra/92-95 Civic) OEM feed line to be reused.
  • The SAE quick connect fitting permits the (96-01 Integra/96-00 Civic) OEM feed line to be reused.

The return inlet is tapped for 4AN ORB (7/16"-20) female threads on the top plate. There are 2 fittings included for the return port.

  • The preinstalled 6.5mm barbed fitting permits the OEM return line to be reused.
  • The provided -6AN male fitting permits an aftermarket return line.

All fittings are machined low enough to clear the fuel pump access cover. The 96-01 Integra and 96-00 Civic require the OEM return hose to be extended to reach the hanger.

PUMP COMPATIBILITY

The hanger is configured to be used with 1 aftermarket fuel pump. If 2 aftermarket pumps are required, the supplementary dual pump add-on 20-0796-00 must also be purchased. Choosing the best fuel pump(s) is based on the expected engine power output, fuel type (gasoline, E85, etc.), and fuel pressure. The following pumps are compatible:

  • AEM 50-1000
  • AEM 50-1200
  • AEM 50-1230(1)
  • AEM 50-1235(1)
  • Walbro GSS342

(1)These pumps do NOT feature a check valve. NOTE: This cannot be used on the second pump.

ELECTRICAL

The custom designed anti-rotation stainless steel electrical studs easily handle the high current demand that compact multi-pin bulkhead connectors lack. These serviceable connections are hermetically sealed and impervious to all standard and exotic fuels. Non-conductive anodized aluminum acorn nuts are provided to prevent any accidental short circuiting. Furthermore, the in-tank wiring is insulated with high quality chemically resistant ETFE.

NOTES

  • Single Walbro GSS342 (255LPH) fuel pump installations can re-use the OEM fuel pump wiring.
  • It is recommended to upgrade OEM wiring to ensure the pumps are receiving full power and operating at their full potential.
  • Universal fuel pump wiring kits.

FEATURES

  • Drop-In Installation
  • Anodized Aluminum Construction
  • Merged 8AN ORB Female Pump-Out Port
  • Fittings for Aftermarket and OEM Lines
  • Capable of 2 Pumps with Add-On
  • Compatible with Various Pumps
  • Included Fuel Pump Filter Sock
  • High Current Electrical Hardware
  • Stainless Steel Hardware and Clamps
  • Gasoline, Methanol, and E85 Compliant
  • New Anti-rotation Electrical Terminals

20-0792-00 Fuel Hanger Integra Civic Fits Walbro F90000267/274/285

This Radium Engineering fuel hanger replaces the stock fuel pump assembly. No cutting or modifying of the vehicle's sheet metal or fuel tank is required for installation.

The fuel pump is positioned in the factory collector bowl for fuel starvation protection.

PORTS & FITTINGS

The fuel pump outlet is tapped for 8AN ORB (3/4"-16) female threads on the top plate. There are multiple adapter fittings included for the outlet.

  • The preinstalled -6AN male fitting permits an aftermarket feed line.
  • The 8.5mm barbed adapter fitting permits the (94-95 Integra/92-95 Civic) OEM feed line to be reused.
  • The SAE quick connect fitting permits the (96-01 Integra/96-00 Civic) OEM feed line to be reused.

The return inlet is tapped for 4AN ORB (7/16"-20) female threads on the top plate. There are 2 fittings included for the return port.

  • The preinstalled 6.5mm barbed fitting permits the OEM return line to be reused.
  • The provided -6AN male fitting permits an aftermarket return line.

All fittings are machined low enough to clear the fuel pump access cover. The 96-01 Integra and 96-00 Civic require the OEM return hose to be extended to reach the hanger.

PUMP COMPATIBILITY

The hanger is configured to be used with 1 aftermarket fuel pump. If 2 aftermarket pumps are required, the supplementary dual pump add-on 20-0797-00 must also be purchased. Choosing the best fuel pump(s) is based on the expected engine power output, fuel type (gasoline, E85, etc.), and fuel pressure. The following pumps are compatible:

  • Walbro F90000267
  • Walbro F90000274
  • Walbro F90000285
  • Walbro F90000295(2)

(2)These pumps do NOT feature a check valve. NOTE: This cannot be used on the second pump.

ELECTRICAL

The custom designed anti-rotation stainless steel electrical studs easily handle the high current demand that compact multi-pin bulkhead connectors lack. These serviceable connections are hermetically sealed and impervious to all standard and exotic fuels. Non-conductive anodized aluminum acorn nuts are provided to prevent any accidental short circuiting. Furthermore, the in-tank wiring is insulated with high quality chemically resistant ETFE.

NOTES

  • It is recommended to upgrade OEM wiring to ensure the pumps are receiving full power and operating at their full potential.

FEATURES

  • Drop-In Installation
  • Anodized Aluminum Construction
  • Merged 8AN ORB Female Pump-Out Port
  • Fittings for Aftermarket and OEM Lines
  • Capable of 2 Pumps with Add-On
  • Compatible with Various Pumps
  • Included Fuel Pump Filter Sock
  • High Current Electrical Hardware
  • Stainless Steel Hardware and Clamps
  • Gasoline, Methanol, and E85 Compliant
  • New Anti-rotation Electrical Terminals

20-0796-00 Dual Pump Add-On Fits Walbro GSS342 or AEM 50-1200

These dual pump add-on kits allow you to install a second fuel pump onto your Radium fuel pump hanger. This kit requires hanger part number 20-0790-00.

The architecture of this Honda fuel tank is very unique. Because the opening is so small, 2 pumps cannot fit through at the same time. Additionally, the angle of insertion combined with the tall collector bowl and shallow tank make dual pump installation rather difficult.

It is NOT possible to fit 2 Walbro 39/50 DCSS fuel pumps (F90000267/274/285) next to each other in the Honda fuel tank. The internal OEM collector bowl is physically too narrow. But when installed inline, these large base pumps can fit, as shown.

The rear pump assembly is placed in the tank first. A tool is provided to keep this pump back and away while inserting the front pump. An electrical plug and a SAE quick connector eliminate the need to perform tedious assembly before dropping the entire assembly into the tank. Both fuel pumps merge into the single 8AN ORB outlet of the fuel hat. And because of the integrated check valves, fuel pump staging is permitted.

PUMP COMPATIBILITY

Choosing the best fuel pump is based on the expected engine power output, fuel type (gasoline, E85, etc.), and fuel pressure. The following pumps are compatible:

  • AEM 50-1000
  • AEM 50-1200
  • Walbro GSS342

FEATURES

  • Gasoline, Methanol, and E85 Compliant
  • Compatible with Various Pumps
  • Included Fuel Pump Filter Sock
  • Plug and Play Installation
  • Bolt-On Stainless Pump Bracket
  • Polished Installation Tool

20-0797-00 Dual Pump Add-On Fits Walbro F90000267/274/285

These dual pump add-on kits allow you to install a second fuel pump onto your Radium fuel pump hanger. This kit requires hanger part number 20-0792-00.

The architecture of this Honda fuel tank is very unique. Because the opening is so small, 2 pumps cannot fit through at the same time. Additionally, the angle of insertion combined with the tall collector bowl and shallow tank make dual pump installation rather difficult. Furthermore, it is NOT possible to fit 2 Walbro 39/50 DCSS fuel pumps (F90000267/274/285) next to each other in the Honda fuel tank. The internal OEM collector bowl is physically too narrow. But when installed inline, these large base pumps can fit, as shown.

The rear pump assembly is placed in the tank first. A tool is provided to keep this pump back and away while inserting the front pump. An electrical plug and a SAE quick connector eliminate the need to perform tedious assembly before dropping the entire assembly into the tank. Both fuel pumps merge into the single 8AN ORB outlet of the fuel hat. And because of the integrated check valves, fuel pump staging is permitted.

PUMP COMPATIBILITY

Choosing the best fuel pump is based on the expected engine power output, fuel type (gasoline, E85, etc.), and fuel pressure. The following pumps are compatible:

  • Walbro F90000267
  • Walbro F90000274
  • Walbro F90000285

FEATURES

  • Gasoline, Methanol, and E85 Compliant
  • Compatible with Various Pumps
  • Included Fuel Pump Filter Sock
  • Plug and Play Installation
  • Bolt-On Stainless Pump Bracket
  • Polished Installation Tool
  • 1992 Honda Civic EG EK
  • 2001 Honda Integra DC2
