Description

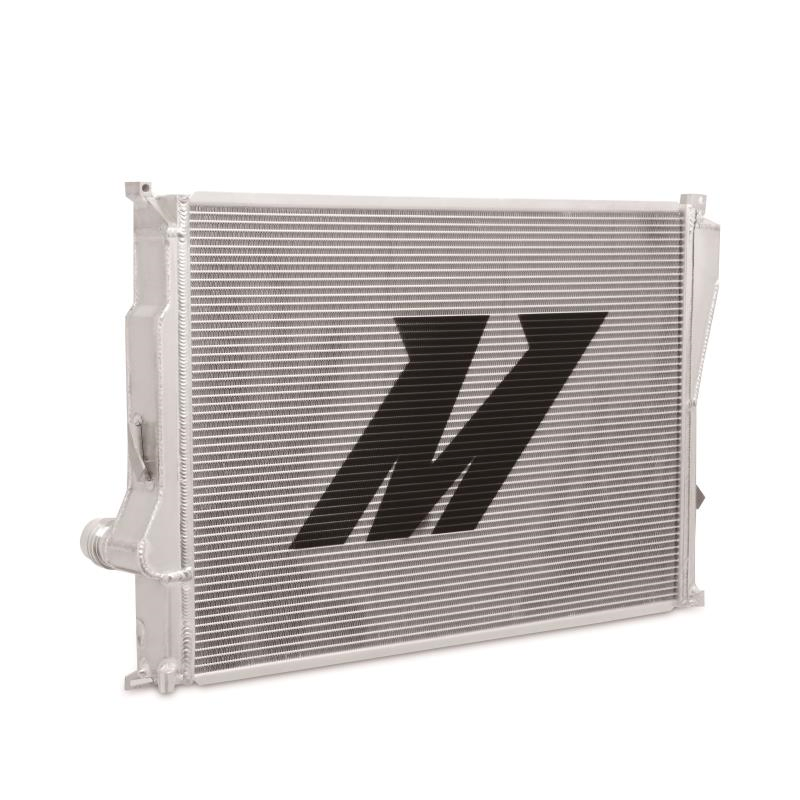

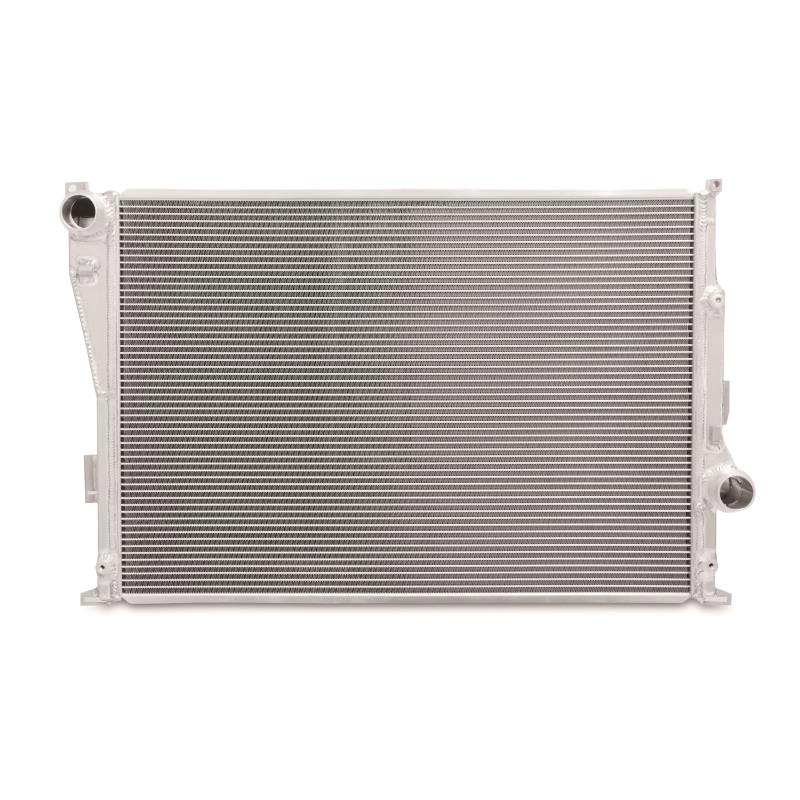

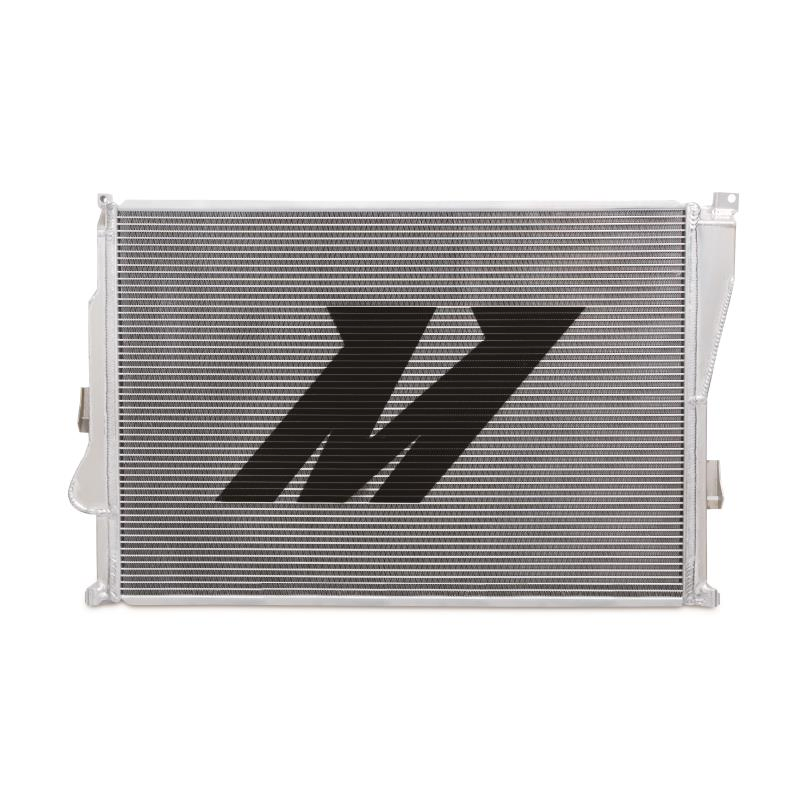

The S54 is an incredible feat of engineering. Smooth power delivery, individual throttle bodies, and an 8,000 rpm redline makes for an unforgettable driving experience. As with any BMW, maintenance is key to extending the life of your vehicle and ensuring that you’re getting a driving experience rivaled by very few other vehicles on the road. As many of these vehicles see frequent track time, the team at Mishimoto felt a need to develop a performance aluminium radiator that would not only provide improved durability, but also deliver the efficiency needed for track driving. Our team of engineers developed an extremely dense core on this E46 M3 radiator, that provides a greater number of coolant tubes and a very dense fin composition. This allows for more heat-transfer contact points which results in greater heat exchange and improved efficiency. Additionally, this dense core provides a 32% increase in coolant surface area, a 15% increase in air surface area, and a 25% increase in coolant capacity. All these factors contribute to lower temperatures and greater heat rejection, ideal for those in warm climates and track use. This BMW radiator is designed as a complete bolt-in fit, requiring no modification for fitment with the stock fan and shrouding. Our BMW radiator end tanks are constructed from high-quality aluminium TIG-welded to a 100% brazed aluminium core. Not only does this aid in heat transfer, but it also provides the reliability needed for years of service. Pair this E46 M3 radiator with the Mishimoto BMW E46 M3 Silicone Radiator Hose Kit for added durability over your stock rubber hoses. This BMW radiator is compatible with most aftermarket supercharger kits, providing the cooling power needed for power levels above stock. As with all our BMW parts, the Mishimoto E46 M3 Performance aluminium Radiator includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship. For more information about the development process, check out our build thread on our engineering blog!

  • Direct fit for the 2001–2006 BMW E46 M3

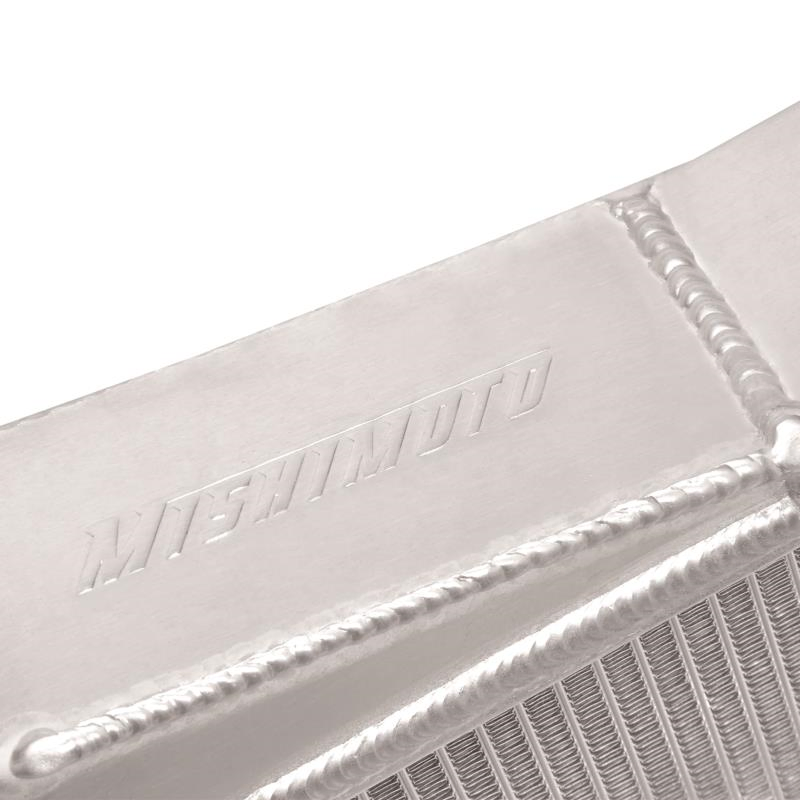

  • Fully brazed aluminium core with TIG-welded end tanks
  • Fits perfectly with stock clutch fan or Mishimoto electric fan shroud
  • Precision designed

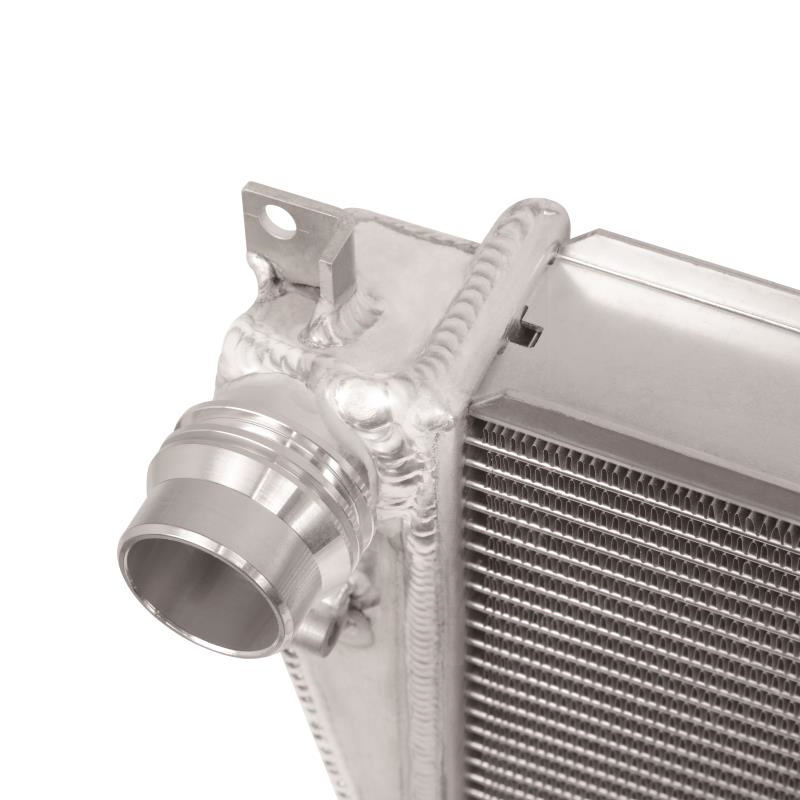

  • CNC-machined quick-disconnect fittings mate perfectly with stock hoses
  • Track-tested design
  • 32% increase in coolant surface area
  • 15% increase in air surface area
  • 25% increase in coolant capacity
  • Works with most aftermarket supercharger kits

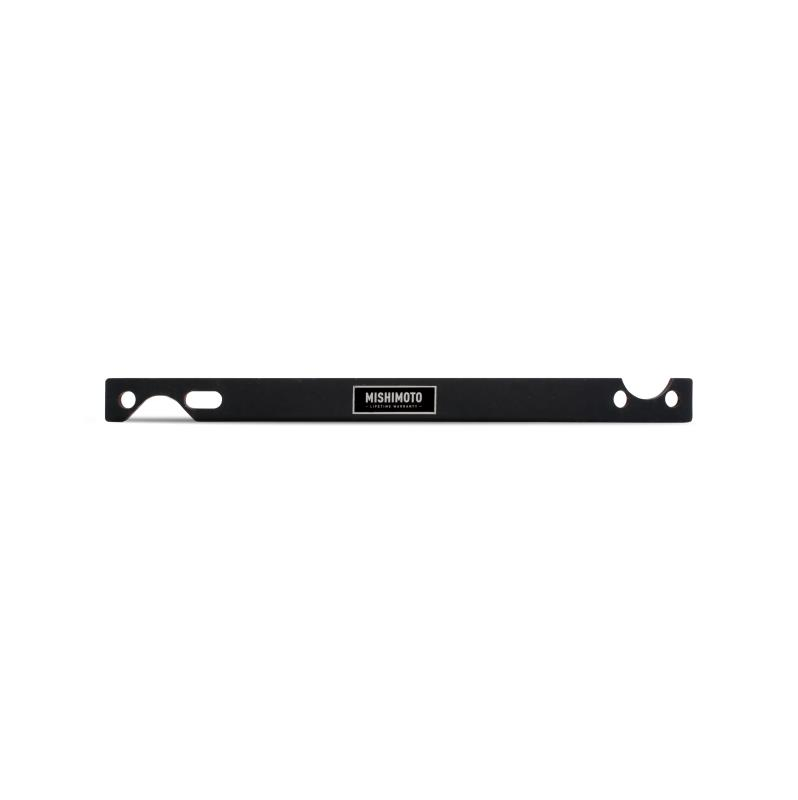

  • Includes fan tool for clutch fan removal
  • 1/8" NPT port for easy installation of sensors

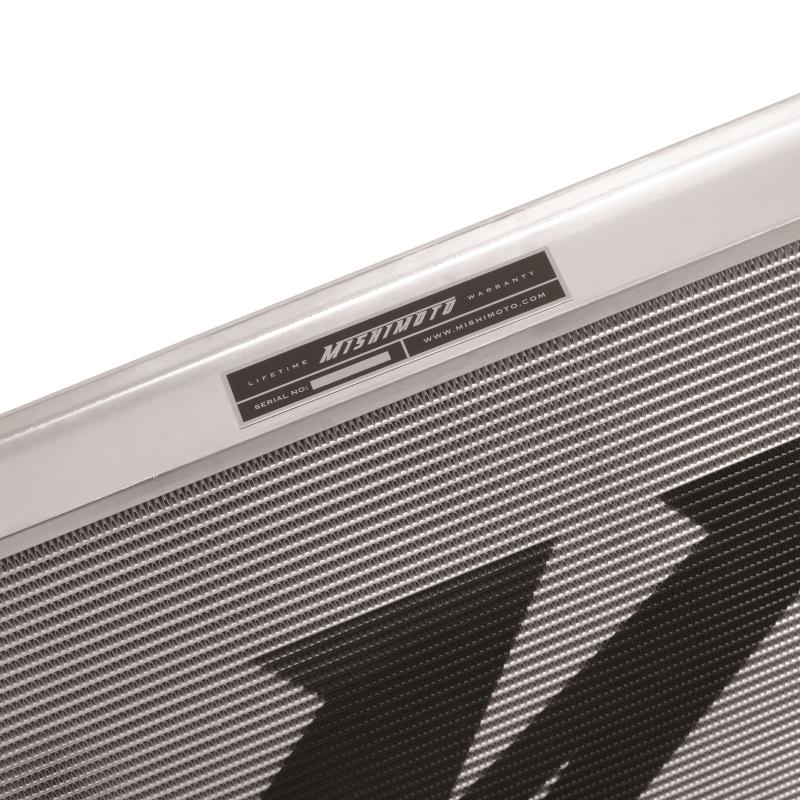

  • Mishimoto Lifetime Warranty

Specifications

  • Material: Aluminium
  • Chassis Codes: E46
  • Engine Codes: S54
  • Overall Height: 69.6cm
  • Overall Length: 43.18cm
  • Tank Wall Thickness: 0.20cm
  • Outlet: Quick Disconnect
  • Rows: 2
  • Inlet: Quick Disconnect
  • Coolant Capacity: 2.51
  • Dual Pass: False
  • Overall Width: 11.18cm
  • Core Length: 57.99cm
  • Core Height: 40.99cm
  • Core Size: 57.99cm x 40.99cm
  • Core Thickness: 4.83cm

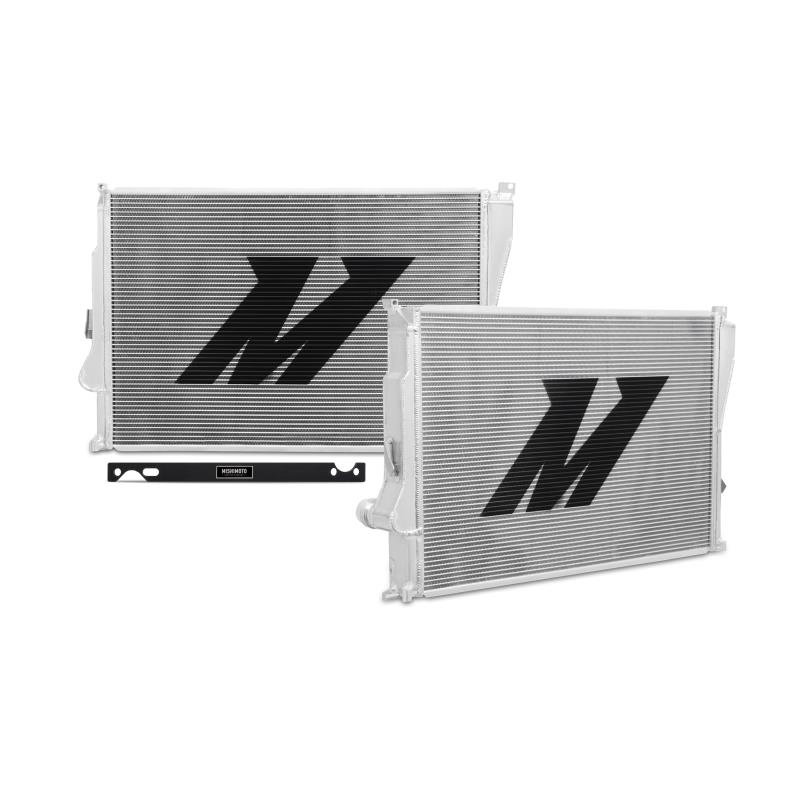

What's Included

  • Mishimoto Radiator
  • Fan Tool
  • (1) Black 1/8" NPT Plug
  • (5) M6 x 1.0 x 16mm Flange Hex Bolts
  • Mishimoto Lifetime Warranty

Compatibility

  • 2001–2006 BMW E46 M3
