Description

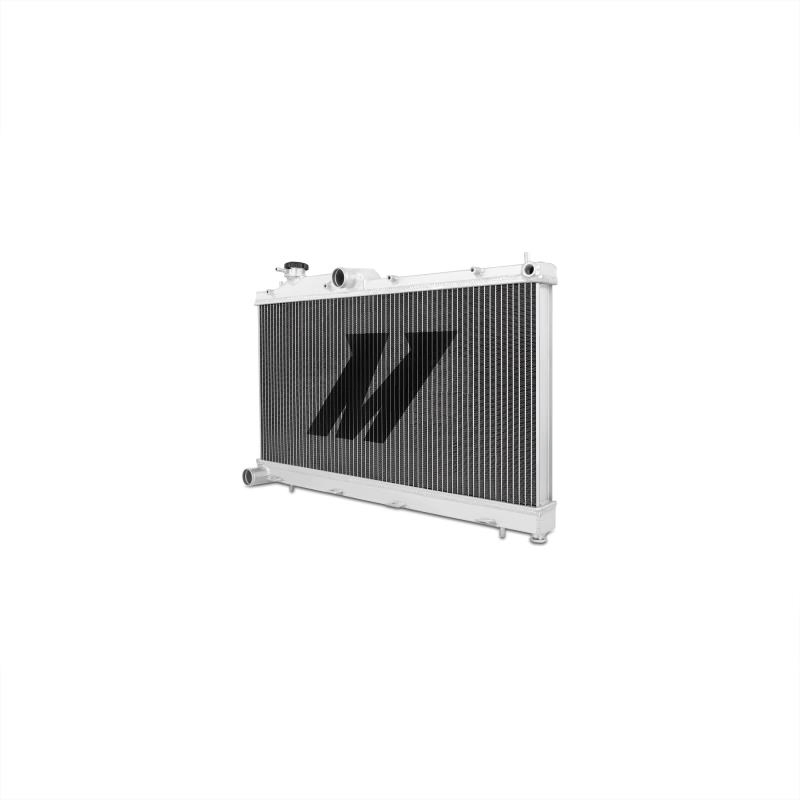

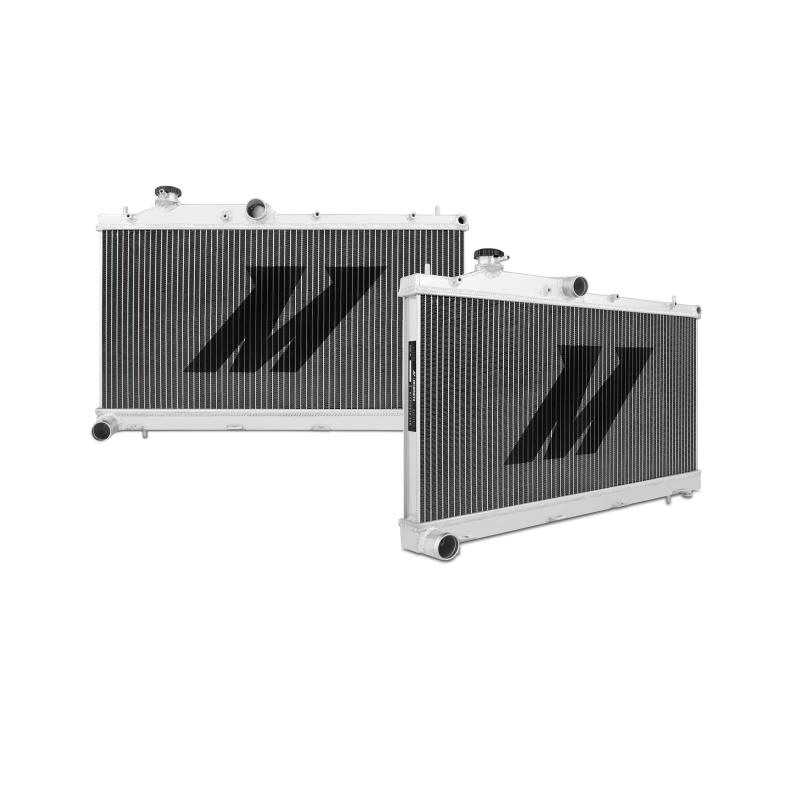

The Mishimoto performance aluminum radiator for the WRX and STI is designed and engineered to maximize cooling efficiency by up to 30%, boost engine functions, and most importantly protect your car from overheating. It is the ideal upgrade to the stock Subaru radiator whether you drive your vehicle daily or take it for track runs. The Mishimoto WRX radiator features a lightweight dual core, 100% brazed aluminum, and polished end tanks, enhancing the overall performance of your engine. Every Mishimoto aluminum radiator is a direct stock fit making installation effortless with no cutting or modification required. All Mishimoto radiators come with a Mishimoto 1.3 Bar High-Pressure Radiator Cap and the Mishimoto Lifetime Warranty, including accident protection.
  • Direct fit for the 2008–2014 Subaru WRX and 2008–2015 Subaru STi
  • Full aluminum construction including durable, TIG-welded end tanks
  • Features a two-row, 1.65" thick, efficient brazed aluminum core
  • Increased fluid capacity and optimal heat dissipation
  • Provides efficient temperature reduction for use on the street, track, rallycross, or autocross course

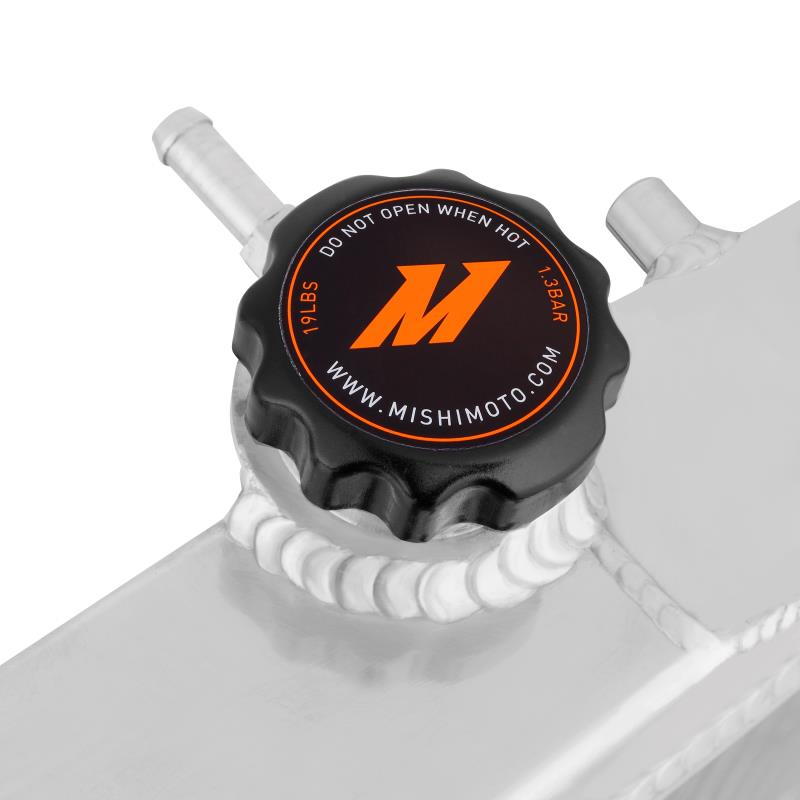

  • Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
  • Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system

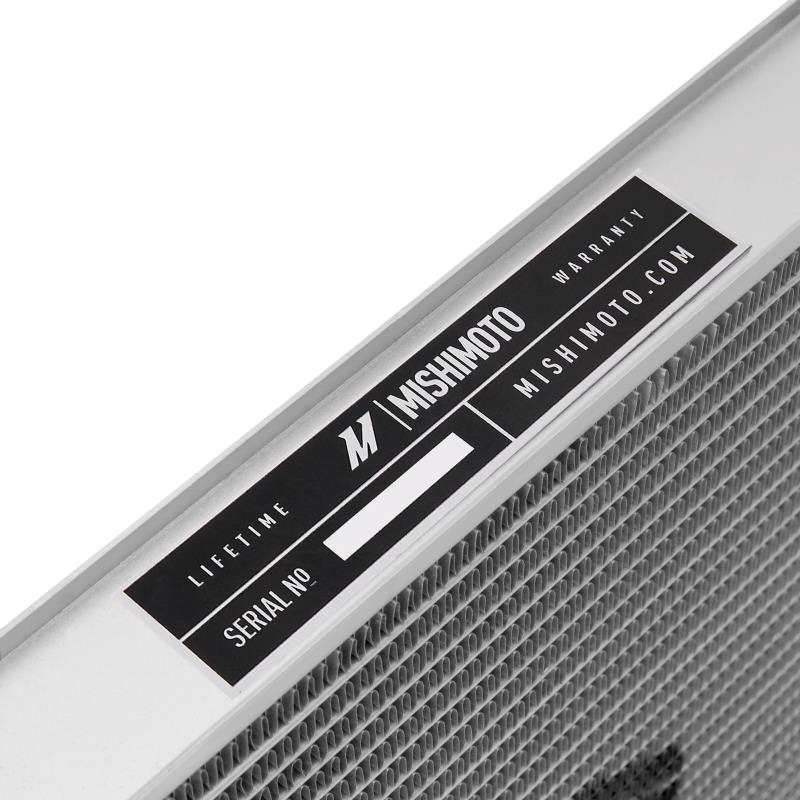

  • Mishimoto Lifetime Warranty

Specifications

  • Material - Aluminum
  • Chassis Codes - GE / GH
  • Engine Codes - EJ255 / EJ257
  • Overall Height - 28"
  • DPI - 13091/13093
  • Drain Plug Length - 0.047"
  • Drain Plug Thread Size - (M16) .06
  • Overall Length - 21.8"
  • Tank Wall Thickness - 0.08"
  • Outlet - 1.54"
  • Rows - 2
  • Inlet - 1.54"
  • Coolant Capacity - 2.21
  • Dual Pass - No
  • Overall Width - 2.15"
  • Core Length - 13.39"
  • Core Heigh - t27.08"
  • Core Size - 13.39" x 27.08"
  • Core Thickness - 1.65"
  • Fill Neck - 1.25"

What's Included

  • Mishimoto Radiator
  • Mishimoto Radiator Cap
  • Overflow Nipples - 2
  • Magnetic Drain Plug
  • Mishimoto Lifetime Warranty

Compatibility

  • 2005 - 2008 Subaru Legacy GT
  • 2005 Subaru Legacy GT Limited
  • 2007 - 2009 Subaru Legacy GT Limited
  • 2005 - 2008 Subaru Outback XT
  • 2005 - 2009 Subaru Outback XT Limited
  • 2006 - 2009 Subaru Legacy GT spec.B
  • 2008 - 2014 Subaru Impreza WRX
  • 2008 - 2014 Subaru Impreza WRX STI
  • 2008 Subaru Outback Base
  • 2009 Subaru Forester XT
  • 2009 - 2010 Subaru Forester XT Limited
  • 2012 - 2013 Subaru Forester XT Limited
  • 2009 - 2014 Subaru Impreza WRX Premium
  • 2009 Subaru Legacy Base
  • 2010 - 2012 Subaru Forester XT Sports
  • 2010 Subaru Impreza WRX GT
  • 2010 - 2014 Subaru Impreza WRX Limited
  • 2010 Subaru Impreza WRX SE
  • 2010 Subaru Impreza WRX STI Special Edition
  • 2011 - 2013 Subaru Forester XT Touring
  • 2011 - 2014 Subaru Impreza WRX STI Limited
  • 2012 - 2014 Subaru Impreza Base
  • 2012 - 2014 Subaru WRX Base
  • 2012 - 2014 Subaru WRX STI
  • 2013 - 2014 Subaru WRX Limited
  • 2013 - 2021 Subaru WRX STI Base
  • 2013 - 2014 Subaru WRX STI Sport-tech
  • 2017 - 2021 Subaru WRX STI Sport-tech
  • 2014 Subaru WRX SE
  • 2014 Subaru WRX STI Tsurugi Edition
  • 2015 Subaru WRX STI Launch Edition
  • 2015 - 2021 Subaru WRX STI Limited
  • 2016 Subaru WRX STI Series.HyperBlue
  • 2017 - 2021 Subaru WRX STI Sport
  • 2018 - 2021 Subaru WRX STI STI
  • 2018 Subaru WRX STI Type RA
  • 2019 Subaru WRX STI S209
  • 2020 Subaru WRX STI Kanrai Edition
  • 2010 - 2013 Subaru Forester BASE
  • 2010 - 2011 Subaru Impreza BASE
The Mishimoto performance aluminum radiator for the WRX and STI is designed and engineered to maximize cooling efficiency by up to 30%, boost engine functions, and most importantly protect your car from overheating. It is the ideal upgrade to the stock Subaru radiator whether you drive your vehicle daily or take it for track runs. The Mishimoto WRX radiator features a lightweight dual core, 100% brazed aluminum, and polished end tanks, enhancing the overall performance of your engine. Every Mishimoto aluminum radiator is a direct stock fit making installation effortless with no cutting or modification required. All Mishimoto radiators come with a Mishimoto 1.3 Bar High-Pressure Radiator Cap and the Mishimoto Lifetime Warranty, including accident protection.
  • Direct fit for the 2008–2014 Subaru WRX and 2008–2015 Subaru STi
  • Full aluminum construction including durable, TIG-welded end tanks
  • Features a two-row, 1.65" thick, efficient brazed aluminum core
  • Increased fluid capacity and optimal heat dissipation
  • Provides efficient temperature reduction for use on the street, track, rallycross, or autocross course
  • Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
  • Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
  • Mishimoto Lifetime Warranty
  • Material - Aluminum
  • Chassis Codes - GE / GH
  • Engine Codes - EJ255 / EJ257
  • Overall Height - 28"
  • DPI - 13091/13093
  • Drain Plug Length - 0.047"
  • Drain Plug Thread Size - (M16) .06
  • Overall Length - 21.8"
  • Tank Wall Thickness - 0.08"
  • Outlet - 1.54"
  • Rows - 2
  • Inlet - 1.54"
  • Coolant Capacity - 2.21
  • Dual Pass - No
  • Overall Width - 2.15"
  • Core Length - 13.39"
  • Core Heigh - t27.08"
  • Core Size - 13.39" x 27.08"
  • Core Thickness - 1.65"
  • Fill Neck - 1.25"
  • Mishimoto Radiator
  • Mishimoto Radiator Cap
  • Overflow Nipples - 2
  • Magnetic Drain Plug
  • Mishimoto Lifetime Warranty
  • 2005 - 2008 Subaru Legacy GT
  • 2005 Subaru Legacy GT Limited
  • 2007 - 2009 Subaru Legacy GT Limited
  • 2005 - 2008 Subaru Outback XT
  • 2005 - 2009 Subaru Outback XT Limited
  • 2006 - 2009 Subaru Legacy GT spec.B
  • 2008 - 2014 Subaru Impreza WRX
  • 2008 - 2014 Subaru Impreza WRX STI
  • 2008 Subaru Outback Base
  • 2009 Subaru Forester XT
  • 2009 - 2010 Subaru Forester XT Limited
  • 2012 - 2013 Subaru Forester XT Limited
  • 2009 - 2014 Subaru Impreza WRX Premium
  • 2009 Subaru Legacy Base
  • 2010 - 2012 Subaru Forester XT Sports
  • 2010 Subaru Impreza WRX GT
  • 2010 - 2014 Subaru Impreza WRX Limited
  • 2010 Subaru Impreza WRX SE
  • 2010 Subaru Impreza WRX STI Special Edition
  • 2011 - 2013 Subaru Forester XT Touring
  • 2011 - 2014 Subaru Impreza WRX STI Limited
  • 2012 - 2014 Subaru Impreza Base
  • 2012 - 2014 Subaru WRX Base
  • 2012 - 2014 Subaru WRX STI
  • 2013 - 2014 Subaru WRX Limited
  • 2013 - 2021 Subaru WRX STI Base
  • 2013 - 2014 Subaru WRX STI Sport-tech
  • 2017 - 2021 Subaru WRX STI Sport-tech
  • 2014 Subaru WRX SE
  • 2014 Subaru WRX STI Tsurugi Edition
  • 2015 Subaru WRX STI Launch Edition
  • 2015 - 2021 Subaru WRX STI Limited
  • 2016 Subaru WRX STI Series.HyperBlue
  • 2017 - 2021 Subaru WRX STI Sport
  • 2018 - 2021 Subaru WRX STI STI
  • 2018 Subaru WRX STI Type RA
  • 2019 Subaru WRX STI S209
  • 2020 Subaru WRX STI Kanrai Edition
  • 2010 - 2013 Subaru Forester BASE
  • 2010 - 2011 Subaru Impreza BASE
