Description

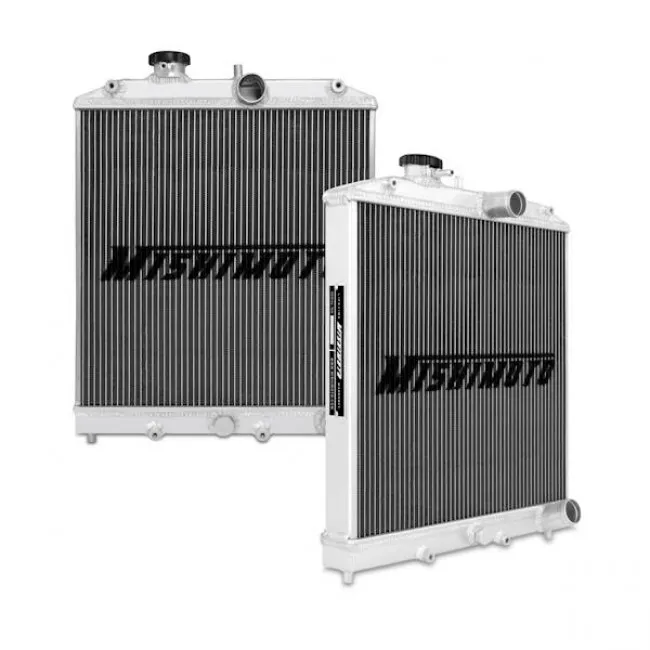

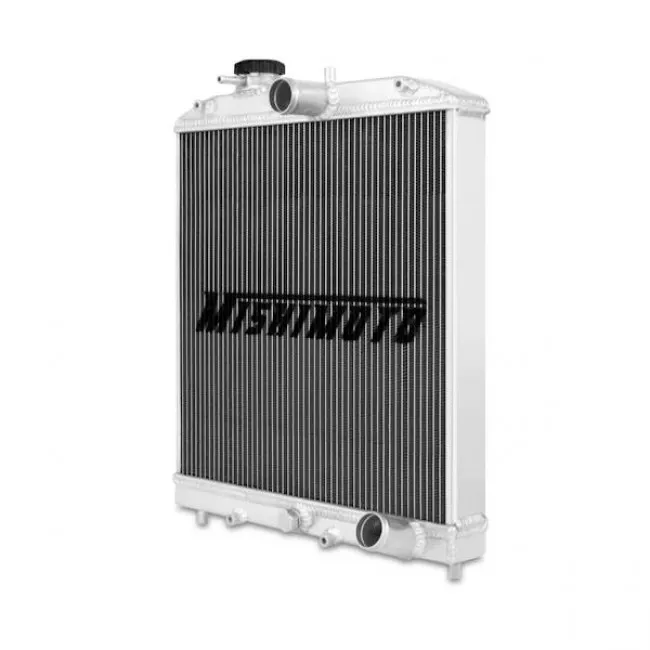

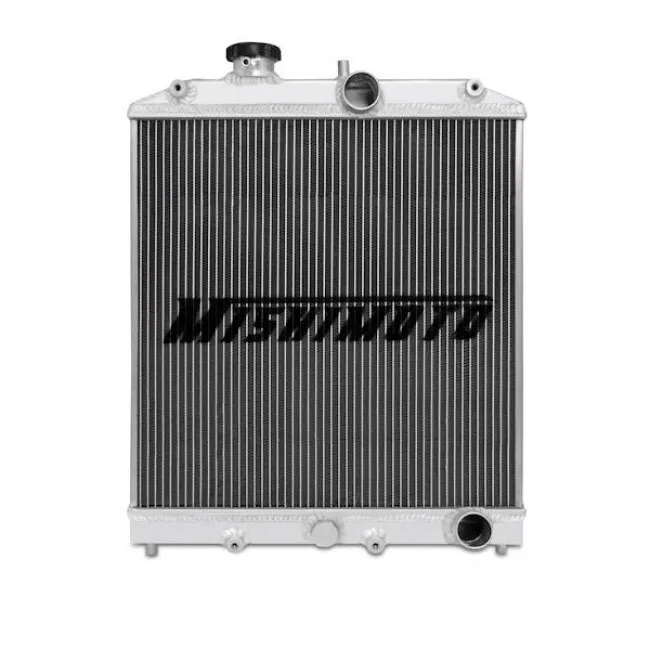

A high-performance Civic demands a cooling system that can keep up on the street and the track. For applications requiring the most efficient heat exchanger, the Mishimoto X-Line Honda Civic Performance Aluminum Radiator provides three cooling rows packaged in a massive 2-inch thick core. The three-row design provides additional surface contact points for higher efficiency and lower temperatures. To provide additional cooling performance this radiator is constructed using a 100% brazed aluminum core with TIG-welded aluminum end tanks for superior heat dissipation, reliability, and strength. This performance radiator includes a Mishimoto 1.3 Bar High-Pressure Radiator Cap that effectively raises the boiling point of coolant to create a safer and more efficient system, perfect for your time attack EG or all-motor EK. The Mishimoto Honda Civic X-line aluminum radiator features a compact yet highly efficient design, making it perfect for custom applications where space constraints limit the use of traditionally sized aluminum radiators. Despite featuring a drastic increase in core size compared to stock, this aluminum radiator is a direct fit for the 1992–2000 Honda Civic and requires no modification for installation. As with all our aluminum radiators, this product includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.

  • Premium radiator has 3-row core for improved strength and reliability
  • 16% thinner-than-stock tubes allow for more surface contact, increasing cooling efficiency
  • Greater density of rows for higher cooling capacity.
  • More contact points for additional heat transfer
  • 3-row design creates more air turbulence, maximizing cooling efficiency
  • Includes magnetic drain plug
  • Includes a 1.3 Bar High-Pressure Radiator Cap
  • Mishimoto Lifetime Warranty



TECH INFO:

  • Material - Aluminum
  • Overall Height - 18.5"
  • DPI - 1290
  • Drain Plug Length - 0.047"
  • Drain Plug Thread Size - (M16) .06
  • Overall Length - 14.6"
  • Fill Neck Thickness - 0.12"
  • Tank Wall Thickness - 0.08"
  • Outlet - 1.26"
  • Rows - 3
  • Inlet- 1.26"
  • Dual Pass - No
  • Overall Width - 2.5"
  • Core Length - 13.78"
  • Core Height - 14.09"
  • Core Size - 13.78" x 14.09"
  • Core Thickness - 2"
  • Fill Neck - 1.22"
  • Note - This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit.



Fits:

  • 1992-2000 Honda Civic (All)
  • 1993-1997 Honda Civic Del Sol

Chassis Codes:

  • EG1
  • EH6
  • EG2
  • EH2
  • EH3
  • EH9
  • EJ1
  • EJ2
  • EJ6
  • EJ7
  • EJ8
  • EM1

Engine Codes:

  • D15b1
  • D15b7
  • D15b8
  • D15z1
  • D16z6
  • D16y5
  • D16y7D

Specifications

Compatibility

  • 1992 - 2000 Honda Civic
  • 2013 - 2019 Ford Focus (Gen 3)

A high-performance Civic demands a cooling system that can keep up on the street and the track. For applications requiring the most efficient heat exchanger, the Mishimoto X-Line Honda Civic Performance Aluminum Radiator provides three cooling rows packaged in a massive 2-inch thick core. The three-row design provides additional surface contact points for higher efficiency and lower temperatures. To provide additional cooling performance this radiator is constructed using a 100% brazed aluminum core with TIG-welded aluminum end tanks for superior heat dissipation, reliability, and strength. This performance radiator includes a Mishimoto 1.3 Bar High-Pressure Radiator Cap that effectively raises the boiling point of coolant to create a safer and more efficient system, perfect for your time attack EG or all-motor EK. The Mishimoto Honda Civic X-line aluminum radiator features a compact yet highly efficient design, making it perfect for custom applications where space constraints limit the use of traditionally sized aluminum radiators. Despite featuring a drastic increase in core size compared to stock, this aluminum radiator is a direct fit for the 1992–2000 Honda Civic and requires no modification for installation. As with all our aluminum radiators, this product includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.

  • Premium radiator has 3-row core for improved strength and reliability
  • 16% thinner-than-stock tubes allow for more surface contact, increasing cooling efficiency
  • Greater density of rows for higher cooling capacity.
  • More contact points for additional heat transfer
  • 3-row design creates more air turbulence, maximizing cooling efficiency
  • Includes magnetic drain plug
  • Includes a 1.3 Bar High-Pressure Radiator Cap
  • Mishimoto Lifetime Warranty



TECH INFO:

  • Material - Aluminum
  • Overall Height - 18.5"
  • DPI - 1290
  • Drain Plug Length - 0.047"
  • Drain Plug Thread Size - (M16) .06
  • Overall Length - 14.6"
  • Fill Neck Thickness - 0.12"
  • Tank Wall Thickness - 0.08"
  • Outlet - 1.26"
  • Rows - 3
  • Inlet- 1.26"
  • Dual Pass - No
  • Overall Width - 2.5"
  • Core Length - 13.78"
  • Core Height - 14.09"
  • Core Size - 13.78" x 14.09"
  • Core Thickness - 2"
  • Fill Neck - 1.22"
  • Note - This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit.



Fits:

  • 1992-2000 Honda Civic (All)
  • 1993-1997 Honda Civic Del Sol

Chassis Codes:

  • EG1
  • EH6
  • EG2
  • EH2
  • EH3
  • EH9
  • EJ1
  • EJ2
  • EJ6
  • EJ7
  • EJ8
  • EM1

Engine Codes:

  • D15b1
  • D15b7
  • D15b8
  • D15z1
  • D16z6
  • D16y5
  • D16y7D
  • 1992 - 2000 Honda Civic
  • 2013 - 2019 Ford Focus (Gen 3)
