Description

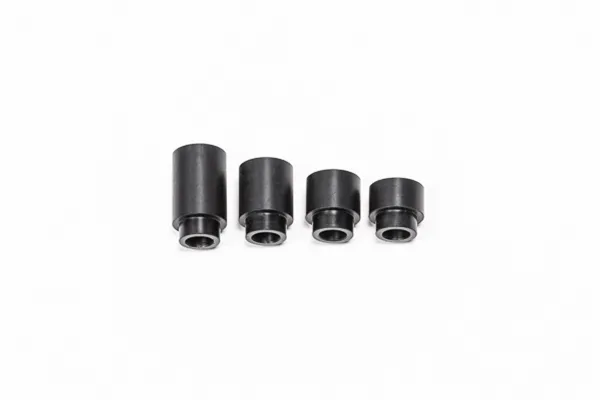

These press-fit spacers and washers are used with many Radium Engineering kits for thermally isolating the fuel rail from the engine.

NOTES:
  1. These are sold individually. Double check how many are required prior to purchasing.
  2. Spacer height measurement does not include press-fit insert length. Example: total height for 14-0482 Phenolic Insulating Spacer, 11mm is 17.3mm.
  3. Mounting hardware is not included. However, most bolts are common and can be sourced in local hardware stores.

Specifications

SPACER SPECIFICATIONS:
  • Material: Phenolic Resin
  • Outer Diameter: 19mm
  • Inner Hole Diameter: 9.6mm
  • Press-Fit Outer Diameter: 14.2mm
  • Press-Fit Insert Length: 6.4mm
  • Max Temperature: 265F
  • Tensile Strength: 17,000psi
WASHER SPECIFICATIONS:
  • Material: Phenolic Resin
  • Outer Diameter: 14.5mm
  • Inner Hole Diameter: 8.1mm
  • Washer Thickness: 1.3mm
  • Max Temperature: 265F

Compatibility

  • Universal Part
These press-fit spacers and washers are used with many Radium Engineering kits for thermally isolating the fuel rail from the engine.

NOTES:
  1. These are sold individually. Double check how many are required prior to purchasing.
  2. Spacer height measurement does not include press-fit insert length. Example: total height for 14-0482 Phenolic Insulating Spacer, 11mm is 17.3mm.
  3. Mounting hardware is not included. However, most bolts are common and can be sourced in local hardware stores.
SPACER SPECIFICATIONS:
  • Material: Phenolic Resin
  • Outer Diameter: 19mm
  • Inner Hole Diameter: 9.6mm
  • Press-Fit Outer Diameter: 14.2mm
  • Press-Fit Insert Length: 6.4mm
  • Max Temperature: 265F
  • Tensile Strength: 17,000psi
WASHER SPECIFICATIONS:
  • Material: Phenolic Resin
  • Outer Diameter: 14.5mm
  • Inner Hole Diameter: 8.1mm
  • Washer Thickness: 1.3mm
  • Max Temperature: 265F
  • Universal Part
