Description

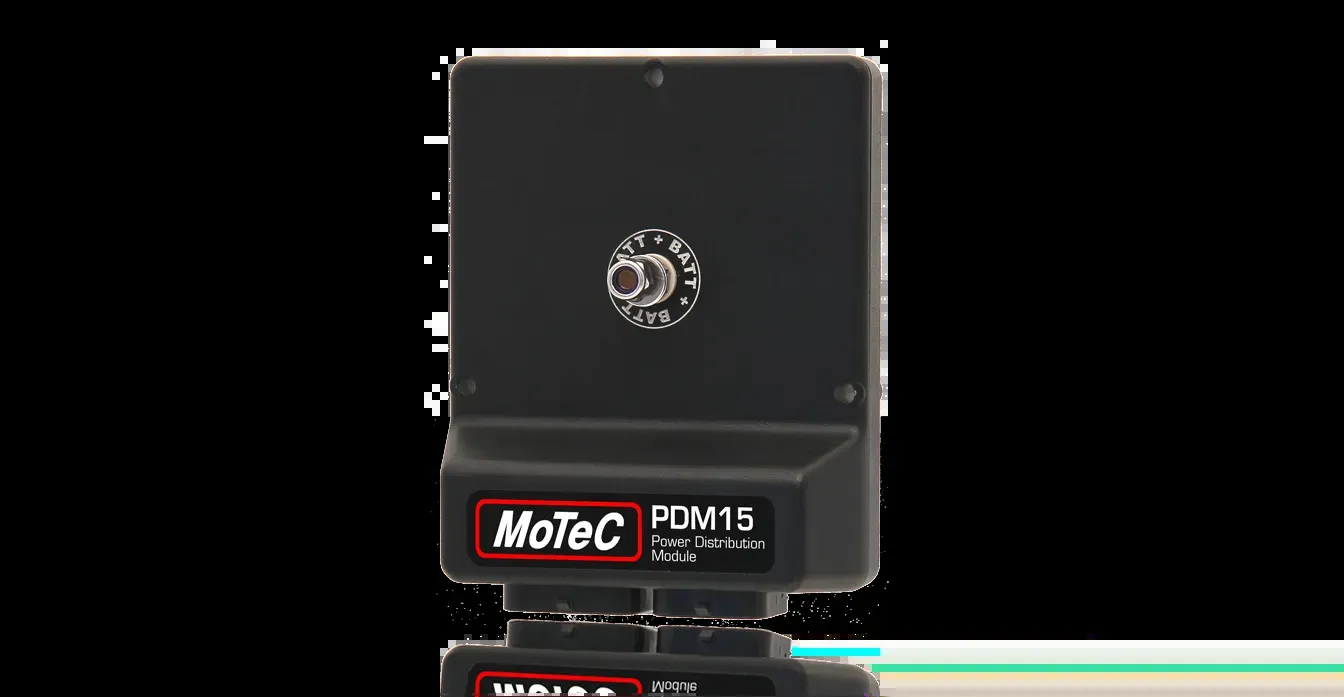

MoTeC’s 15 output Power Distribution Module (PDM15) is designed to provide electronically switched power to the various electrical systems in the vehicle such as motors, lights and solenoids, and electronic devices such as ECUs and data acquisition systems.

The module replaces conventional relays, fuses and circuit breakers, simplifying wiring and reducing weight while increasing reliability.

Specifications

Motec | 14104 | Power Distrubution

  • Each output is over-current, short circuit and thermal overload protected
  • Outputs programmable in 1 A steps
  • Outputs controllable via a combination of switch inputs, CAN messages and logic functions
  • Switch inputs ranging from 0 to 51 V, resolution 0.2 V
  • Performing up to 200 logic operations using operators like Flash, Pulse, Set/Reset, Hysteresis, Toggle, And, Or, Less than, Greater than, Not equal to, Equal to, True, False etc.
  • Performing functions such as flashing indicator lights and controlling thermofan and fuel pump
  • Using logic functions to selectively turn off systems during low battery voltage or engine starting, reducing drain on the battery
  • Providing full diagnostic information, including output currents and voltages, input voltages, and error status
  • Transmitting diagnostic information via CAN to a display or data logging device or monitoring directly on a PC

Outputs

  • 8 x 20 A outputs - 20 A continuous, 115 A transient (typical)


Inputs

  • 16 x Switch inputs

Communications

  • 1 x CAN

Diagnostic Information

  • Output current and voltages
  • Input voltages
  • Error status

Physical

  • 1 x 34 pin waterproof connector
  • 1 x 26 pin waterproof connector
  • 1 x M6 stud
  • Case size 108 x 128 x 39 mm
  • Weight 260 grams

Compatibility

  • Universal Parts
