Description

When installing an aftermarket carburettor, you will need new studs to bolt it down to the intake manifold, factory bolts might not work as the flange could be thicker or the original bolts could be damaged. Upgrading to studs can allow for easier install and removal of your carburettor. All studs feature a bullet nose radius on the ends to help locate the carburettor, this also allows the nuts to be easily installed without the risk of cross threading.

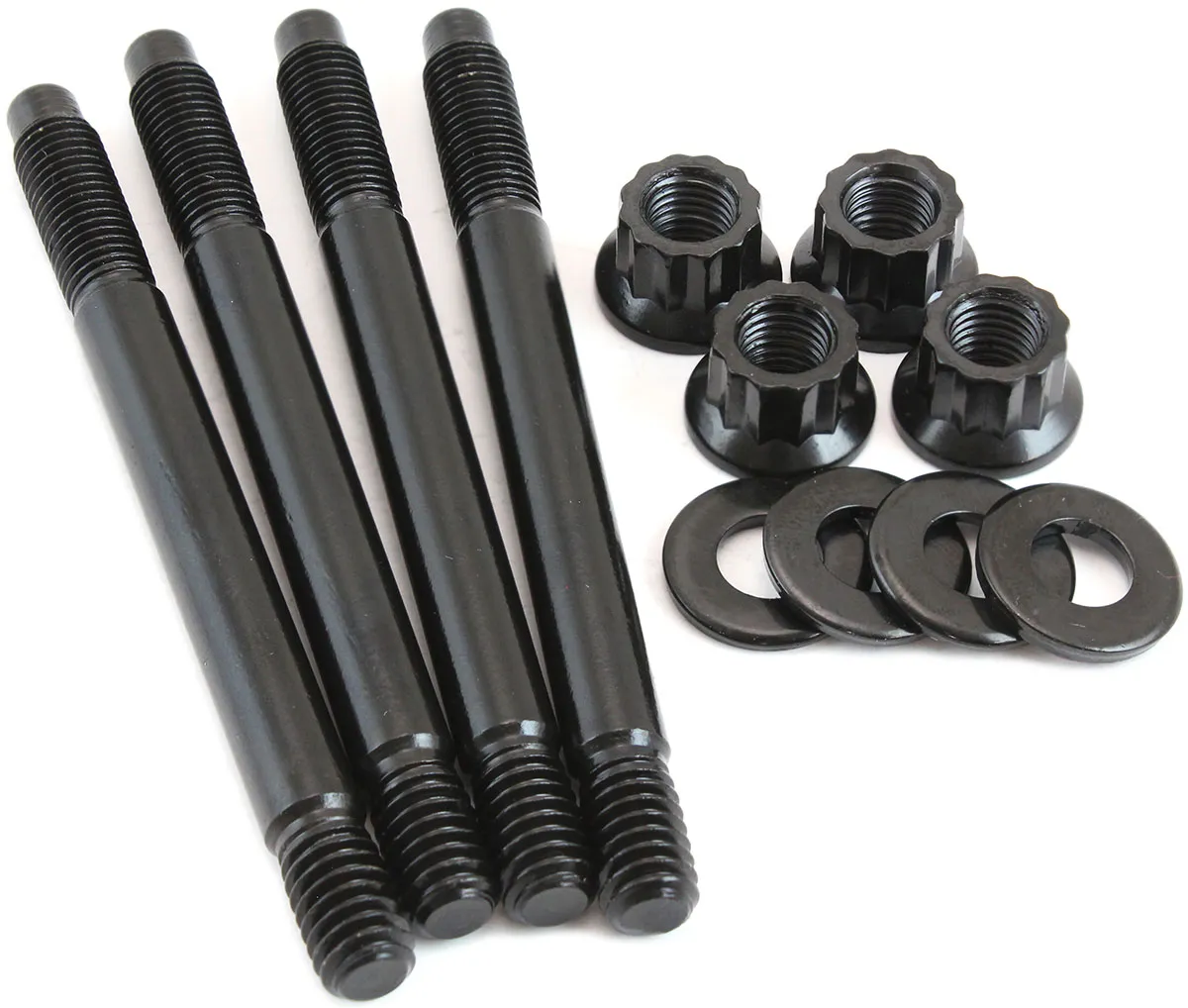

These Aeroflow carburettor studs are made from chrome moly 8740 material for high strength properties. They are coated in a black oxide for protection and long-lasting durability. Each stud features a compact 12-point head and each kit is available to suit a certain height spacer that is being used.

Specifications

4 x Studs

  • 1/4"-20 Thread
  • 93.95mm Overall Length
  • 54.40mm Shank Length
  • 8mm Shank Diameter
  • 12.65mm thread into Intake Manifold
  • 19.40mm thread on Nut End


4 x 12 Point Nuts

  • 1/4"-20 Thread
  • 15.75mm Outside Diameter
  • 7/16 Spanner Size


4 x Flat Washers

  • 16.90mm Outside Diameter
  • 8.3mm Inside Diameter
  • 2mm Thickness


10ft.lbs (13Nm) Torque Setting

When installing an aftermarket carburettor, you will need new studs to bolt it down to the intake manifold, factory bolts might not work as the flange could be thicker or the original bolts could be damaged. Upgrading to studs can allow for easier install and removal of your carburettor. All studs feature a bullet nose radius on the ends to help locate the carburettor, this also allows the nuts to be easily installed without the risk of cross threading.

These Aeroflow carburettor studs are made from chrome moly 8740 material for high strength properties. They are coated in a black oxide for protection and long-lasting durability. Each stud features a compact 12-point head and each kit is available to suit a certain height spacer that is being used.

4 x Studs

  • 1/4"-20 Thread
  • 93.95mm Overall Length
  • 54.40mm Shank Length
  • 8mm Shank Diameter
  • 12.65mm thread into Intake Manifold
  • 19.40mm thread on Nut End


4 x 12 Point Nuts

  • 1/4"-20 Thread
  • 15.75mm Outside Diameter
  • 7/16 Spanner Size


4 x Flat Washers

  • 16.90mm Outside Diameter
  • 8.3mm Inside Diameter
  • 2mm Thickness


10ft.lbs (13Nm) Torque Setting
