Description

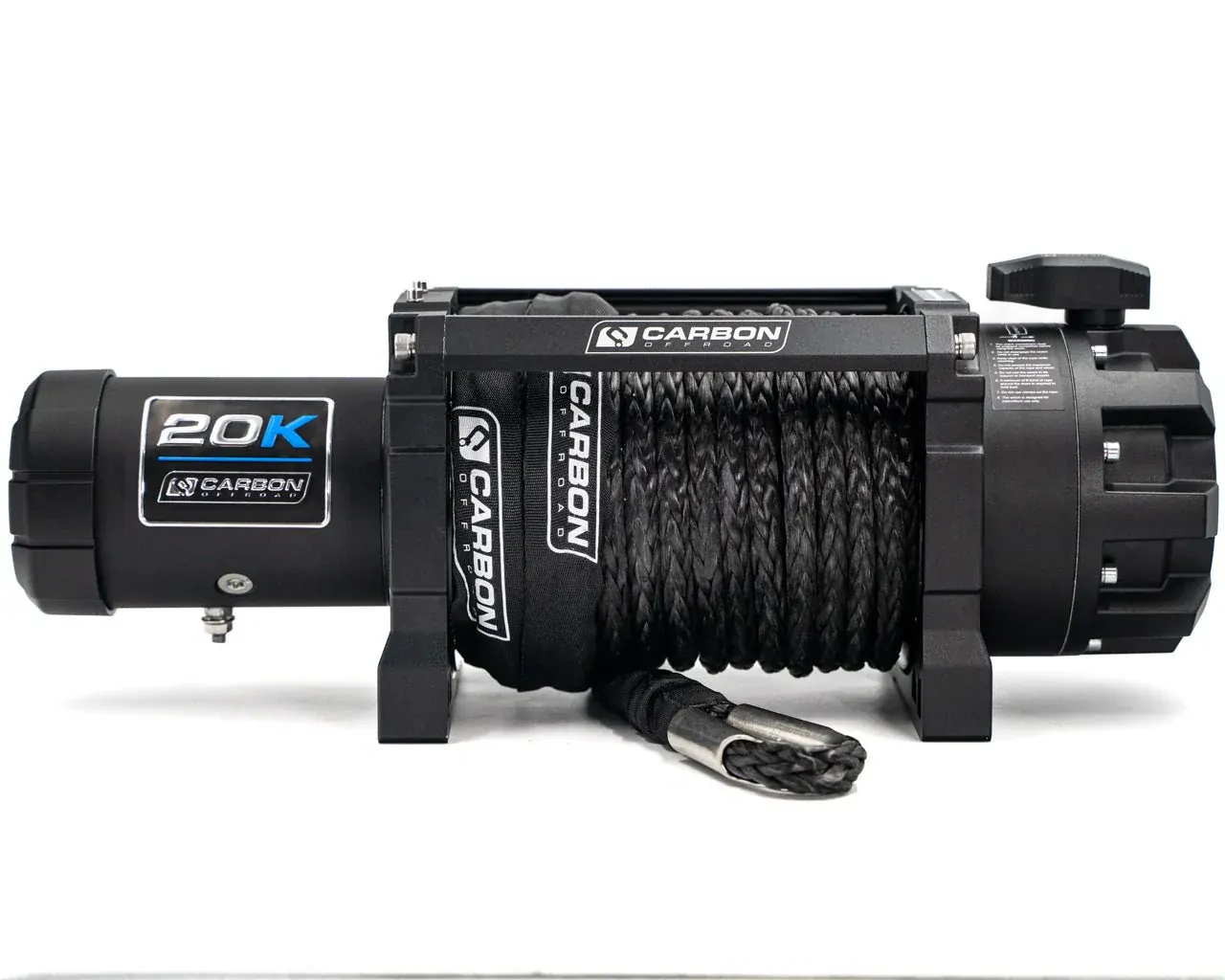

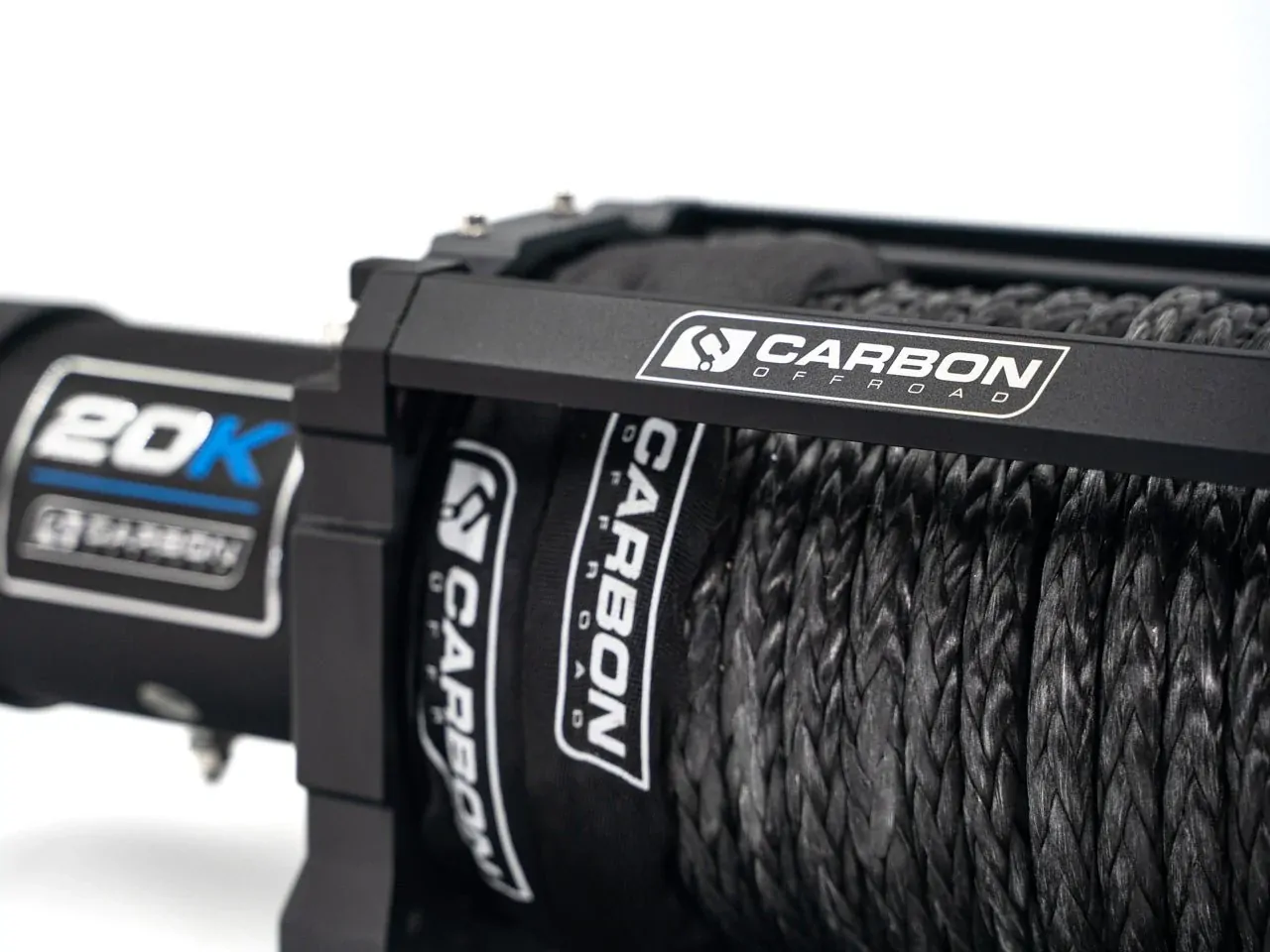

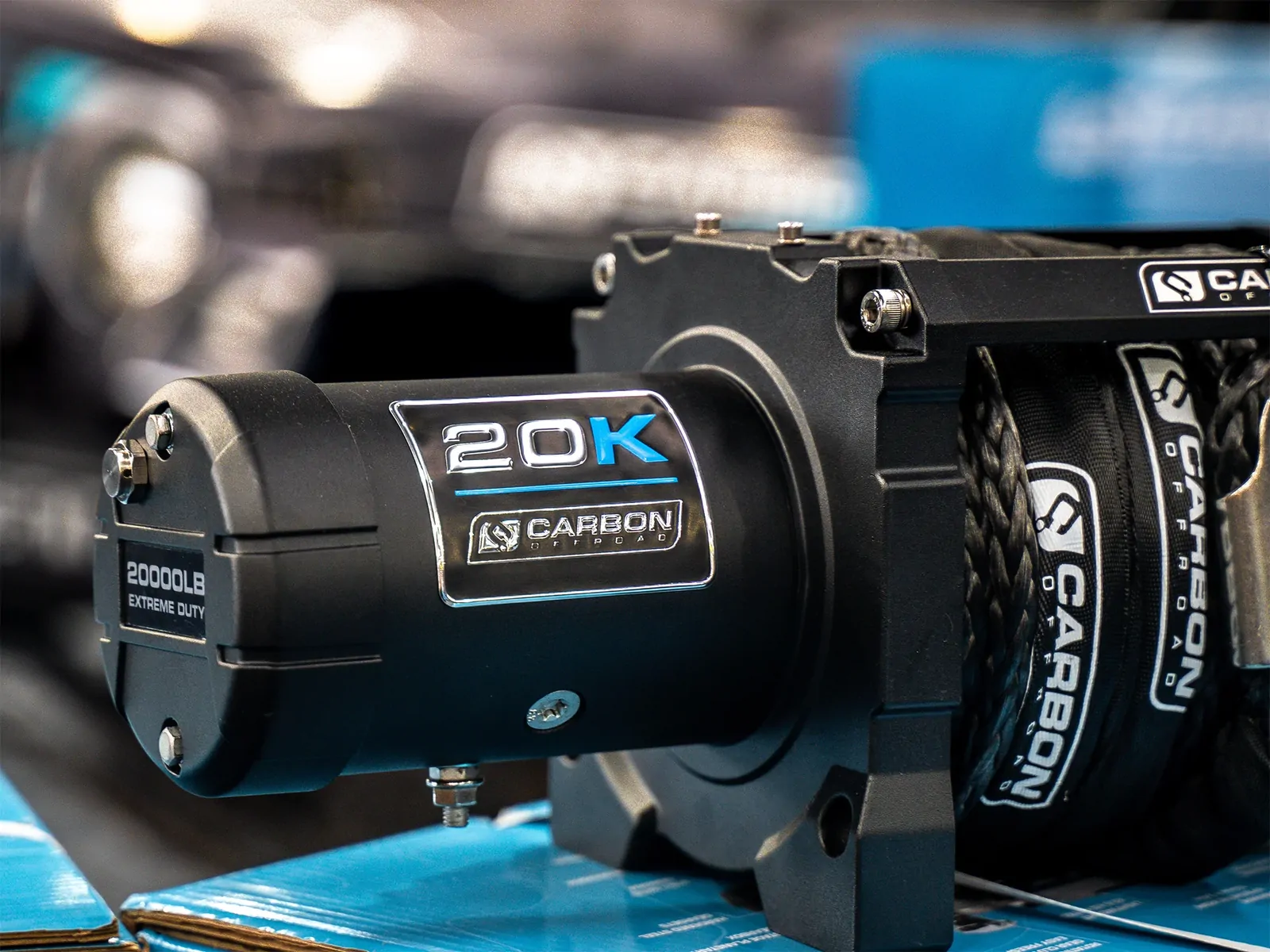

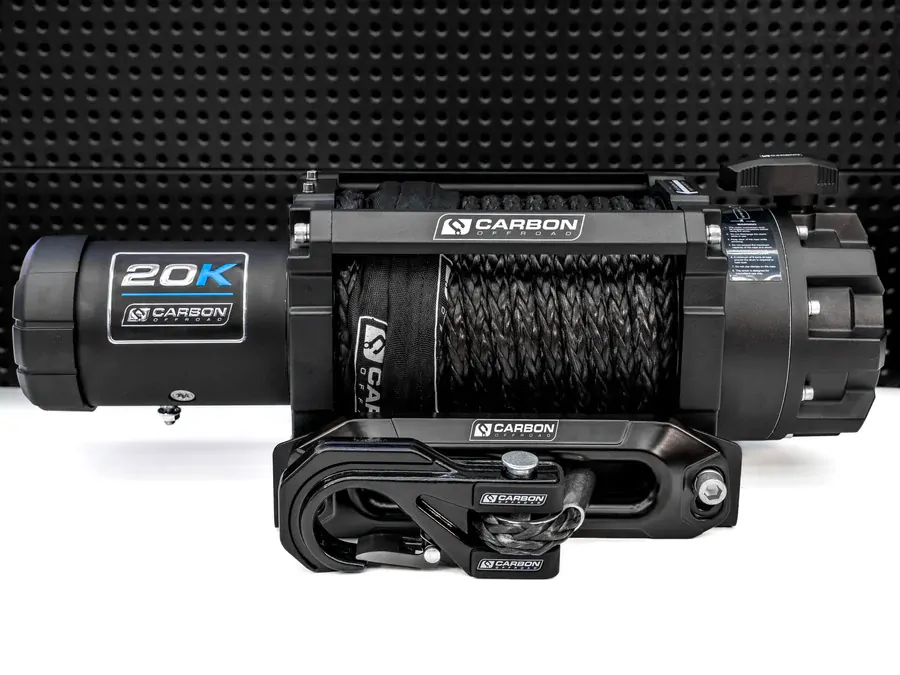

Carbon Offroad Scout Pro 20K Winch – A heavy-duty 37.2 kg truck winch delivering a massive 20,000 lb pull with a 7 HP motor, 3-stage planetary gearbox, automatic brake, and 600 A sealed solenoid. Supplied with wired and wireless remotes, it’s built tough for extreme offroad recovery

Specifications

  • Rated line pull: 20000 lbs, (9072kg) single-line
  • Motor: 12V DC 7 HP series wound motor (24V option available)
  • Remote Control: Wired with 3.6m lead
  • Wireless Remote Control: Included
  • Geartrain: 3-Stage Planetary
  • Gear Ratio: 345:1
  • Rotating Ring Gear
  • Brake: Automatic brake in the motor bracket
  • Fairlead: Carbon Offroad MEGAPRO Premium CNC billet type 3 hard anodised multi position fairlead
  • Lifetime Mechanical Warranty
  • 5 Year Electrical Warranty
  • 5 Year Water Ingress Protection Warranty
  • Synthetic Rope: 25m x 13mm diameter
  • Drum Diameter/Length: 88mm x 224mm
  • Mounting Bolt Pattern: 254mm x 114.3mm
  • Recommended Battery: 650 CCA minimum for winching
  • Winch Dimensions (L x W x H): 579 x 192 x 224mm
  • Winch weight with synthetic rope attached: 30kg
  • Winch weight including synthetic rope, control box complete with cables, mounting bolts & fairlead: 37kg

Compatibility

  • Universal Parts

Carbon Offroad Scout Pro 20K Winch – A heavy-duty 37.2 kg truck winch delivering a massive 20,000 lb pull with a 7 HP motor, 3-stage planetary gearbox, automatic brake, and 600 A sealed solenoid. Supplied with wired and wireless remotes, it’s built tough for extreme offroad recovery

  • Rated line pull: 20000 lbs, (9072kg) single-line
  • Motor: 12V DC 7 HP series wound motor (24V option available)
  • Remote Control: Wired with 3.6m lead
  • Wireless Remote Control: Included
  • Geartrain: 3-Stage Planetary
  • Gear Ratio: 345:1
  • Rotating Ring Gear
  • Brake: Automatic brake in the motor bracket
  • Fairlead: Carbon Offroad MEGAPRO Premium CNC billet type 3 hard anodised multi position fairlead
  • Lifetime Mechanical Warranty
  • 5 Year Electrical Warranty
  • 5 Year Water Ingress Protection Warranty
  • Synthetic Rope: 25m x 13mm diameter
  • Drum Diameter/Length: 88mm x 224mm
  • Mounting Bolt Pattern: 254mm x 114.3mm
  • Recommended Battery: 650 CCA minimum for winching
  • Winch Dimensions (L x W x H): 579 x 192 x 224mm
  • Winch weight with synthetic rope attached: 30kg
  • Winch weight including synthetic rope, control box complete with cables, mounting bolts & fairlead: 37kg
  • Universal Parts
