Description

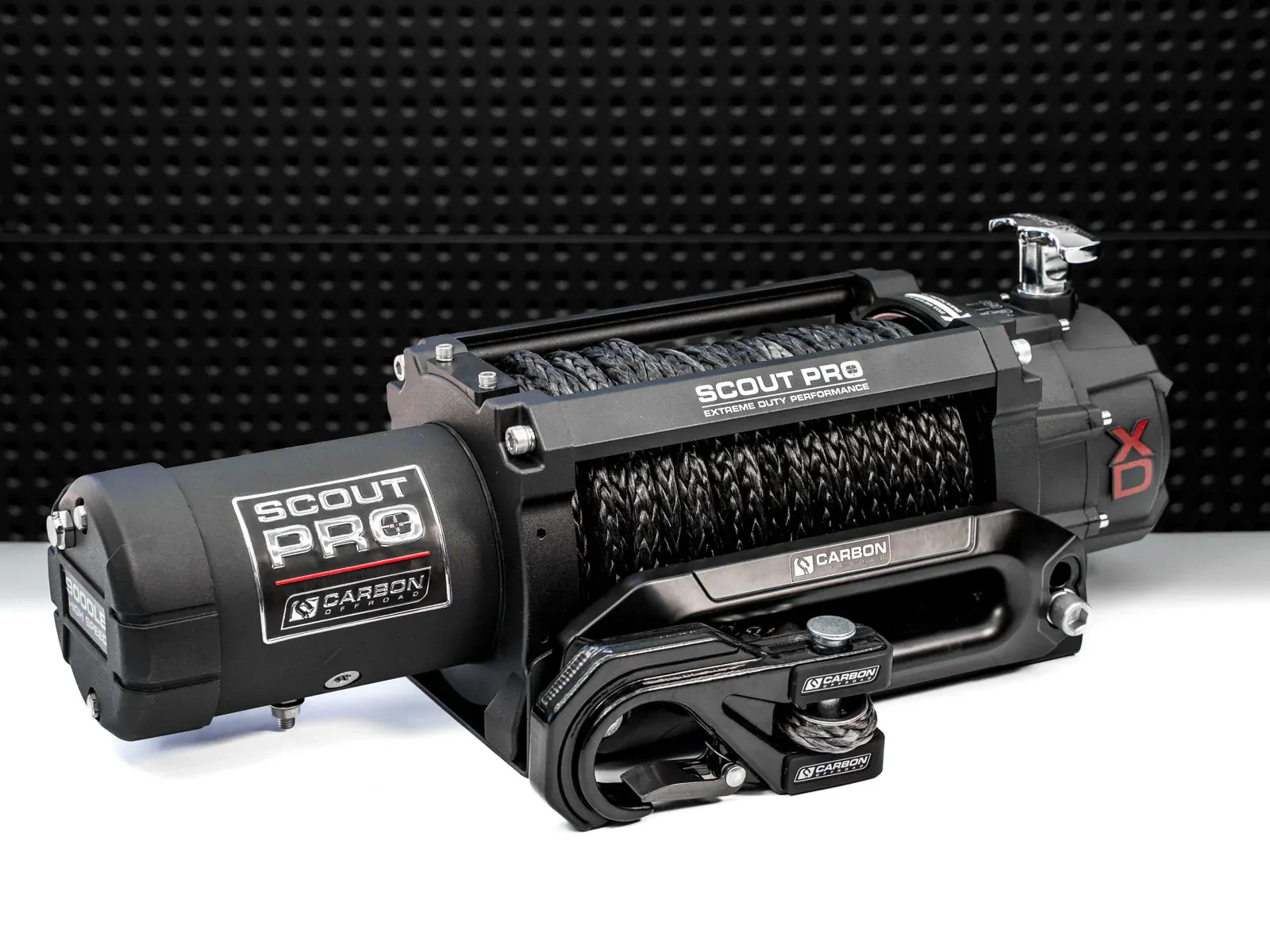

Carbon Offroad Scout Pro 15K Winch—15,000lb pulling power bridging 12K and truck-grade 20K units. Features a 7.0HP motor, 11mm UHMWPE rope, forged thimble, MegaPro hook, premium fairlead, and wired/wireless remotes. Built tough for heavy rigs and extreme off-road recoveries.

Specifications

  • Rated line pull: 15000 lbs, (6803kg) single-line
  • Motor: 12V DC 7 HP series wound motor (24V option available)
  • Remote Control: Wired with 3.6m lead
  • Wireless Remote Control: Included
  • Geartrain: 3-Stage Planetary
  • Gear Ratio: 218:1
  • Rotating Ring Gear
  • Brake: Automatic brake in the motor bracket
  • Fairlead: Carbon Offroad MEGAPRO Premium CNC billet type 3 hard anodised multi position fairlead
  • Lifetime Mechanical Warranty
  • 5 Year Electrical Warranty
  • 5 Year Water Ingress Protection Warranty

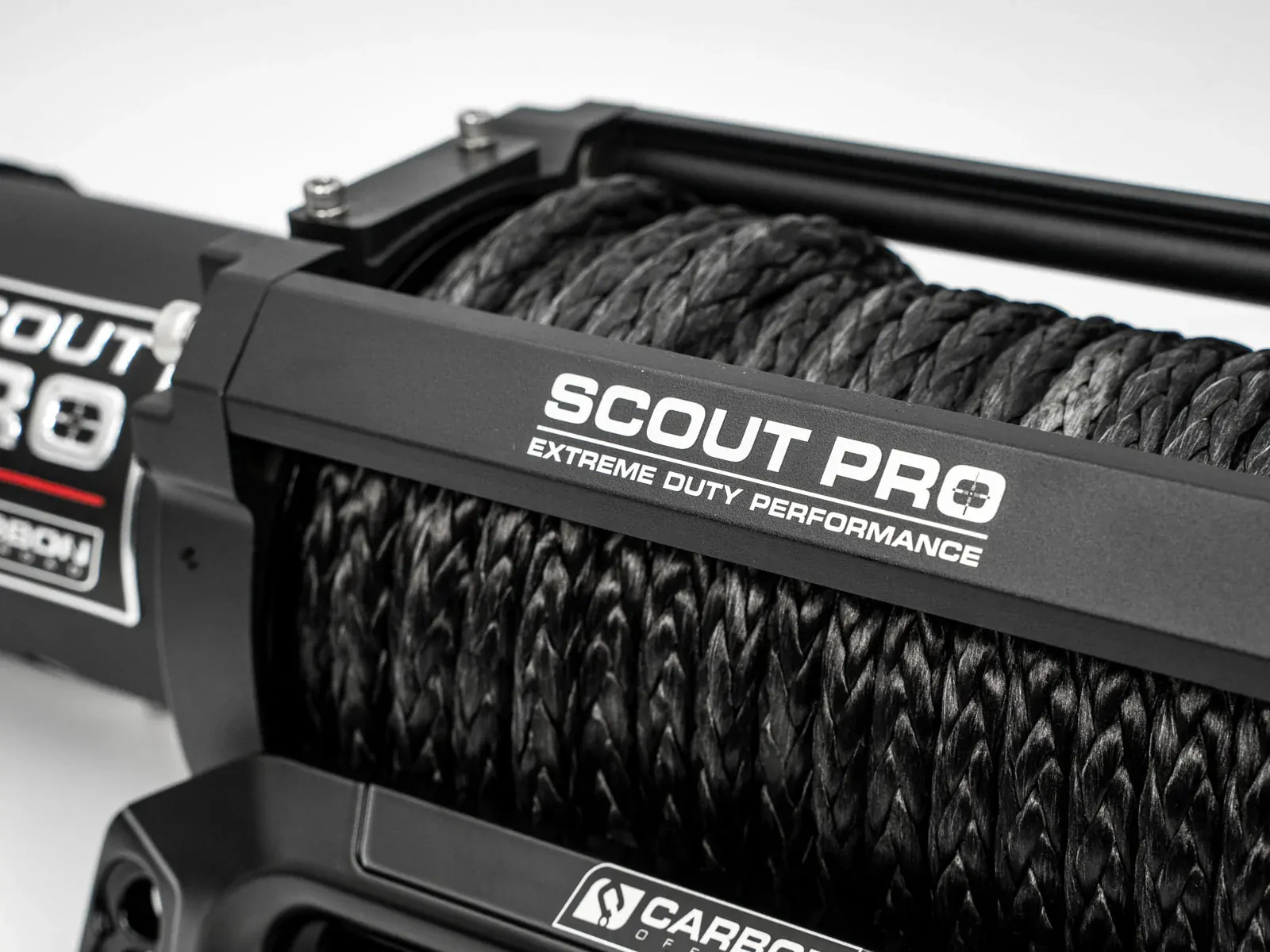

  • Synthetic Rope: 24m x 11mm diameter
  • Drum Diameter/Length: 63.5mm x 224mm
  • Mounting Bolt Pattern: 254mm x 114.3mm
  • Recommended Battery: 650 CCA minimum for winching
  • Winch Dimensions (L x W x H): 535 x 158 x 187mm
  • Winch weight including synthetic rope, control box complete with cables, mounting bolts & fairlead: 26.7

Compatibility

  • Universal Parts

Carbon Offroad Scout Pro 15K Winch—15,000lb pulling power bridging 12K and truck-grade 20K units. Features a 7.0HP motor, 11mm UHMWPE rope, forged thimble, MegaPro hook, premium fairlead, and wired/wireless remotes. Built tough for heavy rigs and extreme off-road recoveries.

  • Rated line pull: 15000 lbs, (6803kg) single-line
  • Motor: 12V DC 7 HP series wound motor (24V option available)
  • Remote Control: Wired with 3.6m lead
  • Wireless Remote Control: Included
  • Geartrain: 3-Stage Planetary
  • Gear Ratio: 218:1
  • Rotating Ring Gear
  • Brake: Automatic brake in the motor bracket
  • Fairlead: Carbon Offroad MEGAPRO Premium CNC billet type 3 hard anodised multi position fairlead
  • Lifetime Mechanical Warranty
  • 5 Year Electrical Warranty
  • 5 Year Water Ingress Protection Warranty
  • Synthetic Rope: 24m x 11mm diameter
  • Drum Diameter/Length: 63.5mm x 224mm
  • Mounting Bolt Pattern: 254mm x 114.3mm
  • Recommended Battery: 650 CCA minimum for winching
  • Winch Dimensions (L x W x H): 535 x 158 x 187mm
  • Winch weight including synthetic rope, control box complete with cables, mounting bolts & fairlead: 26.7
  • Universal Parts
