Description

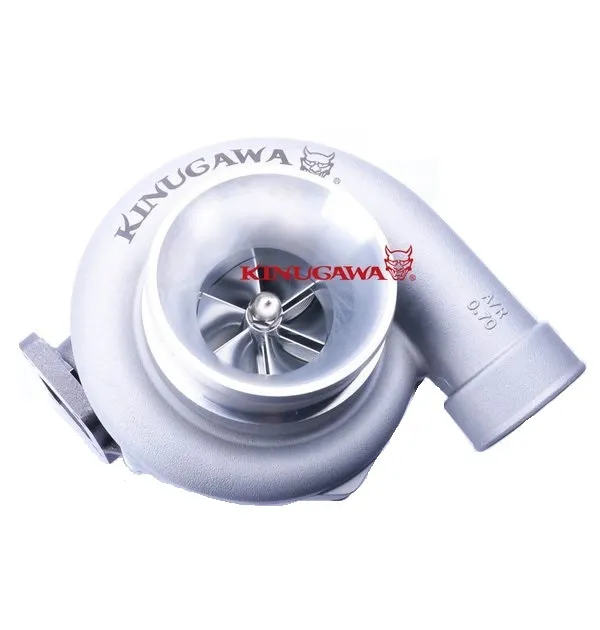

Big power without breaking the budget! The Kinugawa Billet Ball Bearing GT3582R Turbocharger is assembled with with a 4” Compressor Housing and a T3 externally gated turbine housing with your choice of either a V-Band or 4 Bolt Outlet. Full universal fitting kit is supplied to aid in installation, however additional components may be required for your particular vehicle fitment.

Specifications

  • A/R: 4 Bolt 1.05
  • Application: 2.0L~4.5L / 400~700 HP
  • Compressor Wheel:61.4 mm / 82.0 mm / Trim 56 (6+6 Billet Wheel with extended Tip)
  • Turbine Wheel: 62 mm / 68 mm / Trim 84
  • Compressor Housing Inlet OD: 4"� / 101.6 mm
  • Compressor Housing Outlet OD: 2.5"� / 64 mm
  • Compressor Housing A/R: .70
  • Turbine Inlet Flange: T3
  • Turbine Outlet V-band/4-Bolt
  • Turbine Housing A/R: .57 / .73 / .89 / 1.05
  • Wastegate: External
  • Turbo Situation: Brand New in box.
  • Bearing System: Ceramic Dual Ball Bearing
  • Cooling System: Oil & Water cooled

What's Included

Everything shown on picture is supplied, including:

  • 1 x 70cm Oil Feed Line Kit with 1mm Restrictor for turbo Oil Feed Side
  • 2 x 30cm Water Feed / Return Line Kit
  • 1 x Turbo Oil Return Pipe Kit
  • 1 x Turbine Inlet Gasket
  • 1 x Turbine Outlet Gasket
  • 1 x Turbine Outlet Adapter

Compatibility

  • Universal Fitment Only
