Description

Notes: 54mm OD - suits models with Active Yaw Control

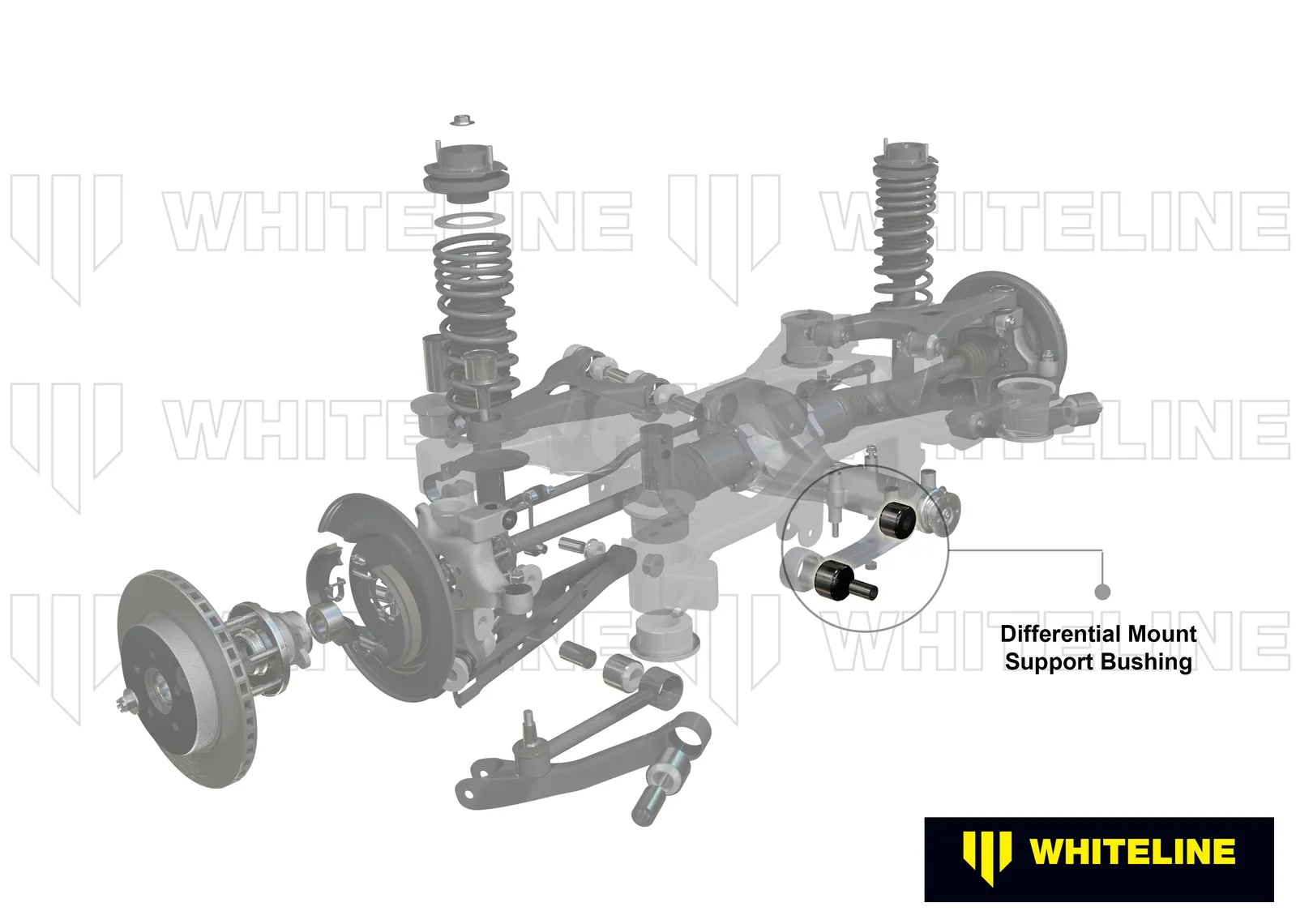

Whiteline's differential bushing solutions ensure pinion angles are maintained while delivering an improved gear shift resulting in reduced initial torque loss and greater power transfer to the wheels.

Features:

  • The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
  • Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
  • Internal grease reservoirs provide continual self-lubrication for optimum friction management.
  • Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
  • Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
  • This kit is covered by a 3 Year / 60,000kms warranty including parts and labour.

Specifications

Bush Type 1 1
Bush Qty 2 2
OD (A) 52.2 mm 54.3 mm
ID (B) 25 mm 25 mm
L (C) 24.1 mm 29.6 mm
FL (D) 7.5 mm 13 mm
FLOD (E) 63.4 mm 63.6 mm
C/Tube QTY 2 2
C/Tube Size 25.4x18.2x56 mm 25.4x18.2x56 mm
Similar Bushing Size







Bush Image

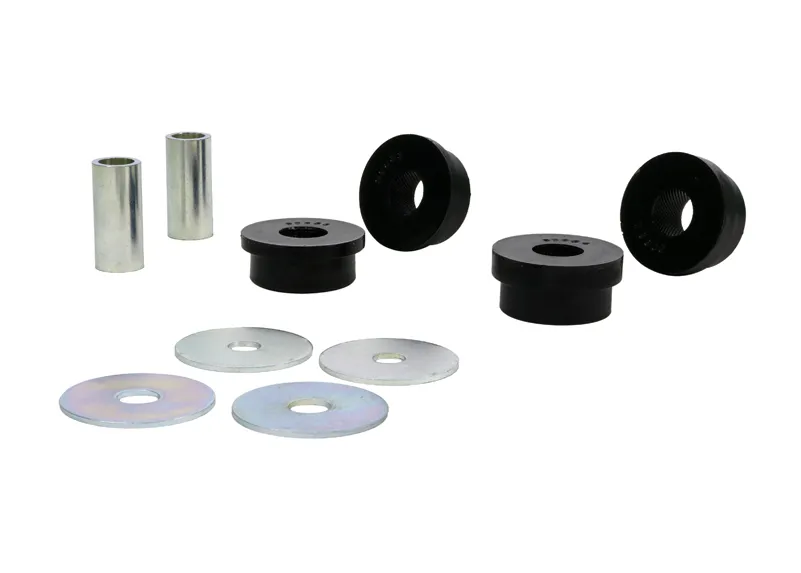

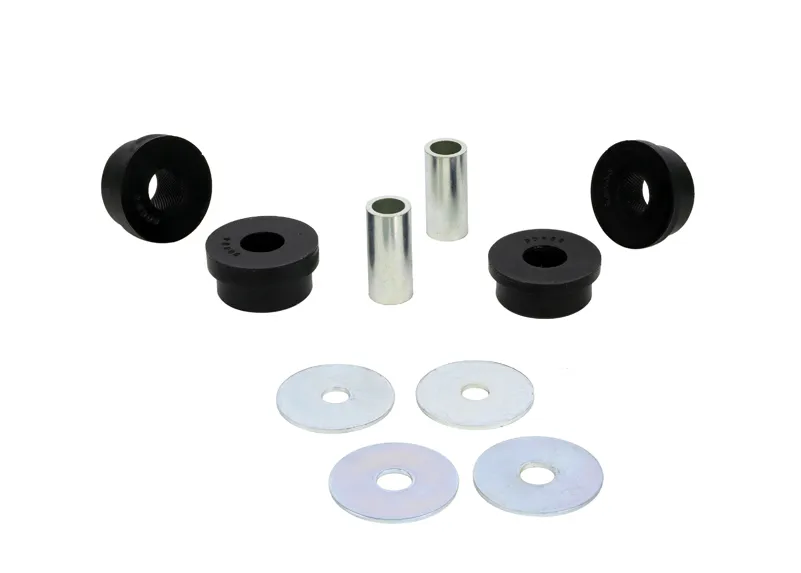

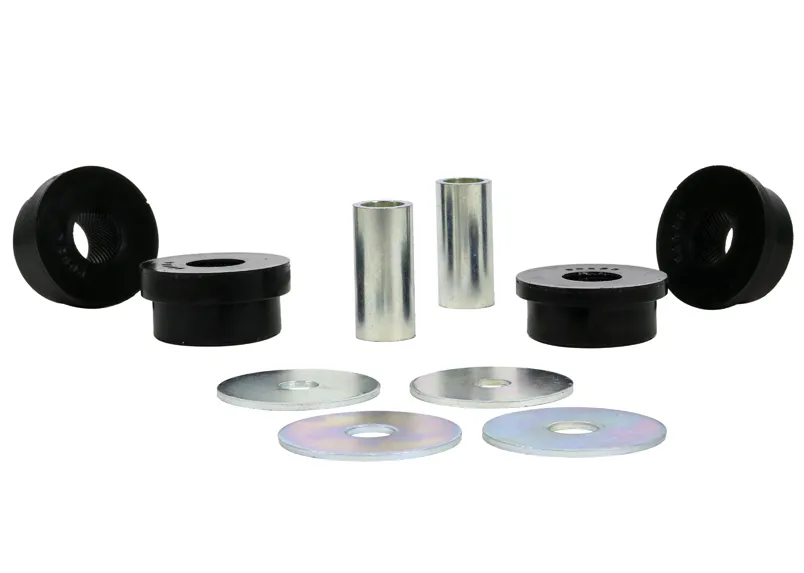

What's Included

  • 4 Bushings
  • 2 Tubes
  • 4 Washers
  • Grease

Compatibility

  • 1992-1996 MITSUBISHI LANCER, CC GSR
  • 1992-1996 MITSUBISHI LANCER, EVO 1, 2, 3
  • 1996-2001 MITSUBISHI LANCER, EVO 4, 5, 6
  • 2001-2007 MITSUBISHI LANCER, EVO 7, 8, 9

Notes: 54mm OD - suits models with Active Yaw Control

Whiteline's differential bushing solutions ensure pinion angles are maintained while delivering an improved gear shift resulting in reduced initial torque loss and greater power transfer to the wheels.

Features:

  • The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
  • Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
  • Internal grease reservoirs provide continual self-lubrication for optimum friction management.
  • Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
  • Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
  • This kit is covered by a 3 Year / 60,000kms warranty including parts and labour.
Bush Type 1 1
Bush Qty 2 2
OD (A) 52.2 mm 54.3 mm
ID (B) 25 mm 25 mm
L (C) 24.1 mm 29.6 mm
FL (D) 7.5 mm 13 mm
FLOD (E) 63.4 mm 63.6 mm
C/Tube QTY 2 2
C/Tube Size 25.4x18.2x56 mm 25.4x18.2x56 mm
Similar Bushing Size







Bush Image

  • 4 Bushings
  • 2 Tubes
  • 4 Washers
  • Grease
  • 1992-1996 MITSUBISHI LANCER, CC GSR
  • 1992-1996 MITSUBISHI LANCER, EVO 1, 2, 3
  • 1996-2001 MITSUBISHI LANCER, EVO 4, 5, 6
  • 2001-2007 MITSUBISHI LANCER, EVO 7, 8, 9
