Description

The HBA1224 alarm is used in a 12V or 24V automotive system. It monitors the handbrake switch and the doorframe switch* to provide audible and visual warning if the door is opened while the handbrake is not applied. Once the alarm starts, it stays latched on until the handbrake is applied (even if the door is closed again).

Three connector options available

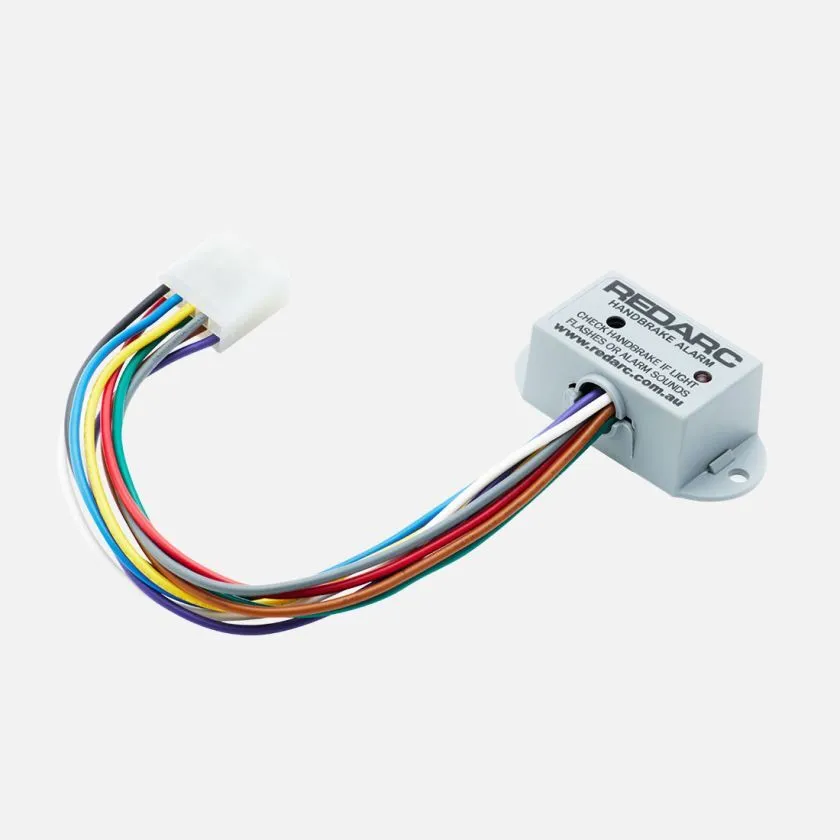

The standard HBA1224 features a fly lead, while the HBA1224-003 features a male connector lead 10 way (9 wire) for a faster, simpler installation.

The HBA1224 improves vehicle safety as it:

Reduces the risk of the vehicle being accidentally left unattended without the handbrake on.

If used with external relay/horn, it can provide a warning to anyone in the general area, that a vehicle has been left without it’s handbrake on.

Hummingbird Electronics offer an optional external “Compact Combination Warning LED and Buzzer” which is perfectly suited for REDARC’s Hand Brake Alarm. Available in both 12 and 24 volt variants.

*The doorframe switch is the switch mounted in the doorframe that switches on the cab light when the door is opened.

Specifications

  • Warns you when you forget to apply the handbrake
  • Security against damage caused by runaway vehicles
  • Horn output ensures others will be warned
  • A mandatory health and safety installation on many mining site vehicles
  • Suitable for all vehicles
  • Built-in LED warning light and internal piezo buzzer plus external output
  • Designed for universal fitment
  • Output latches on once triggered
  • Can be used in various other installations (headlight alarm)
  • gtin_barcode : 9338628006632
  • brand : REDARC
  • Standby Current : <2mA

Compatibility

  • Universal Part

The HBA1224 alarm is used in a 12V or 24V automotive system. It monitors the handbrake switch and the doorframe switch* to provide audible and visual warning if the door is opened while the handbrake is not applied. Once the alarm starts, it stays latched on until the handbrake is applied (even if the door is closed again).

Three connector options available

The standard HBA1224 features a fly lead, while the HBA1224-003 features a male connector lead 10 way (9 wire) for a faster, simpler installation.

The HBA1224 improves vehicle safety as it:

Reduces the risk of the vehicle being accidentally left unattended without the handbrake on.

If used with external relay/horn, it can provide a warning to anyone in the general area, that a vehicle has been left without it’s handbrake on.

Hummingbird Electronics offer an optional external “Compact Combination Warning LED and Buzzer” which is perfectly suited for REDARC’s Hand Brake Alarm. Available in both 12 and 24 volt variants.

*The doorframe switch is the switch mounted in the doorframe that switches on the cab light when the door is opened.

  • Warns you when you forget to apply the handbrake
  • Security against damage caused by runaway vehicles
  • Horn output ensures others will be warned
  • A mandatory health and safety installation on many mining site vehicles
  • Suitable for all vehicles
  • Built-in LED warning light and internal piezo buzzer plus external output
  • Designed for universal fitment
  • Output latches on once triggered
  • Can be used in various other installations (headlight alarm)
  • gtin_barcode : 9338628006632
  • brand : REDARC
  • Standby Current : <2mA
  • Universal Part
