Description

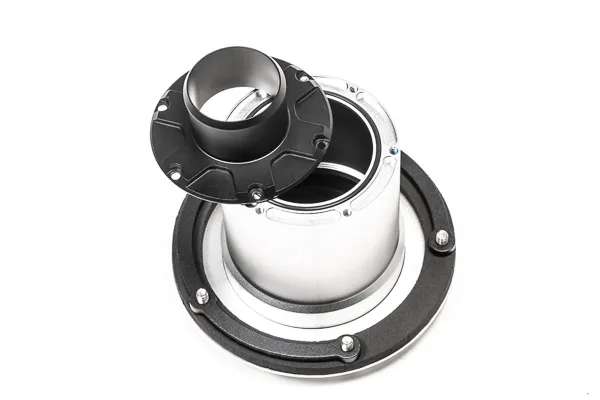

The fuel filler typically secures to the vehicle body. The vented fuel cap has roll-over protection if the vehicle ever becomes inverted. The fill neck has a machined hose barb connection for 1.5in filler hose. The outer diameter is 4.75in and uses 4.25in P.C.D for the five M5 bolts. Total height is 4.1in. Requires a 77mm (3.03in) hole to be fabricated. The o-ring sealed 1.5in barbed outlet is interchangeable. By simply removing 6 screws, a different outlet adapter (sold separately) can be installed. If needed, a tether is also provided, as shown below.

Specifications

  • Does not include accessories to connect to the fuel tank.
  • Can be upgraded later to a dry break using Radium 20-0549-V.

What's Included

  • Vented Cap with Roll-Over Protection
  • Flanged Fill Neck for 1.5in ID Hose
  • Ozone/Flame Resistant Gasket
  • Anodized Aluminum Nut Ring
  • Stainless Steel M5 Bolts
  • Tether Components

Compatibility

  • Universal Part

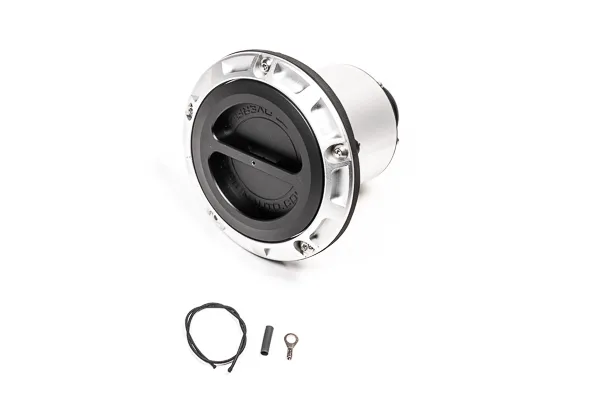

The fuel filler typically secures to the vehicle body. The vented fuel cap has roll-over protection if the vehicle ever becomes inverted. The fill neck has a machined hose barb connection for 1.5in filler hose. The outer diameter is 4.75in and uses 4.25in P.C.D for the five M5 bolts. Total height is 4.1in. Requires a 77mm (3.03in) hole to be fabricated. The o-ring sealed 1.5in barbed outlet is interchangeable. By simply removing 6 screws, a different outlet adapter (sold separately) can be installed. If needed, a tether is also provided, as shown below.

  • Does not include accessories to connect to the fuel tank.
  • Can be upgraded later to a dry break using Radium 20-0549-V.
  • Vented Cap with Roll-Over Protection
  • Flanged Fill Neck for 1.5in ID Hose
  • Ozone/Flame Resistant Gasket
  • Anodized Aluminum Nut Ring
  • Stainless Steel M5 Bolts
  • Tether Components
  • Universal Part
