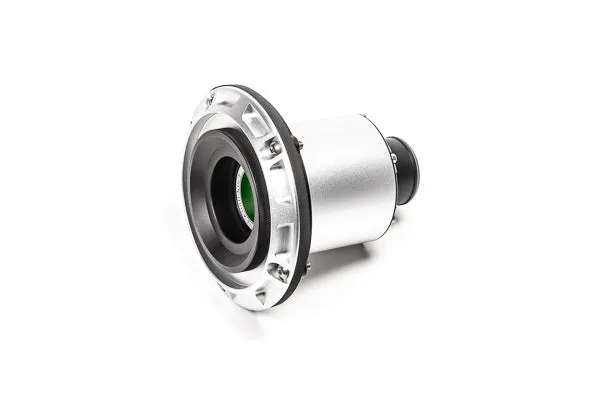

Radium Engineering Dry Break 1.5IN Female Remote Mount Vented
SKU: 20-1004-V
Dispatched in 2-3 Days
?
The item is not currently in stock, but our supplier has provided an estimated availability date. Please contact us for more information.
$569.00
Can't Find What You're Looking For?
If you're looking for something in particular, we can help. Drop us a line using the button below.
Submit A RequestWhy Buy From Us?
- Australian Owned
- 100% Fitment Guarantee
- Genuine Quality Brands
Description
OVERVIEW
Dry breaks allow quick fuel filling with no mess. The male dry break probe connects to a dump can fuel jug and the female dry break receiver installs on the vehicle's fuel filler. When the two couplings mesh together, both valve seals open and close with synchronized timing permitting no fuel leaks. Furthermore, it is no longer necessary to monitor the filling process when the dry break is used in conjunction with the 20-0535 Radium DSV Valve as vented air flow is automatically shut down when full.
NOTE: Radium Engineering dry break systems are compatible with other dry breaks of the same size.
|
|
20-1204-V REMOTE MOUNT, VENTED FEMALE DRY BREAK, 2.25INDesigned for remote mounting to an external surface such as a fender. Requires a 77mm (3.03"") hole to be fabricated. Includes a 1.5in female dry break as well as a gasket, stainless steel hardware, an aluminum housing and aluminum nut ring. The vented fuel cap has roll-over protection in case the vehicle ever becomes inverted. The components, materials, and seals are compatible with all fuel types (unleaded and leaded gasoline, diesel, AV gas, methanol, ethanol, E15, E85, etc.).
|
|
|
20-0996 DRY BREAK, 1.5IN, MALE, PRV
Designed to install onto the fill spout of a dump can fuel jug. Anodized aluminum construction with stainless steel hardware featuring a 1.5"" OD barb. The components, materials, and seals are compatible with all fuel types (unleaded and leaded gasoline, diesel, AV gas, methanol, ethanol, E15, E85, etc.). The new PRV (pressure relief valve) feature permits the sealed side of the dump can to be vented when exposed to warm temperatures. Simply push down on the center stainless steel valve to purge air pressure.
The new PRV (pressure relief valve) feature permits the sealed side of the dump can to be vented when exposed to warm temperatures. To purge air pressure, simply push down on the center stainless steel valve (shown below). SPECIFICATIONS
|
| |
20-0549-V DRY BREAK, 1.5IN, FEMALE, VENTEDThreaded specifically to install into a Radium female dry break mount (not included). Anodized aluminum construction with stainless steel hardware and bronze bushings. The components, materials, and seals are compatible with all fuel types (unleaded and leaded gasoline, diesel, AV gas, methanol, ethanol, E15, E85, etc.).
|
| |
20-0495-V DRY BREAK, 1.5IN, FEMALE, DIRECT MOUNT, VENTEDDesigned for direct mounting onto a fuel cell. For mating, a 6-bolt flange with a 2.18"" PCD bolt circle (as found on the older FCST) is required. Includes 20-0549-V Dry Break, 1.5in, Female, Vented as well as an aluminum housing, stainless steel hardware, and a gasket. The components, materials, and seals are compatible with all fuel types (unleaded and leaded gasoline, diesel, AV gas, methanol, ethanol, E15, E85, etc.).
|
|
|
15-0004 DRY BREAK PROBE COVERDesigned to protect dirt and debris from contaminating the dynamic elements of a 1.5"" dry break probe. Because it is manufactured from polyurethane leather, it does not dry out or absorb water making it easy to clean.
The internal elastic band prevents the cover from falling off in high winds. Radium Engineering logo embroidery on 2 sides. To install, simply spread the cover over the probe like a sock. To uninstall, simply pull the integrated handle upwards.
COMPATIBLE PROBES
|
|
|
20-0604 DRY BREAK DUST CAP
Designed to install specifically into a Radium Engineering female dry break. It prevents dirt and debris from falling into the fuel tank during refueling.
The dust cap vents to balance internal fuel tank pressure changes. COMPATIBLE RECEPTACLES
|
| |
20-1007 REMOTE MOUNT FILLER ADAPTER, 2.25INCOMPATIBILITY
Not compatible with 20-0504-V and 20-0505-V
Radium Engineering 20-1004-V and 20-1005-V fuel fillers come standard with a common 1.5"" barbed outlet fitting. This adapter converts the outlet to a 2.25"" barbed fitting for those using a 2.25"" fuel filler hose.
|
|
|
20-1008 REMOTE MOUNT FILLER ADAPTER, 24ANCOMPATIBILITY
Not compatible with 20-0504-V and 20-0505-V
Radium Engineering 20-1004-V and 20-1005-V fuel fillers come standard with a common 1.5"" barbed outlet fitting. This adapter converts the outlet to a 24AN fitting. |
| |
20-1015 REMOTE MOUNT FILLER ADAPTER, 1.5INCOMPATIBILITY
Not compatible with 20-0504-V and 20-0505-V Radium Engineering 20-1004-V and 20-1005-V fuel fillers come standard with this 1.5"" barbed outlet fitting. |
Specifications
Compatibility
- Universal Part
OVERVIEW
Dry breaks allow quick fuel filling with no mess. The male dry break probe connects to a dump can fuel jug and the female dry break receiver installs on the vehicle's fuel filler. When the two couplings mesh together, both valve seals open and close with synchronized timing permitting no fuel leaks. Furthermore, it is no longer necessary to monitor the filling process when the dry break is used in conjunction with the 20-0535 Radium DSV Valve as vented air flow is automatically shut down when full.
NOTE: Radium Engineering dry break systems are compatible with other dry breaks of the same size.
|
|
20-1204-V REMOTE MOUNT, VENTED FEMALE DRY BREAK, 2.25INDesigned for remote mounting to an external surface such as a fender. Requires a 77mm (3.03"") hole to be fabricated. Includes a 1.5in female dry break as well as a gasket, stainless steel hardware, an aluminum housing and aluminum nut ring. The vented fuel cap has roll-over protection in case the vehicle ever becomes inverted. The components, materials, and seals are compatible with all fuel types (unleaded and leaded gasoline, diesel, AV gas, methanol, ethanol, E15, E85, etc.).
|
|
|
20-0996 DRY BREAK, 1.5IN, MALE, PRV
Designed to install onto the fill spout of a dump can fuel jug. Anodized aluminum construction with stainless steel hardware featuring a 1.5"" OD barb. The components, materials, and seals are compatible with all fuel types (unleaded and leaded gasoline, diesel, AV gas, methanol, ethanol, E15, E85, etc.). The new PRV (pressure relief valve) feature permits the sealed side of the dump can to be vented when exposed to warm temperatures. Simply push down on the center stainless steel valve to purge air pressure.
The new PRV (pressure relief valve) feature permits the sealed side of the dump can to be vented when exposed to warm temperatures. To purge air pressure, simply push down on the center stainless steel valve (shown below). SPECIFICATIONS
|
| |
20-0549-V DRY BREAK, 1.5IN, FEMALE, VENTEDThreaded specifically to install into a Radium female dry break mount (not included). Anodized aluminum construction with stainless steel hardware and bronze bushings. The components, materials, and seals are compatible with all fuel types (unleaded and leaded gasoline, diesel, AV gas, methanol, ethanol, E15, E85, etc.).
|
| |
20-0495-V DRY BREAK, 1.5IN, FEMALE, DIRECT MOUNT, VENTEDDesigned for direct mounting onto a fuel cell. For mating, a 6-bolt flange with a 2.18"" PCD bolt circle (as found on the older FCST) is required. Includes 20-0549-V Dry Break, 1.5in, Female, Vented as well as an aluminum housing, stainless steel hardware, and a gasket. The components, materials, and seals are compatible with all fuel types (unleaded and leaded gasoline, diesel, AV gas, methanol, ethanol, E15, E85, etc.).
|
|
|
15-0004 DRY BREAK PROBE COVERDesigned to protect dirt and debris from contaminating the dynamic elements of a 1.5"" dry break probe. Because it is manufactured from polyurethane leather, it does not dry out or absorb water making it easy to clean.
The internal elastic band prevents the cover from falling off in high winds. Radium Engineering logo embroidery on 2 sides. To install, simply spread the cover over the probe like a sock. To uninstall, simply pull the integrated handle upwards.
COMPATIBLE PROBES
|
|
|
20-0604 DRY BREAK DUST CAP
Designed to install specifically into a Radium Engineering female dry break. It prevents dirt and debris from falling into the fuel tank during refueling.
The dust cap vents to balance internal fuel tank pressure changes. COMPATIBLE RECEPTACLES
|
| |
20-1007 REMOTE MOUNT FILLER ADAPTER, 2.25INCOMPATIBILITY
Not compatible with 20-0504-V and 20-0505-V
Radium Engineering 20-1004-V and 20-1005-V fuel fillers come standard with a common 1.5"" barbed outlet fitting. This adapter converts the outlet to a 2.25"" barbed fitting for those using a 2.25"" fuel filler hose.
|
|
|
20-1008 REMOTE MOUNT FILLER ADAPTER, 24ANCOMPATIBILITY
Not compatible with 20-0504-V and 20-0505-V
Radium Engineering 20-1004-V and 20-1005-V fuel fillers come standard with a common 1.5"" barbed outlet fitting. This adapter converts the outlet to a 24AN fitting. |
| |
20-1015 REMOTE MOUNT FILLER ADAPTER, 1.5INCOMPATIBILITY
Not compatible with 20-0504-V and 20-0505-V Radium Engineering 20-1004-V and 20-1005-V fuel fillers come standard with this 1.5"" barbed outlet fitting. |
- Universal Part
