Description

Fitment Information

  • Below are some of the many fuel injectors that are a direct fitment with this fuel rail:

    • Injector Dynamics ID1050-XDS-34-14-14
    • Injector Dynamics ID1300-XDS-34-14-14
    • Injector Dynamics ID1700-XDS-34-14-14
    • Injector Dynamics ID2600-XDS-34-14-14

NOTE: Fuel Injectors are NOT included and must be purchased elsewhere.

Specifications

PORTS AND FITTINGS

The fuel rail has four ports that are tapped for 8AN ORB.

  • 8AN ORB Adapter Fittings
  • 8AN ORB Direct Mount Regulators
  • 8AN ORB Fuel Pulse Dampers
  • Fuel Pressure Gauge Adapters

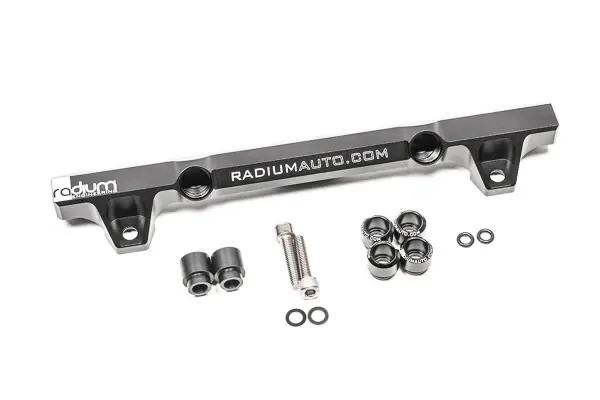

The Radium Engineering high flow primary fuel rail is for a Mazda 26B 4-rotor engine.

The aluminum fuel rail is anodized black for compatibility with all popular fuel types including E85. Manufactured with a large internal bore, the fuel rail can support all necessary engine power requirements.

What Include's

  • SAE 5-Bolt Gasket
  • Deutsch DT 2P Connector
  • Stainless Bolts 10-32 (x5)
  • Deutsch DT Sockets (x2)
  • Level Sensing Probe

CNC Machined fuel rail for Mazda 4-rotor 26B engines for primary injectors. 8AN ORB ports.

Specifications

Compatibility

  • Universal Part
Fitment Information

  • Below are some of the many fuel injectors that are a direct fitment with this fuel rail:

    • Injector Dynamics ID1050-XDS-34-14-14
    • Injector Dynamics ID1300-XDS-34-14-14
    • Injector Dynamics ID1700-XDS-34-14-14
    • Injector Dynamics ID2600-XDS-34-14-14

NOTE: Fuel Injectors are NOT included and must be purchased elsewhere.

Specifications

PORTS AND FITTINGS

The fuel rail has four ports that are tapped for 8AN ORB.

  • 8AN ORB Adapter Fittings
  • 8AN ORB Direct Mount Regulators
  • 8AN ORB Fuel Pulse Dampers
  • Fuel Pressure Gauge Adapters

The Radium Engineering high flow primary fuel rail is for a Mazda 26B 4-rotor engine.

The aluminum fuel rail is anodized black for compatibility with all popular fuel types including E85. Manufactured with a large internal bore, the fuel rail can support all necessary engine power requirements.

What Include's

  • SAE 5-Bolt Gasket
  • Deutsch DT 2P Connector
  • Stainless Bolts 10-32 (x5)
  • Deutsch DT Sockets (x2)
  • Level Sensing Probe

CNC Machined fuel rail for Mazda 4-rotor 26B engines for primary injectors. 8AN ORB ports.

  • Universal Part
