Description

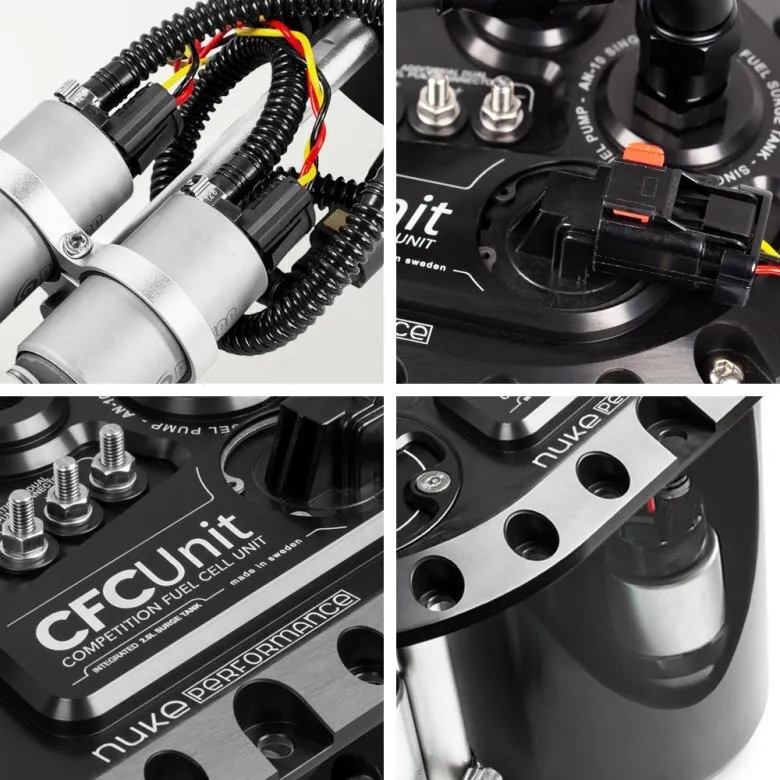

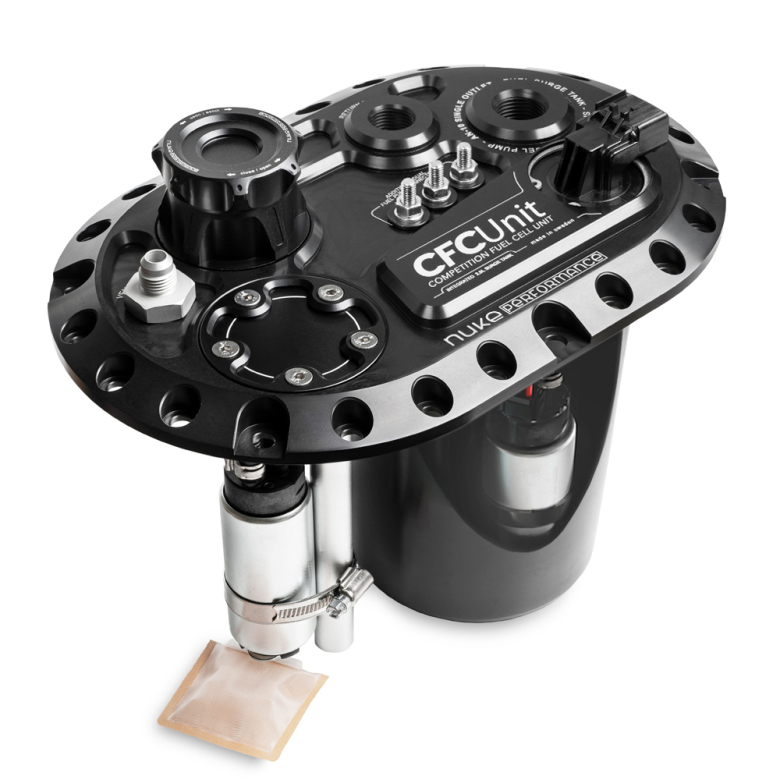

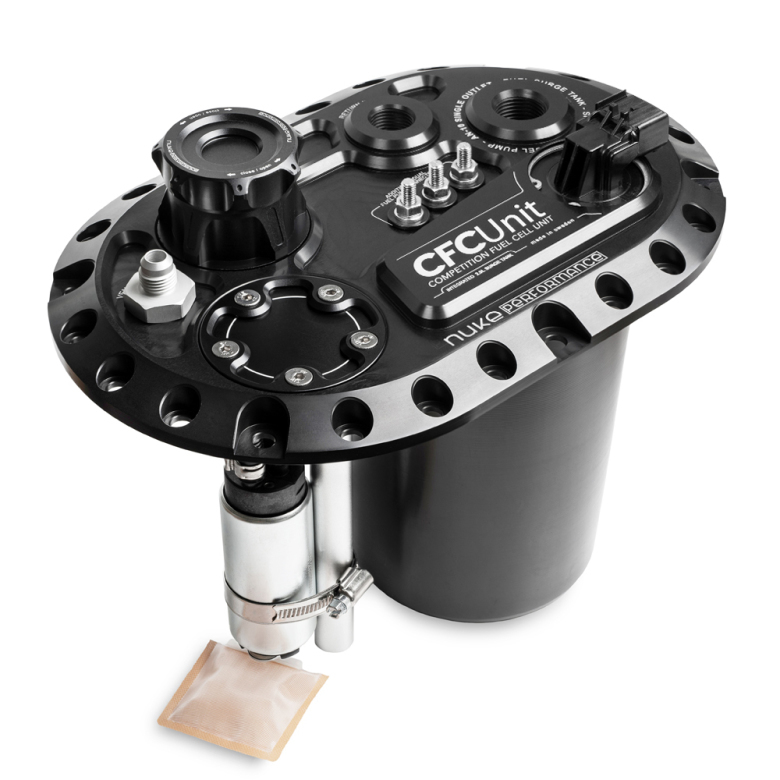

The Nuke Performance CFC Unit, specially developed for use with brushless fuel pumps, such as Protec Cobra Compact and Deatschwerks DW440 Brushless. With integrated fuel surge tank and fuel pump hanger.
The Nuke Performance CFC Unit, specially developed for use with brushless fuel pumps, such as Protec Cobra Compact and Deatschwerks DW440 Brushless. With integrated fuel surge tank and fuel pump hanger.

The Nuke Performance CFC Unit eliminates the need for an external surge tank which is also needed when running a fuel cell, making it is a perfect solution for fuel-injected systems. Used with PWM control in combination with the CFC Unit prevents emerging heat when running numerous fuel pumps. This is the best way to eliminate the fuel starvation that may otherwise occur in motorsports. And with the new design that accommodates brushless fuel pump installation, it´s also possible to mount venturi pickup points that ensure a full surge tank even at extremely low fuel levels.

Integrated 2.0 liter surge tank with a billet fuel pump hanger for 1-2 brushless fuel pumps
The unique CFC Unit from Nuke Performance works as a fill plate replacement for fuel cells with the standardized 6x10" 24-bolt pattern fill plates from manufacturers such as ATL, Premier, Pyrotect, Fuel Safe, Radium, etc. The CFC unit for brushless fuel pumps is the perfect solution for a simplified and efficient high-performing fuel system where safety is of utmost importance. With the integrated drop-in surge tank, this setup eliminates the need for a space-consuming external surge tank.

The most lightweight solution for your motorsports fuel system
Fits most common FIA-homologated fuel cells

With all the needed fuel pumps mounted within the fuel cell itself, this product is the only thing you need. The simplicity of its design frees up space and weight while increasing safety, as fewer fuel line fittings are necessary and no external fuel pumps are used. With its unique low-profile billet design, this is the most lightweight solution on the market and lets you save crucial weight in your racecar.

Specifications

  • Fits your standard aftermarket Fuel Cell
  • For brushless fuel pumps with additional venturi pickup
  • Low weight "drop-in surge tank" for your fuel cell
  • Integrated 2.0 liter Fuel Surge Tank functionality
  • Single AN-10 ORB outlet, for a trouble-free installation
  • 100% proof for all types of fuel, including ethanol

Compatibility

  • Universal Part

The Nuke Performance CFC Unit, specially developed for use with brushless fuel pumps, such as Protec Cobra Compact and Deatschwerks DW440 Brushless. With integrated fuel surge tank and fuel pump hanger.
The Nuke Performance CFC Unit, specially developed for use with brushless fuel pumps, such as Protec Cobra Compact and Deatschwerks DW440 Brushless. With integrated fuel surge tank and fuel pump hanger.

The Nuke Performance CFC Unit eliminates the need for an external surge tank which is also needed when running a fuel cell, making it is a perfect solution for fuel-injected systems. Used with PWM control in combination with the CFC Unit prevents emerging heat when running numerous fuel pumps. This is the best way to eliminate the fuel starvation that may otherwise occur in motorsports. And with the new design that accommodates brushless fuel pump installation, it´s also possible to mount venturi pickup points that ensure a full surge tank even at extremely low fuel levels.

Integrated 2.0 liter surge tank with a billet fuel pump hanger for 1-2 brushless fuel pumps
The unique CFC Unit from Nuke Performance works as a fill plate replacement for fuel cells with the standardized 6x10" 24-bolt pattern fill plates from manufacturers such as ATL, Premier, Pyrotect, Fuel Safe, Radium, etc. The CFC unit for brushless fuel pumps is the perfect solution for a simplified and efficient high-performing fuel system where safety is of utmost importance. With the integrated drop-in surge tank, this setup eliminates the need for a space-consuming external surge tank.

The most lightweight solution for your motorsports fuel system
Fits most common FIA-homologated fuel cells

With all the needed fuel pumps mounted within the fuel cell itself, this product is the only thing you need. The simplicity of its design frees up space and weight while increasing safety, as fewer fuel line fittings are necessary and no external fuel pumps are used. With its unique low-profile billet design, this is the most lightweight solution on the market and lets you save crucial weight in your racecar.

  • Fits your standard aftermarket Fuel Cell
  • For brushless fuel pumps with additional venturi pickup
  • Low weight "drop-in surge tank" for your fuel cell
  • Integrated 2.0 liter Fuel Surge Tank functionality
  • Single AN-10 ORB outlet, for a trouble-free installation
  • 100% proof for all types of fuel, including ethanol
  • Universal Part
