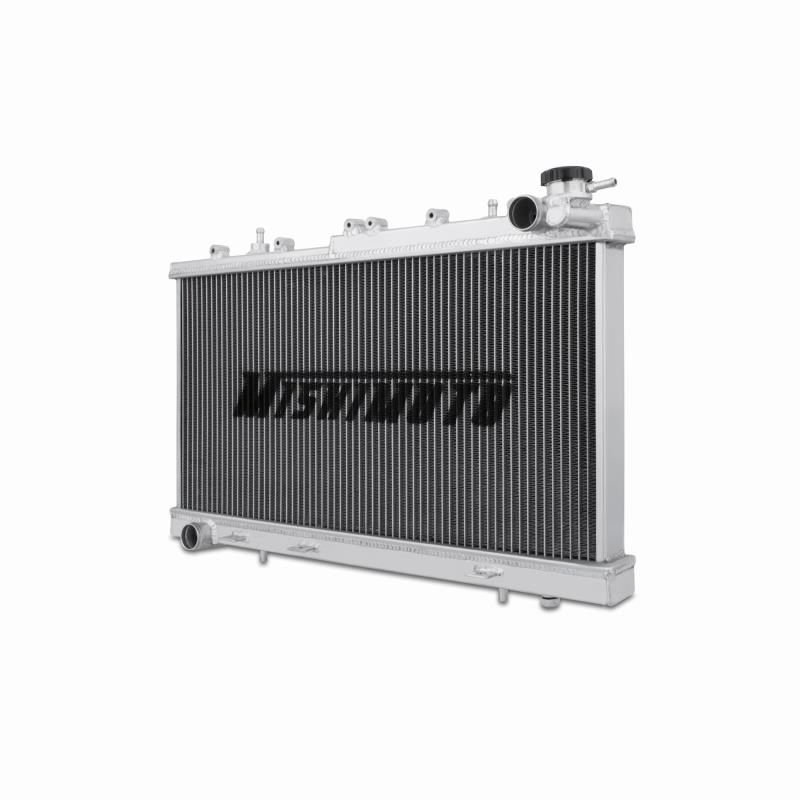

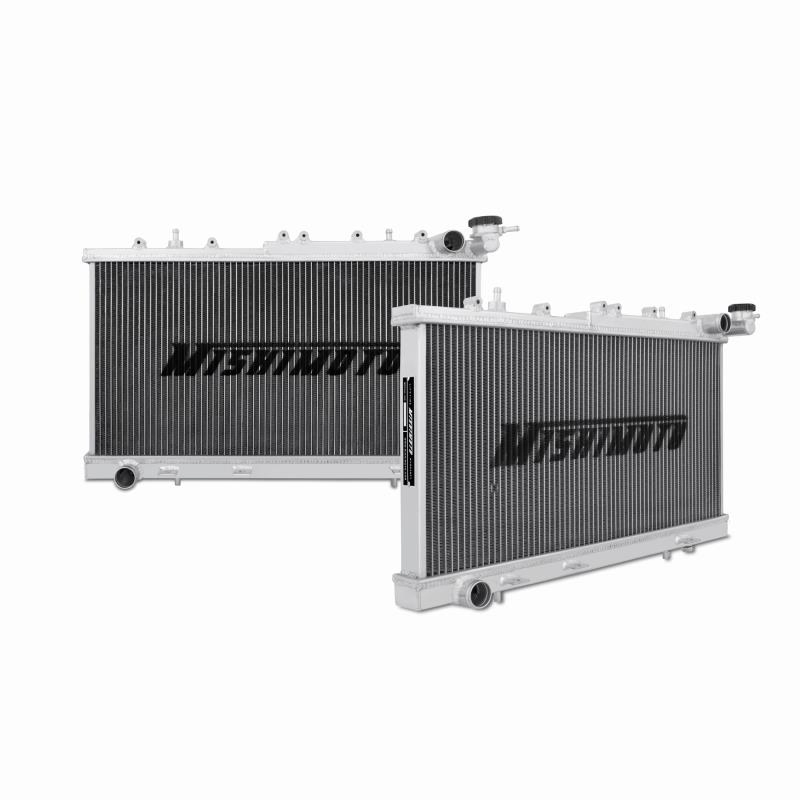

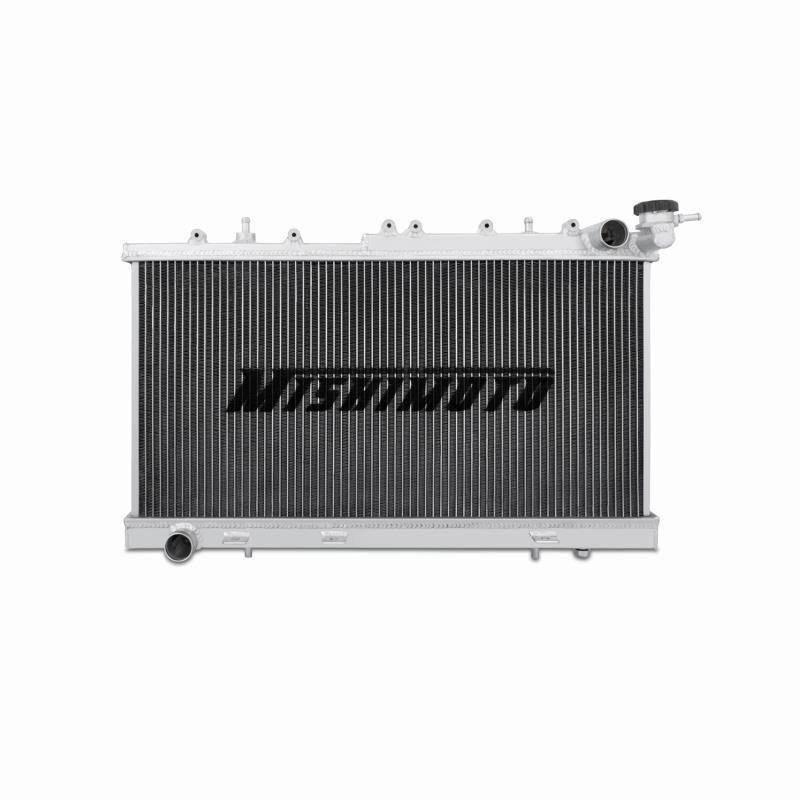

The Mishimoto performance aluminum radiator for the Nissan Sentra w/ SR20 is designed and engineered to maximize cooling efficiency by up to 30%, boost engine functions, and protect your car from overheating. The Mishimoto 1991–1999 Nissan Sentra radiator features a lightweight dual core, 100% brazed aluminum, and polished end tanks, enhancing the overall performance of your engine. Every Mishimoto aluminum radiator is a direct OEM fit, making installation effortless. This radiator comes with a high pressure 1.3 bar Mishimoto radiator cap and, as with every Mishimoto aluminum radiator, this radiator includes the Mishimoto Lifetime Warranty.

Features:

• Direct fit for the 1991–1999 Nissan Sentra SE-R
• Full aluminum construction including durable, TIG-welded end tanks
• Features a two-row, 1.57" thick, efficient brazed aluminum core
• Increased fluid capacity and optimal heat dissipation
• Provides efficient temperature reduction for use on the street, track, or autocross course

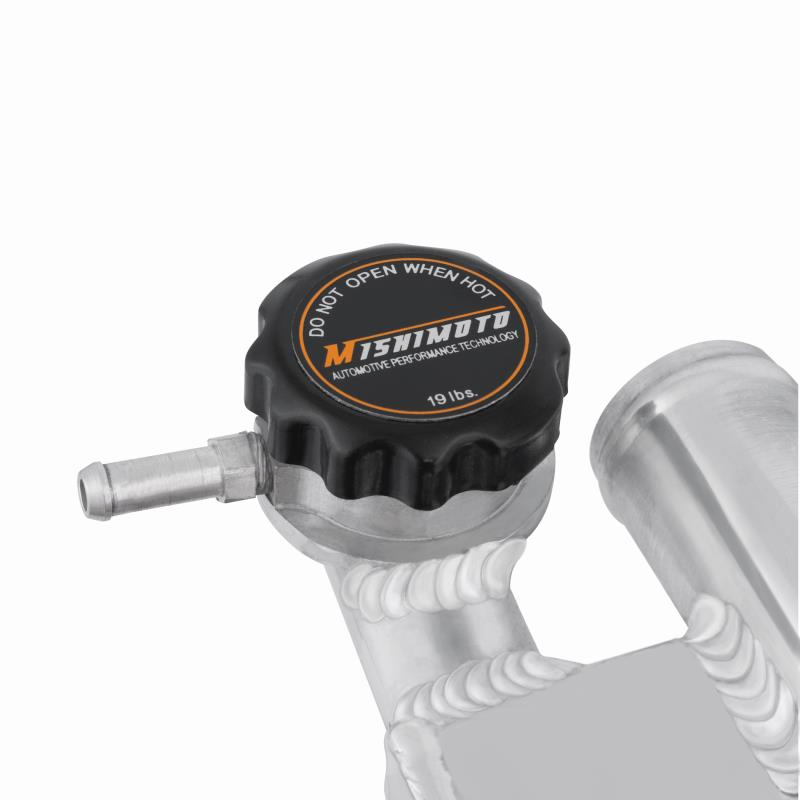

• Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
• Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system

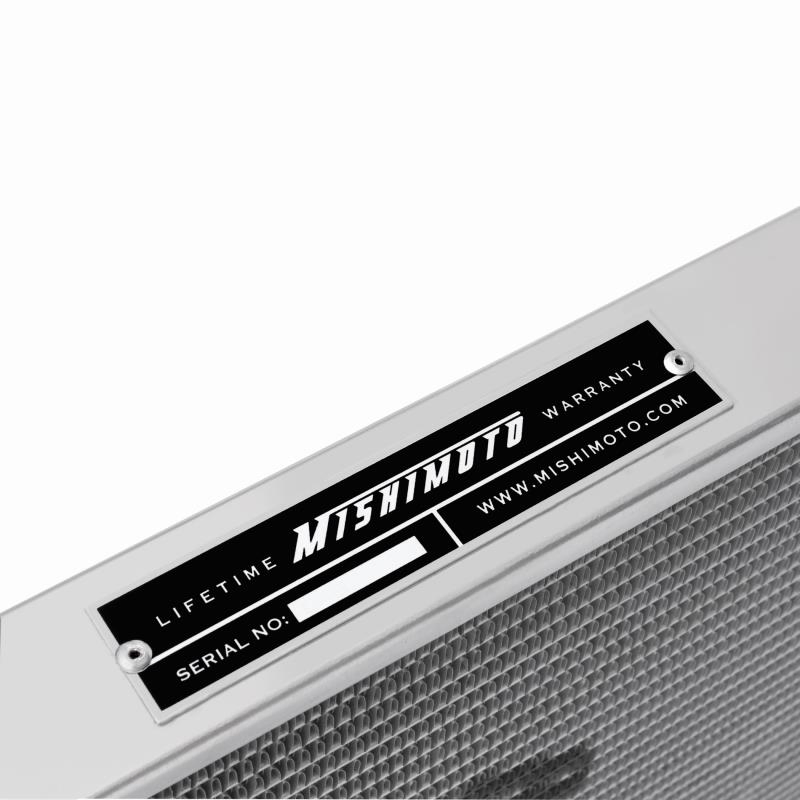

• Mishimoto Lifetime Warranty

Note:

• This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit.

Tech Specs:

• Material: Aluminum
• Overall Height: 26.4"
• Overall Width: 2.07"
• DPI: 1152/1178/1317/1426
• Drain Plug Length: 0.047"
• Drain Plug Thread Size: (M16) .06
• Overall Length: 17.2"
• Tank Wall Thickness: 0.08"
• Outlet: 1.38"
• Rows: 2
• Inlet: 1.38"
• Coolant Capacity: 1.85
• Dual Pass: False
• Core Length: 12.44"
• Core Height: 25.51"
• Core Size: 12.44" x 25.51"
• Core Thickness: 1.57"
• Fill Neck: 1.25"

Fits:

• 1991-1994 Nissan Sentra SE-R
• 1995-1998 Nissan 200sx

Chassis Codes:

• B13
• B14

Engine Codes:

• SR20DE
• SR20DET

Purchase Includes:

• Mishimoto Radiator
• Mishimoto Radiator Cap
• Magnetic Drain Plug
• Mishimoto Lifetime Warranty
