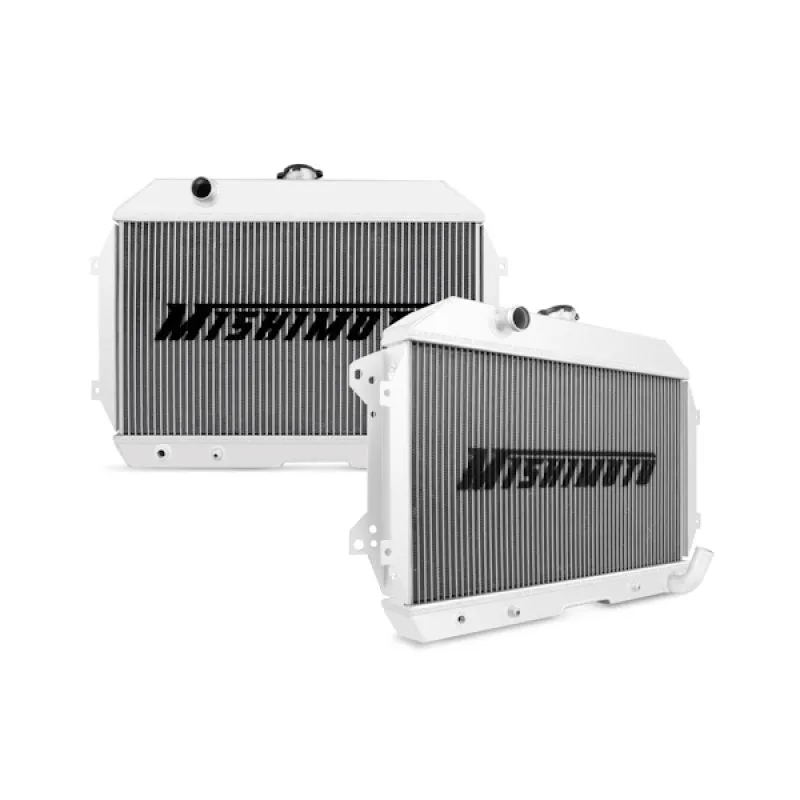

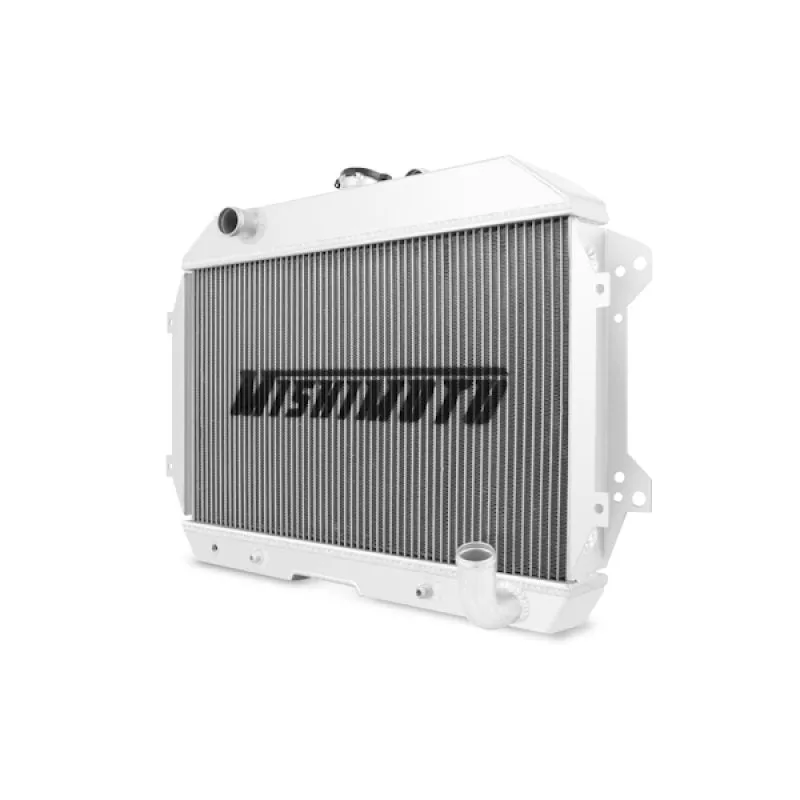

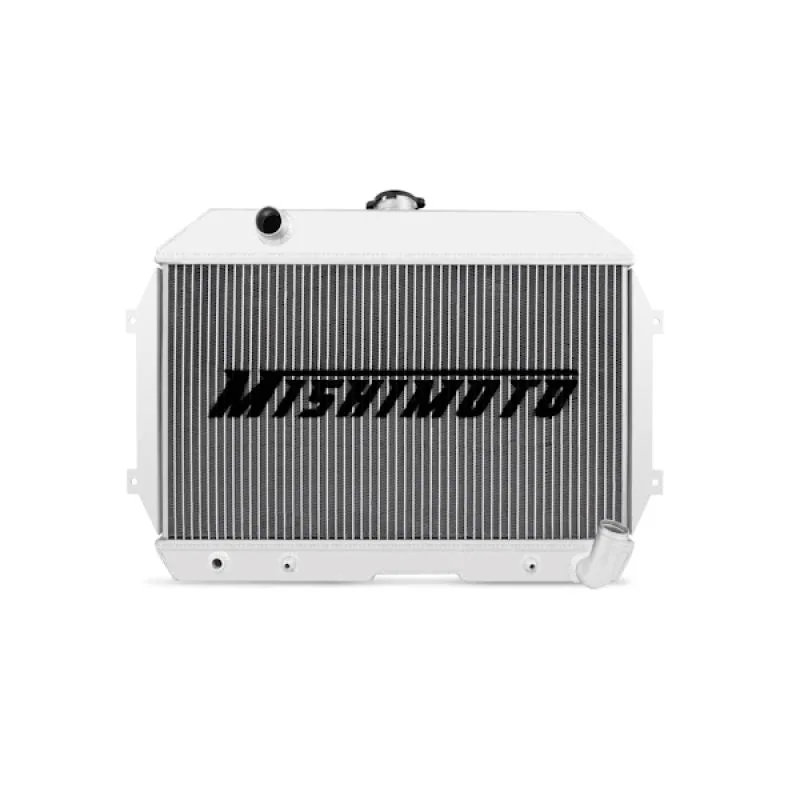

Mishimoto MMRAD-DATS-70 - 70-73 Datsun 240Z Manual/Automatic Radiator

Datsun 240Z 2-Row Performance Aluminum Radiator, 1970-1973

Aluminum radiator engineered for efficient heat dissipation and optimal engine cooling. Precision-fit design ensures easy installation, corrosion resistance, and reliable performance across varied driving conditions.

The Mishimoto performance aluminum radiator for the Datsun 240Z is the ideal update to the stock Datsun radiator.The last thing you want is to be limited by an old, worn out radiator during a hot day at the strip or when you're stuck in traffic.Our engineers know that, and our design reflects this by utilizing all-aluminum construction and added fluid capacity to increase cooling efficiency.With polished end tanks and a signature Mishimoto radiator cap, the Mishimoto Datsun 240Z radiator looks as good as it performs!

• Full aluminum design with durable, TIG-welded construction
• Features a two-row, 1.65-in thick brazed aluminum core, providing ideal fluid temperatures on the street or track
• Ideal replacement for an aged, clogged, or leaking stock radiator

Outlet Diameter: 1.38

Outlet Location: Bottom Right

Overall Height: 27.3

Overall Length: 19.16

Overall Width: 6.2

Radiator Cap Included: Yes

Transmission Oil Cooler Fitting Type: N/A

Transmission Oil Cooler Included: No

TechSpec Overall Height (in): 27.3

TechSpec Overall Length (in): 19.16

TechSpec Overall Width (in): 6.2

TechSpec Core Length (in): 23.15

TechSpec Core Height (in): 13.58

TechSpec Fluid Capacity (gal): 2.39

TechSpec Rows: 2

TechSpec Inlet (in): 1.38

TechSpec Outlet (in): 1.38

TechSpec Core Thickness (in): 1.65

TechSpec Drain Plug Thread Size: M12 x 1.5

TechSpec DPI: 110

TechSpec Material: Aluminum

TechSpec Applications: 1970-1973 Datsun 240Z--1974-1975 Datsun 260Z

TechSpec Engine Codes: L24--L26

TechSpec Chassis Codes: S30

TechSpec Note: N/A

TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty

SellingPoint01: Direct fit for the 1970-1973 Datsun 240Z and 1974-1975 Datsun 260Z

SellingPoint02: Full aluminum design with durable, TIG-welded construction

SellingPoint03: Features a two-row, 1.65-in thick brazed aluminum core, providing ideal fluid temperatures on the street or track

SellingPoint04: Ideal replacement for an aged, clogged, or leaking stock radiator

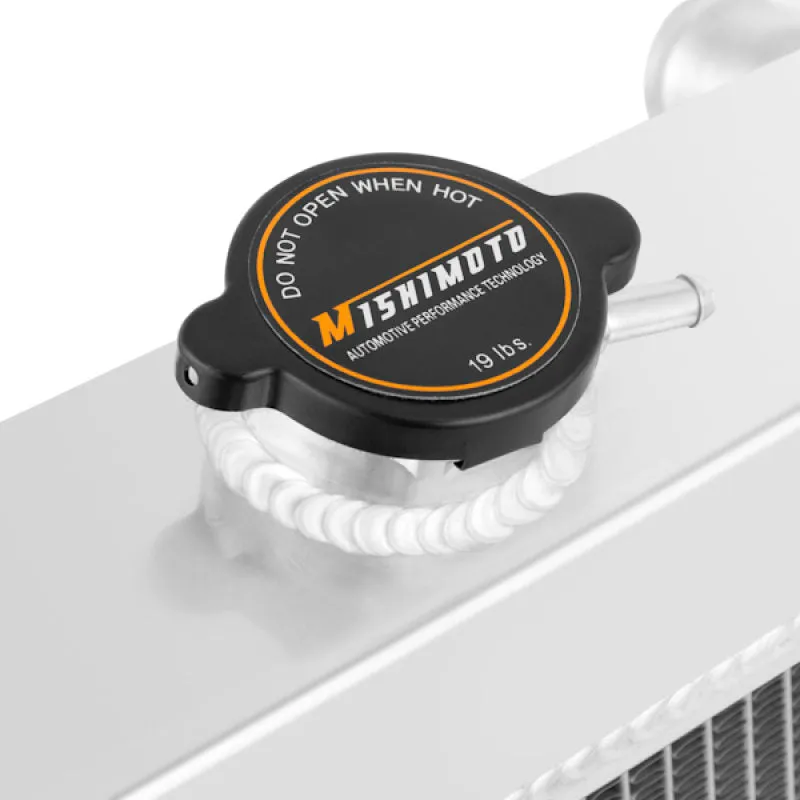

SellingPoint05: Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system

SellingPoint06: Included magnetic drain plug captures harmful metal debris to safeguard cooling system performance

SellingPoint07: Mishimoto Lifetime Warranty

SellingPoint08: N/A

SellingPoint09: N/A

SellingPoint10: N/A

SellingPoint11: N/A

SellingPoint12: N/A

SellingPoint13: N/A

SellingPoint14: N/A

SellingPoint15: N/A

Install Difficulty: 3

Core Finish: Uncoated

Core Height: 13.58

Core Length: 23.15

Core Material: Aluminum

Core Row Quantity: 2

Core Thickness: 1.65

Down Flow Or Cross Flow Type: Down Flow

Drain Plug Included: Yes

Drain Plug Thread Size: M12 - 1.5

Fluid Capacity: 2.39

Inlet Diameter: 1.38

Inlet Location: Top Left
