Description

The Mishimoto BMW N54 Baffled Oil Catch Can is designed and engineered to reduce carbon buildup, a common issue with the direct fuel injection N54 engines. The Mishimoto BMW N54 catch can kit uses the proven engineering from the Mishimoto 2-Port Compact Baffled Oil Catch Can with a bronze filter, and internal baffled to better separate the oil from the crankcase vapors. The engineers at Mishimoto designed a CNC-machined lid which features large inlet/outlets in order to match the inner dimension of the CCV hose. This baffled oil catch can will defend your intercooler, intake system, and VANOS system from oil blow-by and help maintain proper octane levels to reduce potential detonation. The kit comes with two direct-fit hoses, which require no modification to the engine cover, and one direct fit mounting bracket that not only is extremely easy to install but also mounts the can in a serviceable location! Two plastic, 3/4” barb fittings connect the hoses to the can. And, like every Mishimoto oil catch can, this baffled catch can kit comes with the Mishimoto Lifetime Warranty!

  • Single 2-Port Compact Baffled Oil Catch Can with application-specific lid mounts in line with the CCV system to separate oil particles using 50 micron bronze filter
  • Mishimoto Lifetime Warranty

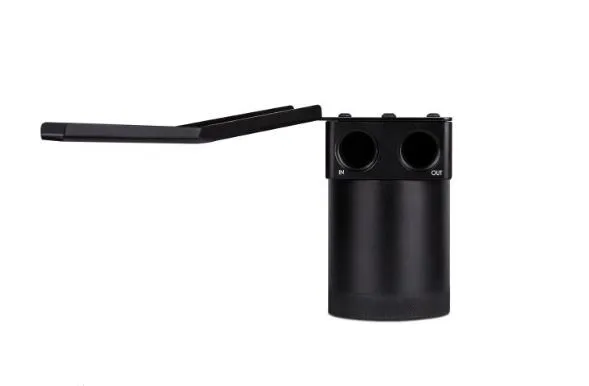

  • Application-specific bracket mounts the can in a serviceable location
  • Direct fit hoses allow for installation with no modification to engine cover
  • Application-specific lid designed so fitting size matches CCV line size
  • Billet 6061 aluminum sealed can
  • Defends intercooler, intake system, and VANOS system from oil blow-by
  • Helps maintain proper octane levels to reduce potential detonation
  • Filters and can is fully serviceable

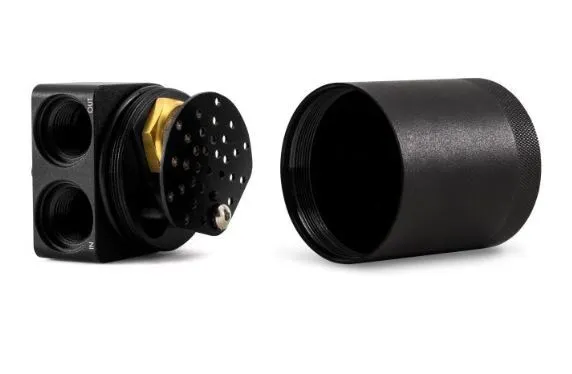

  • Internal air diverter turbulates air longer to improve oil separation



Install Torque Specs - 22 in-lbs (2.5N*M) recommended for all worm-gear clamps. These clamps have an operating range of 18-27 in-lbs 2-3N*M. Do not exceed the maximum torque rating of 27 in-lbs (3N*M).



Note - After installation, Mishimoto recommends checking the contents of the baffled catch cans every 1,000 miles until a baseline is established. Oil blow-by accumulation will vary with ambient temperatures and driving conditions. It is important that the contents of the can do not rise above the internal baffle

Specifications

  • Overall Height - 3.8"
  • Overall Diameter - 2.5"
  • Inlet - 3/8" NPT
  • Outlet - 3/8" NPT
  • Drain Plug Thread Size - 3/8" NPT
  • Capacity - 2 fl oz
  • Assembled Weight - 0.9 lbs
  • Material - Billet 6061 aluminum

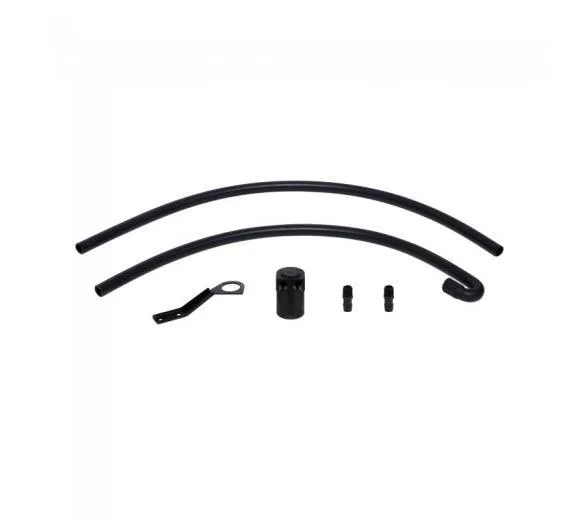

What's Included

  • (1) Application-Specific Mounting Bracket
  • (1) Black, Anodized 6061 Aluminum Catch Can
  • (2) Direct Fit Hoses, Black
  • (2) Plastic Barbed Fittings
  • (1) Air Diverter
  • (1) Internal Baffle & Rod
  • (1) 3/8" NPT Plug
  • (1) Large O-Ring
  • Mounting Hardware
  • Mishimoto Lifetime Warranty

Compatibility

Fits:

  • 2008–2010 BMW E82 135i
  • 2011 BMW E82 1M
  • 2006–2010 BMW E90 335i/335xi
  • 2006–2010 BMW E91 335i/335xi
  • 2007–2010 BMW E92 335i/335xi
  • 2007–2010 BMW E93 335i/335xi

Engine Codes:

  • N54

Chassis Codes

  • E82 / E90 / E91 / E92 / E93
