Description

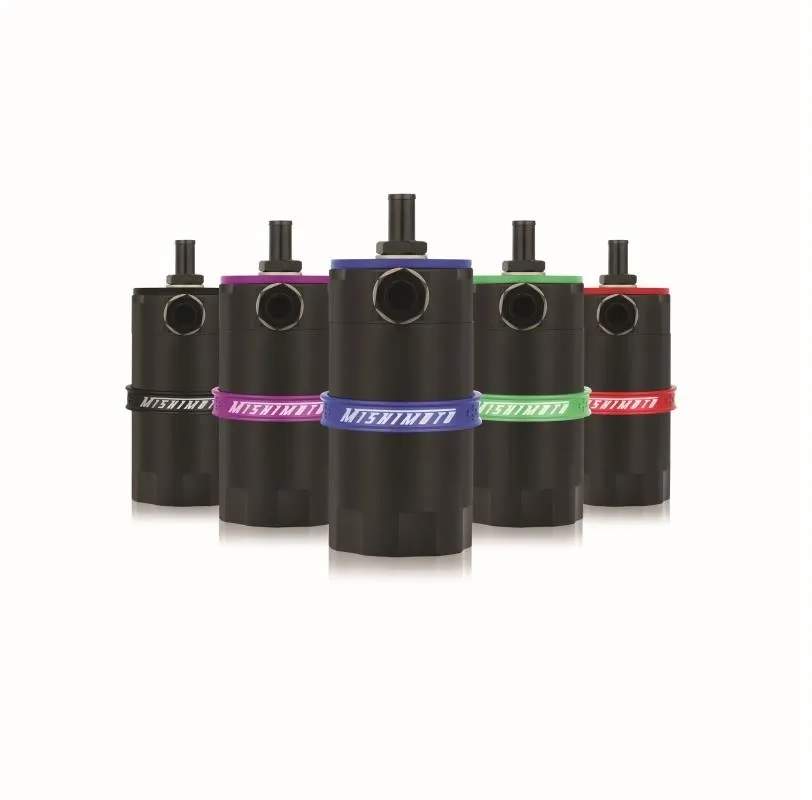

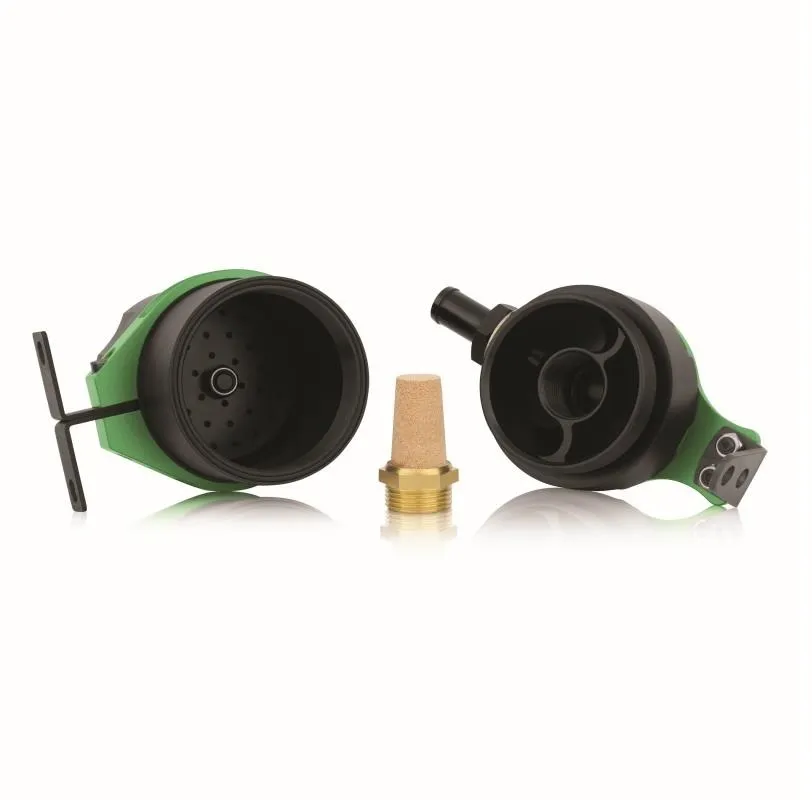

Mishimoto is proud to announce the release of our Baffled Oil Catch Can. With over a year of research and development time, Mishimoto has created the most effective oil catch can on the market. The Mishimoto Baffled Oil Catch Can was designed to separate oil particles from the PCV air that would normally have just been routed back to your intake. Custom grooves in the catch can's inlet turbulates the air longer and ensures all the oil sinks to the bottom of the can, leaving nothing but clean air to pass through the 40 micron bronze filter to the intake. An internal baffle keeps the collected oil from splashing around under race conditions.

The 100% billet, 6061 aluminum can accepts -AN fittings at the intlet, outlet, and drain area allowing over 27 possible configurations. For maximum fitment options, the top cog mounting setup allows the can to be mounted from multiple angles. To make maintenance easy, the drain plug can be removed to allow for -AN return to the oil pan. The can is also 100% washable, unlike many other cans that require you to replace your filtration system. The Mishimoto Baffled Oil Catch Can is available in a variety of colors as well, so it will be sure to match your style and taste!



  • 40-micron bronze filter blocks oil from depositing in ventilation system
  • Includes push-on fittings for easy installation
  • Special engineered inlet pattern "turbulates" air longer, allowing oil to condense
  • Internal baffle ensures no oil escapes during high-speed cornering
  • Replaceable single-unit filter is easy to maintain
  • Inlet and outlet accept -AN fittings for various configurations
  • 100% billet anodized 6061 aluminum with laser etched finish
  • Safe to use in pressurized systems
  • Drain plug can be removed to allow for -AN return to oil pan
  • Unique upper mounting bracket cogs provide versatile mounting options



TECH INFO:

  • Overall Height - 6"
  • Overall Diameter - 3.06"
  • Inlet - M20 x 1.5 (for accepting -10AN)
  • Outlet - M20 x 1.5
  • Drain Plug Thread Size - M20 x 1.5
  • Capacity - 2 fl oz
  • Assembled Weight - 1.6 lbs
  • Material - Billet 6061 aluminum

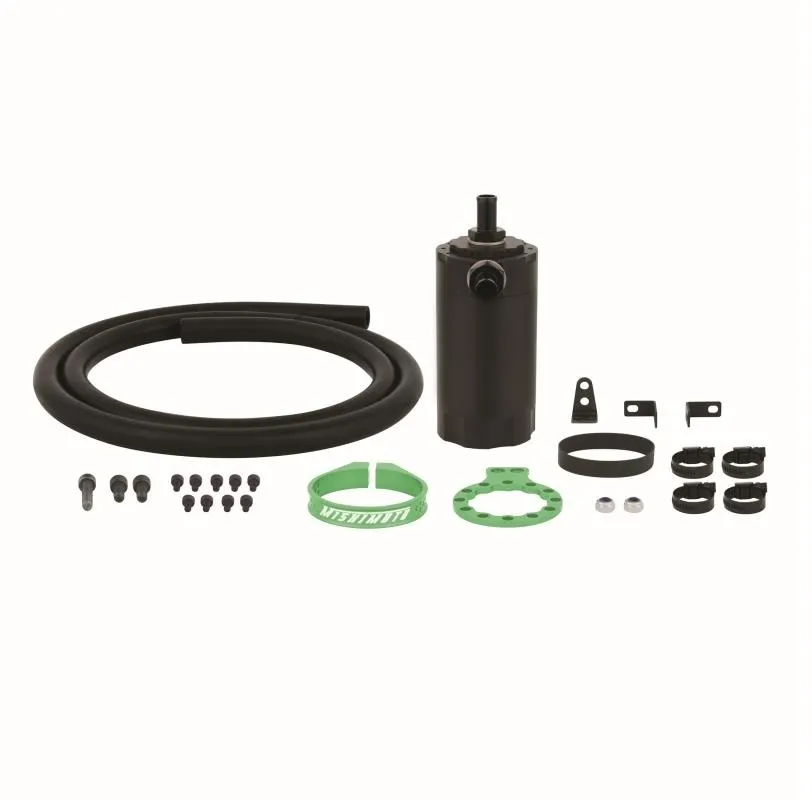

Purchase Includes:

  • (1) Black, Anodized 6061 Aluminum Catch Can
  • (2) Aluminum Mounting Brackets
  • (1) Bronze Filter
  • (1) Internal Baffle
  • (3) Dowty Oil Seals
  • (2) Push-on Fittings
  • (1) Drain Plug
  • (6) Black Rubber Oil Line
  • (4) Worm-gear Clamps
  • (1) Black Rubber Band
  • Mounting Hardware & Brackets
  • Mishimoto Lifetime Warranty



Specifications

  • Finish: Black
  • Overall Height: 6.00" (without fittings)
  • Overall Diameter: 3.06" (without fittings)
  • Inlet: M20 x 1.5 (for accepting -10AN)
  • Outlet: M20 x 1.5
  • Drain Plug Thread Size: M20 x 1.5
  • Capacity: 9 fl oz.
  • Assembled Weight: 1.6lbs (0.73kgs)

What's Included

  • 1 - Black, Anodized 6061 Aluminum Catch Can
  • 2 - Aluminum Mounting Brackets
  • 1 - Bronze Filter
  • 1 - Internal Baffle
  • 3 - Dowty Oil Seals
  • 2 - Push-on Fittings
  • 1 - Drain Plug
  • 6 - Black Rubber Oil Line
  • 4 - Worm-gear Clamps
  • 1 - Black Rubber Band
  • Mounting Hardware & Brackets
  • Mishimoto Lifetime Warranty

Compatibility

  • Universal Part

Mishimoto is proud to announce the release of our Baffled Oil Catch Can. With over a year of research and development time, Mishimoto has created the most effective oil catch can on the market. The Mishimoto Baffled Oil Catch Can was designed to separate oil particles from the PCV air that would normally have just been routed back to your intake. Custom grooves in the catch can's inlet turbulates the air longer and ensures all the oil sinks to the bottom of the can, leaving nothing but clean air to pass through the 40 micron bronze filter to the intake. An internal baffle keeps the collected oil from splashing around under race conditions.

The 100% billet, 6061 aluminum can accepts -AN fittings at the intlet, outlet, and drain area allowing over 27 possible configurations. For maximum fitment options, the top cog mounting setup allows the can to be mounted from multiple angles. To make maintenance easy, the drain plug can be removed to allow for -AN return to the oil pan. The can is also 100% washable, unlike many other cans that require you to replace your filtration system. The Mishimoto Baffled Oil Catch Can is available in a variety of colors as well, so it will be sure to match your style and taste!



  • 40-micron bronze filter blocks oil from depositing in ventilation system
  • Includes push-on fittings for easy installation
  • Special engineered inlet pattern "turbulates" air longer, allowing oil to condense
  • Internal baffle ensures no oil escapes during high-speed cornering
  • Replaceable single-unit filter is easy to maintain
  • Inlet and outlet accept -AN fittings for various configurations
  • 100% billet anodized 6061 aluminum with laser etched finish
  • Safe to use in pressurized systems
  • Drain plug can be removed to allow for -AN return to oil pan
  • Unique upper mounting bracket cogs provide versatile mounting options



TECH INFO:

  • Overall Height - 6"
  • Overall Diameter - 3.06"
  • Inlet - M20 x 1.5 (for accepting -10AN)
  • Outlet - M20 x 1.5
  • Drain Plug Thread Size - M20 x 1.5
  • Capacity - 2 fl oz
  • Assembled Weight - 1.6 lbs
  • Material - Billet 6061 aluminum

Purchase Includes:

  • (1) Black, Anodized 6061 Aluminum Catch Can
  • (2) Aluminum Mounting Brackets
  • (1) Bronze Filter
  • (1) Internal Baffle
  • (3) Dowty Oil Seals
  • (2) Push-on Fittings
  • (1) Drain Plug
  • (6) Black Rubber Oil Line
  • (4) Worm-gear Clamps
  • (1) Black Rubber Band
  • Mounting Hardware & Brackets
  • Mishimoto Lifetime Warranty



  • Finish: Black
  • Overall Height: 6.00" (without fittings)
  • Overall Diameter: 3.06" (without fittings)
  • Inlet: M20 x 1.5 (for accepting -10AN)
  • Outlet: M20 x 1.5
  • Drain Plug Thread Size: M20 x 1.5
  • Capacity: 9 fl oz.
  • Assembled Weight: 1.6lbs (0.73kgs)
  • 1 - Black, Anodized 6061 Aluminum Catch Can
  • 2 - Aluminum Mounting Brackets
  • 1 - Bronze Filter
  • 1 - Internal Baffle
  • 3 - Dowty Oil Seals
  • 2 - Push-on Fittings
  • 1 - Drain Plug
  • 6 - Black Rubber Oil Line
  • 4 - Worm-gear Clamps
  • 1 - Black Rubber Band
  • Mounting Hardware & Brackets
  • Mishimoto Lifetime Warranty
  • Universal Part
