Description

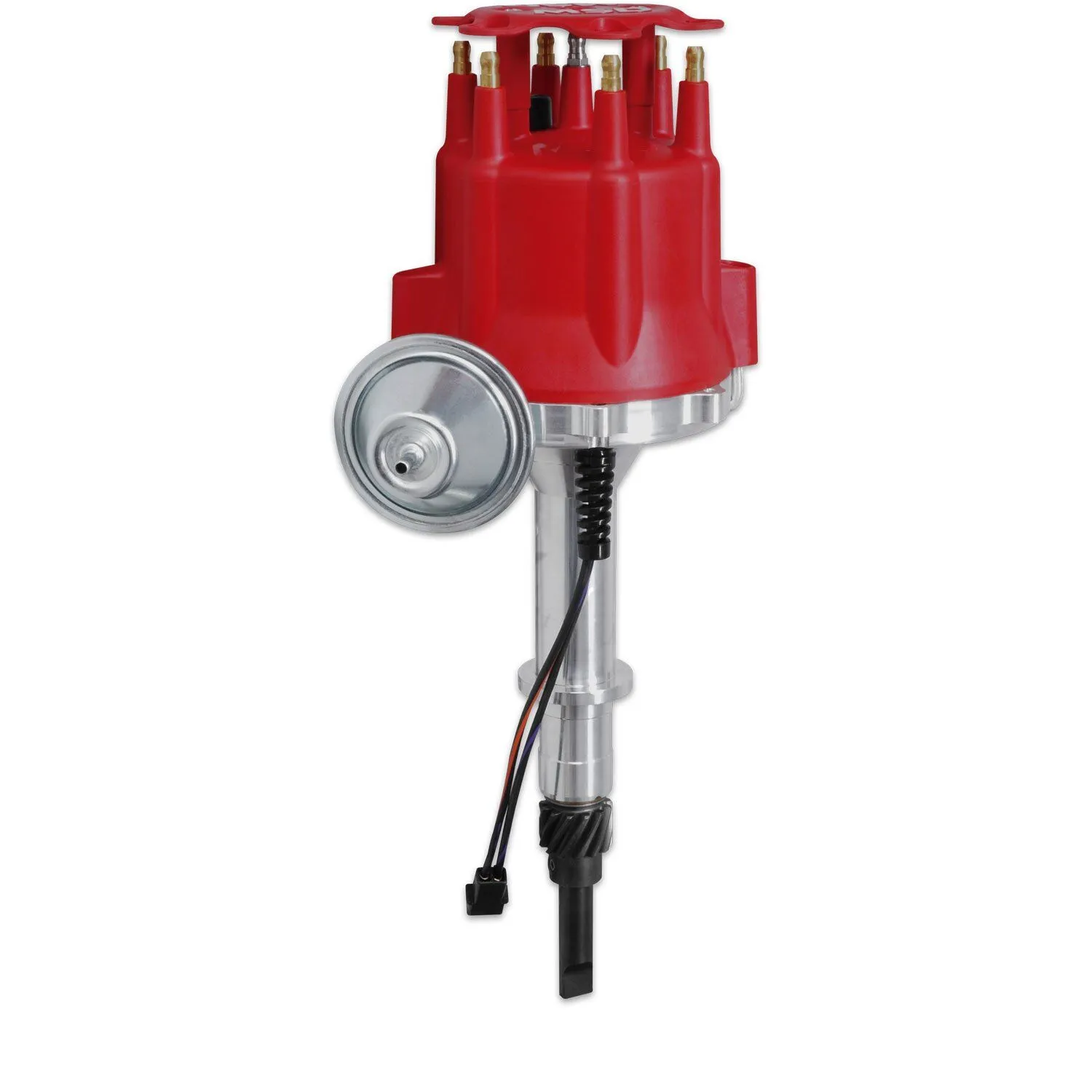

There is a big following of AMC enthusiasts that are cruising a 401 equipped Javelin or trailblazing in a rock crawling Jeep with a 4.0L inline 6-cylinder! MSD offers two Pro-Billet Distributors to deliver accurate trigger signals and are maintenance-free!

This pick-up never requires adjustment and simply plugs right into an MSD Ignition Control. Just above it and under our strong race rotor is an adjustable mechanical advance assembly. The Chromoly weights of this assembly slide on nylon bushings producing smooth movement of the timing. You can easily adjust the curve to match your engine's requirements with the supplied springs and stop bushings.

Each precision CNC-machined billet aluminum housing features a sealed ball-bearing and long sintered bushing for stability at any rpm and increased endurance. An oversized steel shaft receives a QPQ coating to reduce friction and prevent corrosion.

Both distributors are supplied with a high-quality cap, rotor, and gear. There is even a vacuum advance canister for street cruising economy!

Features

  • Designed for street/performance use with a mechanical and vacuum advance
  • Must be used with an MSD Ignition Control
  • Supplied with a socket style distributor cap and rotor
  • Nylon pads ensure smooth operation of the advance weights
  • Advance weight pins are staked and tig welded to the plate
  • Mechanical advance assembly can be locked out for crank trigger systems
  • Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
  • Polished steel shaft is QPQ coated and guided by a sealed ball bearing
  • Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
  • CNC machined billet aluminum housing and billet aluminum base
  • Vacuum advance canister for improved economy (can be locked out)
  • Easy-to-adjust mechanical advance with supplied springs and stop bushings
  • CARB E.O. Approved

Specifications

BrandMSD
C.A.R.B. EO #D-40-39
ColourRed
Distributor TypeMagnetic Pickup
Emission Code1
EngineAMC/Jeep 4.0L Inline 6
Product TypeDistributor
Sale CategoryIgnition
WarrantyLimited 1 Year Warranty

Compatibility

  • 1972 - 1973 Jeep Commando Base 3.8
  • 1972 - 1972 Jeep Commando Base 4.2
  • 1973 - 1973 Jeep Commando Base 4.2
  • 1972 - 1974 Jeep DJ5 Base 3.8
  • 1973 - 1974 Jeep DJ5 Base 4.2
  • 1965 - 1967 Jeep Gladiator Base 3.8
  • 1965 - 1967 Jeep Gladiator Base 3.8
  • 1965 - 1971 Jeep J-100 Base 3.8
  • 1965 - 1967 Jeep J-100 Base 3.8
  • 1968 - 1971 Jeep J-2500 Base 3.8
  • 1972 - 1973 Jeep J-2500 Base 4.2
  • 1968 - 1970 Jeep J-2600 Base 3.8
  • 1972 - 1973 Jeep J-2600 Base 4.2
  • 1968 - 1969 Jeep J-2700 Base 3.8
  • 1968 - 1970 Jeep J-3500 Base 3.8
  • 1968 - 1970 Jeep J-3600 Base 3.8
  • 1968 - 1970 Jeep J-3700 Base 3.8
  • 1968 - 1968 Jeep J-3800 Base 3.8
  • 1972 - 1978 Jeep CJ5 Base 3.8
  • 1972 - 1978 Jeep CJ5 Base 4.2
  • 1975 - 1978 Jeep CJ5 Renegade 3.8
  • 1975 - 1978 Jeep CJ5 Renegade 4.2
  • 1977 - 1978 Jeep CJ5 Golden Eagle 4.2
  • 1977 - 1978 Jeep CJ5 Golden Eagle 3.8
  • 1972 - 1975 Jeep CJ6 Base 3.8
  • 1972 - 1975 Jeep CJ6 Base 4.2
  • 1976 - 1978 Jeep CJ7 Base 3.8
  • 1976 - 1978 Jeep CJ7 Renegade 3.8
  • 1976 - 1978 Jeep CJ7 Renegade 4.2
  • 1976 - 1978 Jeep CJ7 Base 4.2
  • 1977 - 1978 Jeep CJ7 Golden Eagle 4.2
  • 1977 - 1978 Jeep CJ7 Golden Eagle 3.8
  • 1986 - 1986 Jeep CJ7 Base 4.2
  • 1986 - 1986 Jeep CJ7 Renegade 4.2
  • 1986 - 1986 Jeep CJ7 Laredo 4.2
  • 1974 - 1983 Jeep Cherokee Base 4.2
  • 1974 - 1977 Jeep Cherokee S 4.2
  • 1975 - 1983 Jeep Cherokee Wide Track Chief 4.2
  • 1978 - 1980 Jeep Cherokee Wide Track 4.2
  • 1978 - 1980 Jeep Cherokee S 4.2
  • 1979 - 1980 Jeep Cherokee Wide Track Golden Eagle 4.2
  • 1980 - 1983 Jeep Cherokee Wide Track Laredo 4.2
  • 1980 - 1980 Jeep Cherokee Wide Track Limited 4.2
  • 1981 - 1982 Jeep Cherokee Chief 4.2
  • 1981 - 1981 Jeep Cherokee Laredo 4.2
  • 1983 - 1983 Jeep Cherokee Pioneer 4.2
  • 1984 - 1986 Jeep Grand Wagoneer Base 4.2
  • 1984 - 1985 Jeep Grand Wagoneer Limited 4.2
  • 1974 - 1976 Jeep J10 Base 4.2
  • 1978 - 1987 Jeep J10 Base 4.2
  • 1974 - 1974 Jeep J20 Base 4.2
  • 1976 - 1976 Jeep J20 Base 4.2
  • 1981 - 1985 Jeep Scrambler Base 4.2
  • 1982 - 1984 Jeep Scrambler SR 4.2
  • 1982 - 1983 Jeep Scrambler SL 4.2
  • 1985 - 1985 Jeep Scrambler Renegade 4.2
  • 1985 - 1985 Jeep Scrambler Laredo 4.2
  • 1972 - 1973 Jeep Wagoneer Base 4.2
  • 1973 - 1973 Jeep Wagoneer Custom 4.2
  • 1987 - 1988 Jeep Wrangler Sport 4.2
  • 1987 - 1988 Jeep Wrangler Laredo 4.2
  • 1987 - 1988 Jeep Wrangler Base 4.2
  • 1988 - 1988 Jeep Wrangler Islander 4.2
  • 1988 - 1988 Jeep Wrangler S 4.2
  • 1988 - 1988 Jeep Wrangler Sahara 4.2
