Description

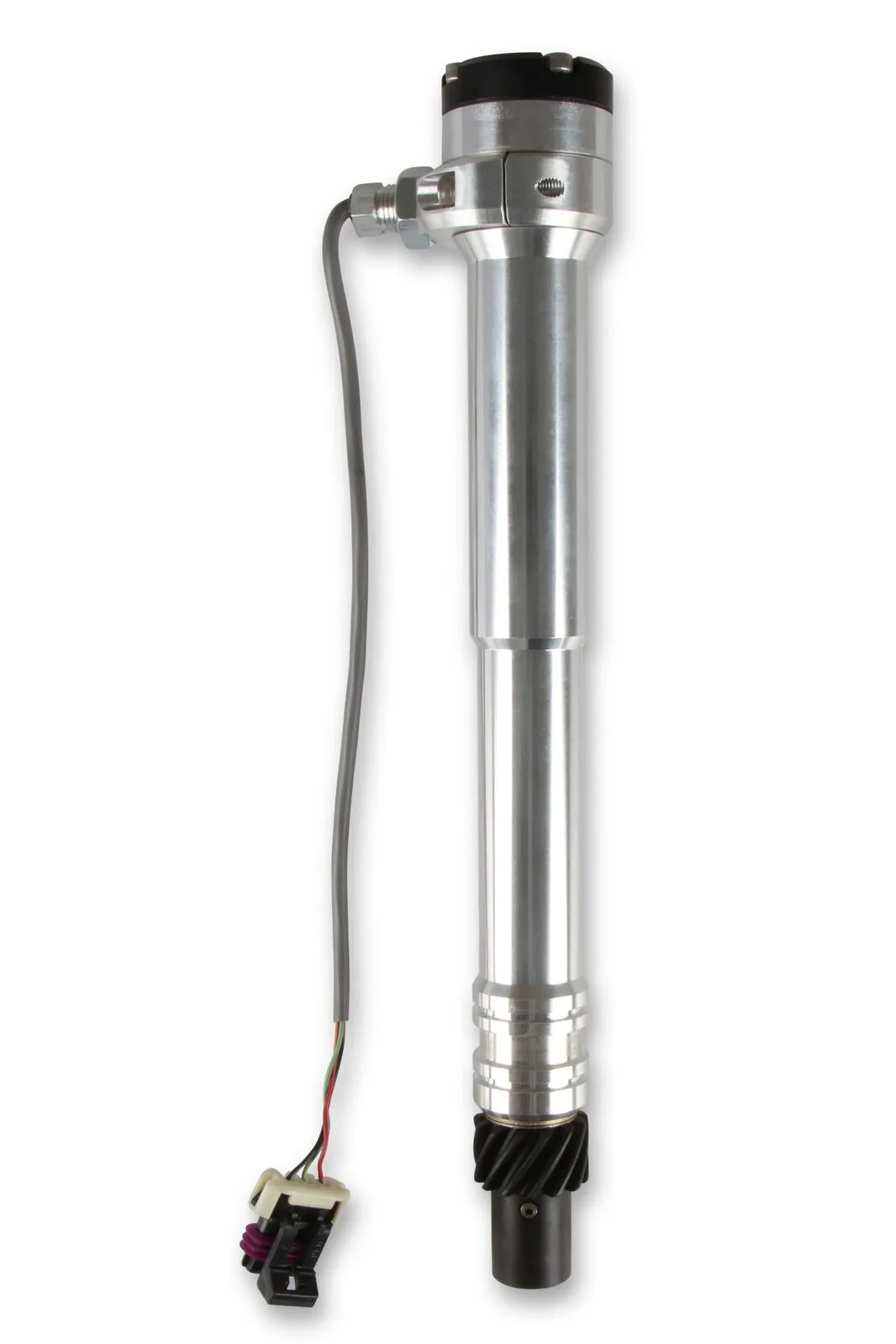

MSD's cam sync plugs are the perfect solution when running an aftermarket sequential EFI system with coil-per-cylinder ignition. The cam sync plug installs in place of a traditional distributor, providing a hall-effect cam sync signal needed for the EFI system to reference the # 1 cylinder. MSD's cam sync is a plug and play with Holley EFI systems and can easily interface with most aftermarket EFI systems. The cam sync plug will have 2-3/4" of adjustment.

Features

  • Built-in L.E.D. makes set-up and indexing quick and easy
  • Plug-and-play with Holley EFI and compatible with other aftermarket EFI systems requiring a cam sync signal
  • CNC billet housing with black anodized cap provide good looks and excellent durability

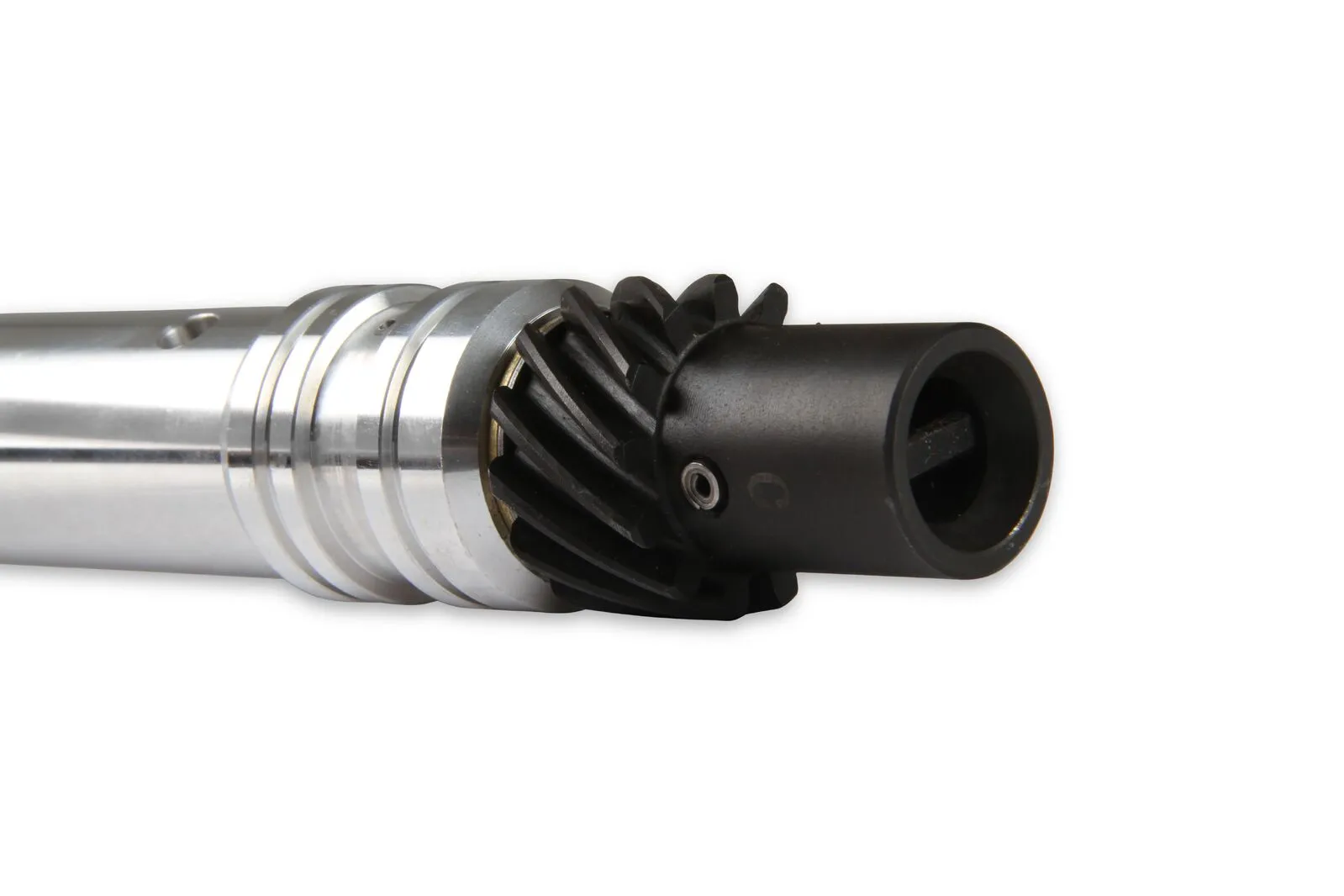

  • Chevrolet version is supplied with a equivalent Melonized distributor gear and adjustable slip collar for blocks with a non-standard deck height
  • 2-3/4” of adjustment for different deck heights

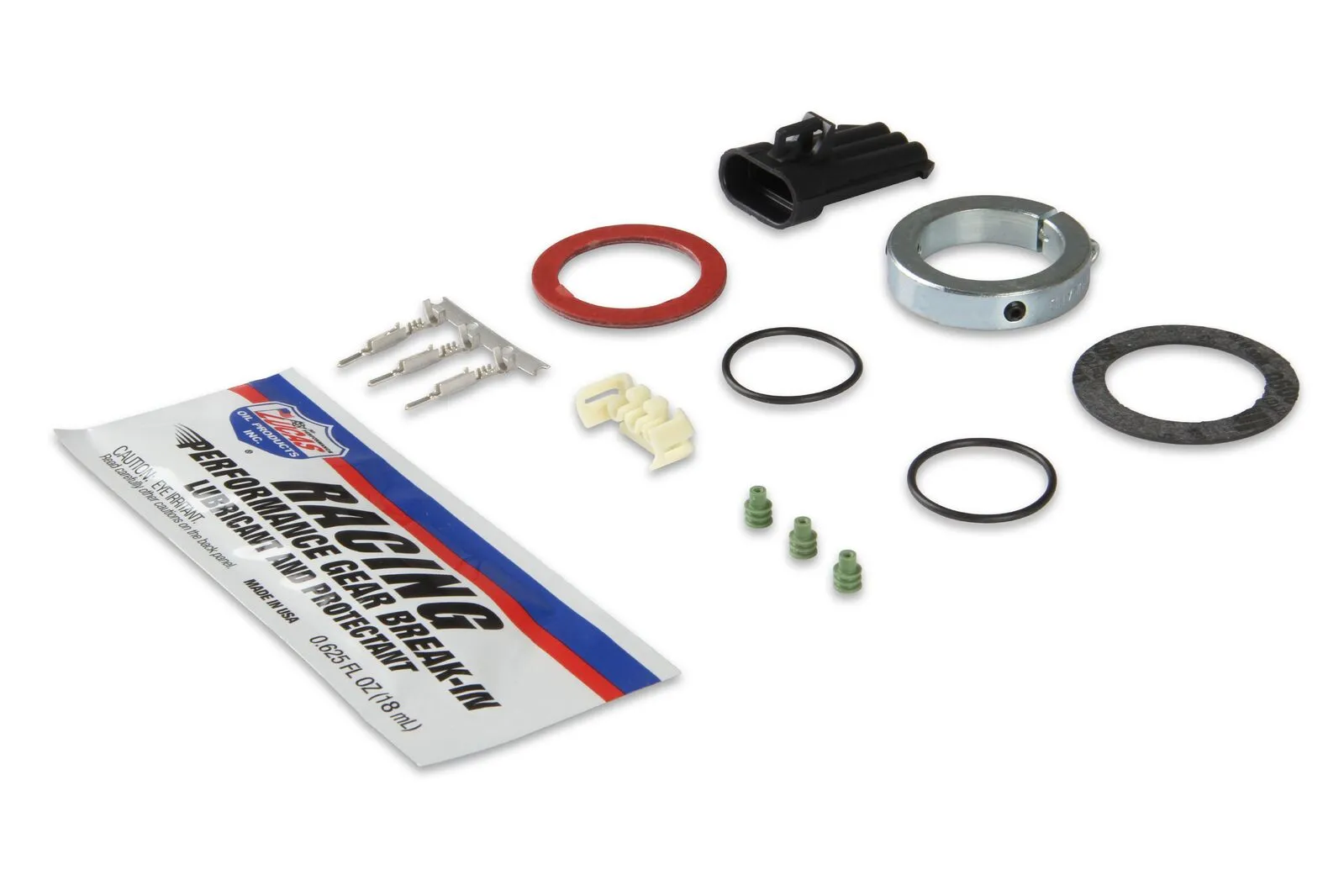

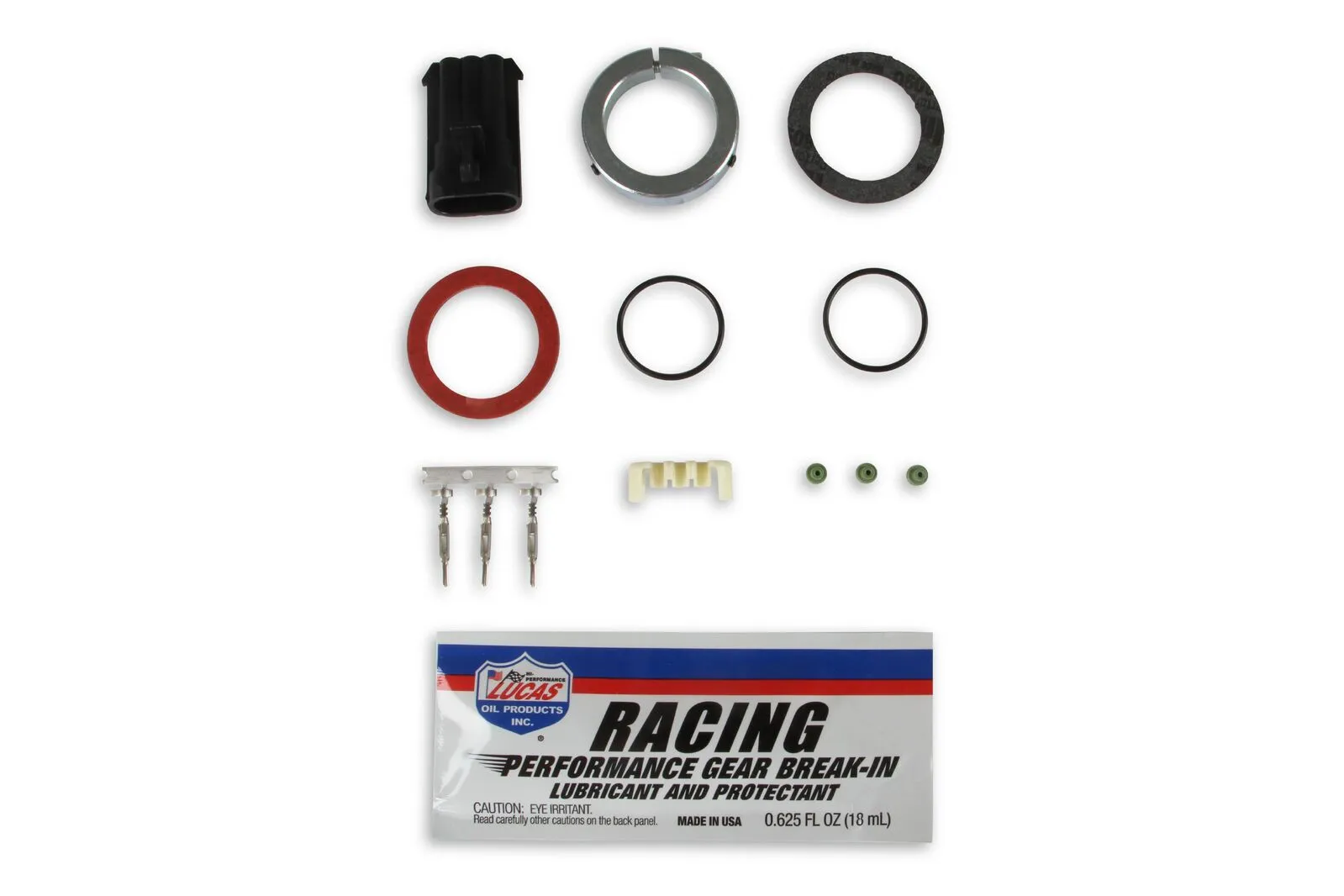

  • O-ring seals can be added to modified blocks to improve oil pressure control
  • Special oil tract improves lubrication to the distributor and cam gear

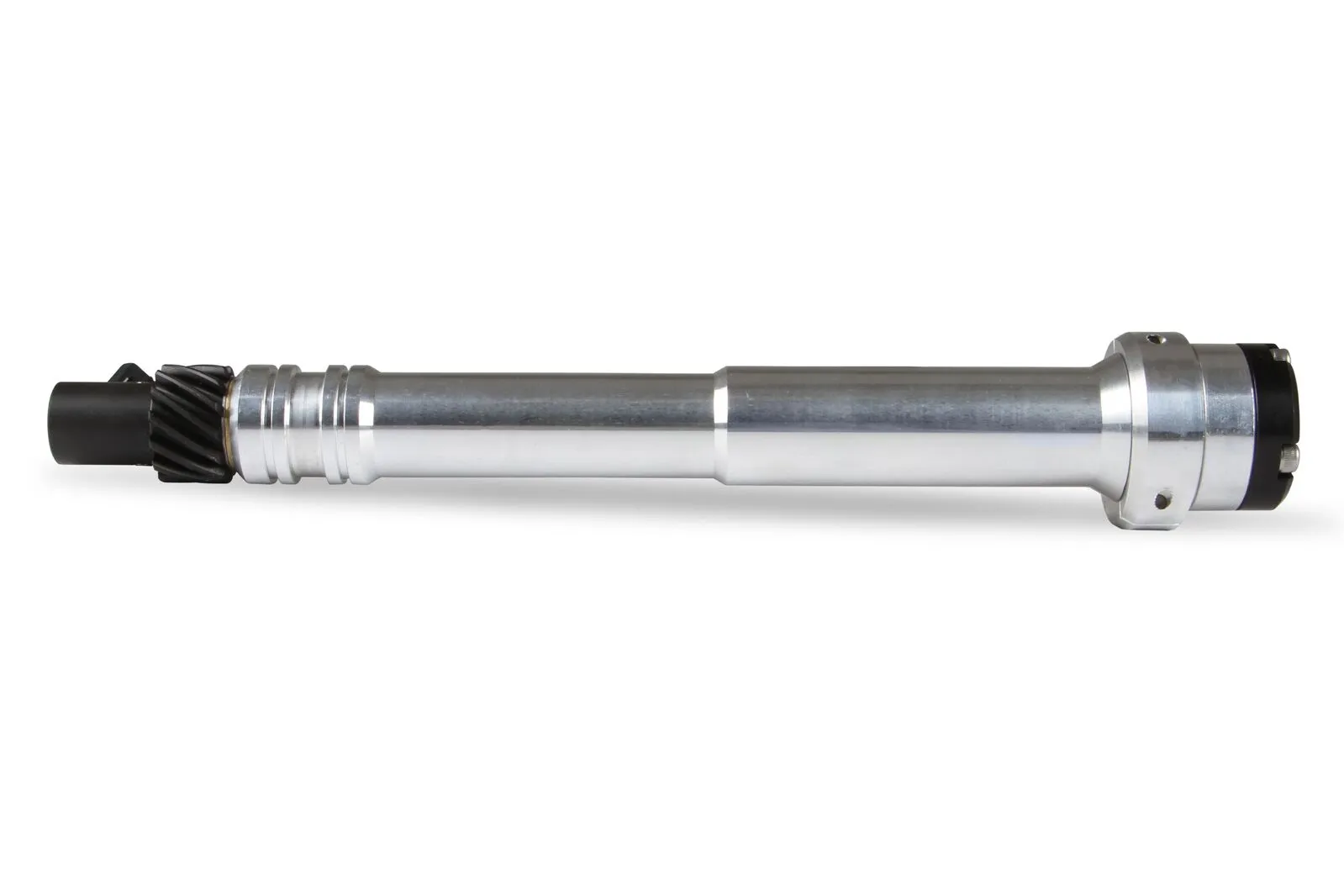

  • Shaft is guided by a sealed ball bearing and an extra long sintered bushing

Specifications

BrandMSD
ColourBlack and Silver
Distributor TypeCam Sync Plug
Emission Code5
EngineChevy Tall Deck
GearCast, Melonized
Product TypeCam Sync
Sale CategoryIgnition
SensorHall-Effect
WarrantyLimited 1 Year Warranty

Compatibility

  • Universal Part

MSD's cam sync plugs are the perfect solution when running an aftermarket sequential EFI system with coil-per-cylinder ignition. The cam sync plug installs in place of a traditional distributor, providing a hall-effect cam sync signal needed for the EFI system to reference the # 1 cylinder. MSD's cam sync is a plug and play with Holley EFI systems and can easily interface with most aftermarket EFI systems. The cam sync plug will have 2-3/4" of adjustment.

Features

  • Built-in L.E.D. makes set-up and indexing quick and easy
  • Plug-and-play with Holley EFI and compatible with other aftermarket EFI systems requiring a cam sync signal
  • CNC billet housing with black anodized cap provide good looks and excellent durability
  • Chevrolet version is supplied with a equivalent Melonized distributor gear and adjustable slip collar for blocks with a non-standard deck height
  • 2-3/4” of adjustment for different deck heights
  • O-ring seals can be added to modified blocks to improve oil pressure control
  • Special oil tract improves lubrication to the distributor and cam gear
  • Shaft is guided by a sealed ball bearing and an extra long sintered bushing
BrandMSD
ColourBlack and Silver
Distributor TypeCam Sync Plug
Emission Code5
EngineChevy Tall Deck
GearCast, Melonized
Product TypeCam Sync
Sale CategoryIgnition
SensorHall-Effect
WarrantyLimited 1 Year Warranty
  • Universal Part
