Description

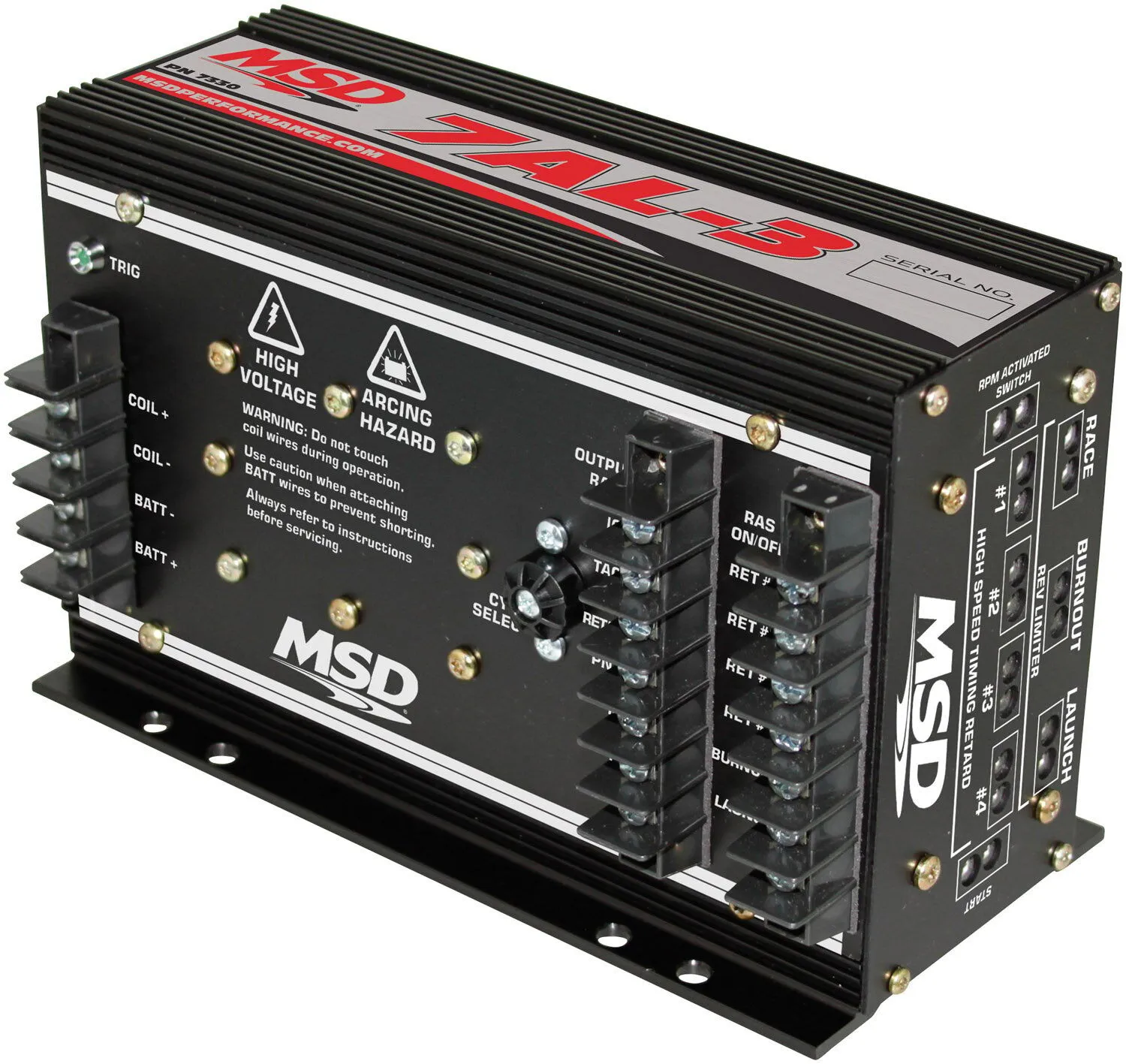

For racers that want adjustments at their fingertips, the 7AL-3 is the right choice. The 7AL-3 packs high voltage with four step retards, three rev limits and an rpm switch.

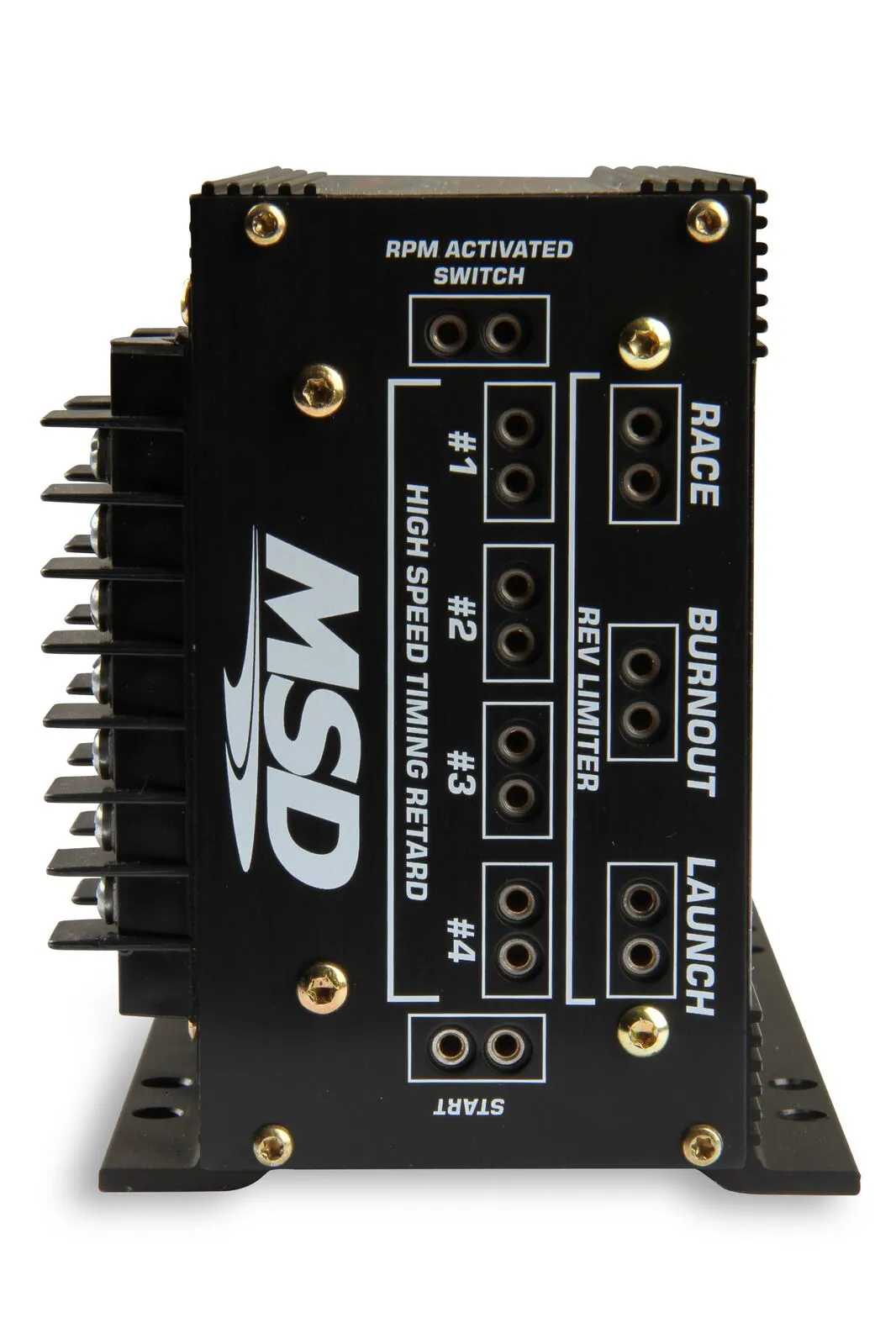

All of the features are adjusted using plug-in modules including the 3-Step Rev Control and Multi-Step Retard. The Rev Control gives you the ability to set one rev limit for the burnout, another for the staging rpm limit and a third for use top end engine protection in the event of driveline failure. For nitrous fans, there are four separate stages that can be activated independently yet add up together. Plus there's an RPM Activated Switch for precise control over a circuit.

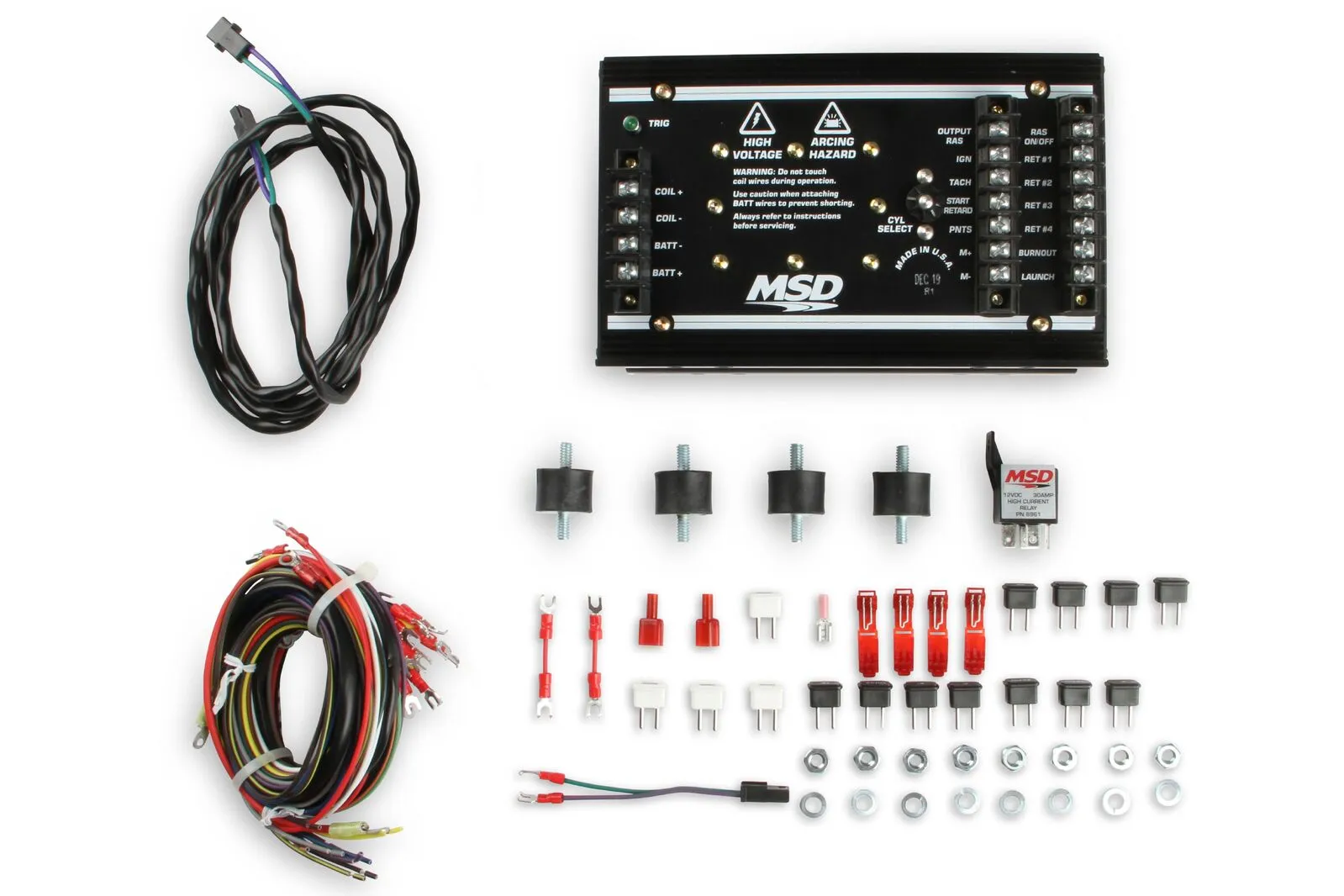

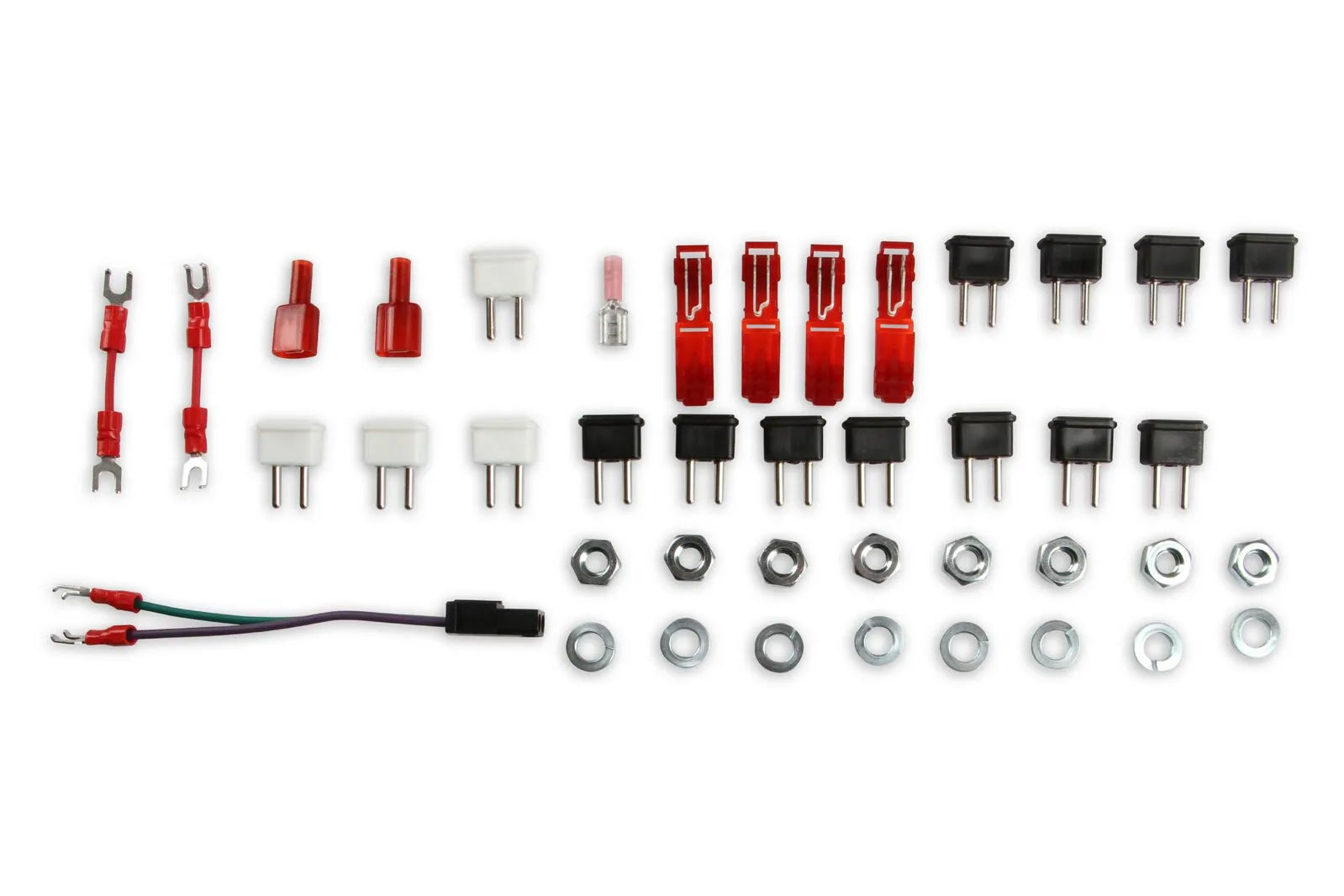

Something new is that the start retard is now adjustable with plug-in modules giving you better control over the amount of retard pulled out during cranking. The unit is supplied with a variety of rpm and timing modules. It is has a foot print that fits into the red 7AL-3's mount.

Features

  • 3-Step Rev Limiter
  • 4-Stage Multi-Step Retard
  • RPM Activated Switch
  • Adjustable Start Retard
  • Cylinder Select 4, 6, 8 Cyl
  • Diagnostic Trigger LED

Specifications

BrandMSD
Current Draw6 Amps Per 6,000 RPM; 12 Amps at 12,000 RPM
Emission Code4
Primary Voltage570 Volts
Product TypeIgnition Box
RPM Range14,000 RPM with 14.4 Volts
Sale CategoryIgnition
Secondary Voltage50,000 Volts
Spark Duration20 Deg Crankshaft Rotation
Spark Energy160 mJ/spark
Voltage Required12-18 Volts, Negative Ground
WarrantyLimited 1 Year Warranty
Weight and Size4.85 lbs.,8.25"L x 3.75"W x 5.75"H

Compatibility

  • Universal Part

For racers that want adjustments at their fingertips, the 7AL-3 is the right choice. The 7AL-3 packs high voltage with four step retards, three rev limits and an rpm switch.

All of the features are adjusted using plug-in modules including the 3-Step Rev Control and Multi-Step Retard. The Rev Control gives you the ability to set one rev limit for the burnout, another for the staging rpm limit and a third for use top end engine protection in the event of driveline failure. For nitrous fans, there are four separate stages that can be activated independently yet add up together. Plus there's an RPM Activated Switch for precise control over a circuit.

Something new is that the start retard is now adjustable with plug-in modules giving you better control over the amount of retard pulled out during cranking. The unit is supplied with a variety of rpm and timing modules. It is has a foot print that fits into the red 7AL-3's mount.

Features

  • 3-Step Rev Limiter
  • 4-Stage Multi-Step Retard
  • RPM Activated Switch
  • Adjustable Start Retard
  • Cylinder Select 4, 6, 8 Cyl
  • Diagnostic Trigger LED
BrandMSD
Current Draw6 Amps Per 6,000 RPM; 12 Amps at 12,000 RPM
Emission Code4
Primary Voltage570 Volts
Product TypeIgnition Box
RPM Range14,000 RPM with 14.4 Volts
Sale CategoryIgnition
Secondary Voltage50,000 Volts
Spark Duration20 Deg Crankshaft Rotation
Spark Energy160 mJ/spark
Voltage Required12-18 Volts, Negative Ground
WarrantyLimited 1 Year Warranty
Weight and Size4.85 lbs.,8.25"L x 3.75"W x 5.75"H
  • Universal Part
