Description

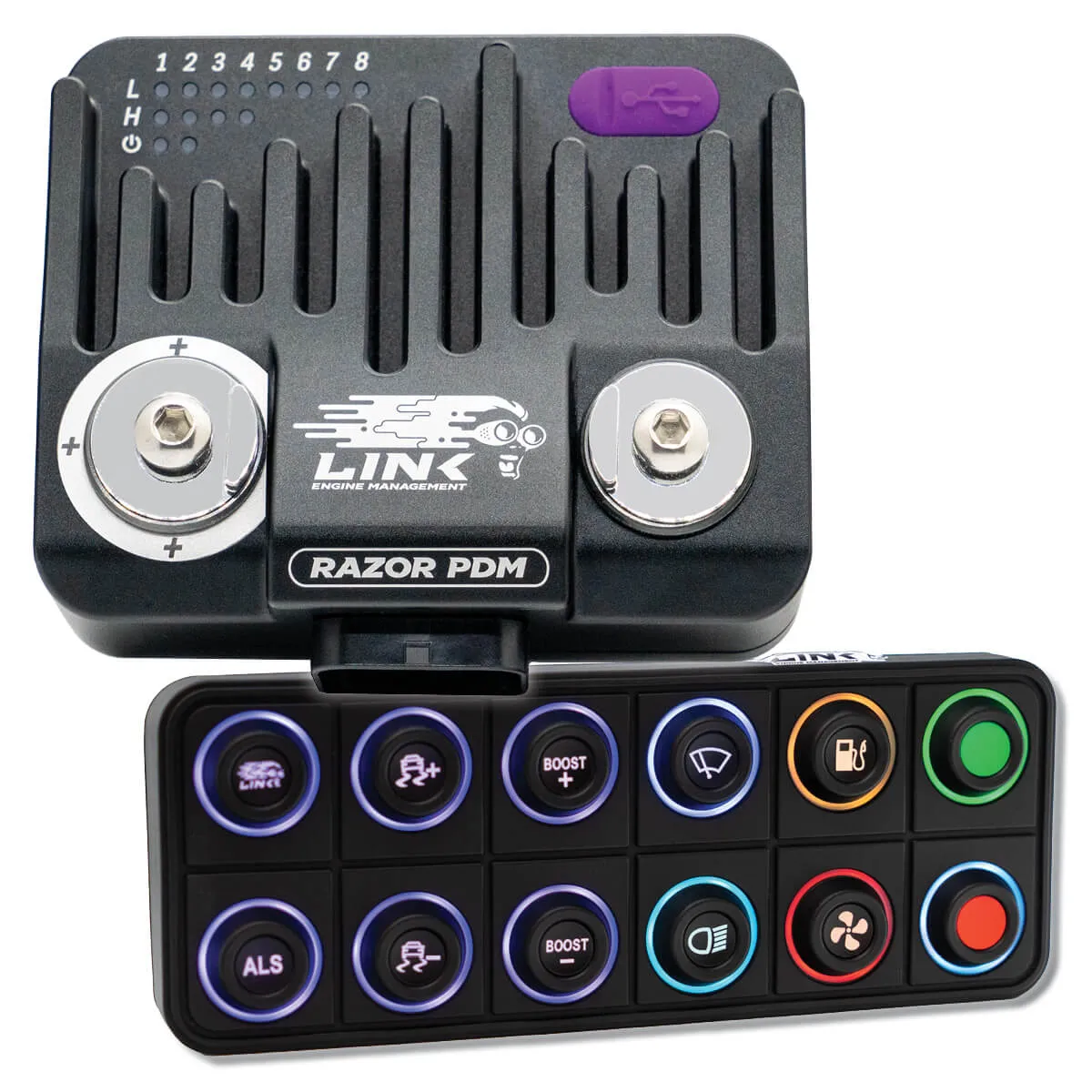

The Razor PDM Bundle combines one Razor PDM Power Distribution Module and one Link 12 Button CAN Keypad into a single package, providing everything needed to implement an intelligent, driver-configurable solid-state power management system. The Razor PDM replaces traditional fuses and relays with programmable logic-based control, while the 12 Button CAN Keypad gives the driver direct, labelled control over any output the PDM manages.

Razor PDM Key Specifications

  • 4 high-power outputs — 25A continuous each, with PWM, high-side, low-side, or H-bridge motor control
  • 8 universal ADIO pins — 8A output each, or configurable as analog or digital inputs
  • Up to 100A continuous combined current; 160A non-repetitive peak
  • Configurable overcurrent and short-circuit protection with automatic reset
  • Internal PID control, math functions, and programmable logic expressions
  • Standalone, CAN Keypad, or Link ECU operating preset modes available
  • Configured via free PDM Link software (Windows)

12 Button CAN Keypad Key Features

  • 12 individually configurable buttons with interchangeable 15mm inserts
  • Per-button RGB indicator rings with nine backlight and seven button colour presets
  • IP67/IP69K water and dust resistance; -40 to +70°C operating range
  • Switches rated to 3 million operations; UV and salt spray resistant

This bundle is the ideal starting point for builds that need both power distribution control and a dedicated in-cabin operator interface.

Specifications

  • Bundle - Includes 1 x Razor PDM and 1 x 12 Button CAN Keypad.
  • Link's highly anticipated PDM, the Razor PDM, is an intelligent Power Distribution Module that replaces traditional fuses and relays, putting you in complete control of your setup.
  • The Razor PDM is a programmable device that uses logic for the smart control of any outputs you have connected, meaning events and commands can be triggered when your vehicle hits specific parameters.
  • The device will allow you to manage things such as fuel pumps, radiator fans, electronic throttles, servos, lights and more, as well as monitoring analog or digital sensor signals.
  • You can gain full control by using an Analog Switch Panel, CAN Keypad or ECU to switch output channels, as well as increasing reliability and protecting your critical components from damage.
  • With superior thermal performance, the Razor PDM has been designed with vehicle protection in mind, while allowing for a more efficient, cleaner, and reliable build.
  • It may be small and compact, but the Razor PDM can handle up to 100 Amps of continuous combined current, as well as 160A of non-repetitive maximum current. If you need to manage even more power, you can easily add multiple Razor PDM’s via CAN or use as a CAN Expander to increase your inputs and outputs.
  • The Razor PDM has the ability to connect with many other ECU brands and CAN devices when using a custom CAN stream. Those of you with a Link ECU will be pleased to know that our software comes with a pre-configured stream, so your Link products will work with the device straight out of the box.
  • Setup and management of the Razor PDM is performed through our custom PDM Link software, which is free to download and use.
  • In the box:
  • Link Razor PDM
  • Mounting plate and screws
  • Superseal C Plug and Pin Kit
  • USB-C connection cable
  • Positive terminal insulation boot
  • 2 x high-current ring terminals and bolts
  • Quickstart guide
  • Can be used in conjunction with a Link ECU or as a comp

Compatibility

  • Universal Part

The Razor PDM Bundle combines one Razor PDM Power Distribution Module and one Link 12 Button CAN Keypad into a single package, providing everything needed to implement an intelligent, driver-configurable solid-state power management system. The Razor PDM replaces traditional fuses and relays with programmable logic-based control, while the 12 Button CAN Keypad gives the driver direct, labelled control over any output the PDM manages.

Razor PDM Key Specifications

  • 4 high-power outputs — 25A continuous each, with PWM, high-side, low-side, or H-bridge motor control
  • 8 universal ADIO pins — 8A output each, or configurable as analog or digital inputs
  • Up to 100A continuous combined current; 160A non-repetitive peak
  • Configurable overcurrent and short-circuit protection with automatic reset
  • Internal PID control, math functions, and programmable logic expressions
  • Standalone, CAN Keypad, or Link ECU operating preset modes available
  • Configured via free PDM Link software (Windows)

12 Button CAN Keypad Key Features

  • 12 individually configurable buttons with interchangeable 15mm inserts
  • Per-button RGB indicator rings with nine backlight and seven button colour presets
  • IP67/IP69K water and dust resistance; -40 to +70°C operating range
  • Switches rated to 3 million operations; UV and salt spray resistant

This bundle is the ideal starting point for builds that need both power distribution control and a dedicated in-cabin operator interface.

  • Bundle - Includes 1 x Razor PDM and 1 x 12 Button CAN Keypad.
  • Link's highly anticipated PDM, the Razor PDM, is an intelligent Power Distribution Module that replaces traditional fuses and relays, putting you in complete control of your setup.
  • The Razor PDM is a programmable device that uses logic for the smart control of any outputs you have connected, meaning events and commands can be triggered when your vehicle hits specific parameters.
  • The device will allow you to manage things such as fuel pumps, radiator fans, electronic throttles, servos, lights and more, as well as monitoring analog or digital sensor signals.
  • You can gain full control by using an Analog Switch Panel, CAN Keypad or ECU to switch output channels, as well as increasing reliability and protecting your critical components from damage.
  • With superior thermal performance, the Razor PDM has been designed with vehicle protection in mind, while allowing for a more efficient, cleaner, and reliable build.
  • It may be small and compact, but the Razor PDM can handle up to 100 Amps of continuous combined current, as well as 160A of non-repetitive maximum current. If you need to manage even more power, you can easily add multiple Razor PDM’s via CAN or use as a CAN Expander to increase your inputs and outputs.
  • The Razor PDM has the ability to connect with many other ECU brands and CAN devices when using a custom CAN stream. Those of you with a Link ECU will be pleased to know that our software comes with a pre-configured stream, so your Link products will work with the device straight out of the box.
  • Setup and management of the Razor PDM is performed through our custom PDM Link software, which is free to download and use.
  • In the box:
  • Link Razor PDM
  • Mounting plate and screws
  • Superseal C Plug and Pin Kit
  • USB-C connection cable
  • Positive terminal insulation boot
  • 2 x high-current ring terminals and bolts
  • Quickstart guide
  • Can be used in conjunction with a Link ECU or as a comp
  • Universal Part
