Description

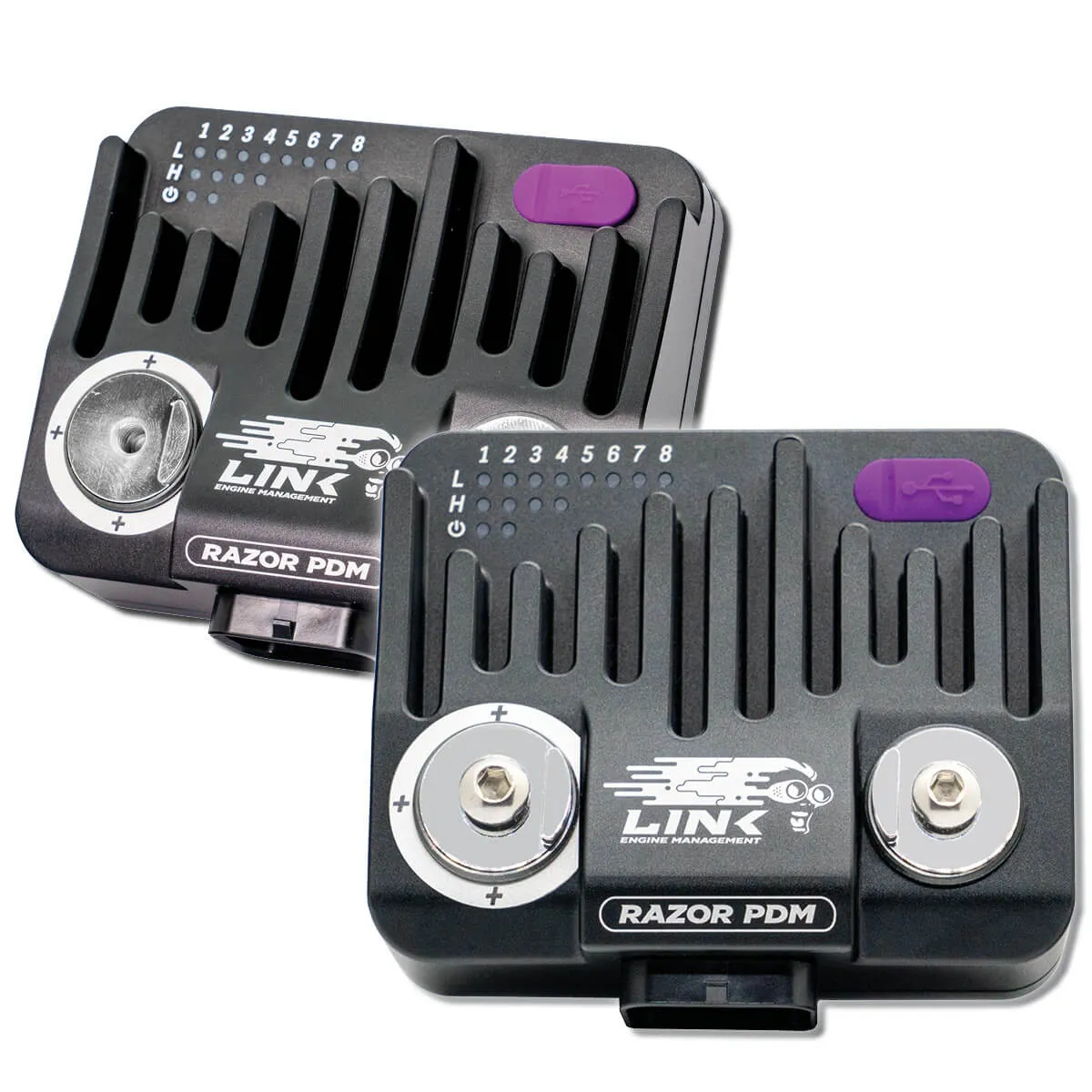

The Razor PDM Bundle Twin Pack includes two Razor PDM (Power Distribution Module) units, providing an intelligent, solid-state replacement for traditional fuses and relays across complex or high-demand vehicle electrical systems. Each Razor PDM is a fully programmable power distribution computer that uses logic-based rules to control outputs in real time based on ECU data, CAN signals, sensor inputs, and operator commands.

Key Specifications (per unit)

  • 4 high-power outputs — 25A continuous each, with PWM, high-side, low-side, or H-bridge motor control options
  • 8 universal ADIO pins — 8A output each, or configurable as analog or digital inputs
  • Up to 100A continuous combined current; 160A non-repetitive peak
  • Configurable overcurrent and short-circuit protection with automatic reset
  • Internal PID control, math functions, and logic expression engine
  • Multiple units linkable via CAN bus for expanded output capacity
  • Standalone operation or full integration with Link G4X ECUs (G4+ with limitations)
  • Configured via free PDM Link software (Windows)

Buying two units as a bundle provides a cost-effective solution for vehicles that require expanded output capacity or redundant power management across different zones of the vehicle's electrical architecture.

Specifications

  • Bundle - Includes 2 x Razor PDMs.
  • Link's highly anticipated PDM, the Razor PDM, is an intelligent Power Distribution Module that replaces traditional fuses and relays, putting you in complete control of your setup.
  • The Razor PDM is a programmable device that uses logic for the smart control of any outputs you have connected, meaning events and commands can be triggered when your vehicle hits specific parameters.
  • The device will allow you to manage things such as fuel pumps, radiator fans, electronic throttles, servos, lights and more, as well as monitoring analog or digital sensor signals.
  • You can gain full control by using an Analog Switch Panel, CAN Keypad or ECU to switch output channels, as well as increasing reliability and protecting your critical components from damage.
  • With superior thermal performance, the Razor PDM has been designed with vehicle protection in mind, while allowing for a more efficient, cleaner, and reliable build.
  • It may be small and compact, but the Razor PDM can handle up to 100 Amps of continuous combined current, as well as 160A of non-repetitive maximum current. If you need to manage even more power, you can easily add multiple Razor PDM’s via CAN or use as a CAN Expander to increase your inputs and outputs.
  • The Razor PDM has the ability to connect with many other ECU brands and CAN devices when using a custom CAN stream. Those of you with a Link ECU will be pleased to know that our software comes with a pre-configured stream, so your Link products will work with the device straight out of the box.
  • Setup and management of the Razor PDM is performed through our custom PDM Link software, which is free to download and use.
  • In the box:
  • Link Razor PDM
  • Mounting plate and screws
  • Superseal C Plug and Pin Kit
  • USB-C connection cable
  • Positive terminal insulation boot
  • 2 x high-current ring terminals and bolts
  • Quickstart guide
  • Can be used in conjunction with a Link ECU or as a completely standalone device

Compatibility

  • Universal Part

The Razor PDM Bundle Twin Pack includes two Razor PDM (Power Distribution Module) units, providing an intelligent, solid-state replacement for traditional fuses and relays across complex or high-demand vehicle electrical systems. Each Razor PDM is a fully programmable power distribution computer that uses logic-based rules to control outputs in real time based on ECU data, CAN signals, sensor inputs, and operator commands.

Key Specifications (per unit)

  • 4 high-power outputs — 25A continuous each, with PWM, high-side, low-side, or H-bridge motor control options
  • 8 universal ADIO pins — 8A output each, or configurable as analog or digital inputs
  • Up to 100A continuous combined current; 160A non-repetitive peak
  • Configurable overcurrent and short-circuit protection with automatic reset
  • Internal PID control, math functions, and logic expression engine
  • Multiple units linkable via CAN bus for expanded output capacity
  • Standalone operation or full integration with Link G4X ECUs (G4+ with limitations)
  • Configured via free PDM Link software (Windows)

Buying two units as a bundle provides a cost-effective solution for vehicles that require expanded output capacity or redundant power management across different zones of the vehicle's electrical architecture.

  • Bundle - Includes 2 x Razor PDMs.
  • Link's highly anticipated PDM, the Razor PDM, is an intelligent Power Distribution Module that replaces traditional fuses and relays, putting you in complete control of your setup.
  • The Razor PDM is a programmable device that uses logic for the smart control of any outputs you have connected, meaning events and commands can be triggered when your vehicle hits specific parameters.
  • The device will allow you to manage things such as fuel pumps, radiator fans, electronic throttles, servos, lights and more, as well as monitoring analog or digital sensor signals.
  • You can gain full control by using an Analog Switch Panel, CAN Keypad or ECU to switch output channels, as well as increasing reliability and protecting your critical components from damage.
  • With superior thermal performance, the Razor PDM has been designed with vehicle protection in mind, while allowing for a more efficient, cleaner, and reliable build.
  • It may be small and compact, but the Razor PDM can handle up to 100 Amps of continuous combined current, as well as 160A of non-repetitive maximum current. If you need to manage even more power, you can easily add multiple Razor PDM’s via CAN or use as a CAN Expander to increase your inputs and outputs.
  • The Razor PDM has the ability to connect with many other ECU brands and CAN devices when using a custom CAN stream. Those of you with a Link ECU will be pleased to know that our software comes with a pre-configured stream, so your Link products will work with the device straight out of the box.
  • Setup and management of the Razor PDM is performed through our custom PDM Link software, which is free to download and use.
  • In the box:
  • Link Razor PDM
  • Mounting plate and screws
  • Superseal C Plug and Pin Kit
  • USB-C connection cable
  • Positive terminal insulation boot
  • 2 x high-current ring terminals and bolts
  • Quickstart guide
  • Can be used in conjunction with a Link ECU or as a completely standalone device
  • Universal Part
