Description

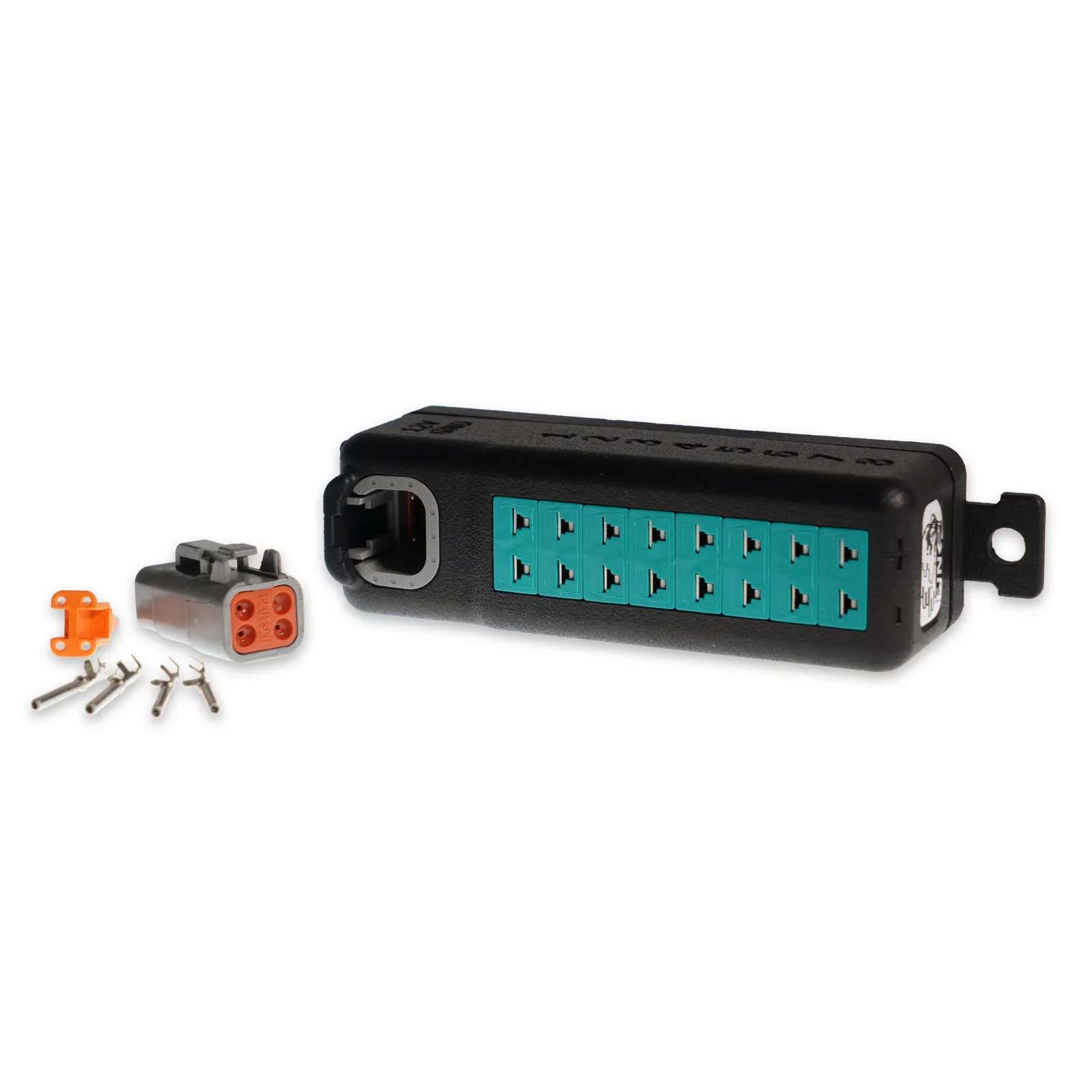

The TCC08 is a Thermocouple-to-CAN interface module that connects up to eight Type-K thermocouples and transmits temperature values via CAN bus, or monitors them wirelessly on a smartphone or PC. All measurements are cold junction compensated with a measuring range of 0 to 1250°C (32 to 2282°F) at 0.25°C resolution (14-bit), and accuracy to a maximum 2% deviation.

  • Supports 8 cold junction compensated Type-K thermocouple inputs
  • CAN 2.0A/B standard with selectable speeds: 125kbps, 250kbps, 500kbps, 1Mbps
  • Adjustable sample frequency up to 100Hz
  • Short circuit and missing thermocouple detection
  • Wireless configuration and live monitoring via smartphone or PC
  • Compact dimensions: 129 x 31.5 x 34.6mm

Ideal for engines requiring individual cylinder EGT monitoring across 5–8 cylinders, as well as measuring temperatures at intercoolers, turbo housings, cylinder heads, water circuits, and oil circuits. Supplied with 1x DTM4 mating connector kit.

Specifications

  • Link TCC08 8 Channel EGT to CAN module, powered by CANchecked
  • The TCC08 EGT to CAN module allows you to connect up to eight Type-K thermocouples and send the values ??via CAN bus and/or monitor them directly on your wireless enabled device.
  • Type-K thermocouples are suitable for various applications such as measuring exhaust gas temperature (EGT), temperatures before/after the intercooler, turbo housings, cylinder head temperatures, water temperature, oil temperature and more. All measurements are cold junction compensated with a measuring range of 0 to 1250°C in 0.25°C resolution (14bit).
  • The TCC08 features a four-pin DTM connector for CAN/power and miniature K-sockets. It is pin compatible with Links standard CAN pinout and CAN cables range. CAN 2.0A/B standard is supported with flexible configuration.
  • Wireless connectivity allows you to configure and update your module via smartphone or PC and query the current temperature and thermocouple status.
  • Features:
  • 8 x cold junction compensated type-K inputs
  • Four-pin DTM connector & miniature K-sockets.
  • CAN Bus connection to ECU (Pre-Configured for Link ECU)
  • Measuring range from 0 to 1250°C (32 to 2282°F) with 0.25°C resolution
  • Detection of short circuit to ground or if no type-K is connected
  • Standard mini k thermocouple connector
  • Full configuration and monitoring over wireless
  • Adjustable sample frequency up to 100Hz
  • Box Contents:
  • 1 x CAN EGT Module
  • 1 x DTM4 Mating Connector Kit
  • 2 x Link Stickers
  • Set-up and Installation Guide
  • Specifications:
  • DTM 4 CAN Pinout (Supports Links CAN pinout schema and CAN cables range)
  • Pin 1: 12V Pin 2: Ground Pin 3: Can Low Pin 4: Can High
  • Accuracy: maximum 2% deviation
  • Dimension (L x W x H) – 129 x 31.5 x 34.6mm
  • Configuration Options:
  • The module can be configured via wireless:
  • Can Speed: 125kbps, 250kbps, 500kbps, 1Mbps
  • Emulation: Standard, All major aftermarket EGT/Thermocouple to CAN Modules
  • Change of standard Can Bus ID
  • Change Big/Little Endian
  • Set-up and Installation Guide

Compatibility

  • Universal Part
