Description

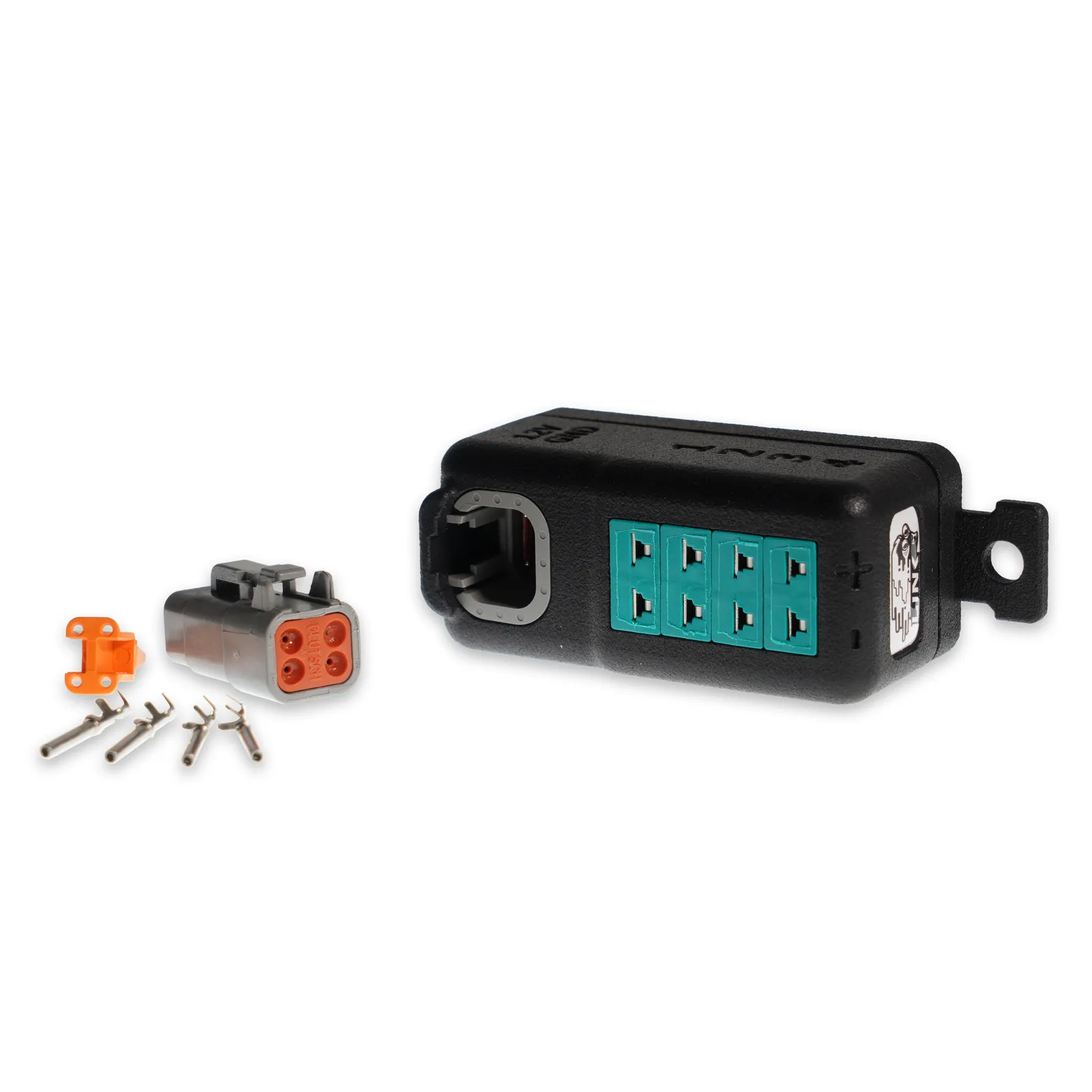

The TCC04 is a Thermocouple-to-CAN interface module that connects up to four Type-K thermocouples and transmits temperature values via CAN bus, or monitors them wirelessly on a smartphone or PC. All measurements are cold junction compensated with a measuring range of 0 to 1250°C (32 to 2282°F) at 0.25°C resolution (14-bit), and accuracy to a maximum 2% deviation.

  • Supports 4 cold junction compensated Type-K thermocouple inputs
  • CAN 2.0A/B standard with selectable speeds: 125kbps, 250kbps, 500kbps, 1Mbps
  • Adjustable sample frequency up to 100Hz
  • Short circuit detection and individual thermocouple status monitoring
  • Wireless configuration and live monitoring via smartphone or PC
  • Compact dimensions: 97.3 x 31.5 x 34.6mm

Suitable for measuring exhaust gas temperature (EGT), intercooler inlet/outlet temperatures, turbo housing temperatures, cylinder head temperatures, water temperature, oil temperature, and more. Supplied with 1x DTM4 connector kit.

Specifications

  • Link TCC04 4 Channel EGT to CAN module, powered by CANchecked
  • The TCC04 EGT to CAN module allows you to connect up to four Type-K thermocouples and send the values via CAN bus and/or monitor them directly on your wireless enabled device.
  • Type-K thermocouples are suitable for various applications such as measuring exhaust gas temperature (EGT), temperatures before/after the intercooler, turbo housings, cylinder head temperatures, water temperature, oil temperature and more. All measurements are cold junction compensated with a measuring range of 0 to 1250°C in 0.25°C resolution (14bit).
  • The TCC04 feature a four-pin DTM connector for CAN/power and miniature K-sockets. It is pin compatible with Links standard CAN pinout and CAN cables range. CAN 2.0A/B standard is supported with flexible configuration.
  • Wireless connectivity allows you to configure and update your module via smartphone or PC and query the current temperature and thermocouple status.
  • Features:
  • 4 x cold junction compensated type-K inputs
  • Four-pin DTM connector & miniature K-sockets.
  • CAN Bus connection to ECU (Pre-Configured for Link ECU)
  • Measuring range from 0 to 1250°C (32 to 2282°F) with 0.25°C resolution
  • Detection of short circuit to ground or if no type-K is connected
  • Standard mini k thermocouple connector
  • Full configuration and monitoring over wireless
  • Adjustable sample frequency up to 100Hz
  • Box Contents:
  • 1 x CAN EGT Module
  • 1 x DTM4 Mating Connector Kit
  • 2 x Link Stickers
  • Set-Up and Installation Guide
  • Technical Specifications:
  • DTM 4 CAN Pinout (Supports Links CAN pinout schema and CAN cables range)
  • Pin 1: 12V Pin 2: Ground Pin 3: Can Low Pin 4: Can High
  • Accuracy: maximum 2% deviation
  • Dimension (L x W x H) – 97.3 x 31.5 x 34.6mm
  • Configuration Options:
  • The module can be configured via wireless:
  • Can Speed: 125kbps, 250kbps, 500kbps, 1Mbps
  • Emulation: Standard, All major aftermarket EGT/Thermocouple to CAN Modules
  • Change of standard Can Bus ID
  • Change Big/Little Endia
