Description

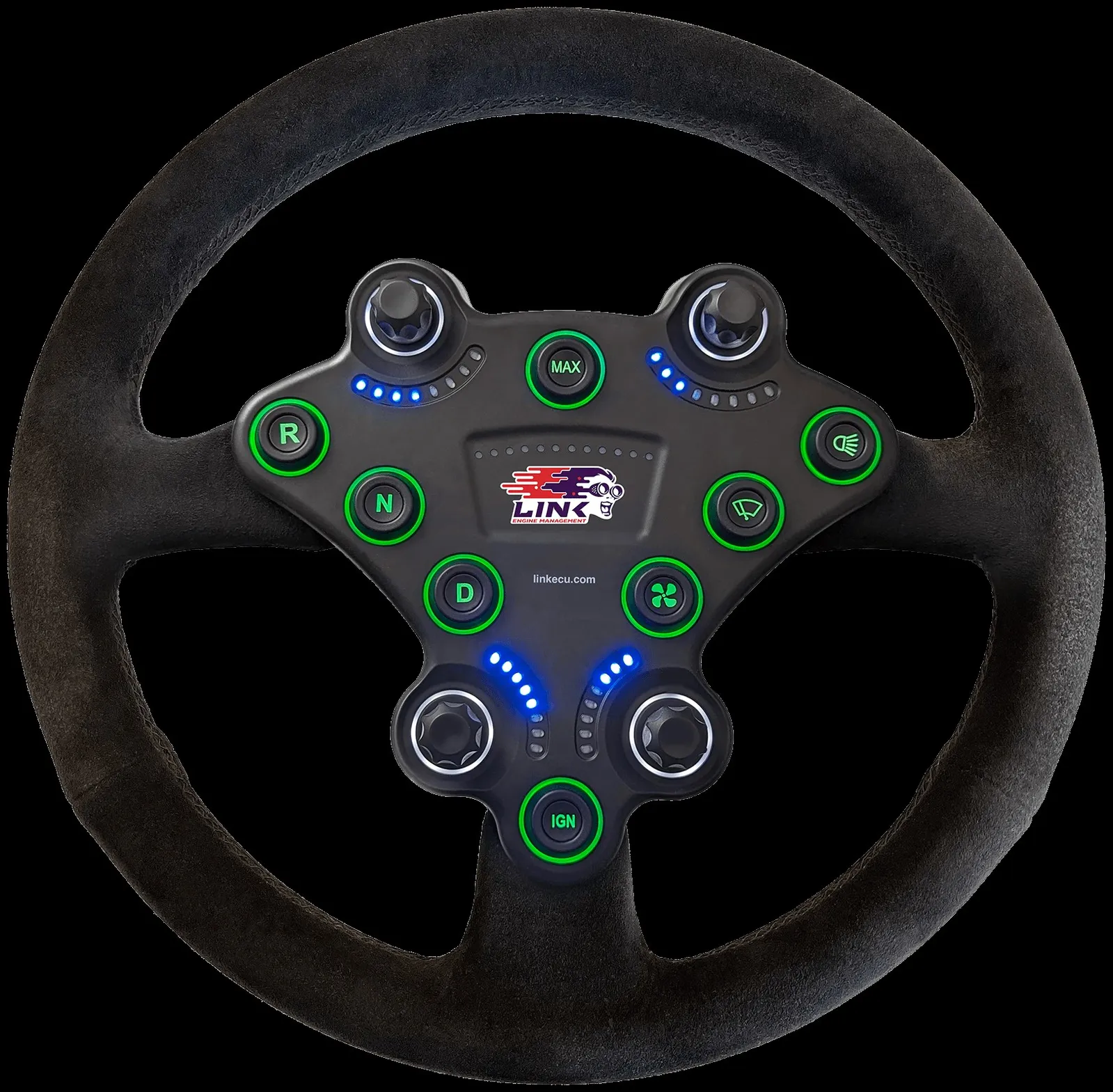

The Link RACEPAD is a premium CAN-bus steering wheel button panel engineered for motorsport use, giving drivers fingertip control of ECU functions without taking their hands off the wheel. It combines 8 backlit buttons and 4 rotary knobs in a compact, durable form factor designed to mount on MOMO and Nardi-pattern steering wheels.

Key Features

  • 8 backlit pushbuttons with customisable RGB LED rings and interchangeable button inserts
  • 4 rotary knobs, each with 8 blue LED indicators, for precise incremental adjustments
  • 12 fixed central LEDs configurable for RPM bar-graph or other driver feedback
  • 4 analog inputs for additional sensors or switches
  • Fully configurable via PC Link software — button modes include momentary, latched, and toggle
  • Compatible with all Link G4X and G5 ECUs via CAN bus
  • Mounting bracket included, supporting MOMO and Nardi steering wheel patterns

Technical Specifications

  • Dimensions: 197mm W x 180mm H x 36.2mm D | Weight: 110g
  • Connectors: DTM4 (CAN/power) + Molex (analog inputs)
  • Rated to 3 million switch operations; chemical and UV resistant

Box includes: RACEPAD unit, mounting bracket, DTM4 mating connector kit, Molex mating connector kit, Link logo button insert, and Link sticker. Steering wheel not included. Additional button inserts are sold separately.

Specifications

  • RacePad is the ultimate CAN-bus steering wheel button panel designed to elevate your racing experience to the next level. With 4 rotary knobs and 8 easy-to-reach buttons, RacePad is the ideal addition to any race car, enabling both professional drivers and amateurs to fully customize their driving style thanks to individualized button icons and LED colour selection.
  • Box Contents:
  • 1 x RACEPAD (steering wheel is not included)
  • 1 x Mounting Bracket
  • 1 x DTM4 Mating Connector Kit
  • 1 x Molex Mating Connector Kit
  • 1 x Link Sticker
  • 1 x Keypad Button Insert – Link Logo
  • Note: Racepad ships with empty button inserts, inserts need to be selected and purchased individually. 1 x Link ECU Logo Button Insert included in box loose.
  • 8 Backlit Buttons and 4 Rotary Knobs
  • 4 Analogue Inputs for additional Sensors or Switches
  • CAN Configurable with G4X/G5 PC Link – Change button
  • LED backlight colour, individual button indicator ring
  • colour, programmable to show change in status, flashing
  • option, multiple modes including momentary, latched
  • and toggle
  • 8 Blue LED Lights on Rotary Encoders while all 8
  • Pushbuttons Buttons have customisable RGB LED Rings
  • CAN Bus Communication back to Engine Management
  • System
  • Compatible with all G4X and G5 ECUs
  • Customizable Button Inserts – The replacement system
  • for individual inserts makes modifying the keypad layout
  • simple and economical
  • 12 Fixed LEDs in centre can be used for configurable
  • feedback – RPM etc.
  • Includes mounting plate adapter to support
  • common aftermarket steering wheel bolt patterns
  • including MOMO (6x70mm) and Nardi (6x74 mm)
  • DTM4 Connector for CAN and Power, Molex Connector
  • for Analog Inputs
  • Connector - DTM4 Connector for CAN and Power (Black = Ground, Red = Power, White = CAN High, Blue = CAN Low) + Molex 39-01-3069
  • Switch Life - 3 million operations
  • Default Baud Rate - 1000kbit/s
  • Chemical Resistance - Deet, Engine Cleaner, Isopropyl Alcohol, Suntan Lotion, Multi-Purpose Cleaner, Orange Citrus Cleaner, Muriatic Aci

Compatibility

  • Universal Part

The Link RACEPAD is a premium CAN-bus steering wheel button panel engineered for motorsport use, giving drivers fingertip control of ECU functions without taking their hands off the wheel. It combines 8 backlit buttons and 4 rotary knobs in a compact, durable form factor designed to mount on MOMO and Nardi-pattern steering wheels.

Key Features

  • 8 backlit pushbuttons with customisable RGB LED rings and interchangeable button inserts
  • 4 rotary knobs, each with 8 blue LED indicators, for precise incremental adjustments
  • 12 fixed central LEDs configurable for RPM bar-graph or other driver feedback
  • 4 analog inputs for additional sensors or switches
  • Fully configurable via PC Link software — button modes include momentary, latched, and toggle
  • Compatible with all Link G4X and G5 ECUs via CAN bus
  • Mounting bracket included, supporting MOMO and Nardi steering wheel patterns

Technical Specifications

  • Dimensions: 197mm W x 180mm H x 36.2mm D | Weight: 110g
  • Connectors: DTM4 (CAN/power) + Molex (analog inputs)
  • Rated to 3 million switch operations; chemical and UV resistant

Box includes: RACEPAD unit, mounting bracket, DTM4 mating connector kit, Molex mating connector kit, Link logo button insert, and Link sticker. Steering wheel not included. Additional button inserts are sold separately.

  • RacePad is the ultimate CAN-bus steering wheel button panel designed to elevate your racing experience to the next level. With 4 rotary knobs and 8 easy-to-reach buttons, RacePad is the ideal addition to any race car, enabling both professional drivers and amateurs to fully customize their driving style thanks to individualized button icons and LED colour selection.
  • Box Contents:
  • 1 x RACEPAD (steering wheel is not included)
  • 1 x Mounting Bracket
  • 1 x DTM4 Mating Connector Kit
  • 1 x Molex Mating Connector Kit
  • 1 x Link Sticker
  • 1 x Keypad Button Insert – Link Logo
  • Note: Racepad ships with empty button inserts, inserts need to be selected and purchased individually. 1 x Link ECU Logo Button Insert included in box loose.
  • 8 Backlit Buttons and 4 Rotary Knobs
  • 4 Analogue Inputs for additional Sensors or Switches
  • CAN Configurable with G4X/G5 PC Link – Change button
  • LED backlight colour, individual button indicator ring
  • colour, programmable to show change in status, flashing
  • option, multiple modes including momentary, latched
  • and toggle
  • 8 Blue LED Lights on Rotary Encoders while all 8
  • Pushbuttons Buttons have customisable RGB LED Rings
  • CAN Bus Communication back to Engine Management
  • System
  • Compatible with all G4X and G5 ECUs
  • Customizable Button Inserts – The replacement system
  • for individual inserts makes modifying the keypad layout
  • simple and economical
  • 12 Fixed LEDs in centre can be used for configurable
  • feedback – RPM etc.
  • Includes mounting plate adapter to support
  • common aftermarket steering wheel bolt patterns
  • including MOMO (6x70mm) and Nardi (6x74 mm)
  • DTM4 Connector for CAN and Power, Molex Connector
  • for Analog Inputs
  • Connector - DTM4 Connector for CAN and Power (Black = Ground, Red = Power, White = CAN High, Blue = CAN Low) + Molex 39-01-3069
  • Switch Life - 3 million operations
  • Default Baud Rate - 1000kbit/s
  • Chemical Resistance - Deet, Engine Cleaner, Isopropyl Alcohol, Suntan Lotion, Multi-Purpose Cleaner, Orange Citrus Cleaner, Muriatic Aci
  • Universal Part
