Description

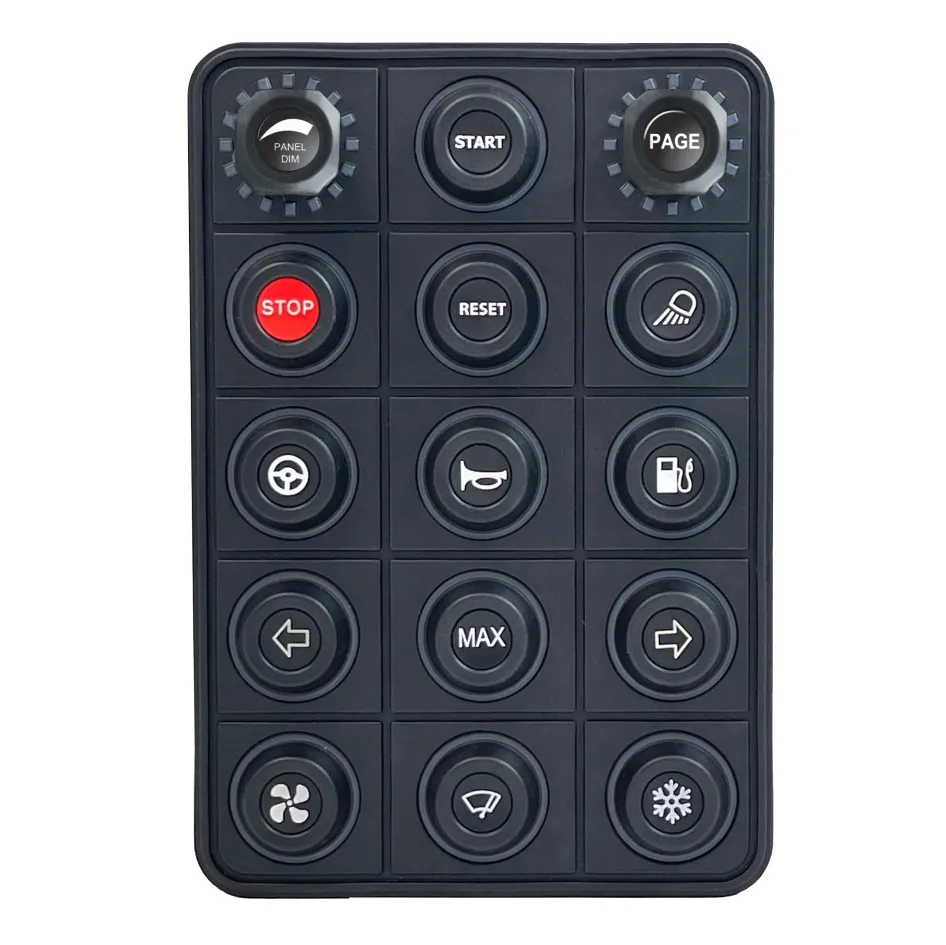

The Link CAN Keypad 15 Button + 2 Rotary Encoders is a rugged, fully programmable input device designed to expand driver control and ECU interaction without requiring additional wiring runs to the ECU itself. All communication is handled over the CAN bus, keeping the installation clean and scalable.

Key Features

  • 15 programmable buttons with interchangeable 15mm inserts (sold separately)
  • 2 rotary encoders — each push-enabled and operable independently — with 16 blue LED indicators per encoder
  • Customisable RGB LED rings on 13 pushbuttons for status indication
  • 4 analog inputs for connecting additional sensors or switches directly through the keypad to the CAN bus
  • Button modes include momentary, latched, and toggle, all configurable in PC Link software
  • Compatible with all Link G4X and G5 ECUs
  • Chemical and UV resistant construction; rated to 3 million switch operations

Technical Specifications

  • Dimensions: 105 x 152.5 x 16.3mm | Weight: 360g
  • Default baud rate: 1000 kbit/s
  • Connectors: DTM4 (CAN/power) + Molex (analog inputs)

Box includes: CAN Keypad unit, DTM4 mating connector kit, Molex mating connector kit, Link logo button insert, and Link sticker. Additional button inserts are sold separately.

Specifications

  • Rugged 15 button CAN Keypad with interchangeable 15mm inserts (sold separately). Two rotary encoders with 16 Blue indicator LEDs each. Four additional analog inputs allow additional sensors/switches to directly connect to the CAN Bus network through the keypad. The compact layout and inclusion of the rotary encoders and analog inputs allow for significant dash space saving while massively expanding functionality.
  • Box Contents:
  • 1 x 15 Button CAN Keypad
  • 1 x DTM4 Mating Connector Kit
  • 1 x Molex Mating Connector Kit
  • 1 x Link Sticker
  • 1 x Keypad Button Insert – Link Logo
  • Note: Keypad ships with empty button inserts, inserts need to be selected and purchased individually. 1 x Link ECU Logo Button Insert included in box loose.
  • 15 Buttons and 2 Rotary Encoders (push enabled, buttons
  • can function independent to rotary encoder)
  • 4 Analog Inputs for additional Sensors or Switches
  • CAN Configurable with G4X/G5 PC Link – Change button
  • LED backlight colour, individual button indicator ring
  • colour, programmable to show change in status, flashing
  • option, multiple modes including momentary, latched
  • and toggle.
  • CAN Bus Communication back to Engine Management
  • System/PDM
  • 16 Blue LED Lights on Rotary Encoders while all 13
  • Pushbuttons Buttons have customisable RGB LED Rings
  • Compatible with all Link G4X and G5 ECUs
  • Customizable Button Inserts – The replacement system
  • for individual inserts makes modifying the keypad layout
  • simple and economical
  • DTM4 Connector for CAN and Power, Molex Connector
  • for Analogue Inputs
  • Connector - DTM4 Connector for CAN and Power (Black = Ground, Red = Power, White = CAN High, Blue = CAN Low) + Molex 39-01-3069
  • Switch Life - 3 million operations
  • Default Baud Rate - 1000kbit/s
  • Chemical Resistance - Deet, Engine Cleaner, Isopropyl Alcohol, Suntan Lotion, Multi-Purpose Cleaner, Orange Citrus Cleaner, Muriatic Acid
  • UV Protection - UVB 400 hours
  • Salt Spray Per - ASTMB117
  • Weight - 360grams
  • Dimensions - 105 x 152.5 x 16.3mm (excl mounting st

Compatibility

  • Universal Part

The Link CAN Keypad 15 Button + 2 Rotary Encoders is a rugged, fully programmable input device designed to expand driver control and ECU interaction without requiring additional wiring runs to the ECU itself. All communication is handled over the CAN bus, keeping the installation clean and scalable.

Key Features

  • 15 programmable buttons with interchangeable 15mm inserts (sold separately)
  • 2 rotary encoders — each push-enabled and operable independently — with 16 blue LED indicators per encoder
  • Customisable RGB LED rings on 13 pushbuttons for status indication
  • 4 analog inputs for connecting additional sensors or switches directly through the keypad to the CAN bus
  • Button modes include momentary, latched, and toggle, all configurable in PC Link software
  • Compatible with all Link G4X and G5 ECUs
  • Chemical and UV resistant construction; rated to 3 million switch operations

Technical Specifications

  • Dimensions: 105 x 152.5 x 16.3mm | Weight: 360g
  • Default baud rate: 1000 kbit/s
  • Connectors: DTM4 (CAN/power) + Molex (analog inputs)

Box includes: CAN Keypad unit, DTM4 mating connector kit, Molex mating connector kit, Link logo button insert, and Link sticker. Additional button inserts are sold separately.

  • Rugged 15 button CAN Keypad with interchangeable 15mm inserts (sold separately). Two rotary encoders with 16 Blue indicator LEDs each. Four additional analog inputs allow additional sensors/switches to directly connect to the CAN Bus network through the keypad. The compact layout and inclusion of the rotary encoders and analog inputs allow for significant dash space saving while massively expanding functionality.
  • Box Contents:
  • 1 x 15 Button CAN Keypad
  • 1 x DTM4 Mating Connector Kit
  • 1 x Molex Mating Connector Kit
  • 1 x Link Sticker
  • 1 x Keypad Button Insert – Link Logo
  • Note: Keypad ships with empty button inserts, inserts need to be selected and purchased individually. 1 x Link ECU Logo Button Insert included in box loose.
  • 15 Buttons and 2 Rotary Encoders (push enabled, buttons
  • can function independent to rotary encoder)
  • 4 Analog Inputs for additional Sensors or Switches
  • CAN Configurable with G4X/G5 PC Link – Change button
  • LED backlight colour, individual button indicator ring
  • colour, programmable to show change in status, flashing
  • option, multiple modes including momentary, latched
  • and toggle.
  • CAN Bus Communication back to Engine Management
  • System/PDM
  • 16 Blue LED Lights on Rotary Encoders while all 13
  • Pushbuttons Buttons have customisable RGB LED Rings
  • Compatible with all Link G4X and G5 ECUs
  • Customizable Button Inserts – The replacement system
  • for individual inserts makes modifying the keypad layout
  • simple and economical
  • DTM4 Connector for CAN and Power, Molex Connector
  • for Analogue Inputs
  • Connector - DTM4 Connector for CAN and Power (Black = Ground, Red = Power, White = CAN High, Blue = CAN Low) + Molex 39-01-3069
  • Switch Life - 3 million operations
  • Default Baud Rate - 1000kbit/s
  • Chemical Resistance - Deet, Engine Cleaner, Isopropyl Alcohol, Suntan Lotion, Multi-Purpose Cleaner, Orange Citrus Cleaner, Muriatic Acid
  • UV Protection - UVB 400 hours
  • Salt Spray Per - ASTMB117
  • Weight - 360grams
  • Dimensions - 105 x 152.5 x 16.3mm (excl mounting st
  • Universal Part
