Description

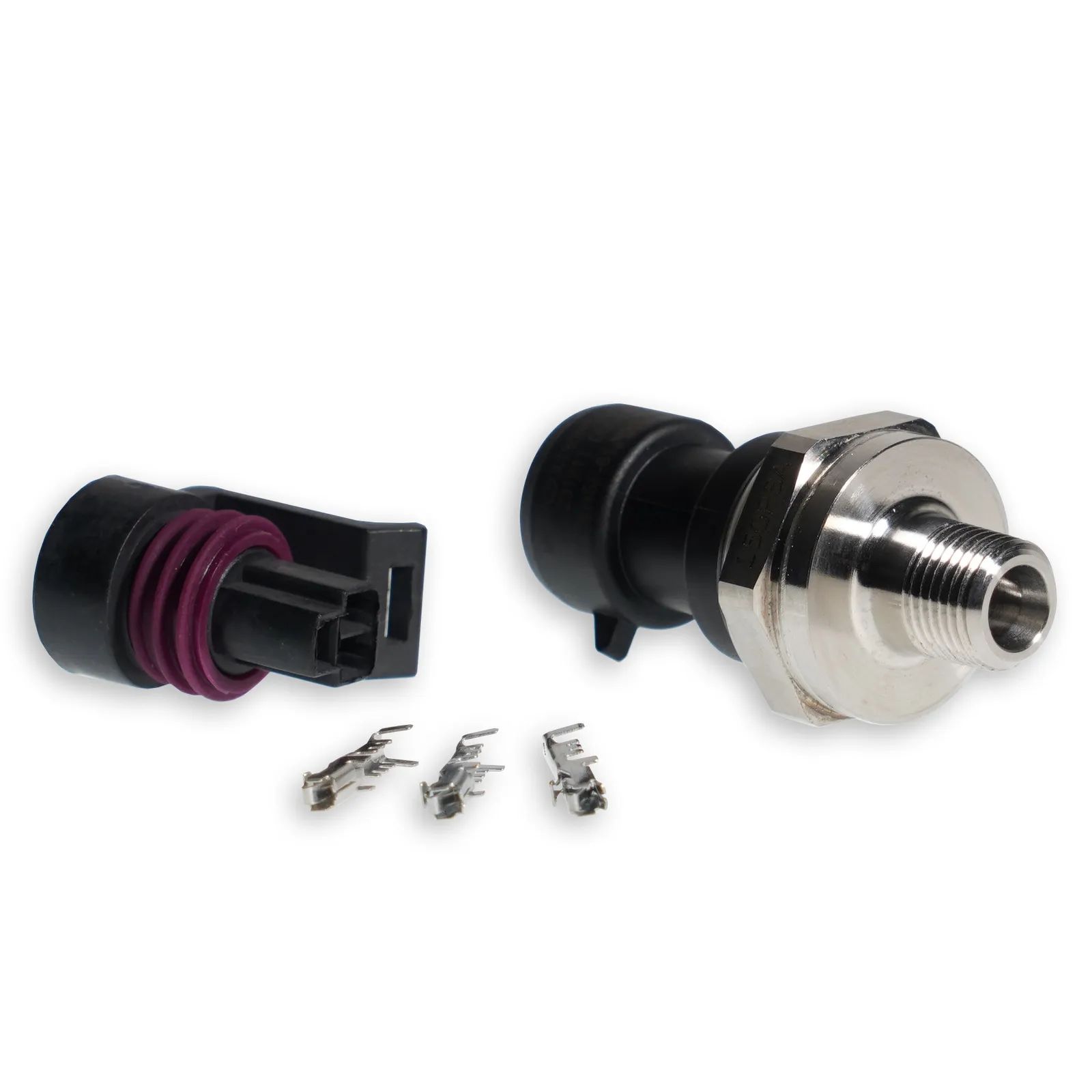

The Link MIPS (Media Isolated Pressure Sensor) is a high-quality 150 PSI / 10 Bar pressure sensor built around a Honeywell sensor element in a rugged stainless steel body, designed for long-term use in demanding automotive environments. The 1/8 NPT thread and media-isolated construction make it compatible with a wide range of automotive fluids including oil, petrol, ethanol, diesel, coolant, and water.

Technical Specifications

  • Pressure range: 0 to 150 PSI (0 to 1034 kPa / 10 Bar)
  • Output signal: 0.5V at 0 kPa rising to 4.5V at 1034 kPa (ratiometric)
  • Supply voltage: 5V (4.75V to 5.25V)
  • Thread: 1/8 NPT with 22mm hex
  • Connector: 3-Way Metri-Pack 150 (connector kit included)
  • Operating temperature: -40°C to +125°C
  • Construction: Stainless steel with Honeywell sensor element

Compatible fluids include engine oil, fuel (petrol, ethanol, diesel), coolant, and water. The sensor is suitable for monitoring oil pressure, fuel pressure, boost pressure, and coolant system pressure in performance and motorsport applications.

Specifications

  • Media Isolated 150PSI/10 Bar Pressure Sensor, 1/8 NPT
  • The MIPS 150PSI/10 Bar Pressure Sensor features a durable stainless steel construction and is designed for compatibility with various fluids, including oil, petrol, and water.
  • Features:
  • Quality Honeywell sensor, Rugged Stainless Steel Construction
  • 1/8 NPT, 22mm hex
  • Includes connector kit (3-Way Metri-Pack 150)
  • Rated from -40ºC to 125ºC
  • 5V Supply (4.75V to 5.25V)
  • 0.5V 0kPa (0 PSI) to 4.5V 1034.21kPa (150PSI) Output voltage, Use "1000kpa (150 psi) TI Sensor" calibration in PClink
  • Suitable for use with oil, petrol, ethanol, diesel, coolant, water.

Compatibility

  • Universal Part

The Link MIPS (Media Isolated Pressure Sensor) is a high-quality 150 PSI / 10 Bar pressure sensor built around a Honeywell sensor element in a rugged stainless steel body, designed for long-term use in demanding automotive environments. The 1/8 NPT thread and media-isolated construction make it compatible with a wide range of automotive fluids including oil, petrol, ethanol, diesel, coolant, and water.

Technical Specifications

  • Pressure range: 0 to 150 PSI (0 to 1034 kPa / 10 Bar)
  • Output signal: 0.5V at 0 kPa rising to 4.5V at 1034 kPa (ratiometric)
  • Supply voltage: 5V (4.75V to 5.25V)
  • Thread: 1/8 NPT with 22mm hex
  • Connector: 3-Way Metri-Pack 150 (connector kit included)
  • Operating temperature: -40°C to +125°C
  • Construction: Stainless steel with Honeywell sensor element

Compatible fluids include engine oil, fuel (petrol, ethanol, diesel), coolant, and water. The sensor is suitable for monitoring oil pressure, fuel pressure, boost pressure, and coolant system pressure in performance and motorsport applications.

  • Media Isolated 150PSI/10 Bar Pressure Sensor, 1/8 NPT
  • The MIPS 150PSI/10 Bar Pressure Sensor features a durable stainless steel construction and is designed for compatibility with various fluids, including oil, petrol, and water.
  • Features:
  • Quality Honeywell sensor, Rugged Stainless Steel Construction
  • 1/8 NPT, 22mm hex
  • Includes connector kit (3-Way Metri-Pack 150)
  • Rated from -40ºC to 125ºC
  • 5V Supply (4.75V to 5.25V)
  • 0.5V 0kPa (0 PSI) to 4.5V 1034.21kPa (150PSI) Output voltage, Use "1000kpa (150 psi) TI Sensor" calibration in PClink
  • Suitable for use with oil, petrol, ethanol, diesel, coolant, water.
  • Universal Part
