Description

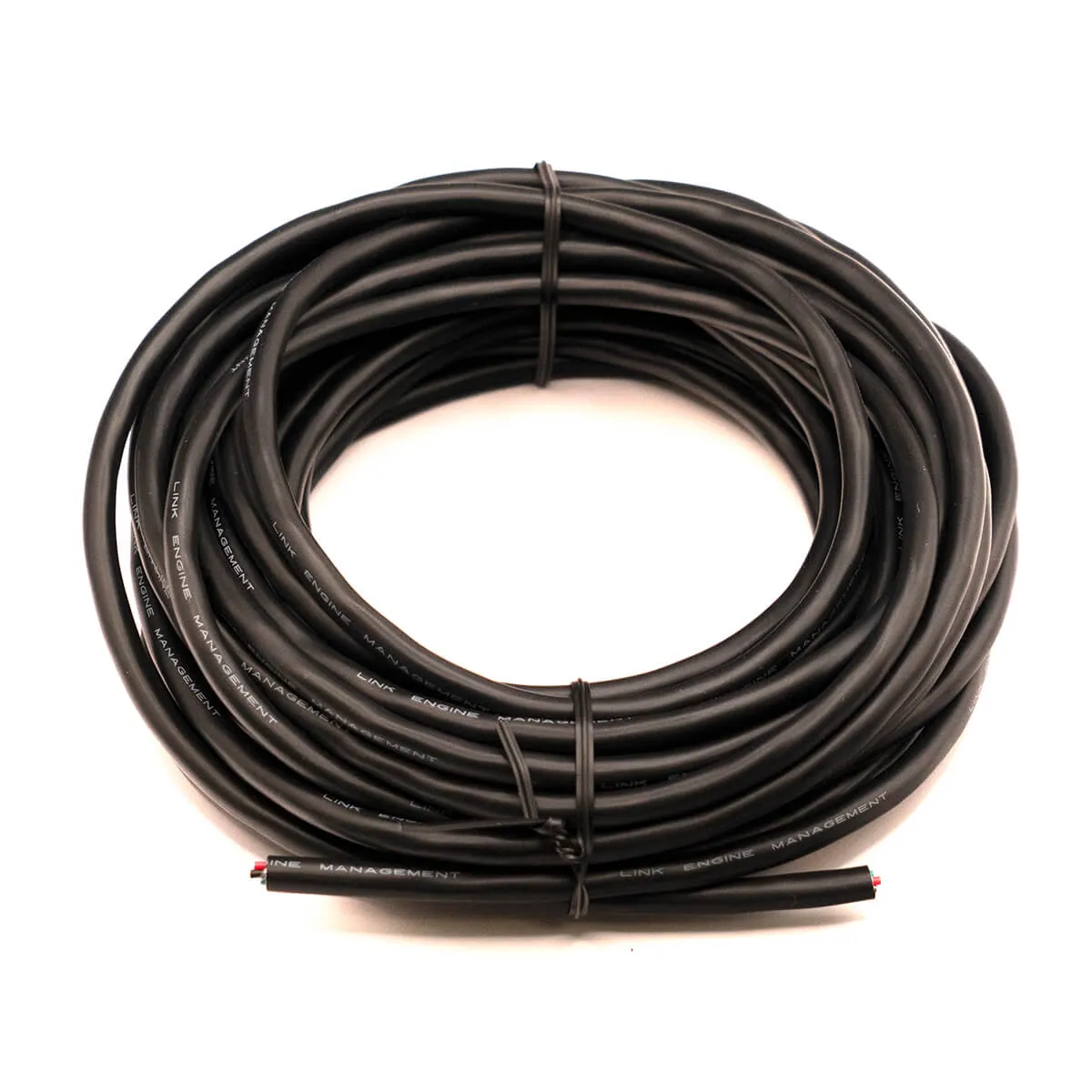

The Link 10m 4 Core CAN Wiring is a purpose-built cable for connecting CAN accessories to Link engine management systems. The four-conductor construction provides all the wires needed for CAN High, CAN Low, power, and ground in a single neat outer jacket, simplifying harness routing and reducing clutter.

Specifications

  • Length: 10 metres
  • Cores: 4 — White, Green, Red, and Black
  • Internal wire spec: FLRRY 0.5mm² (20 AWG)
  • Outer jacket: PVC, 6.1mm outer diameter

This cable is ideal for running CAN bus connections to keypads, dash displays, and other CAN-enabled peripherals in the Link ecosystem. The FLRRY-rated internal conductors offer good resistance to heat and automotive fluids, making this wiring suitable for use in engine bay and cockpit environments alike.

Specifications

  • 10m 4 Core CAN Wiring. Useful for wiring in CAN Accessories.
  • Four internal wires (White, Green, Red, Black) in a PVC outer jacket.
  • Internal Wire Spec: FLRRY 0.5mm² (20 AWG)
  • Outer Jacket Sepc: PVC, OD 6.1mm

Compatibility

  • Universal Part

The Link 10m 4 Core CAN Wiring is a purpose-built cable for connecting CAN accessories to Link engine management systems. The four-conductor construction provides all the wires needed for CAN High, CAN Low, power, and ground in a single neat outer jacket, simplifying harness routing and reducing clutter.

Specifications

  • Length: 10 metres
  • Cores: 4 — White, Green, Red, and Black
  • Internal wire spec: FLRRY 0.5mm² (20 AWG)
  • Outer jacket: PVC, 6.1mm outer diameter

This cable is ideal for running CAN bus connections to keypads, dash displays, and other CAN-enabled peripherals in the Link ecosystem. The FLRRY-rated internal conductors offer good resistance to heat and automotive fluids, making this wiring suitable for use in engine bay and cockpit environments alike.

  • 10m 4 Core CAN Wiring. Useful for wiring in CAN Accessories.
  • Four internal wires (White, Green, Red, Black) in a PVC outer jacket.
  • Internal Wire Spec: FLRRY 0.5mm² (20 AWG)
  • Outer Jacket Sepc: PVC, OD 6.1mm
  • Universal Part
