Description

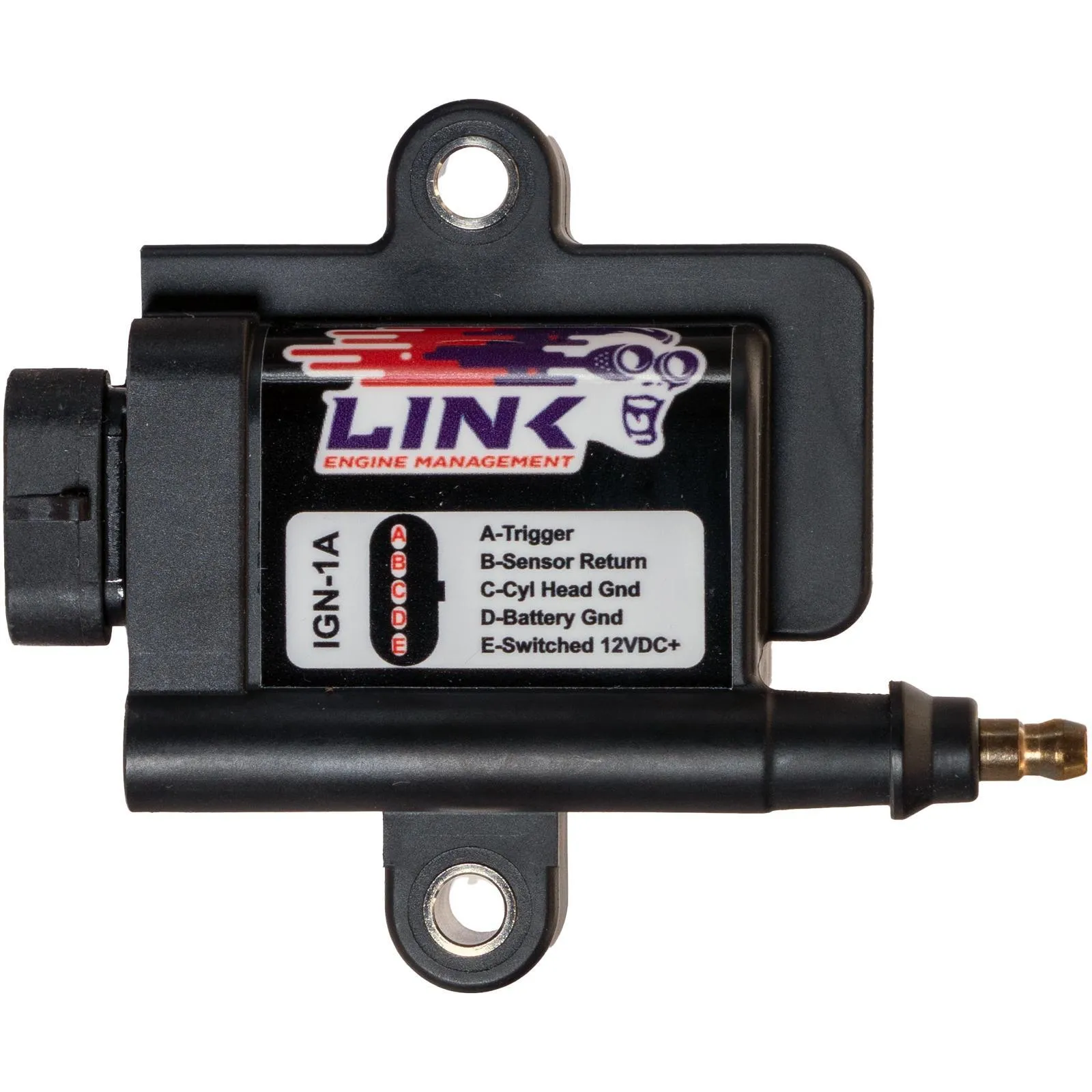

High Power Inductive Coil with built-in ignitor.

Specifications

  • Connector Pinout: A – Ignition signal from ECU B – Logic ground, connect to ECU ground C – Spark wire ground, connect to cylinder head D – Power ground, connect to battery negative E – 12 volt power
  • The coil dwell starts when a 5 volt signal is applied to pin A and the coil fires when the voltage drops to zero.
  • The signal is similar to an LSx coil, although it does need a bit more current to trigger.
  • Minimum Output Voltage (no load, at recommended dwell): 40,000 volts
  • Maximum Output Voltage: up to 81,000 volts (+/- 10%)
  • Output energy: 103 mJ
  • Spark duration: 2.9 ms
  • Primary resistance: 0.5 ohms (not directly measurable)
  • Primary inductance: 4.8 mH (not directly measurable)
  • Secondary resistance: 8,500 ohms
  • Secondary inductance: 22.5 H
  • Turns ratio: 71.1
  • Maximum current: 19 amps
  • Maximum battery voltage: 17 volts
  • Nominal dwell: 3.0 ms
  • Excessive dwell or duty cycle may cause meltdown. As with any race coil, the manufacturer does not provide a warranty.

What's Included

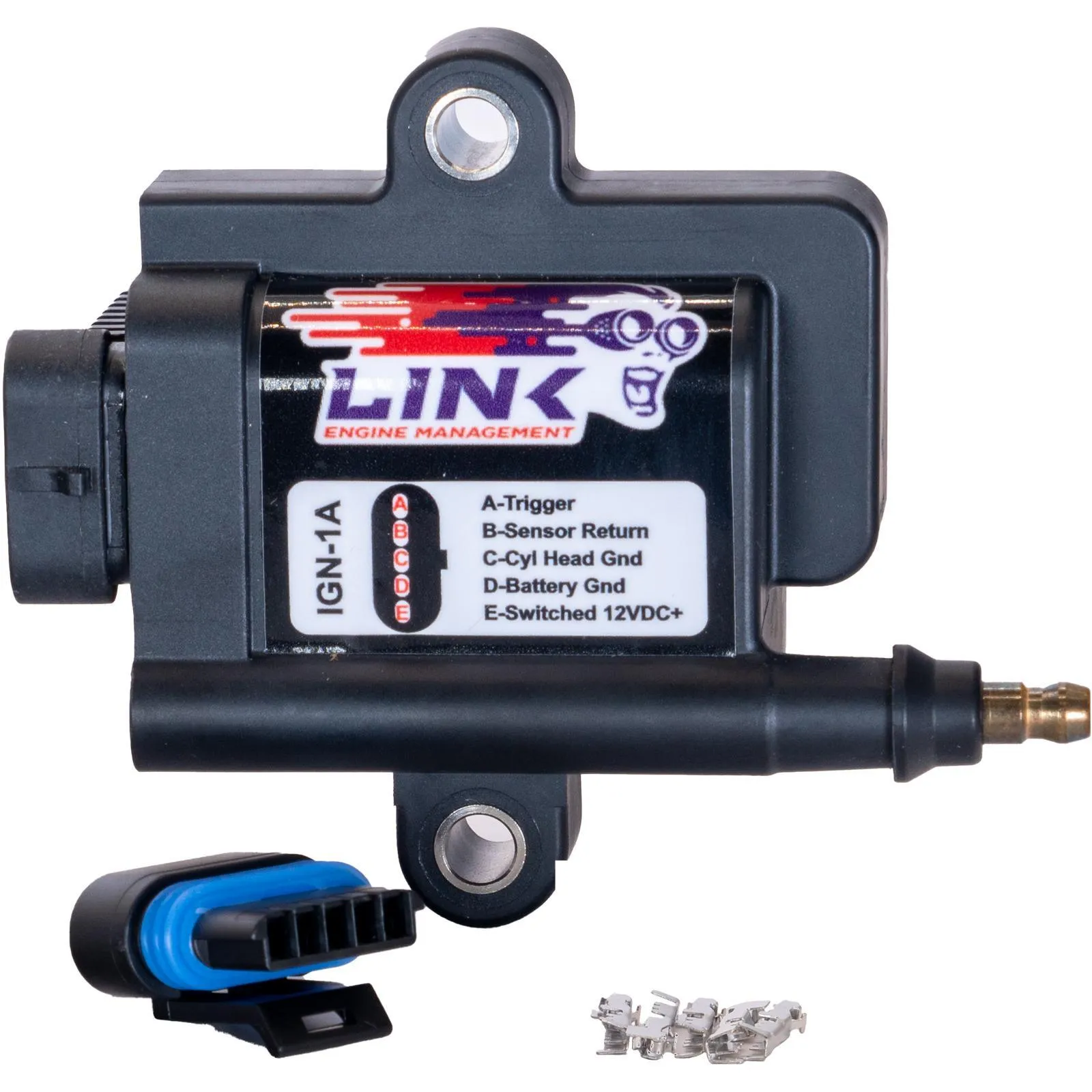

  • 1 x IGN1A Smart Coil
  • 1 x Mating Connector Kit

Compatibility

  • Universal Part

High Power Inductive Coil with built-in ignitor.

  • Connector Pinout: A – Ignition signal from ECU B – Logic ground, connect to ECU ground C – Spark wire ground, connect to cylinder head D – Power ground, connect to battery negative E – 12 volt power
  • The coil dwell starts when a 5 volt signal is applied to pin A and the coil fires when the voltage drops to zero.
  • The signal is similar to an LSx coil, although it does need a bit more current to trigger.
  • Minimum Output Voltage (no load, at recommended dwell): 40,000 volts
  • Maximum Output Voltage: up to 81,000 volts (+/- 10%)
  • Output energy: 103 mJ
  • Spark duration: 2.9 ms
  • Primary resistance: 0.5 ohms (not directly measurable)
  • Primary inductance: 4.8 mH (not directly measurable)
  • Secondary resistance: 8,500 ohms
  • Secondary inductance: 22.5 H
  • Turns ratio: 71.1
  • Maximum current: 19 amps
  • Maximum battery voltage: 17 volts
  • Nominal dwell: 3.0 ms
  • Excessive dwell or duty cycle may cause meltdown. As with any race coil, the manufacturer does not provide a warranty.
  • 1 x IGN1A Smart Coil
  • 1 x Mating Connector Kit
  • Universal Part
