Description

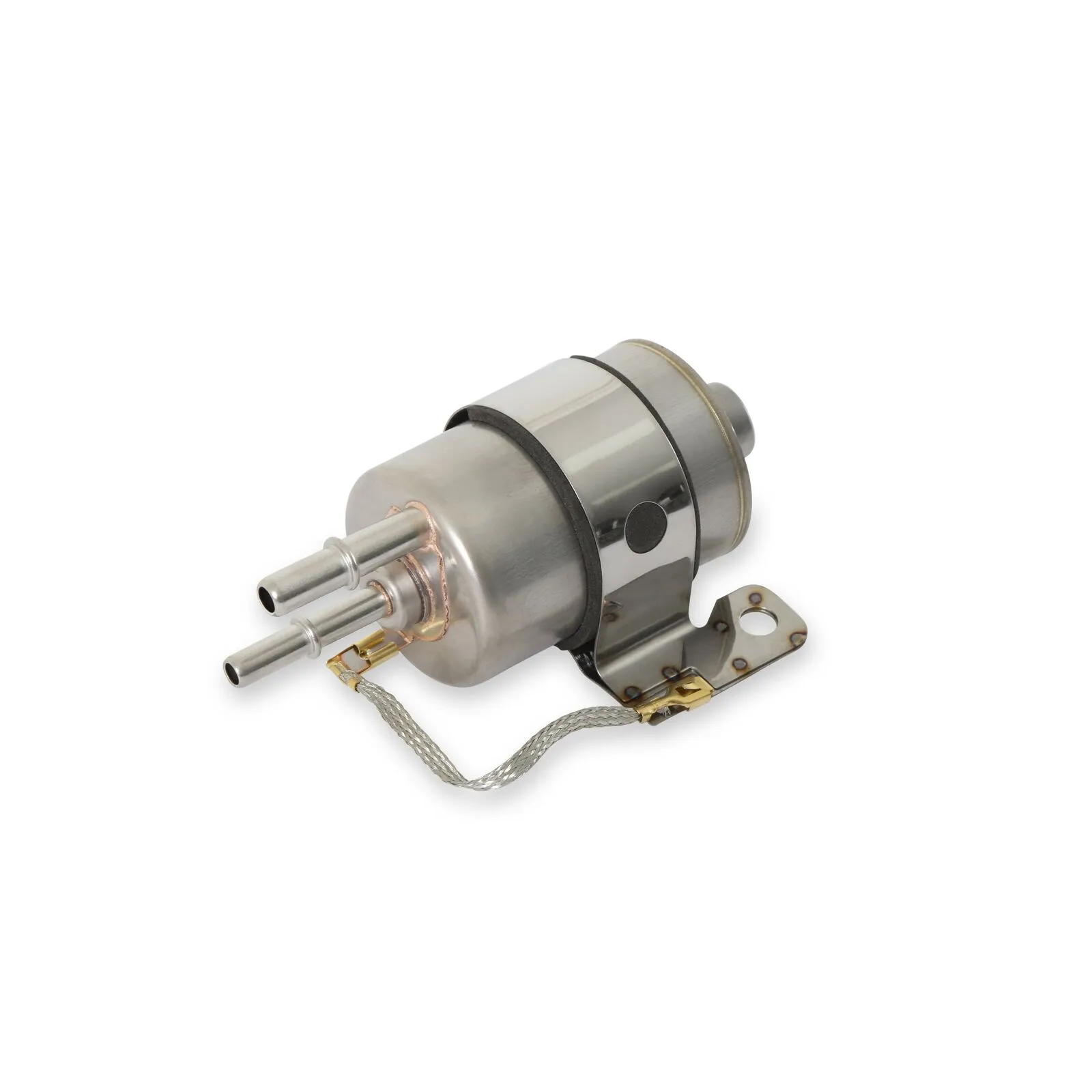

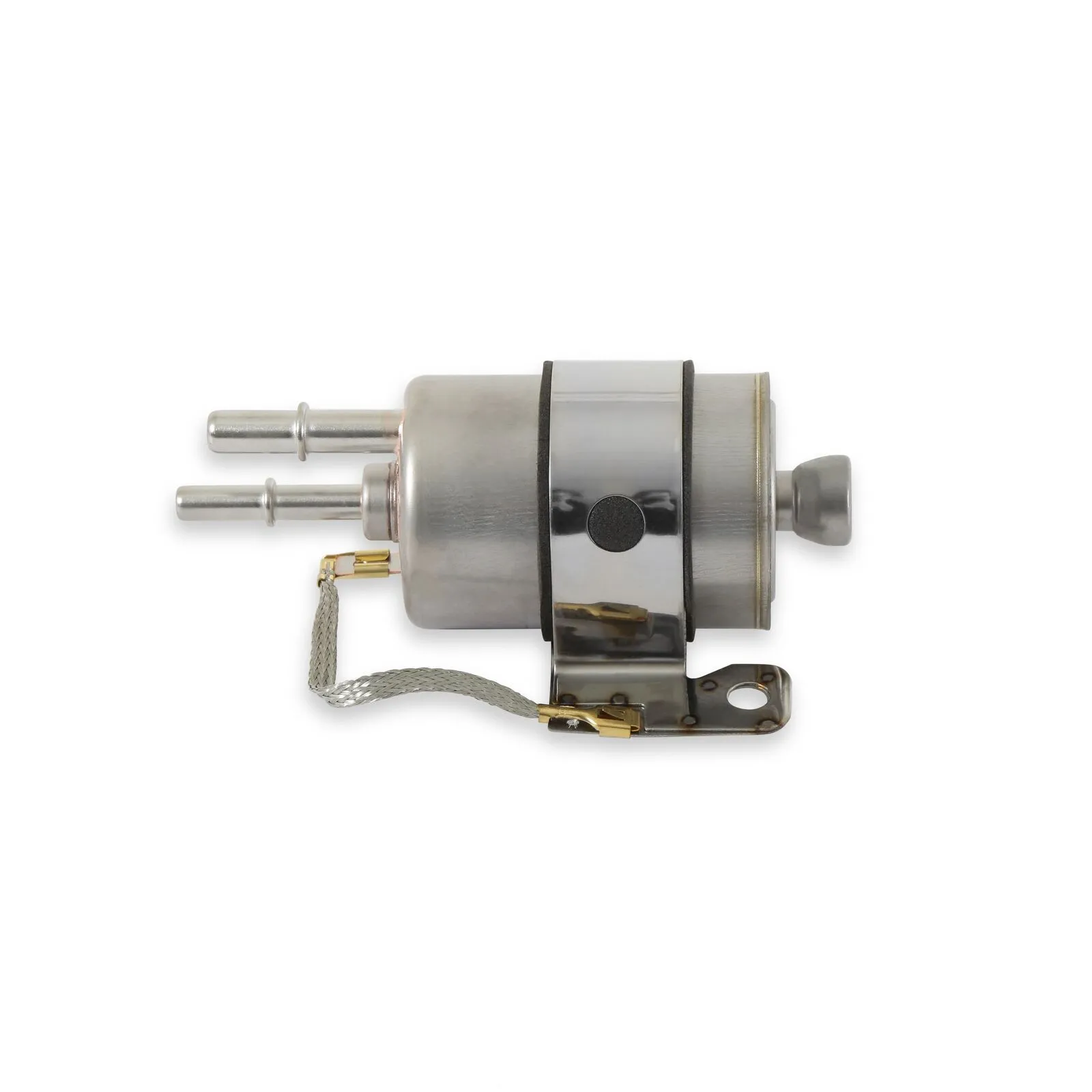

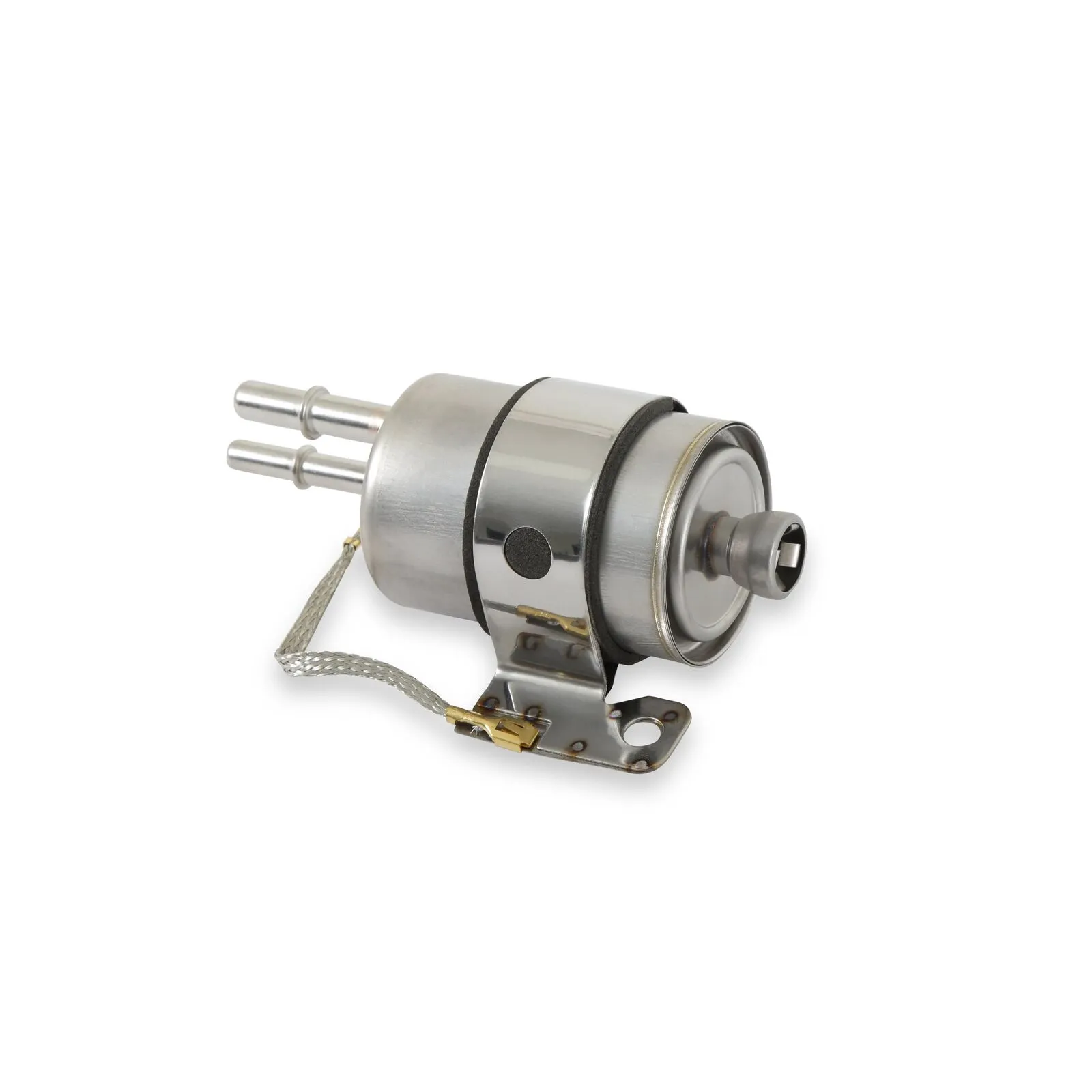

Holley EFI fuel filters with built-in regulator provide a simple and clean means to fueling your LS swap. Available with OEM-style or -6AN connections, they feature an internal regulator set at 58 psi, along with an integrated 5 nominal micron rated filter. The bypass design allows you to run one inlet with one outlet to the engine, and a return outlet back to the tank. Holley EFI fuel filter regulators are ideal when performing a LS engine swap or any other fuel injection swap that is designed to run at 58 psi of static pressure.

Features

  • GM style Filter / Bypass Style Regulator
  • All stainless steel construction for improved corrosion resistance
  • Designed with one inlet, one outlet, and one return
  • Fixed pressure at 58 psi
  • Nominal Micron Rating: 5
  • Can be used with other EFI systems that require 58 psi
  • Not recommended with fuel pumps that flow over 450 LPH
  • Available with stock quick connectors or with -6AN male connections
  • Return line required for proper regulator operation

Specifications

AdjustableNo
BrandHolley EFI
Emission Code3
Fuel SystemEFI
Fuel TypeGas
Gauge PortNo
Grade TypePerformance
Inlet QuantityOne
Inlet TypeGM Quick Disconnect
MaterialStainless Steel
Micron5
Mounting Hardware IncludedNo
Mounting TypeBolt On
Outlet QuantityTwo
Outlet TypeGM Quick Disconnect
Port Quantity3
Product TypeFuel Pressure Regulator
StyleReturn Style
WarrantyLimited 90 Day

Compatibility

  • Universal Part

Holley EFI fuel filters with built-in regulator provide a simple and clean means to fueling your LS swap. Available with OEM-style or -6AN connections, they feature an internal regulator set at 58 psi, along with an integrated 5 nominal micron rated filter. The bypass design allows you to run one inlet with one outlet to the engine, and a return outlet back to the tank. Holley EFI fuel filter regulators are ideal when performing a LS engine swap or any other fuel injection swap that is designed to run at 58 psi of static pressure.

Features

  • GM style Filter / Bypass Style Regulator
  • All stainless steel construction for improved corrosion resistance
  • Designed with one inlet, one outlet, and one return
  • Fixed pressure at 58 psi
  • Nominal Micron Rating: 5
  • Can be used with other EFI systems that require 58 psi
  • Not recommended with fuel pumps that flow over 450 LPH
  • Available with stock quick connectors or with -6AN male connections
  • Return line required for proper regulator operation
AdjustableNo
BrandHolley EFI
Emission Code3
Fuel SystemEFI
Fuel TypeGas
Gauge PortNo
Grade TypePerformance
Inlet QuantityOne
Inlet TypeGM Quick Disconnect
MaterialStainless Steel
Micron5
Mounting Hardware IncludedNo
Mounting TypeBolt On
Outlet QuantityTwo
Outlet TypeGM Quick Disconnect
Port Quantity3
Product TypeFuel Pressure Regulator
StyleReturn Style
WarrantyLimited 90 Day
  • Universal Part
