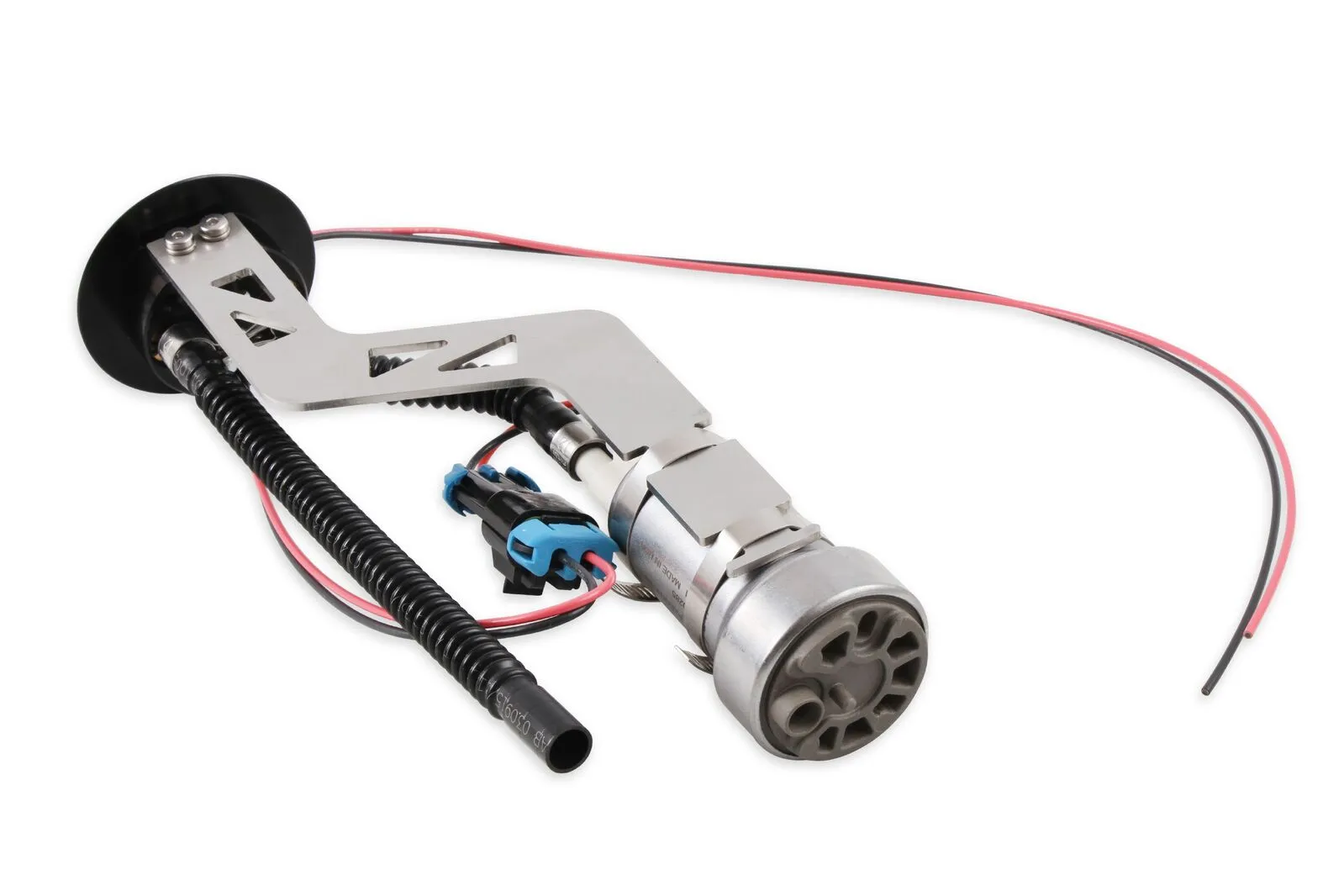

This direct fit fuel pump module will drop directly into any 1983-1997 Ford Mustang EFI fuel tank.

The module has been designed with a 525 LPH (liters per hour) Holley fuel pump that will support up to 1200 EFI or 1450 Carbureted horsepower (HP Rating @ 60 PSI at 13.5 Volts / 17 AMP Draw) The flange has a 6AN o-ring outlet and return port making the plumbing connections easy.

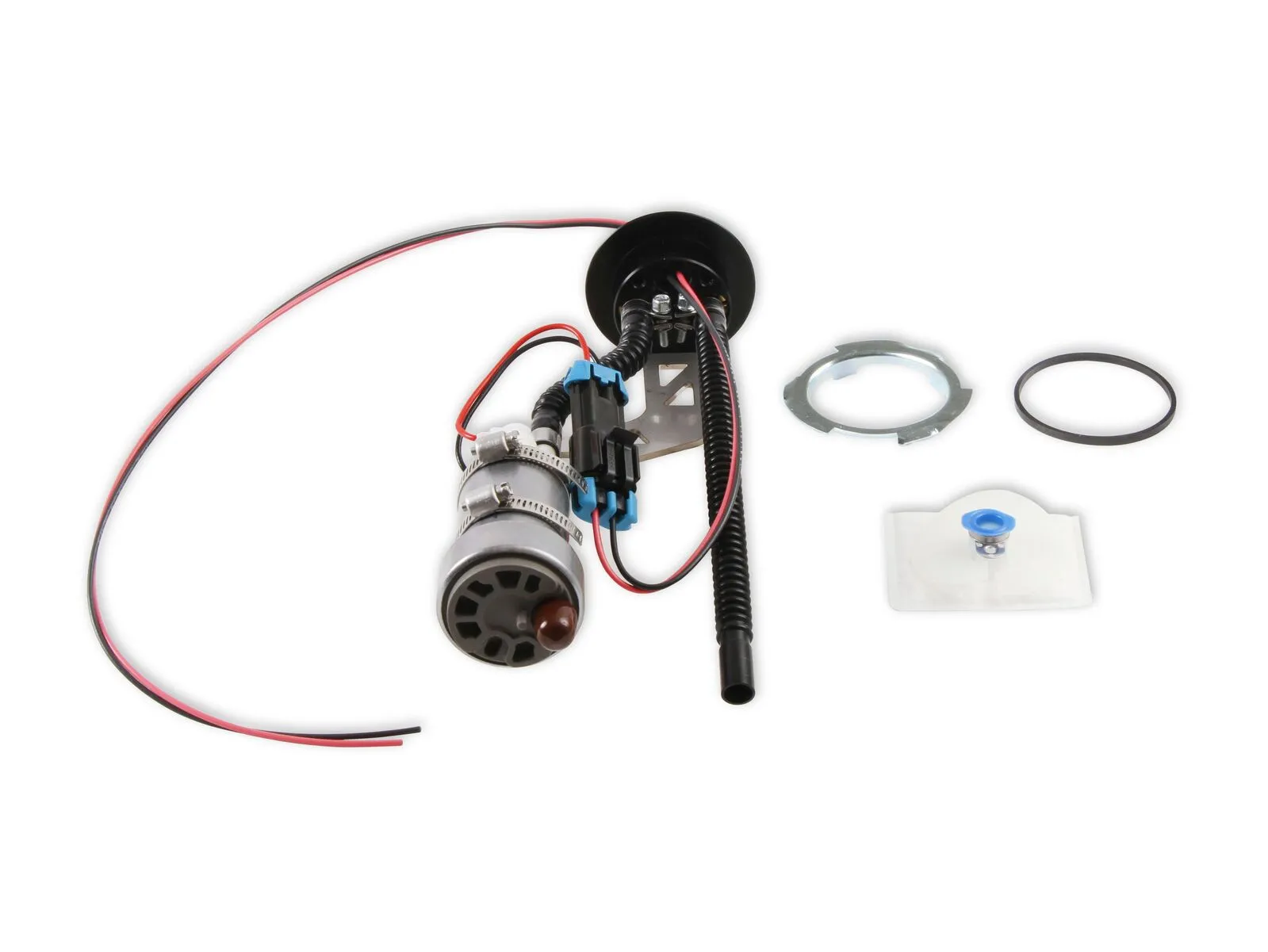

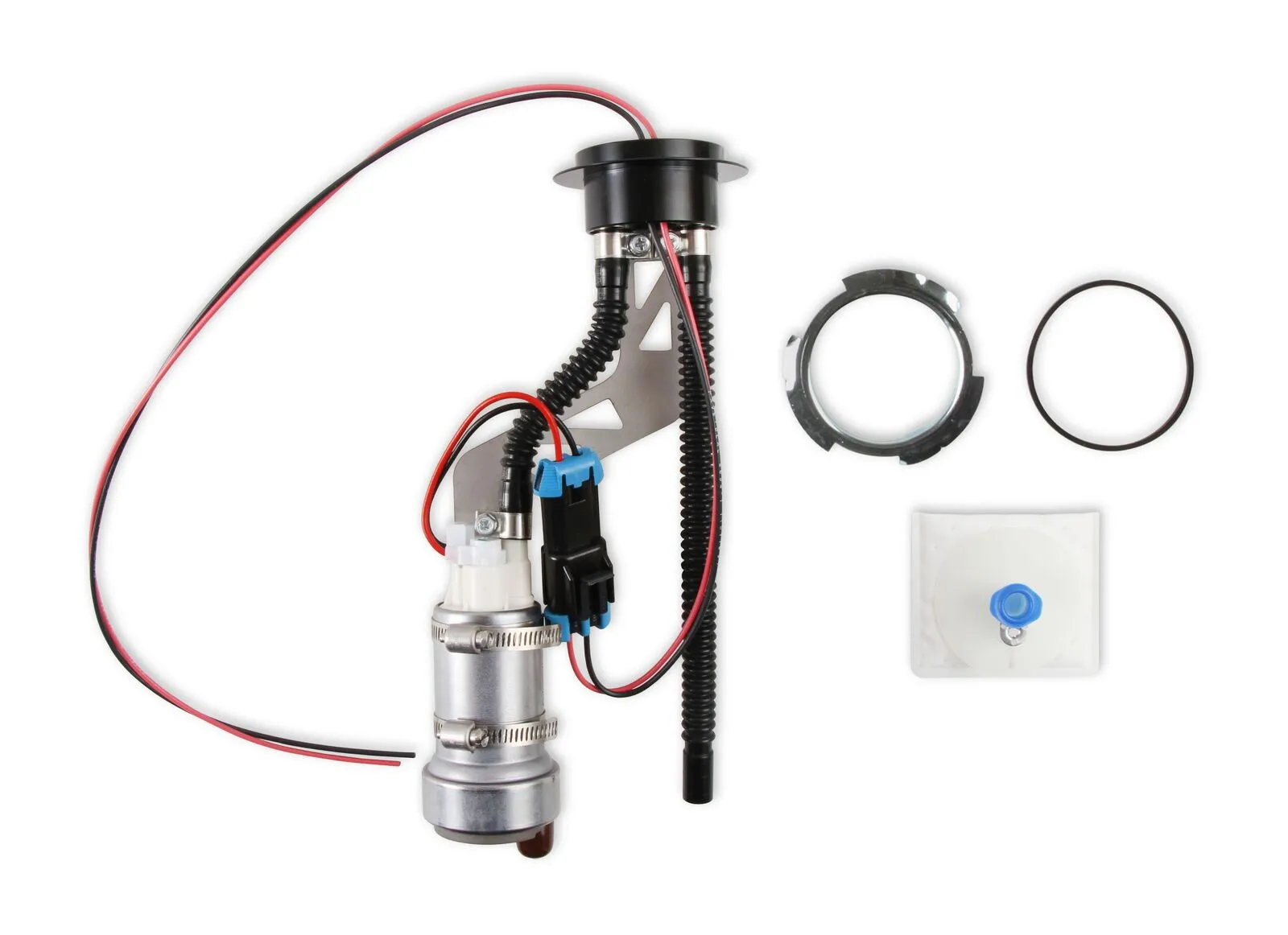

The kit includes the assembled module, a new filter sock, flange o-ring, and the lock ring to complete your installation into your stock fuel tank.

The 6061-T6 module flange has been anodized in a bright dip black finish that not only looks great but will also protect from undercar corrosion.

Features

• 6061-T6 Aluminum fuel pump module with a 525 LPH (liters per hour) Sniper pump assembly drops into stock 1983-1997 Mustang EFI fuel tanks

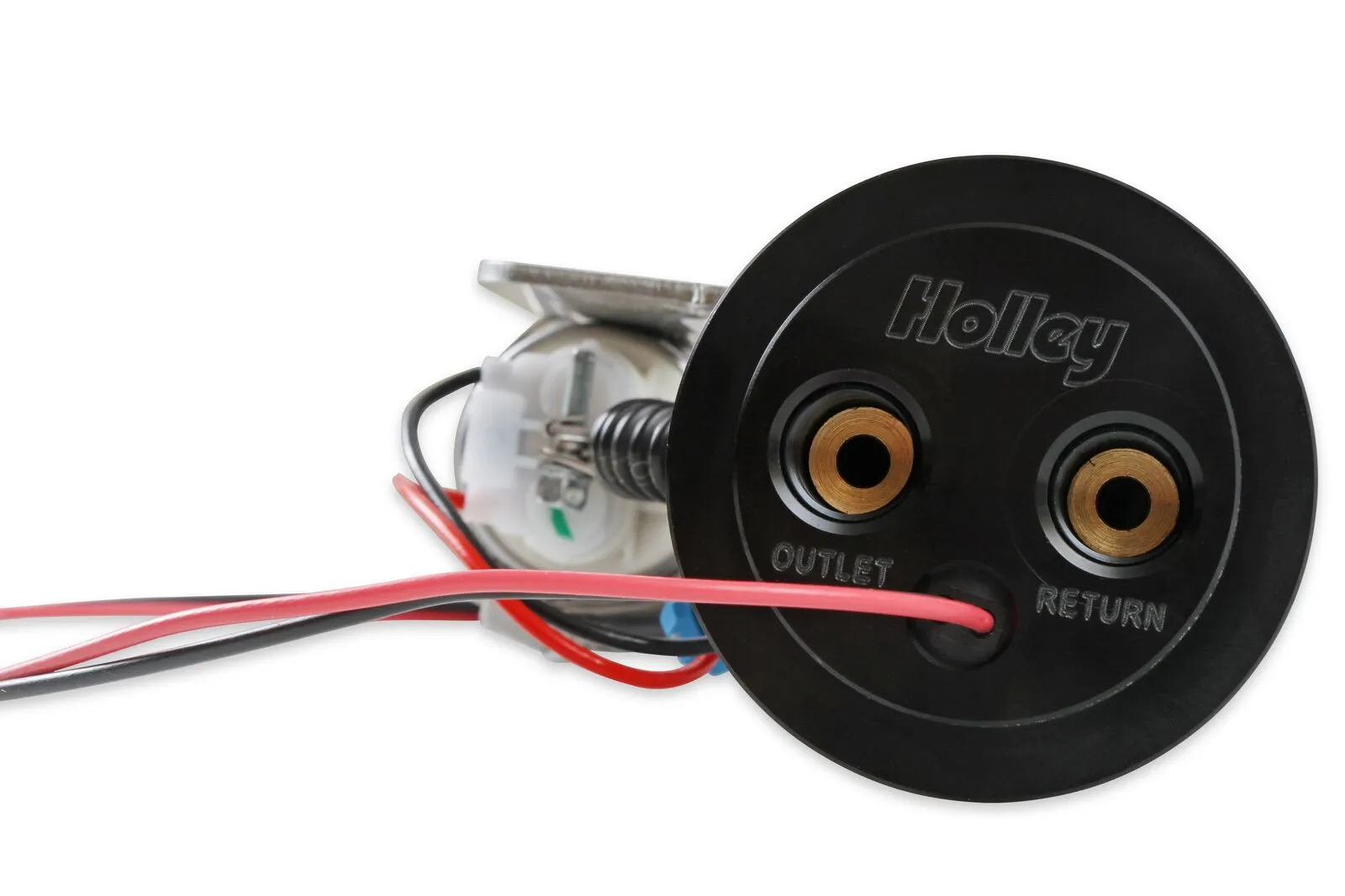

• 6AN o-ring outlet and return ports for easy plumbing connections

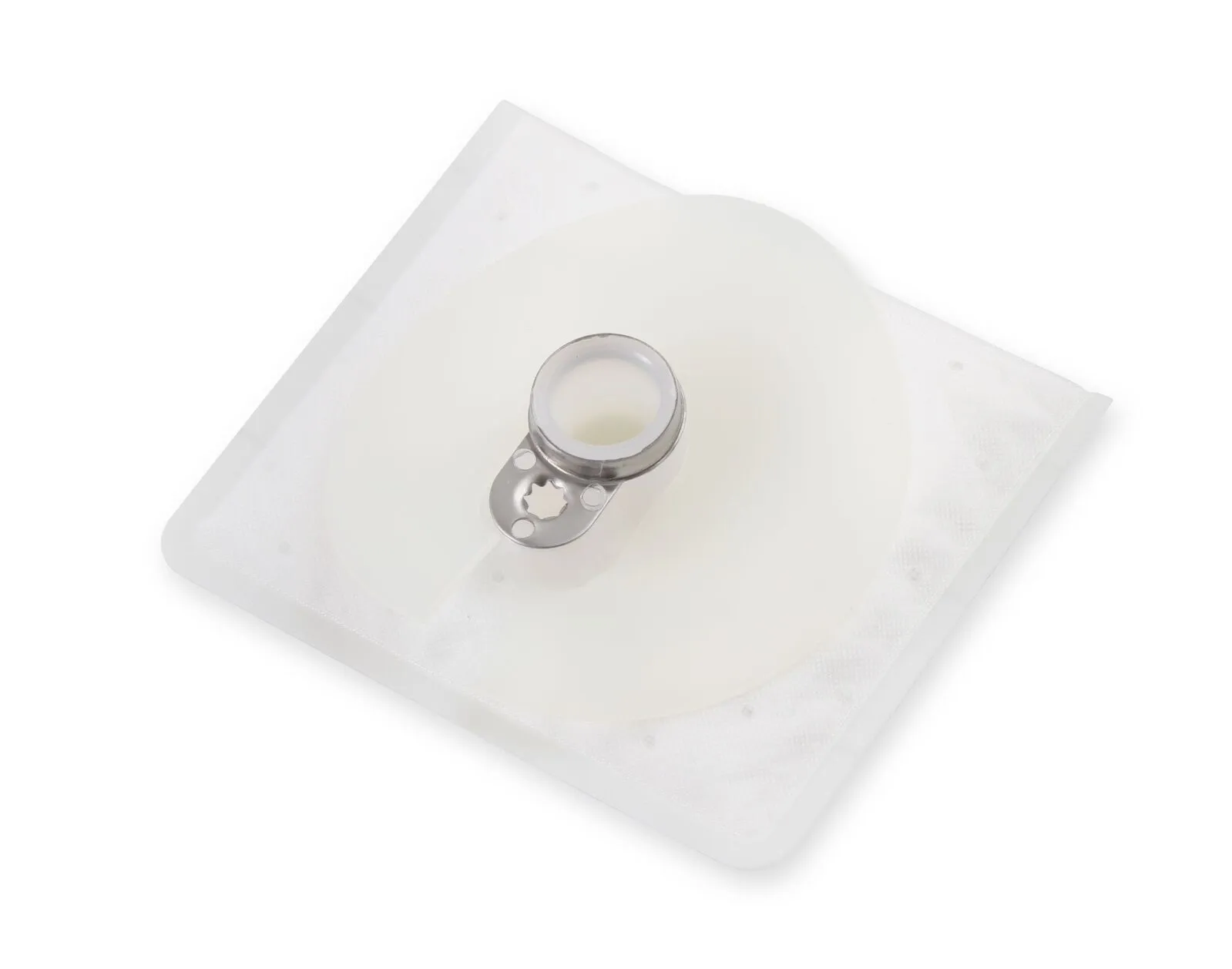

• Filter sock, flange o-ring, and fuel tank lock ring included to complete your installation
• Can be used with both carbureted and EFI (Electronic Fuel Injection) fuel systems depending on your needs
• Supports up to 1200 EFI or 1450 Carb HP (@ 60 PSI at 13.5 Volts / 17 AMP Draw) of course there are many variables, estimates are based on gasoline. Individual systems will vary based on fuel system design.
• Both EFI and carbureted systems will need a bypass design regulator (We recommend the 12-879 or 12-880 Bypass Regulators for these installations.)
• The flange is bright dip black anodized for corrosion protection from undercar moisture.
