Description

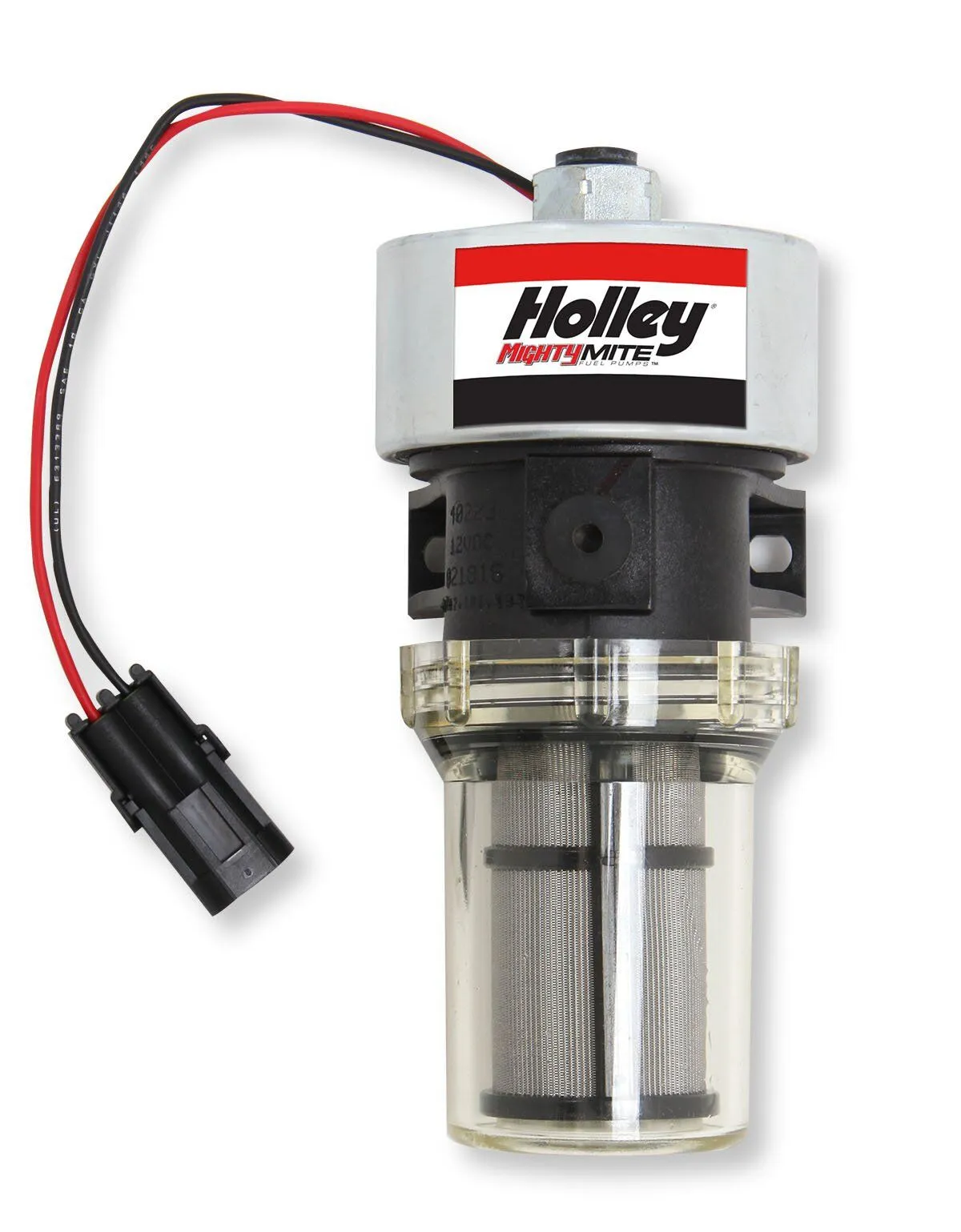

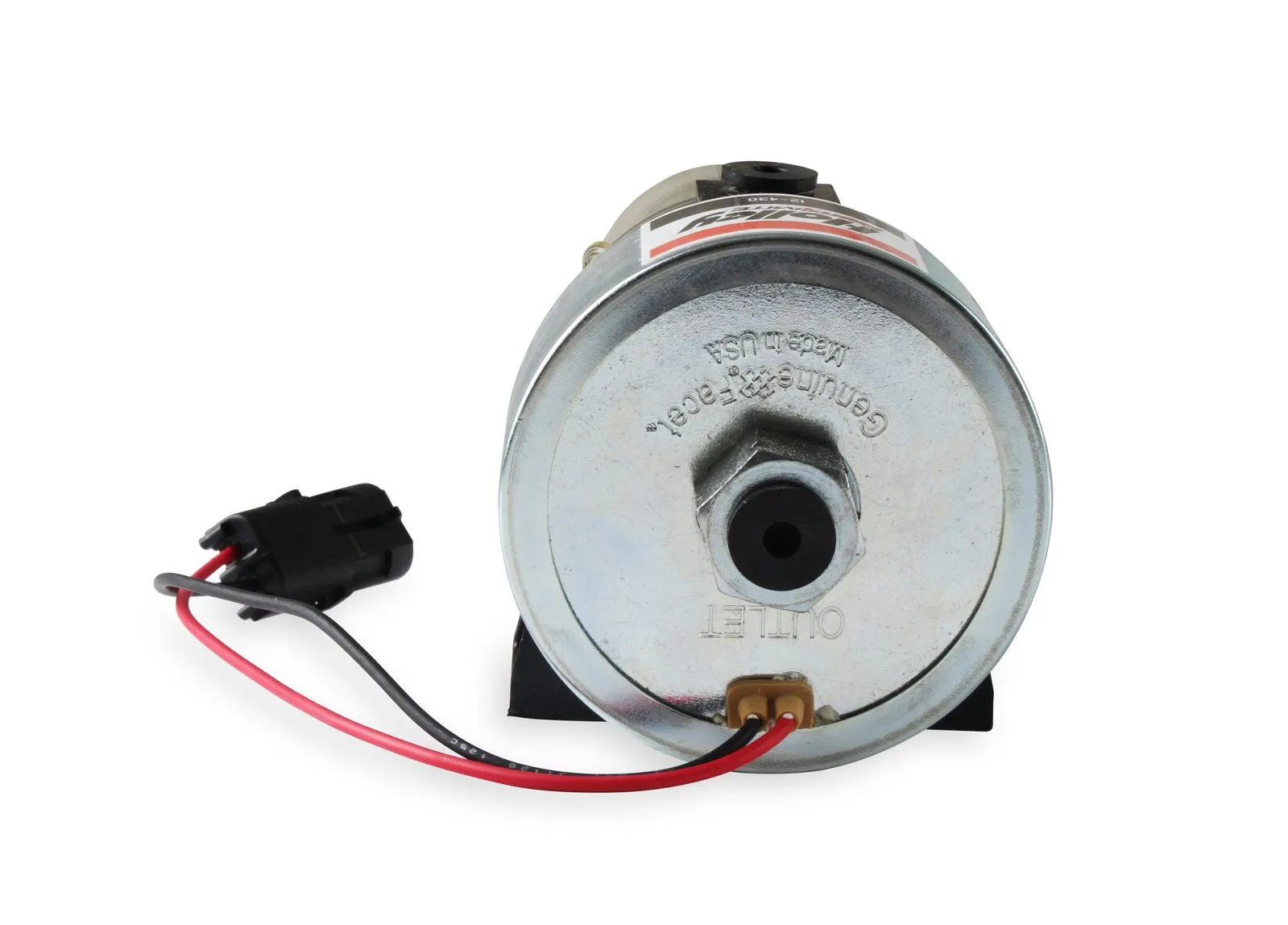

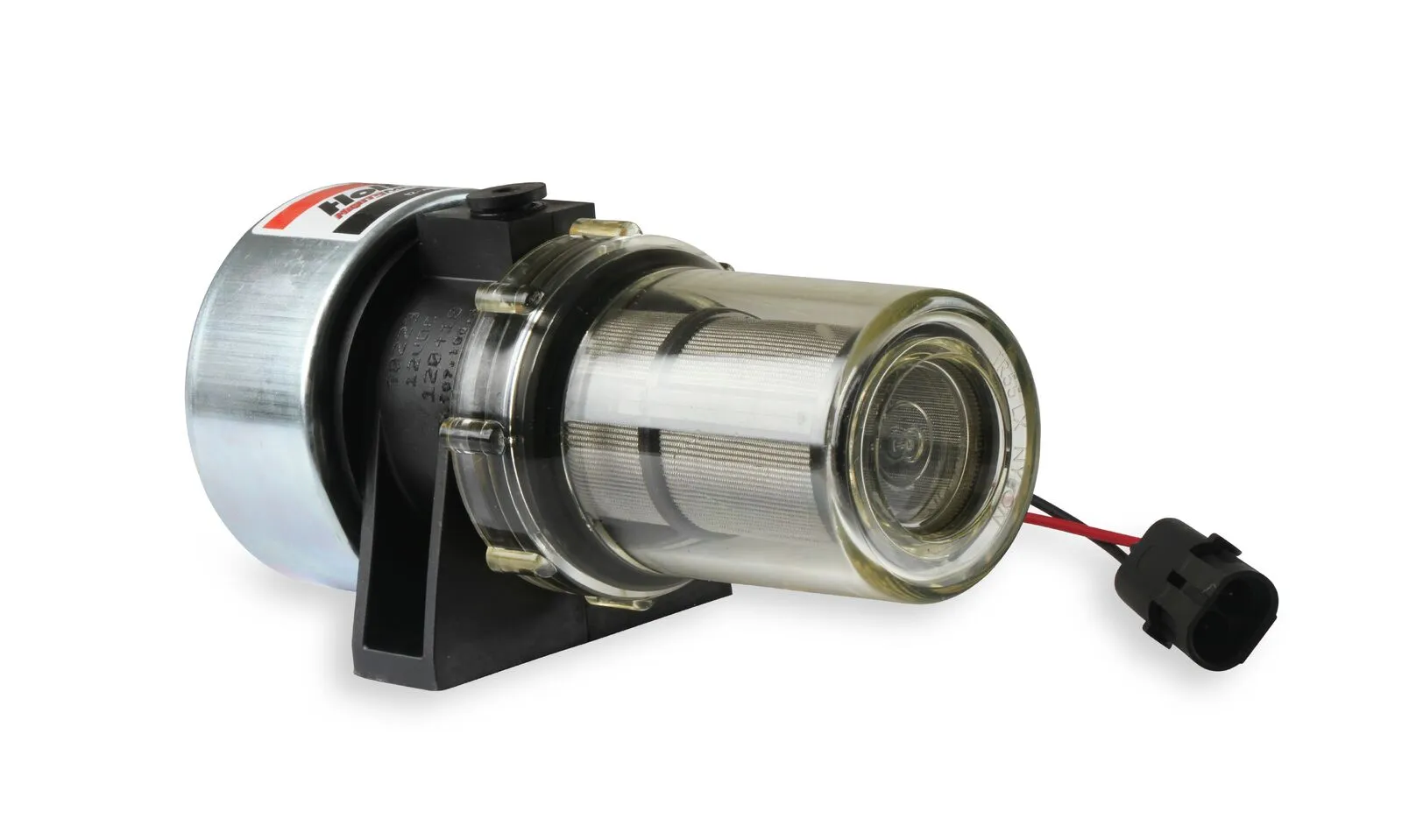

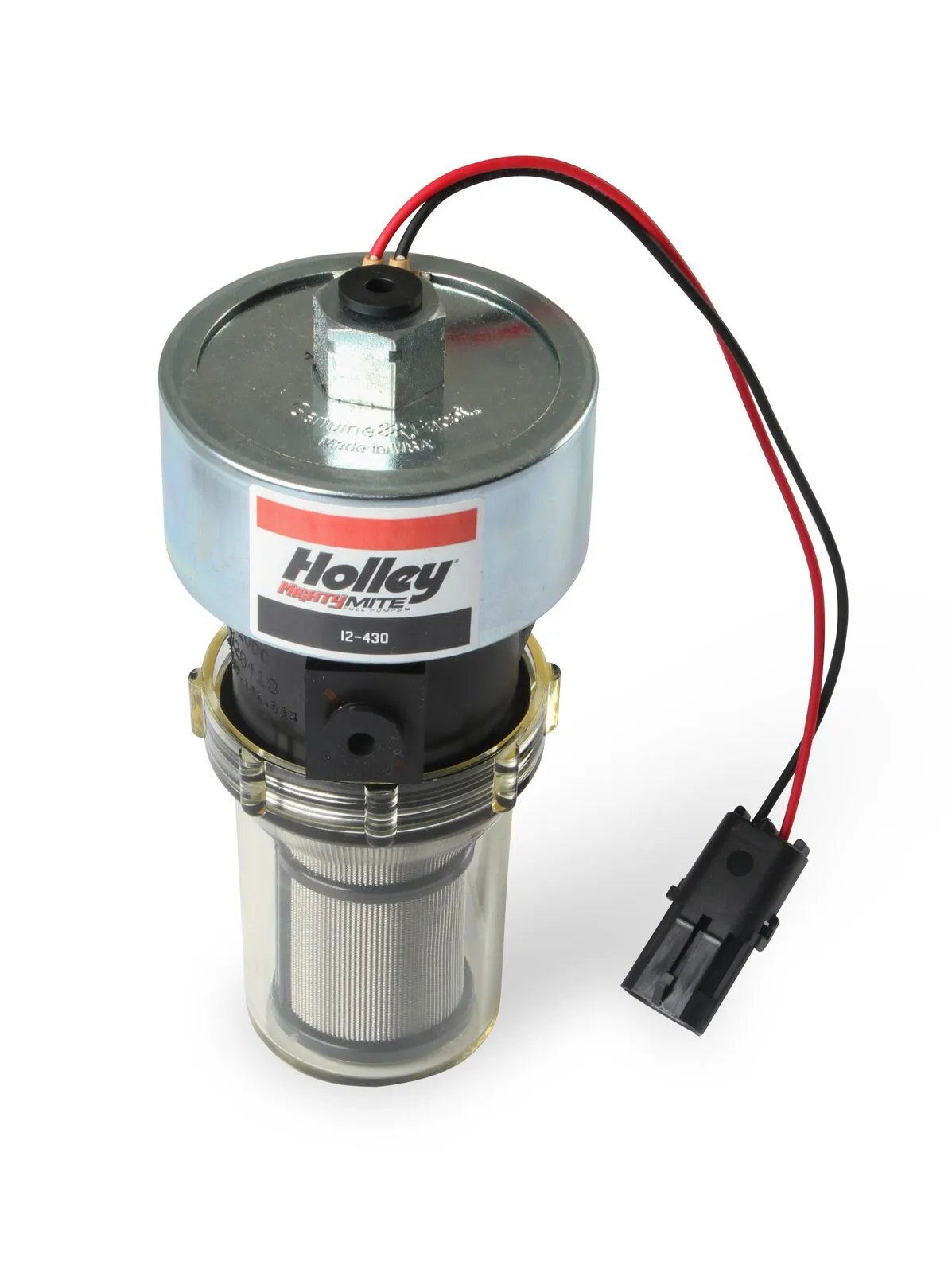

Holley Mighty Mite pumps are suited for tough, hard-working applications. From truck refrigeration units, marine generators, and gasoline and diesel industrial applications, these pumps have the proven performance, quality, and dependability that you can count on. They are self-priming and self-regulating at 9-11.5 psi and can deliver 33 GPH. Compatible with all types of fuels and additives, these pumps are the answer for your needs. Rugged solid state design pumps are a simple two wire hook-up and made in the USA. A regulator may be needed for carbureted applications requiring less fuel pressure. We recommend the Holley 12-803 or 12-804 fuel pressure regulator.

Features

  • 120” Dry lift/ 9-11.5 PSI / 33 GPH
  • Self-Priming and Self-Regulating
  • Compatible with gasoline, diesel, bio diesel, E85, blended alcohol and fuel additives
  • Operating temperature range of -40F to + 180F
  • UL Certified
  • 80 Micron stainless steel filter
  • Transparent fuel bowl allows filter monitoring
  • Corrosion resistant over 100 hours of salt spray
  • Fuel filter and mounting hardware included

Specifications

ApplicationUniversal
BrandMighty Mite
ColourBlack
Emission Code5
Free Flow GPH33
Fuel Delivery TypeCarburetor
Fuel Sending Unit IncludedNo
Fuel SystemCarbureted
Fuel TypeGasoline
Fuel TypeDiesel
Gasket Or Seal IncludedNo
Grade TypePerformance
Inlet Fitting Thread Size1/8
Inlet Size1/8" NPT
Inlet Thread1/8" NPT
Inlet TypeNPT
Internal Or ExternalExternal
MaterialSteel
Maximum Flow Rating33
Maximum Pressure11.5
Negative GroundYes
Outlet Fitting Thread Size1/8
Outlet Quantity1
Outlet Size1/8" NPT
Outlet Thread1/8" NPT
Outlet TypeNPT
Product TypeFuel Pump
Regulator IncludedNo
Universal Or Specific FitUniversal
Voltage12
WarrantyLimited 90 Day

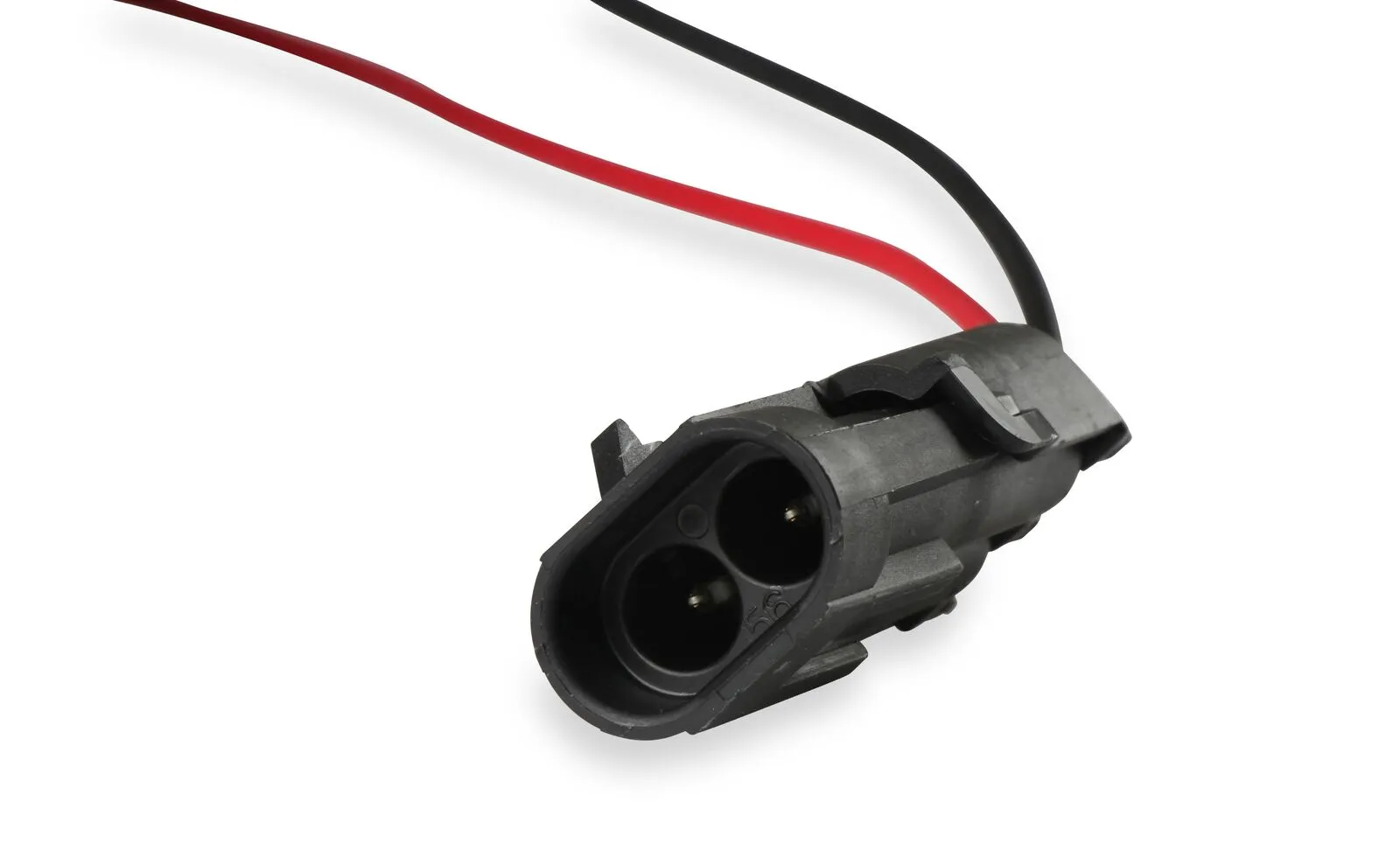

Wire Quantity2

Compatibility

  • Universal Part
