Description

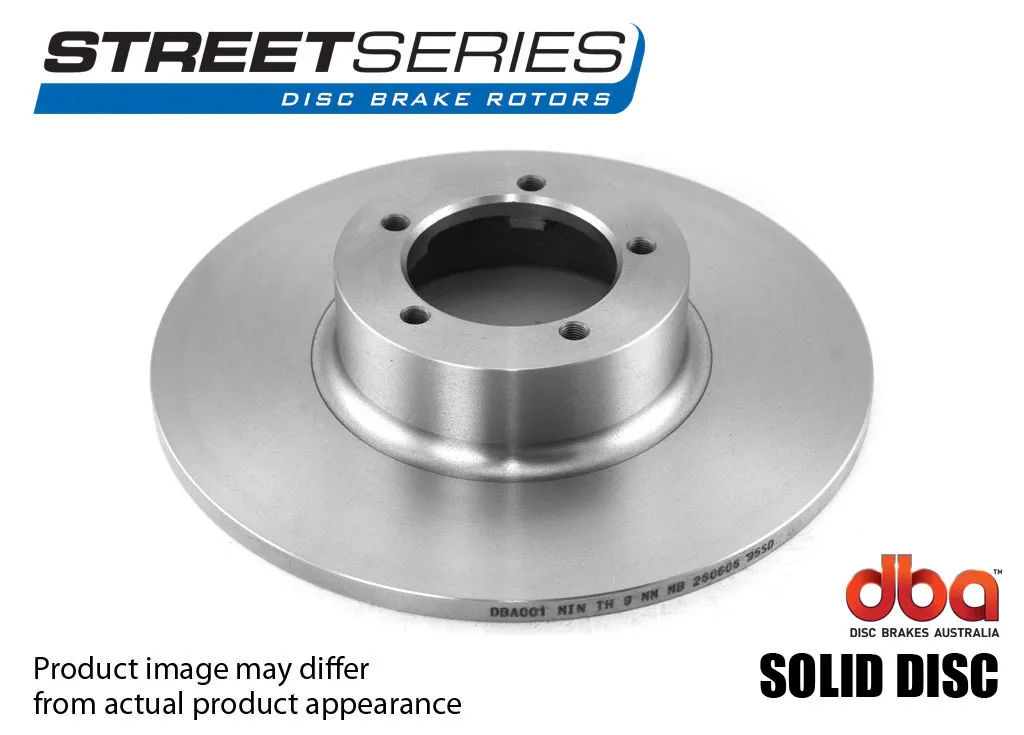

STREET SERIES - Direct OE Replacement

DBA's Standard Rotor series are direct fitment replacement rotors for all types of vehicles.

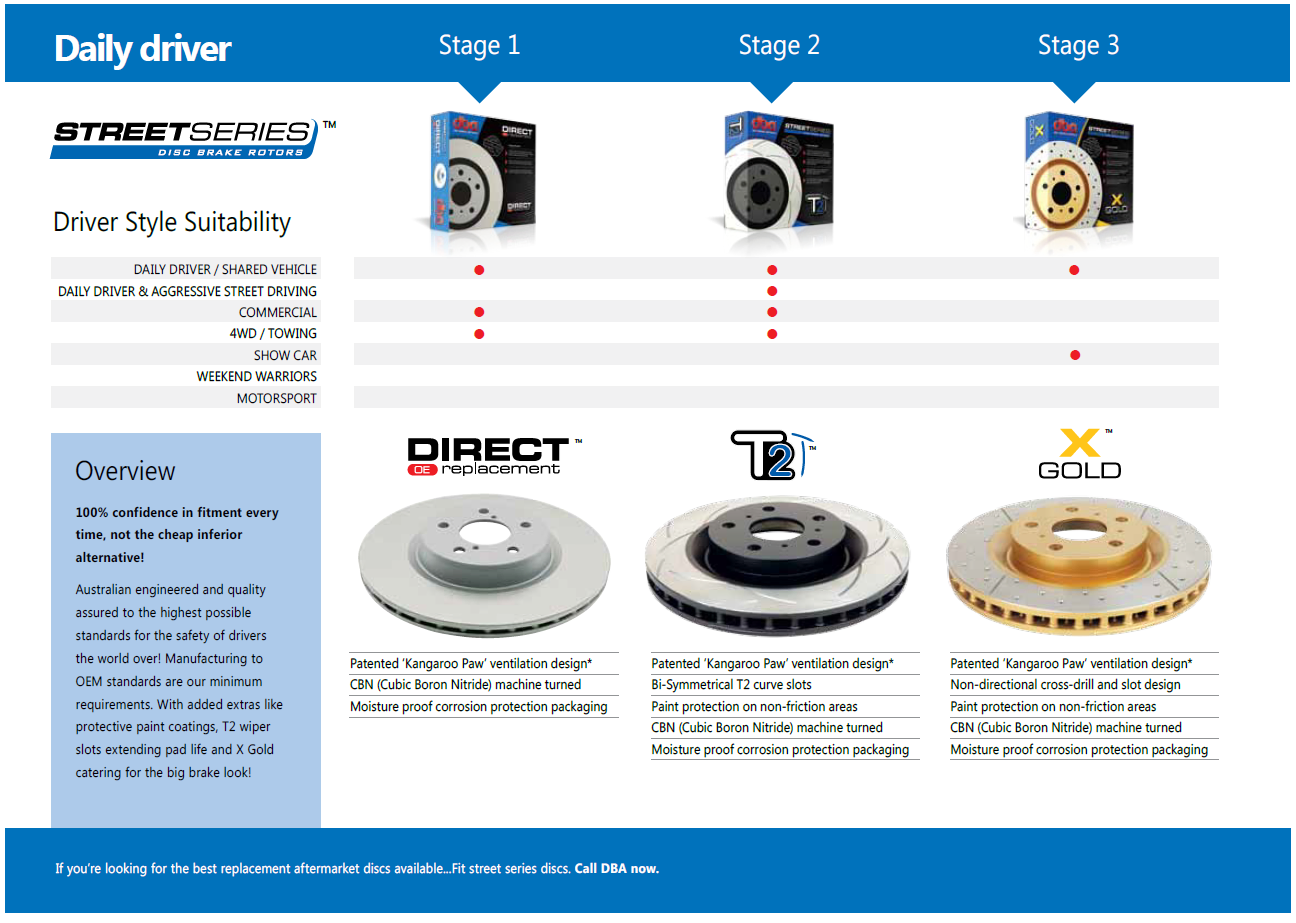

Direct OE Replacement - Stage 1 Street Series Specs

  • Patented 'Kangaroo Paw' ventilation design* (not available on all part numbers)

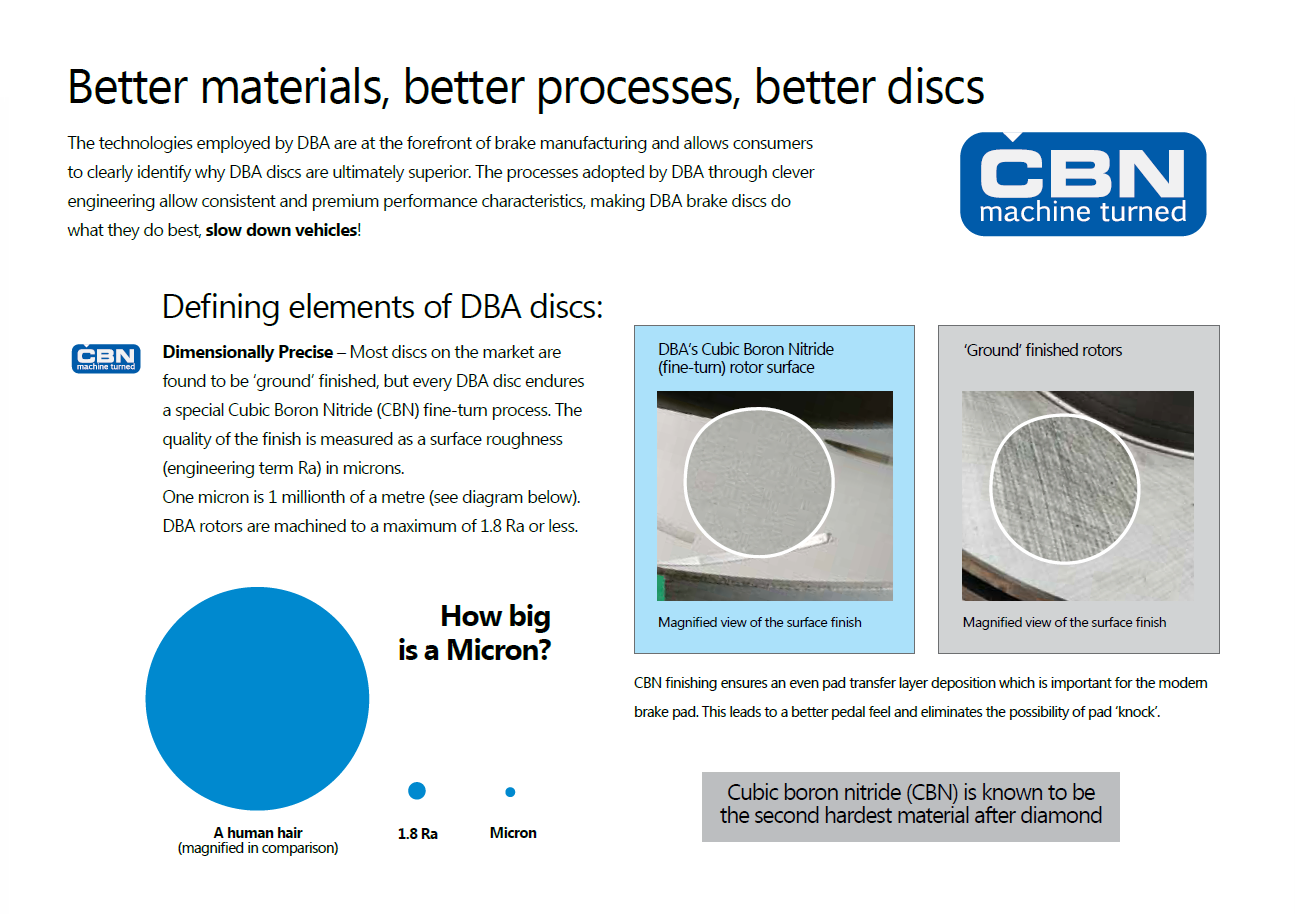

  • CBN (Cubic Boron Nitride) machine turned
  • Moisture proof corrosion protection packaging
  • En-Shield anti-rust coating available on selected part numbers



*Due to some vehicles being fitted with different discs from factory, please confirm your current standard disc specs with the specifications provided below.



Disc Brakes Australia - 100% confidence in fitment every time, not the cheap inferior alternative!  Australian engineered and quality assured to the highest possible standards for the safety of drivers the world over!  Manufacturing to OEM standards are our minimum requiremennts.  With more than three decades of manufacturing expertise, DBA continues to supply premium performance disc brake rotors from its manufacturing plant in Sydney.  As Australia's most highly awarded manufacturer of automotive aftermarket parts, DBA's performance rotors are distributed in over twenty-four countries.  DBA's OEM replacement rotor series includes Standard, Slotted and Cross-Drilled models with added extras like protective paint coatings, T2 wiper slots extending pad life, En-Shield rust free protection, X Gold catering for the big brake look and Clubspec T3 4000 & 5000 series performance and motorsport rotors!

Specifications

Diameter [mm] 274
Height [mm] 28
Thickness [mm] 28
Minimum Thickness [mm] 26
Inner Diameter [mm] 93
Pitch Circle Ø [mm] 116
Weight [kg] 6.7
Number of Holes 6
Class standard
Disc Vent standard

Compatibility

  • 1996 - 1999 > FORD AUSTRALIA > COURIER > Petrol Engine 2.6 i 4x4 PD Ute 92KW
  • 1996 - 1999 > FORD AUSTRALIA > COURIER > Diesel 2.5 TD All-wheel Drive PD Ute 63KW
  • 1990 - 1996 > FORD AUSTRALIA > COURIER > Petrol Engine 2.6 i 4x4 PC Ute 92KW
  • 1991 - 1996 > FORD AUSTRALIA > COURIER > Petrol Engine 2.6 i 4x4 PC Platform/Chassis 92KW
  • 1996 - 1999 > FORD AUSTRALIA > COURIER > Diesel 2.5 TD 4x4 PD Platform/Chassis 64KW
  • 1996 - 1999 > FORD AUSTRALIA > COURIER > Petrol Engine 2.6 i 4x4 PD Platform/Chassis 92KW
  • 1999 - 2006 > MAZDA > B-SERIES > Petrol Engine 2.6 B2600 BRAVO i 4WD UN Ute 90KW
  • 1990 - 1999 > MAZDA > B-SERIES > Petrol Engine 2.6 12V 4WD (UFY0) UF Ute 90KW
  • 1990 - 1999 > MAZDA > B-SERIES > Petrol Engine 2.6 B2600 BRAVO i 4x4 UF Platform/Chassis 92KW
  • 1987 - 1991 > MAZDA > B-SERIES > Petrol Engine 2.6 B2600 i 4x4 UF Platform/Chassis 73KW
  • 1987 - 1991 > MAZDA > B-SERIES > Petrol Engine 2.6 B2600 4WD (UFY0) UF Ute 92KW
  • 1990 - 1999 > MAZDA > B-SERIES > Petrol Engine 2.6 B2600 i 4WD (UFY0) UF Ute 92KW
  • 1996 - 1999 > MAZDA > B-SERIES > Diesel 2.5 B2500 BRAVO TD 4WD (UFY0) UF Ute 64KW

STREET SERIES - Direct OE Replacement

DBA's Standard Rotor series are direct fitment replacement rotors for all types of vehicles.





Direct OE Replacement - Stage 1 Street Series Specs

  • Patented 'Kangaroo Paw' ventilation design* (not available on all part numbers)
  • CBN (Cubic Boron Nitride) machine turned
  • Moisture proof corrosion protection packaging
  • En-Shield anti-rust coating available on selected part numbers



*Due to some vehicles being fitted with different discs from factory, please confirm your current standard disc specs with the specifications provided below.



Disc Brakes Australia - 100% confidence in fitment every time, not the cheap inferior alternative!  Australian engineered and quality assured to the highest possible standards for the safety of drivers the world over!  Manufacturing to OEM standards are our minimum requiremennts.  With more than three decades of manufacturing expertise, DBA continues to supply premium performance disc brake rotors from its manufacturing plant in Sydney.  As Australia's most highly awarded manufacturer of automotive aftermarket parts, DBA's performance rotors are distributed in over twenty-four countries.  DBA's OEM replacement rotor series includes Standard, Slotted and Cross-Drilled models with added extras like protective paint coatings, T2 wiper slots extending pad life, En-Shield rust free protection, X Gold catering for the big brake look and Clubspec T3 4000 & 5000 series performance and motorsport rotors!

Diameter [mm] 274
Height [mm] 28
Thickness [mm] 28
Minimum Thickness [mm] 26
Inner Diameter [mm] 93
Pitch Circle Ø [mm] 116
Weight [kg] 6.7
Number of Holes 6
Class standard
Disc Vent standard
  • 1996 - 1999 > FORD AUSTRALIA > COURIER > Petrol Engine 2.6 i 4x4 PD Ute 92KW
  • 1996 - 1999 > FORD AUSTRALIA > COURIER > Diesel 2.5 TD All-wheel Drive PD Ute 63KW
  • 1990 - 1996 > FORD AUSTRALIA > COURIER > Petrol Engine 2.6 i 4x4 PC Ute 92KW
  • 1991 - 1996 > FORD AUSTRALIA > COURIER > Petrol Engine 2.6 i 4x4 PC Platform/Chassis 92KW
  • 1996 - 1999 > FORD AUSTRALIA > COURIER > Diesel 2.5 TD 4x4 PD Platform/Chassis 64KW
  • 1996 - 1999 > FORD AUSTRALIA > COURIER > Petrol Engine 2.6 i 4x4 PD Platform/Chassis 92KW
  • 1999 - 2006 > MAZDA > B-SERIES > Petrol Engine 2.6 B2600 BRAVO i 4WD UN Ute 90KW
  • 1990 - 1999 > MAZDA > B-SERIES > Petrol Engine 2.6 12V 4WD (UFY0) UF Ute 90KW
  • 1990 - 1999 > MAZDA > B-SERIES > Petrol Engine 2.6 B2600 BRAVO i 4x4 UF Platform/Chassis 92KW
  • 1987 - 1991 > MAZDA > B-SERIES > Petrol Engine 2.6 B2600 i 4x4 UF Platform/Chassis 73KW
  • 1987 - 1991 > MAZDA > B-SERIES > Petrol Engine 2.6 B2600 4WD (UFY0) UF Ute 92KW
  • 1990 - 1999 > MAZDA > B-SERIES > Petrol Engine 2.6 B2600 i 4WD (UFY0) UF Ute 92KW
  • 1996 - 1999 > MAZDA > B-SERIES > Diesel 2.5 B2500 BRAVO TD 4WD (UFY0) UF Ute 64KW
