Description

Important: Please see notes in compatibilty section regarding vehicle fitment.

DBA’s Street Series T2 rotor provides all the benefits of DBA’s Street Series direct replacement rotors with the added benefit of performance braking through the introduction of DBA’s patented T2 slot design.

The T2 slot design features precise CNC machined bi-symmetrical slots, resulting in a quieter, more responsive and smoother brake pedal feel. The T2 slot increases the number of exit points, allowing friction dust and gases to escape and enhancing the pad bite.

DBA’s revolutionary universal slot design also eliminates the need for separate left and right slot designs seen in traditional rotor designs.

We recommend the T2 slot design for more intensive braking applications.

T2 is denoted by the suffix (S) in Street Series part numbers.



Description Advantage Benefit
"Kangaroo Paw* – 144 diamond and tear drop pillar ventilation system" Increased surface area resulting in greater heat dissipation Minimises brake fade and increases braking effectiveness
    Increased surface area resulting in greater heat dissipation
CBN (Cubic Boron Nitride) machine turned Reduced DTV (Disc thickness variation) and parallelism

Specifications

Disc Vent V
Diameter [mm] 290
Height [mm] 67.5
Thickness [mm] 18
Minimum Thickness [mm] 16
Inner Diameter [mm] 58
Number of Holes 5
Weight [kg] 6

What's Included

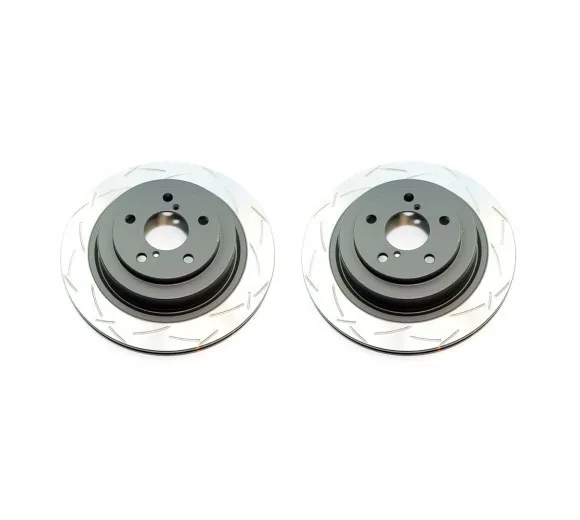

  • 2 x DBA T2 Street Series Rear Rotors

Compatibility

  • 2006 - 2009 > SUBARU > LIBERTY > Petrol Engine 2.5 T AWD (BL9) BL Sedan 184KW
  • 2006 - 2009 > SUBARU > LIBERTY > Petrol Engine 2.5 T AWD (BP9) B13,BP,BP9 Wagon 184KW
  • 1998 - 2003 > SUBARU > LIBERTY > Petrol Engine 2.0 RSK AWD (BE5) BE Sedan 191KW
  • 2004 - 2009 > SUBARU > LIBERTY > Petrol Engine 3.0 R AWD (BLE) BL Sedan 180KW
  • 2004 - 2009 > SUBARU > LIBERTY > Petrol Engine 3.0 R AWD (BPE) B13,BP,BPE Wagon 180KW
  • 2003 - 2006 > SUBARU > LIBERTY > Petrol Engine 2.0 Turbo AWD (BL5) BL Sedan 180KW
  • 2003 - 2009 > SUBARU > LIBERTY > Petrol Engine 2.0 Turbo AWD (BP5) B13,BP,BP5 Wagon 180KW
  • 2004 - 2009 > SUBARU > LIBERTY > Petrol Engine 2.0 GT Tuned By STI AWD (BL5) BL Sedan 190KW
  • 2004 - 2009 > SUBARU > LIBERTY > Petrol Engine 2.0 GT AWD (BP5) B13,BP,BP5 Wagon 190KW
  • 2004 - 2009 > SUBARU > LIBERTY > Petrol Engine 2.0 GT Tuned By STI AWD (BL5) BL Sedan 200KW
  • 2006 - 2009 > SUBARU > LIBERTY > Petrol Engine 2.0 GT AWD (BP5) B13,BP,BP5 Wagon 200KW
  • 2002 - 2003 > SUBARU > LIBERTY > Petrol Engine 2.0 AWD (BE5) BE Sedan 176KW
  • 2003 - 2005 > SUBARU > FORESTER > Petrol Engine 2.5 AWD (SG9) SG_ SUV 155KW
  • 2005 - 2008 > SUBARU > FORESTER > Petrol Engine 2.5 AWD (SG9) SG_ SUV 169KW
  • 2005 - 2008 > SUBARU > FORESTER > Petrol Engine 2.5 AWD (SG9) SG_ SUV 121KW
  • 2002 - 2005 > SUBARU > FORESTER > Petrol Engine 2.5 AWD (SG9) SG_ SUV 112KW
  • 2005 - 2007 > SUBARU > IMPREZA > Petrol Engine 2.5 i WRX AWD (GDG) GD Sedan 169KW
  • 2005 - 2008 > SUBARU > IMPREZA > Petrol Engine 2.5 WRX AWD (GGG) GG Wagon 169KW
  • 2000 - 2007 > SUBARU > IMPREZA > Petrol Engine 2.0 i AWD (GG9) GG Wagon 92KW
  • 2000 - 2002 > SUBARU > IMPREZA > Petrol Engine 2.0 WRX Turbo AWD (GDA) GD Sedan 160KW
  • 2000 - 2005 > SUBARU > IMPREZA > Petrol Engine 2.0 i WRX AWD (GGA) GG Wagon 160KW
  • 2002 - 2007 > SUBARU > IMPREZA > Petrol Engine 2.0 WRX Turbo AWD (GDA) GD Sedan 165KW
  • 2002 - 2006 > SUBARU > IMPREZA > Petrol Engine 2.0 WRX Turbo AWD (GGA) GG Wagon 165KW
  • 2001 - 2002 > SUBARU > IMPREZA > Petrol Engine 2.0 i AWD (GDA) GD Sedan 150KW
  • 2002 - 2005 > SUBARU > IMPREZA > Petrol Engine 2.0 i WRX AWD (GDA) GD Sedan 168KW
  • 2005 - 2006 > SUBARU > IMPREZA > Petrol Engine 2.0 WRX AWD (GGA) GG Wagon 169KW
  • 2000 - 2003 > SUBARU > OUTBACK > Petrol Engine 3.0 H6 AWD (BHE) BE,BH Wagon 154KW
  • 2000 - 2003 > SUBARU > OUTBACK > Petrol Engine 2.5 AWD (BH9) BE,BH Wagon 115KW
  • 2003 - 2007 > SUBARU > OUTBACK > Petrol Engine 2.5 AWD (BP9) BL,BP Wagon 121KW
  • 2003 - 2009 > SUBARU > OUTBACK > Petrol Engine 3.0 AWD (BPE) BL,BP Wagon 180KW
