Description

STREET SERIES - Direct OE Replacement

DBA's Standard Rotor series are direct fitment replacement rotors for all types of vehicles.





Direct OE Replacement - Stage 1 Street Series Specs

  • Patented 'Kangaroo Paw' ventilation design* (not available on all part numbers)

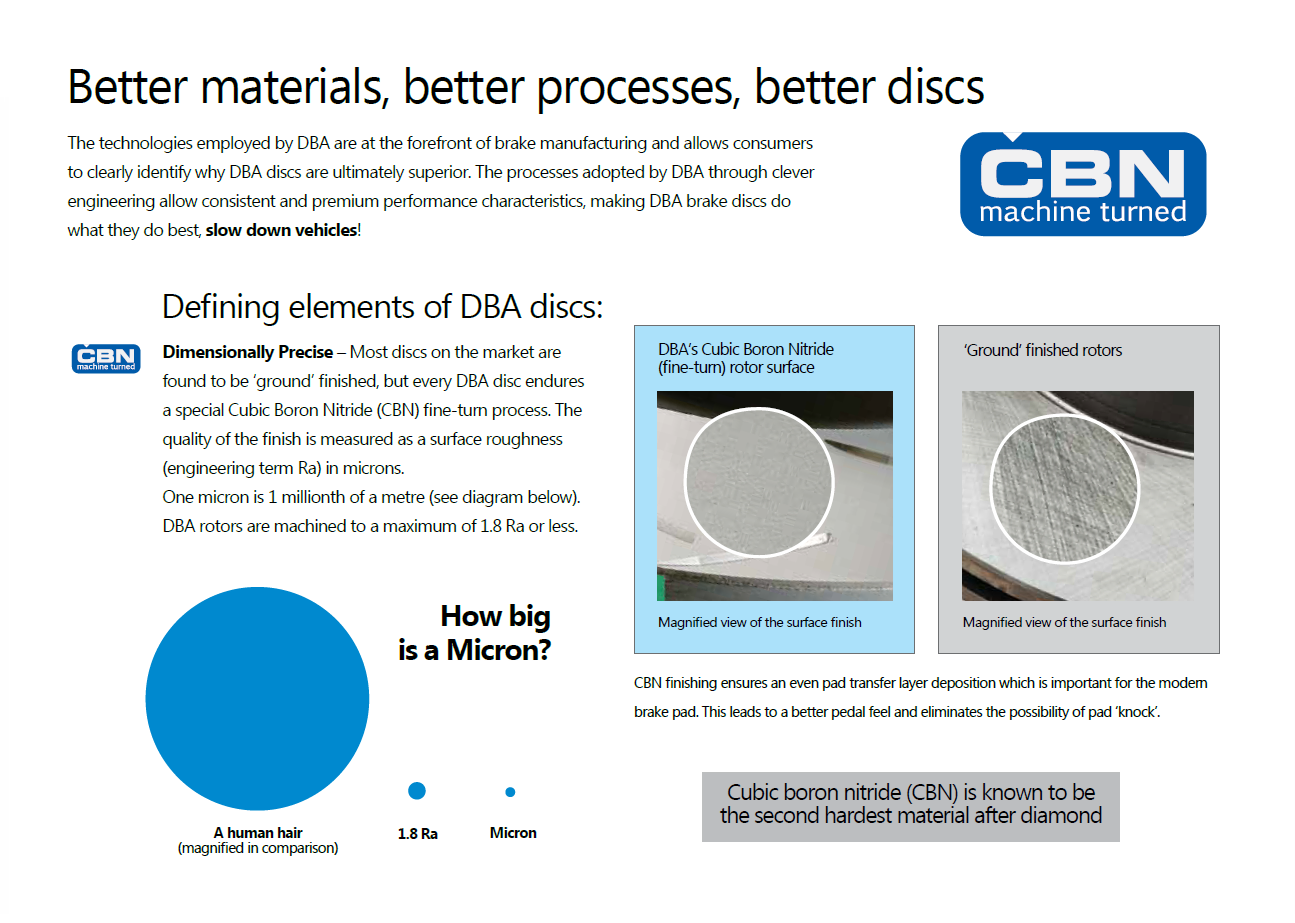

  • CBN (Cubic Boron Nitride) machine turned
  • Moisture proof corrosion protection packaging
  • En-Shield anti-rust coating available on selected part numbers



*Due to some vehicles being fitted with different discs from factory, please confirm your current standard disc specs with the specifications provided below.



Disc Brakes Australia - 100% confidence in fitment every time, not the cheap inferior alternative!  Australian engineered and quality assured to the highest possible standards for the safety of drivers the world over!  Manufacturing to OEM standards are our minimum requiremennts.  With more than three decades of manufacturing expertise, DBA continues to supply premium performance disc brake rotors from its manufacturing plant in Sydney.  As Australia's most highly awarded manufacturer of automotive aftermarket parts, DBA's performance rotors are distributed in over twenty-four countries.  DBA's OEM replacement rotor series includes Standard, Slotted and Cross-Drilled models with added extras like protective paint coatings, T2 wiper slots extending pad life, En-Shield rust free protection, X Gold catering for the big brake look and Clubspec T3 4000 & 5000 series performance and motorsport rotors!

Specifications

Diameter [mm] 288
Height [mm] 42
Thickness [mm] 25
Minimum Thickness [mm] 22
Inner Diameter [mm] 70
Weight [kg] 6.9
Number of Holes 5
Class standard
Disc Vent standard

Compatibility

  • 2000 - 2002 > HOLDEN > VECTRA > Petrol Engine 2.6 i V6 JS Sedan 125KW
  • 2000 - 2003 > HOLDEN > VECTRA > Petrol Engine 2.2 i JS Hatchback 104KW
  • 2000 - 2002 > HOLDEN > VECTRA > Petrol Engine 2.6 i V6 JS Hatchback 125KW
  • 1998 - 2003 > HOLDEN > VECTRA > Petrol Engine 2.2 i JS Wagon 104KW
  • 1998 - 2002 > HOLDEN > VECTRA > Petrol Engine 2.2 i JS Sedan 104KW
  • 1998 - 2002 > HOLDEN > VECTRA > Petrol Engine 2.5 i JS Hatchback 125KW
  • 1998 - 2000 > HOLDEN > VECTRA > Petrol Engine 2.0 i JS Hatchback 100KW
  • 1997 - 1998 > HOLDEN > VECTRA > Petrol Engine 2.0 i JR Hatchback 100KW
  • 1997 - 1998 > HOLDEN > VECTRA > Petrol Engine 2.5 i JR Hatchback 125KW
  • 1997 - 1998 > HOLDEN > VECTRA > Petrol Engine 2.0 i JR Sedan 100KW
  • 1997 - 1998 > HOLDEN > VECTRA > Petrol Engine 2.5 i JR Sedan 125KW
  • 1992 - 1997 > HOLDEN > CALIBRA > Petrol Engine 2.0 i Turbo AWD YE Coupe 150KW
  • 1999 - 2009 > SAAB > 9-5 > Petrol Engine 2.0 t YS3E Sedan 110KW
  • 1999 - 2003 > SAAB > 9-5 > Petrol Engine 2.3 t YS3E Sedan 125KW
  • 1999 - 2009 > SAAB > 9-5 > Petrol Engine 2.0 t YS3E Wagon 110KW
  • 1999 - 2009 > SAAB > 9-5 > Petrol Engine 2.3 t YS3E Wagon 125KW
  • 2006 - 2009 > SAAB > 9-5 > Diesel 1.9 TiD YS3E Sedan 110KW
  • 2006 - 2009 > SAAB > 9-5 > Diesel 1.9 TiD YS3E Wagon 110KW
  • 2001 - 2009 > SAAB > 9-5 > Petrol Engine 2.3 t YS3E Sedan 136KW
  • 2001 - 2009 > SAAB > 9-5 > Petrol Engine 2.3 t YS3E Wagon 136KW
  • 2003 - 2009 > SAAB > 9-5 > Petrol Engine 2.3 Turbo YS3E Sedan 162KW
  • 1998 - 2002 > SAAB > 9-5 > Petrol Engine YS3E Hatchback 110KW
  • 1998 - 2002 > SAAB > 9-3 > Petrol Engine 2.0 i YS3D Hatchback 96KW
  • 1998 - 2002 > SAAB > 9-3 > Petrol Engine 2.0 Turbo YS3D Hatchback 136KW
  • 1998 - 2002 > SAAB > 9-3 > Petrol Engine 2.3 i YS3D Hatchback 110KW
  • 1998 - 2003 > SAAB > 9-3 > Petrol Engine 2.0 i YS3D Convertible 96KW
  • 1998 - 2003 > SAAB > 9-3 > Petrol Engine 2.0 Turbo YS3D Convertible 136KW
  • 1998 - 2003 > SAAB > 9-3 > Petrol Engine 2.3 i YS3D Convertible 110KW
  • 1998 - 2002 > SAAB > 9-3 > Petrol Engine 2.0 Turbo YS3D Hatchback 113KW
  • 1998 - 2003 > SAAB > 9-3 > Petrol Engine 2.0 Turbo YS3D Convertible 113KW
  • 1999 - 2001 > SAAB > 9-3 > Petrol Engine 2.0 SE Turbo YS3D Hatchback 147KW
  • 1999 - 2001 > SAAB > 9-3 > Petrol Engine 2.0 SE Turbo YS3D Convertible 147KW
  • 1998 - 2002 > SAAB > 9-3 > Petrol Engine 2.3 Turbo YS3D Hatchback 165KW
  • 2001 - 2002 > SAAB > 9-3 > Petrol Engine 2.0 Turbo YS3D Hatchback 151KW
  • 2001 - 2003 > SAAB > 9-3 > Petrol Engine 2.0 Turbo YS3D Convertible 151KW
  • 1999 - 2003 > SAAB > 9-3 > Petrol Engine 2.3 Turbo YS3D Convertible 165KW
  • 1999 - 2002 > SAAB > 9-3 > Petrol Engine 2.0 Turbo YS3D Hatchback 110KW
  • 2001 - 2003 > SAAB > 9-3 > Petrol Engine 2.0 Turbo YS3D Convertible 110KW

STREET SERIES - Direct OE Replacement

DBA's Standard Rotor series are direct fitment replacement rotors for all types of vehicles.





Direct OE Replacement - Stage 1 Street Series Specs

  • Patented 'Kangaroo Paw' ventilation design* (not available on all part numbers)
  • CBN (Cubic Boron Nitride) machine turned
  • Moisture proof corrosion protection packaging
  • En-Shield anti-rust coating available on selected part numbers



*Due to some vehicles being fitted with different discs from factory, please confirm your current standard disc specs with the specifications provided below.



Disc Brakes Australia - 100% confidence in fitment every time, not the cheap inferior alternative!  Australian engineered and quality assured to the highest possible standards for the safety of drivers the world over!  Manufacturing to OEM standards are our minimum requiremennts.  With more than three decades of manufacturing expertise, DBA continues to supply premium performance disc brake rotors from its manufacturing plant in Sydney.  As Australia's most highly awarded manufacturer of automotive aftermarket parts, DBA's performance rotors are distributed in over twenty-four countries.  DBA's OEM replacement rotor series includes Standard, Slotted and Cross-Drilled models with added extras like protective paint coatings, T2 wiper slots extending pad life, En-Shield rust free protection, X Gold catering for the big brake look and Clubspec T3 4000 & 5000 series performance and motorsport rotors!

Diameter [mm] 288
Height [mm] 42
Thickness [mm] 25
Minimum Thickness [mm] 22
Inner Diameter [mm] 70
Weight [kg] 6.9
Number of Holes 5
Class standard
Disc Vent standard
  • 2000 - 2002 > HOLDEN > VECTRA > Petrol Engine 2.6 i V6 JS Sedan 125KW
  • 2000 - 2003 > HOLDEN > VECTRA > Petrol Engine 2.2 i JS Hatchback 104KW
  • 2000 - 2002 > HOLDEN > VECTRA > Petrol Engine 2.6 i V6 JS Hatchback 125KW
  • 1998 - 2003 > HOLDEN > VECTRA > Petrol Engine 2.2 i JS Wagon 104KW
  • 1998 - 2002 > HOLDEN > VECTRA > Petrol Engine 2.2 i JS Sedan 104KW
  • 1998 - 2002 > HOLDEN > VECTRA > Petrol Engine 2.5 i JS Hatchback 125KW
  • 1998 - 2000 > HOLDEN > VECTRA > Petrol Engine 2.0 i JS Hatchback 100KW
  • 1997 - 1998 > HOLDEN > VECTRA > Petrol Engine 2.0 i JR Hatchback 100KW
  • 1997 - 1998 > HOLDEN > VECTRA > Petrol Engine 2.5 i JR Hatchback 125KW
  • 1997 - 1998 > HOLDEN > VECTRA > Petrol Engine 2.0 i JR Sedan 100KW
  • 1997 - 1998 > HOLDEN > VECTRA > Petrol Engine 2.5 i JR Sedan 125KW
  • 1992 - 1997 > HOLDEN > CALIBRA > Petrol Engine 2.0 i Turbo AWD YE Coupe 150KW
  • 1999 - 2009 > SAAB > 9-5 > Petrol Engine 2.0 t YS3E Sedan 110KW
  • 1999 - 2003 > SAAB > 9-5 > Petrol Engine 2.3 t YS3E Sedan 125KW
  • 1999 - 2009 > SAAB > 9-5 > Petrol Engine 2.0 t YS3E Wagon 110KW
  • 1999 - 2009 > SAAB > 9-5 > Petrol Engine 2.3 t YS3E Wagon 125KW
  • 2006 - 2009 > SAAB > 9-5 > Diesel 1.9 TiD YS3E Sedan 110KW
  • 2006 - 2009 > SAAB > 9-5 > Diesel 1.9 TiD YS3E Wagon 110KW
  • 2001 - 2009 > SAAB > 9-5 > Petrol Engine 2.3 t YS3E Sedan 136KW
  • 2001 - 2009 > SAAB > 9-5 > Petrol Engine 2.3 t YS3E Wagon 136KW
  • 2003 - 2009 > SAAB > 9-5 > Petrol Engine 2.3 Turbo YS3E Sedan 162KW
  • 1998 - 2002 > SAAB > 9-5 > Petrol Engine YS3E Hatchback 110KW
  • 1998 - 2002 > SAAB > 9-3 > Petrol Engine 2.0 i YS3D Hatchback 96KW
  • 1998 - 2002 > SAAB > 9-3 > Petrol Engine 2.0 Turbo YS3D Hatchback 136KW
  • 1998 - 2002 > SAAB > 9-3 > Petrol Engine 2.3 i YS3D Hatchback 110KW
  • 1998 - 2003 > SAAB > 9-3 > Petrol Engine 2.0 i YS3D Convertible 96KW
  • 1998 - 2003 > SAAB > 9-3 > Petrol Engine 2.0 Turbo YS3D Convertible 136KW
  • 1998 - 2003 > SAAB > 9-3 > Petrol Engine 2.3 i YS3D Convertible 110KW
  • 1998 - 2002 > SAAB > 9-3 > Petrol Engine 2.0 Turbo YS3D Hatchback 113KW
  • 1998 - 2003 > SAAB > 9-3 > Petrol Engine 2.0 Turbo YS3D Convertible 113KW
  • 1999 - 2001 > SAAB > 9-3 > Petrol Engine 2.0 SE Turbo YS3D Hatchback 147KW
  • 1999 - 2001 > SAAB > 9-3 > Petrol Engine 2.0 SE Turbo YS3D Convertible 147KW
  • 1998 - 2002 > SAAB > 9-3 > Petrol Engine 2.3 Turbo YS3D Hatchback 165KW
  • 2001 - 2002 > SAAB > 9-3 > Petrol Engine 2.0 Turbo YS3D Hatchback 151KW
  • 2001 - 2003 > SAAB > 9-3 > Petrol Engine 2.0 Turbo YS3D Convertible 151KW
  • 1999 - 2003 > SAAB > 9-3 > Petrol Engine 2.3 Turbo YS3D Convertible 165KW
  • 1999 - 2002 > SAAB > 9-3 > Petrol Engine 2.0 Turbo YS3D Hatchback 110KW
  • 2001 - 2003 > SAAB > 9-3 > Petrol Engine 2.0 Turbo YS3D Convertible 110KW
