Description

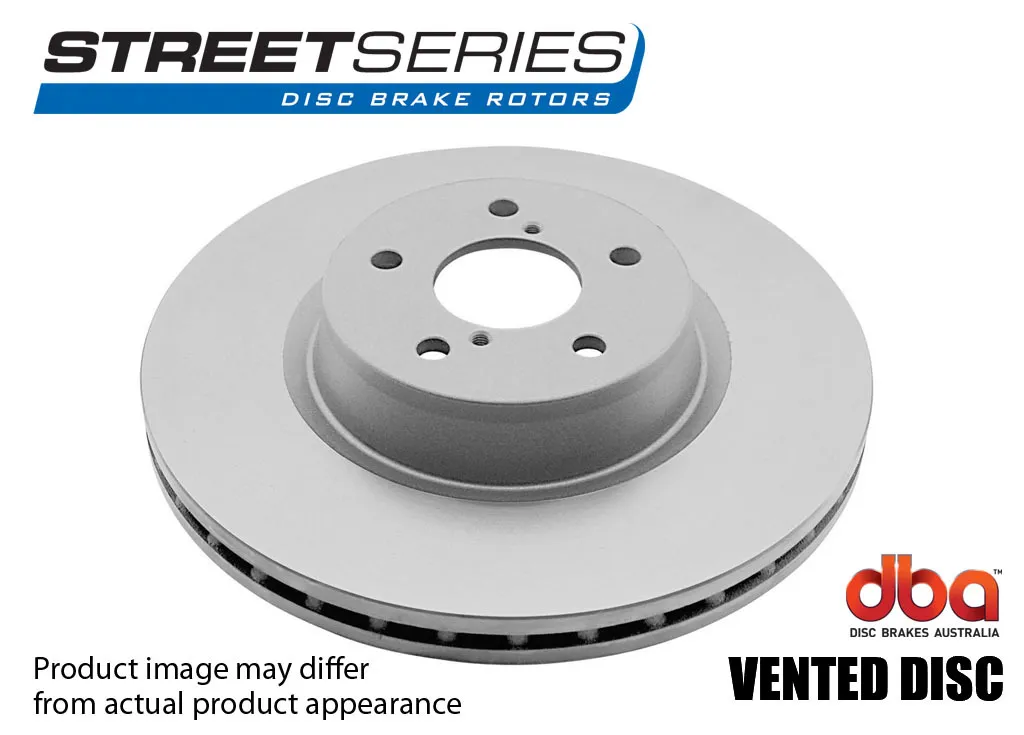

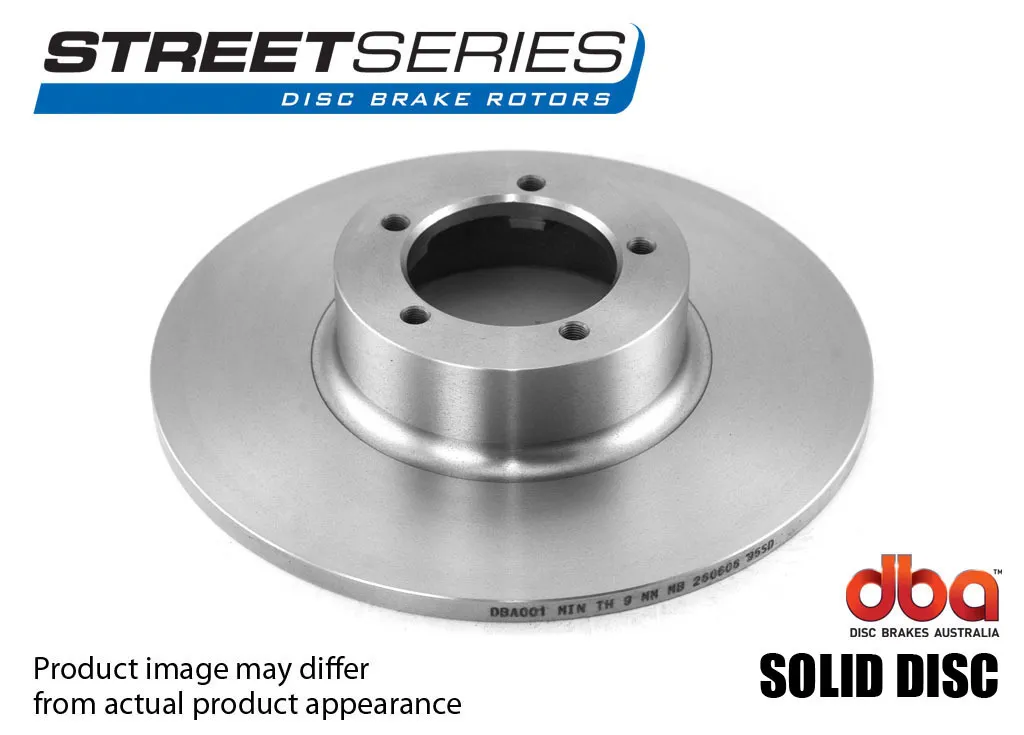

STREET SERIES - Direct OE Replacement

DBA's Standard Rotor series are direct fitment replacement rotors for all types of vehicles.

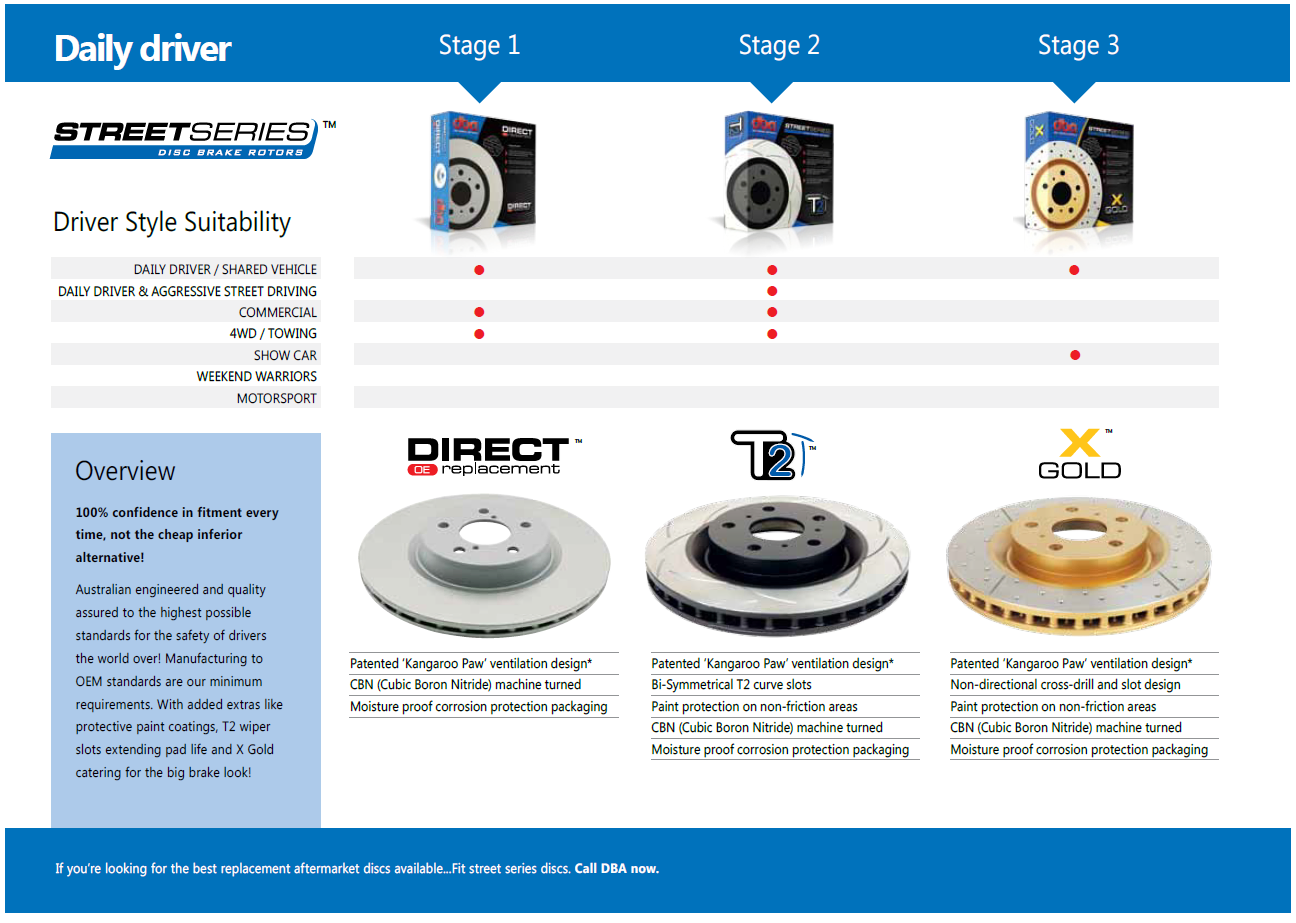

Direct OE Replacement - Stage 1 Street Series Specs

  • Patented 'Kangaroo Paw' ventilation design* (not available on all part numbers)

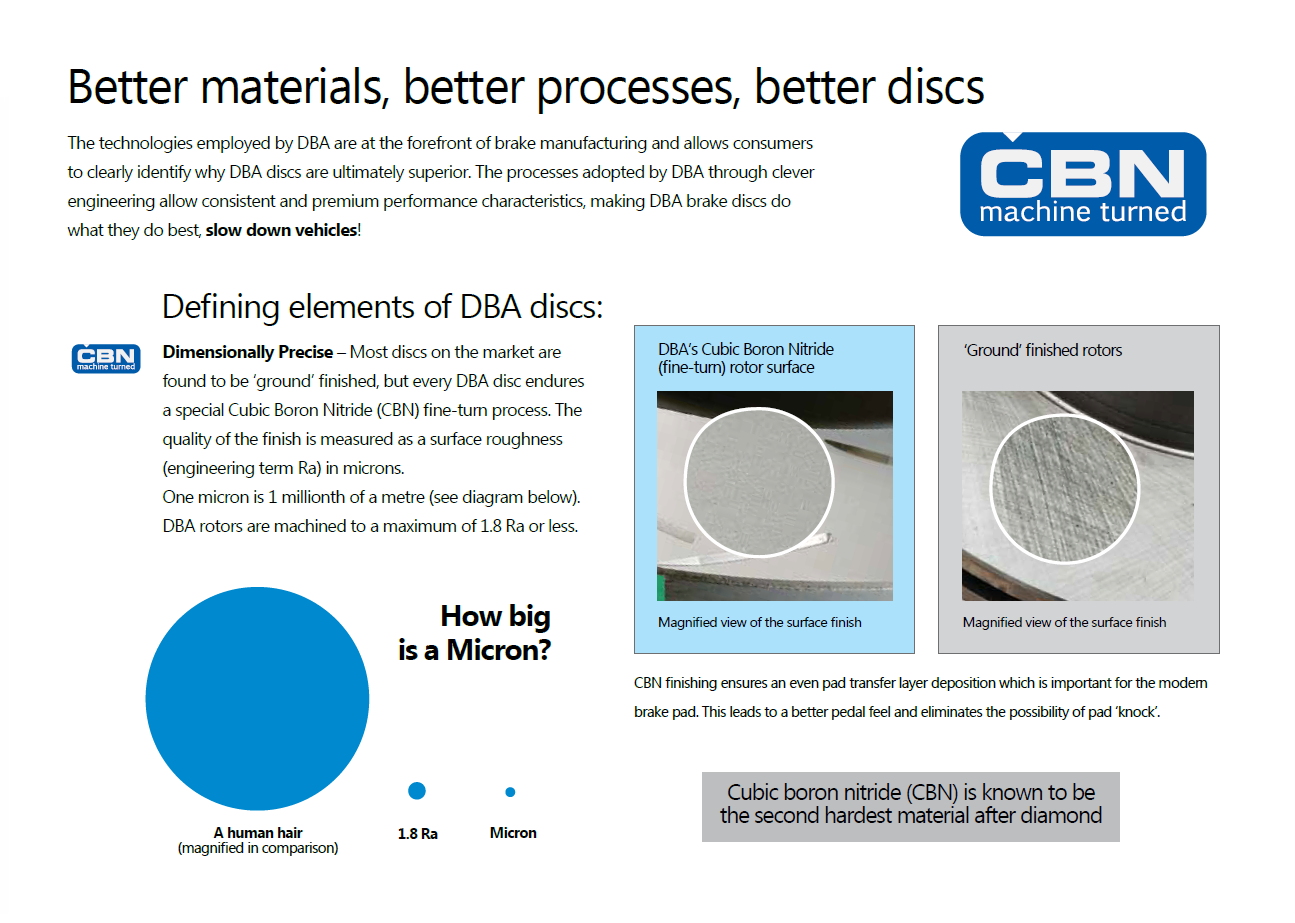

  • CBN (Cubic Boron Nitride) machine turned

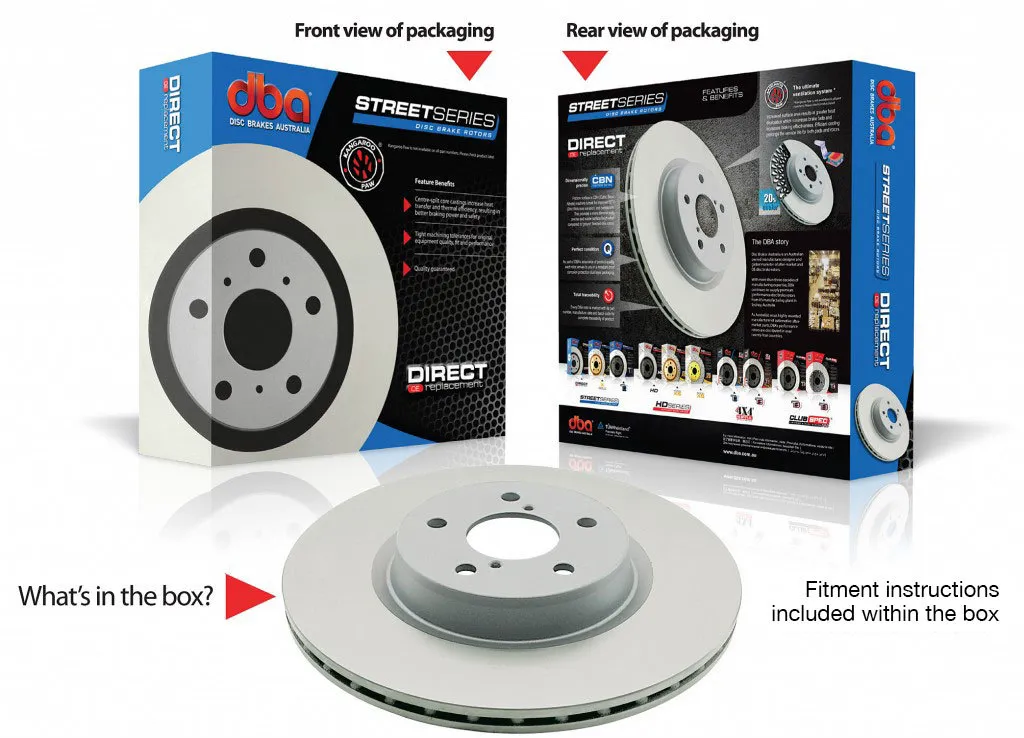

  • Moisture proof corrosion protection packaging
  • En-Shield anti-rust coating available on selected part numbers



*Due to some vehicles being fitted with different discs from factory, please confirm your current standard disc specs with the specifications provided below.



Disc Brakes Australia - 100% confidence in fitment every time, not the cheap inferior alternative!  Australian engineered and quality assured to the highest possible standards for the safety of drivers the world over!  Manufacturing to OEM standards are our minimum requiremennts.  With more than three decades of manufacturing expertise, DBA continues to supply premium performance disc brake rotors from its manufacturing plant in Sydney.  As Australia's most highly awarded manufacturer of automotive aftermarket parts, DBA's performance rotors are distributed in over twenty-four countries.  DBA's OEM replacement rotor series includes Standard, Slotted and Cross-Drilled models with added extras like protective paint coatings, T2 wiper slots extending pad life, En-Shield rust free protection, X Gold catering for the big brake look and Clubspec T3 4000 & 5000 series performance and motorsport rotors!

Specifications

Diameter [mm] 280
Height [mm] 36.7
Thickness [mm] 22
Minimum Thickness [mm] 19
Inner Diameter [mm] 65
Weight [kg] 6
Number of Holes 5
Class standard
Disc Vent standard

Compatibility

  • 2000 - 2003 > AUDI > A3 > Petrol Engine 1.6 8L1 Hatchback 75KW
  • 1997 - 2003 > AUDI > A3 > Petrol Engine 1.6 8L1 Hatchback 74KW
  • 1997 - 2003 > AUDI > A3 > Petrol Engine 1.8 8L1 Hatchback 92KW
  • 1998 - 2003 > AUDI > A3 > Petrol Engine 1.8 T 8L1 Hatchback 110KW
  • 1993 - 1998 > VW > GOLF > Petrol Engine 2.0 MKIII,1E7 Convertible 85KW
  • 1998 - 2001 > VW > GOLF > Petrol Engine 1.6 MKIV,1J1 Hatchback 74KW
  • 1997 - 2004 > VW > GOLF > Diesel 1.9 TDI MKIV,1J1 Hatchback 81KW
  • 1998 - 1999 > VW > GOLF > Petrol Engine 1.8 MKIV,1J1 Hatchback 92KW
  • 1999 - 2004 > VW > GOLF > Petrol Engine 1.8 T MKIV,1J1 Hatchback 110KW
  • 1998 - 2002 > VW > GOLF > Petrol Engine 1.8 1E7,1V7 Convertible 66KW
  • 1998 - 2005 > VW > GOLF > Petrol Engine 1.8 4motion MKIV,1J1 Hatchback 92KW
  • 1997 - 2004 > VW > GOLF > Petrol Engine 2.0 MKIV,1J1 Hatchback 85KW
  • 2000 - 2005 > VW > GOLF > Diesel 1.9 TDI MKIV,1J1 Hatchback 74KW
  • 2000 - 2005 > VW > GOLF > Petrol Engine 2.3 V5 MKIV,1J1 Hatchback 125KW
  • 1998 - 2010 > VW > NEW BEETLE > Petrol Engine 2.0 9C1,1C1 Hatchback 85KW
  • 2005 - 2010 > VW > NEW BEETLE > Diesel 1.9 TDI 9C1,1C1 Hatchback 77KW
  • 2002 - 2010 > VW > NEW BEETLE > Petrol Engine 1.8 T 9C1,1C1 Hatchback 110KW
  • 2002 - 2010 > VW > NEW BEETLE > Petrol Engine 1.6 9C1,1C1 Hatchback 75KW
  • 1998 - 2005 > VW > BORA > Petrol Engine 1.6 1J2,9M2 Sedan 74KW
  • 1999 - 2005 > VW > BORA > Petrol Engine 2.0 1J2,9M2 Sedan 85KW
  • 2000 - 2005 > VW > BORA > Petrol Engine 2.3 V5 1J2,9M2 Sedan 125KW
  • 2003 - 2010 > VW > BEETLE > Petrol Engine 1.6 1Y7 Convertible 75KW
  • 2002 - 2010 > VW > BEETLE > Petrol Engine 2.0 1Y7 Convertible 85KW

STREET SERIES - Direct OE Replacement

DBA's Standard Rotor series are direct fitment replacement rotors for all types of vehicles.





Direct OE Replacement - Stage 1 Street Series Specs

  • Patented 'Kangaroo Paw' ventilation design* (not available on all part numbers)
  • CBN (Cubic Boron Nitride) machine turned
  • Moisture proof corrosion protection packaging
  • En-Shield anti-rust coating available on selected part numbers



*Due to some vehicles being fitted with different discs from factory, please confirm your current standard disc specs with the specifications provided below.



Disc Brakes Australia - 100% confidence in fitment every time, not the cheap inferior alternative!  Australian engineered and quality assured to the highest possible standards for the safety of drivers the world over!  Manufacturing to OEM standards are our minimum requiremennts.  With more than three decades of manufacturing expertise, DBA continues to supply premium performance disc brake rotors from its manufacturing plant in Sydney.  As Australia's most highly awarded manufacturer of automotive aftermarket parts, DBA's performance rotors are distributed in over twenty-four countries.  DBA's OEM replacement rotor series includes Standard, Slotted and Cross-Drilled models with added extras like protective paint coatings, T2 wiper slots extending pad life, En-Shield rust free protection, X Gold catering for the big brake look and Clubspec T3 4000 & 5000 series performance and motorsport rotors!

Diameter [mm] 280
Height [mm] 36.7
Thickness [mm] 22
Minimum Thickness [mm] 19
Inner Diameter [mm] 65
Weight [kg] 6
Number of Holes 5
Class standard
Disc Vent standard
  • 2000 - 2003 > AUDI > A3 > Petrol Engine 1.6 8L1 Hatchback 75KW
  • 1997 - 2003 > AUDI > A3 > Petrol Engine 1.6 8L1 Hatchback 74KW
  • 1997 - 2003 > AUDI > A3 > Petrol Engine 1.8 8L1 Hatchback 92KW
  • 1998 - 2003 > AUDI > A3 > Petrol Engine 1.8 T 8L1 Hatchback 110KW
  • 1993 - 1998 > VW > GOLF > Petrol Engine 2.0 MKIII,1E7 Convertible 85KW
  • 1998 - 2001 > VW > GOLF > Petrol Engine 1.6 MKIV,1J1 Hatchback 74KW
  • 1997 - 2004 > VW > GOLF > Diesel 1.9 TDI MKIV,1J1 Hatchback 81KW
  • 1998 - 1999 > VW > GOLF > Petrol Engine 1.8 MKIV,1J1 Hatchback 92KW
  • 1999 - 2004 > VW > GOLF > Petrol Engine 1.8 T MKIV,1J1 Hatchback 110KW
  • 1998 - 2002 > VW > GOLF > Petrol Engine 1.8 1E7,1V7 Convertible 66KW
  • 1998 - 2005 > VW > GOLF > Petrol Engine 1.8 4motion MKIV,1J1 Hatchback 92KW
  • 1997 - 2004 > VW > GOLF > Petrol Engine 2.0 MKIV,1J1 Hatchback 85KW
  • 2000 - 2005 > VW > GOLF > Diesel 1.9 TDI MKIV,1J1 Hatchback 74KW
  • 2000 - 2005 > VW > GOLF > Petrol Engine 2.3 V5 MKIV,1J1 Hatchback 125KW
  • 1998 - 2010 > VW > NEW BEETLE > Petrol Engine 2.0 9C1,1C1 Hatchback 85KW
  • 2005 - 2010 > VW > NEW BEETLE > Diesel 1.9 TDI 9C1,1C1 Hatchback 77KW
  • 2002 - 2010 > VW > NEW BEETLE > Petrol Engine 1.8 T 9C1,1C1 Hatchback 110KW
  • 2002 - 2010 > VW > NEW BEETLE > Petrol Engine 1.6 9C1,1C1 Hatchback 75KW
  • 1998 - 2005 > VW > BORA > Petrol Engine 1.6 1J2,9M2 Sedan 74KW
  • 1999 - 2005 > VW > BORA > Petrol Engine 2.0 1J2,9M2 Sedan 85KW
  • 2000 - 2005 > VW > BORA > Petrol Engine 2.3 V5 1J2,9M2 Sedan 125KW
  • 2003 - 2010 > VW > BEETLE > Petrol Engine 1.6 1Y7 Convertible 75KW
  • 2002 - 2010 > VW > BEETLE > Petrol Engine 2.0 1Y7 Convertible 85KW
