Description

Important: Please see notes in compatibilty section regarding vehicle fitment.

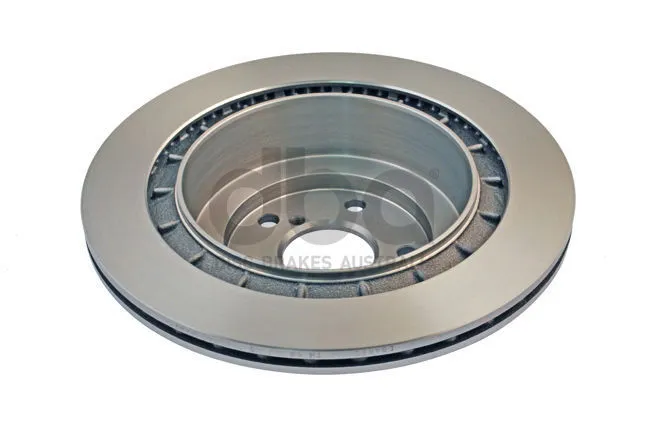

STREET SERIES - Direct OE Replacement

DBA's Standard Rotor series are direct fitment replacement rotors for all types of vehicles.

Direct OE Replacement - Stage 1 Street Series Specs

  • Patented 'Kangaroo Paw' ventilation design* (not available on all part numbers)
  • CBN (Cubic Boron Nitride) machine turned
  • Moisture proof corrosion protection packaging
  • En-Shield anti-rust coating available on selected part numbers



*Due to some vehicles being fitted with different discs from factory, please confirm your current standard disc specs with the specifications provided below.



Disc Brakes Australia - 100% confidence in fitment every time, not the cheap inferior alternative!  Australian engineered and quality assured to the highest possible standards for the safety of drivers the world over!  Manufacturing to OEM standards are our minimum requiremennts.  With more than three decades of manufacturing expertise, DBA continues to supply premium performance disc brake rotors from its manufacturing plant in Sydney.  As Australia's most highly awarded manufacturer of automotive aftermarket parts, DBA's performance rotors are distributed in over twenty-four countries.  DBA's OEM replacement rotor series includes Standard, Slotted and Cross-Drilled models with added extras like protective paint coatings, T2 wiper slots extending pad life, En-Shield rust free protection, X Gold catering for the big brake look and Clubspec T3 4000 & 5000 series performance and motorsport rotors!

Specifications

Diameter [mm] 290
Height [mm] 67.5
Thickness [mm] 18
Minimum Thickness [mm] 16
Inner Diameter [mm] 58
Pitch Circle Ø [mm] 100
Weight [kg] 6
Number of Holes 5
Class standard
Disc Vent standard

Compatibility

  • 2006 - 2009 > SUBARU > LIBERTY > Petrol Engine 2.5 T AWD (BL9) BL Sedan 184KW
  • 2006 - 2009 > SUBARU > LIBERTY > Petrol Engine 2.5 T AWD (BP9) B13,BP,BP9 Wagon 184KW
  • 1998 - 2003 > SUBARU > LIBERTY > Petrol Engine 2.0 RSK AWD (BE5) BE Sedan 191KW
  • 2004 - 2009 > SUBARU > LIBERTY > Petrol Engine 3.0 R AWD (BLE) BL Sedan 180KW
  • 2004 - 2009 > SUBARU > LIBERTY > Petrol Engine 3.0 R AWD (BPE) B13,BP,BPE Wagon 180KW
  • 2003 - 2006 > SUBARU > LIBERTY > Petrol Engine 2.0 Turbo AWD (BL5) BL Sedan 180KW
  • 2003 - 2009 > SUBARU > LIBERTY > Petrol Engine 2.0 Turbo AWD (BP5) B13,BP,BP5 Wagon 180KW
  • 2004 - 2009 > SUBARU > LIBERTY > Petrol Engine 2.0 GT Tuned By STI AWD (BL5) BL Sedan 190KW
  • 2004 - 2009 > SUBARU > LIBERTY > Petrol Engine 2.0 GT AWD (BP5) B13,BP,BP5 Wagon 190KW
  • 2004 - 2009 > SUBARU > LIBERTY > Petrol Engine 2.0 GT Tuned By STI AWD (BL5) BL Sedan 200KW
  • 2006 - 2009 > SUBARU > LIBERTY > Petrol Engine 2.0 GT AWD (BP5) B13,BP,BP5 Wagon 200KW
  • 2002 - 2003 > SUBARU > LIBERTY > Petrol Engine 2.0 AWD (BE5) BE Sedan 176KW
  • 2003 - 2005 > SUBARU > FORESTER > Petrol Engine 2.5 AWD (SG9) SG_ SUV 155KW
  • 2005 - 2008 > SUBARU > FORESTER > Petrol Engine 2.5 AWD (SG9) SG_ SUV 169KW
  • 2005 - 2008 > SUBARU > FORESTER > Petrol Engine 2.5 AWD (SG9) SG_ SUV 121KW
  • 2002 - 2005 > SUBARU > FORESTER > Petrol Engine 2.5 AWD (SG9) SG_ SUV 112KW
  • 2005 - 2007 > SUBARU > IMPREZA > Petrol Engine 2.5 i WRX AWD (GDG) GD Sedan 169KW
  • 2005 - 2008 > SUBARU > IMPREZA > Petrol Engine 2.5 WRX AWD (GGG) GG Wagon 169KW
  • 2000 - 2007 > SUBARU > IMPREZA > Petrol Engine 2.0 i AWD (GG9) GG Wagon 92KW
  • 2000 - 2002 > SUBARU > IMPREZA > Petrol Engine 2.0 WRX Turbo AWD (GDA) GD Sedan 160KW
  • 2000 - 2005 > SUBARU > IMPREZA > Petrol Engine 2.0 i WRX AWD (GGA) GG Wagon 160KW
  • 2002 - 2007 > SUBARU > IMPREZA > Petrol Engine 2.0 WRX Turbo AWD (GDA) GD Sedan 165KW
  • 2002 - 2006 > SUBARU > IMPREZA > Petrol Engine 2.0 WRX Turbo AWD (GGA) GG Wagon 165KW
  • 2001 - 2002 > SUBARU > IMPREZA > Petrol Engine 2.0 i AWD (GDA) GD Sedan 150KW
  • 2002 - 2005 > SUBARU > IMPREZA > Petrol Engine 2.0 i WRX AWD (GDA) GD Sedan 168KW
  • 2005 - 2006 > SUBARU > IMPREZA > Petrol Engine 2.0 WRX AWD (GGA) GG Wagon 169KW
  • 2000 - 2003 > SUBARU > OUTBACK > Petrol Engine 3.0 H6 AWD (BHE) BE,BH Wagon 154KW
  • 2000 - 2003 > SUBARU > OUTBACK > Petrol Engine 2.5 AWD (BH9) BE,BH Wagon 115KW
  • 2003 - 2007 > SUBARU > OUTBACK > Petrol Engine 2.5 AWD (BP9) BL,BP Wagon 121KW
  • 2003 - 2009 > SUBARU > OUTBACK > Petrol Engine 3.0 AWD (BPE) BL,BP Wagon 180KW

Important: Please see notes in compatibilty section regarding vehicle fitment.

STREET SERIES - Direct OE Replacement

DBA's Standard Rotor series are direct fitment replacement rotors for all types of vehicles.

Direct OE Replacement - Stage 1 Street Series Specs

  • Patented 'Kangaroo Paw' ventilation design* (not available on all part numbers)
  • CBN (Cubic Boron Nitride) machine turned
  • Moisture proof corrosion protection packaging
  • En-Shield anti-rust coating available on selected part numbers



*Due to some vehicles being fitted with different discs from factory, please confirm your current standard disc specs with the specifications provided below.



Disc Brakes Australia - 100% confidence in fitment every time, not the cheap inferior alternative!  Australian engineered and quality assured to the highest possible standards for the safety of drivers the world over!  Manufacturing to OEM standards are our minimum requiremennts.  With more than three decades of manufacturing expertise, DBA continues to supply premium performance disc brake rotors from its manufacturing plant in Sydney.  As Australia's most highly awarded manufacturer of automotive aftermarket parts, DBA's performance rotors are distributed in over twenty-four countries.  DBA's OEM replacement rotor series includes Standard, Slotted and Cross-Drilled models with added extras like protective paint coatings, T2 wiper slots extending pad life, En-Shield rust free protection, X Gold catering for the big brake look and Clubspec T3 4000 & 5000 series performance and motorsport rotors!

Diameter [mm] 290
Height [mm] 67.5
Thickness [mm] 18
Minimum Thickness [mm] 16
Inner Diameter [mm] 58
Pitch Circle Ø [mm] 100
Weight [kg] 6
Number of Holes 5
Class standard
Disc Vent standard
  • 2006 - 2009 > SUBARU > LIBERTY > Petrol Engine 2.5 T AWD (BL9) BL Sedan 184KW
  • 2006 - 2009 > SUBARU > LIBERTY > Petrol Engine 2.5 T AWD (BP9) B13,BP,BP9 Wagon 184KW
  • 1998 - 2003 > SUBARU > LIBERTY > Petrol Engine 2.0 RSK AWD (BE5) BE Sedan 191KW
  • 2004 - 2009 > SUBARU > LIBERTY > Petrol Engine 3.0 R AWD (BLE) BL Sedan 180KW
  • 2004 - 2009 > SUBARU > LIBERTY > Petrol Engine 3.0 R AWD (BPE) B13,BP,BPE Wagon 180KW
  • 2003 - 2006 > SUBARU > LIBERTY > Petrol Engine 2.0 Turbo AWD (BL5) BL Sedan 180KW
  • 2003 - 2009 > SUBARU > LIBERTY > Petrol Engine 2.0 Turbo AWD (BP5) B13,BP,BP5 Wagon 180KW
  • 2004 - 2009 > SUBARU > LIBERTY > Petrol Engine 2.0 GT Tuned By STI AWD (BL5) BL Sedan 190KW
  • 2004 - 2009 > SUBARU > LIBERTY > Petrol Engine 2.0 GT AWD (BP5) B13,BP,BP5 Wagon 190KW
  • 2004 - 2009 > SUBARU > LIBERTY > Petrol Engine 2.0 GT Tuned By STI AWD (BL5) BL Sedan 200KW
  • 2006 - 2009 > SUBARU > LIBERTY > Petrol Engine 2.0 GT AWD (BP5) B13,BP,BP5 Wagon 200KW
  • 2002 - 2003 > SUBARU > LIBERTY > Petrol Engine 2.0 AWD (BE5) BE Sedan 176KW
  • 2003 - 2005 > SUBARU > FORESTER > Petrol Engine 2.5 AWD (SG9) SG_ SUV 155KW
  • 2005 - 2008 > SUBARU > FORESTER > Petrol Engine 2.5 AWD (SG9) SG_ SUV 169KW
  • 2005 - 2008 > SUBARU > FORESTER > Petrol Engine 2.5 AWD (SG9) SG_ SUV 121KW
  • 2002 - 2005 > SUBARU > FORESTER > Petrol Engine 2.5 AWD (SG9) SG_ SUV 112KW
  • 2005 - 2007 > SUBARU > IMPREZA > Petrol Engine 2.5 i WRX AWD (GDG) GD Sedan 169KW
  • 2005 - 2008 > SUBARU > IMPREZA > Petrol Engine 2.5 WRX AWD (GGG) GG Wagon 169KW
  • 2000 - 2007 > SUBARU > IMPREZA > Petrol Engine 2.0 i AWD (GG9) GG Wagon 92KW
  • 2000 - 2002 > SUBARU > IMPREZA > Petrol Engine 2.0 WRX Turbo AWD (GDA) GD Sedan 160KW
  • 2000 - 2005 > SUBARU > IMPREZA > Petrol Engine 2.0 i WRX AWD (GGA) GG Wagon 160KW
  • 2002 - 2007 > SUBARU > IMPREZA > Petrol Engine 2.0 WRX Turbo AWD (GDA) GD Sedan 165KW
  • 2002 - 2006 > SUBARU > IMPREZA > Petrol Engine 2.0 WRX Turbo AWD (GGA) GG Wagon 165KW
  • 2001 - 2002 > SUBARU > IMPREZA > Petrol Engine 2.0 i AWD (GDA) GD Sedan 150KW
  • 2002 - 2005 > SUBARU > IMPREZA > Petrol Engine 2.0 i WRX AWD (GDA) GD Sedan 168KW
  • 2005 - 2006 > SUBARU > IMPREZA > Petrol Engine 2.0 WRX AWD (GGA) GG Wagon 169KW
  • 2000 - 2003 > SUBARU > OUTBACK > Petrol Engine 3.0 H6 AWD (BHE) BE,BH Wagon 154KW
  • 2000 - 2003 > SUBARU > OUTBACK > Petrol Engine 2.5 AWD (BH9) BE,BH Wagon 115KW
  • 2003 - 2007 > SUBARU > OUTBACK > Petrol Engine 2.5 AWD (BP9) BL,BP Wagon 121KW
  • 2003 - 2009 > SUBARU > OUTBACK > Petrol Engine 3.0 AWD (BPE) BL,BP Wagon 180KW
