Description

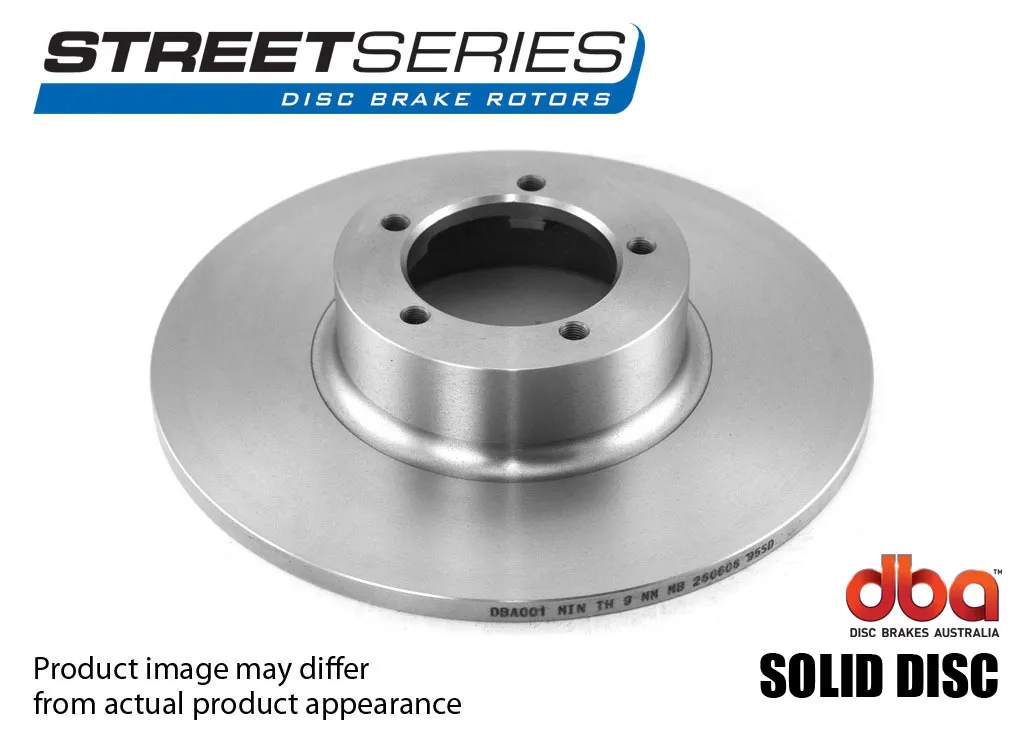

STREET SERIES - Direct OE Replacement

DBA's Standard Rotor series are direct fitment replacement rotors for all types of vehicles.

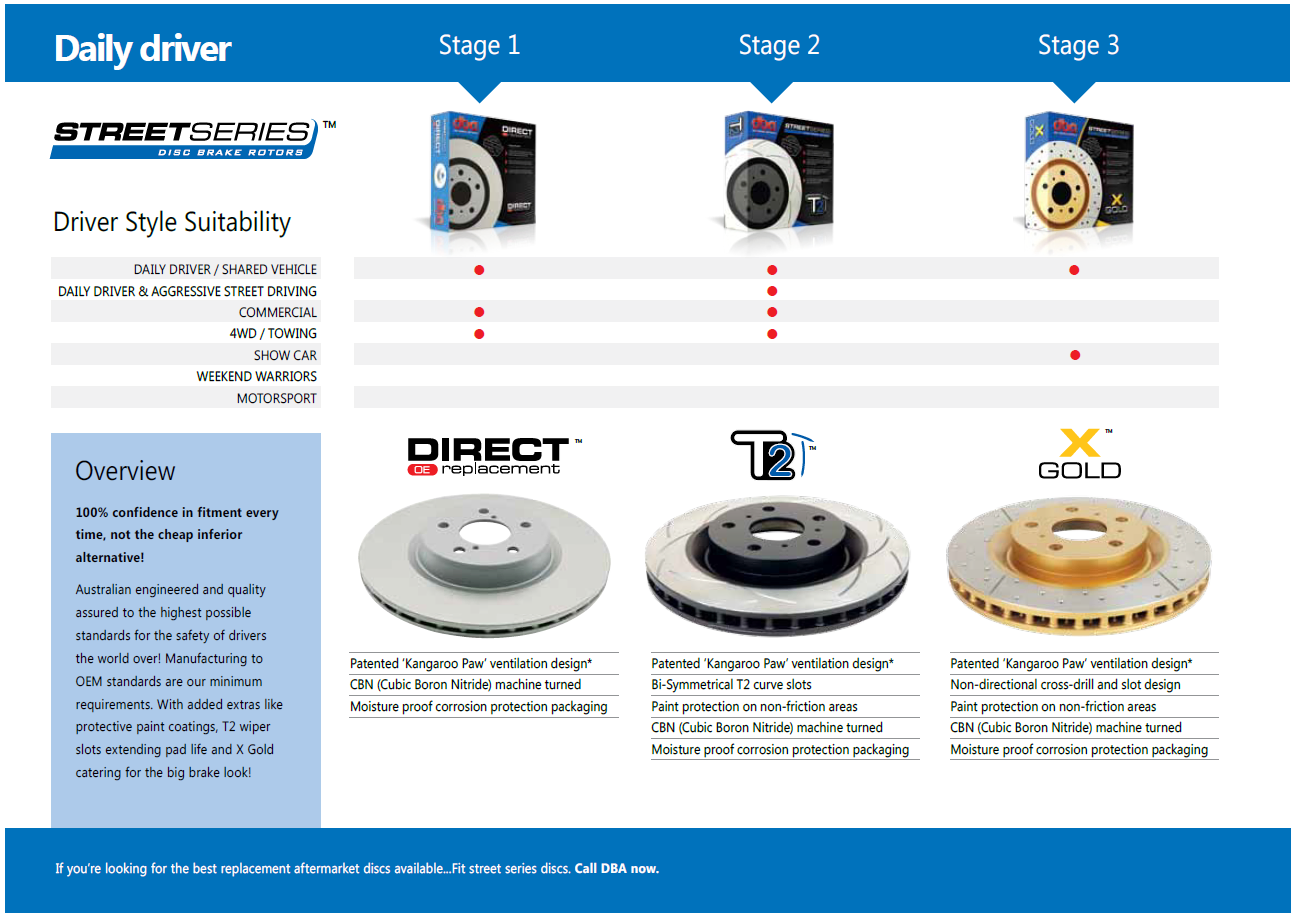

Direct OE Replacement - Stage 1 Street Series Specs

  • Patented 'Kangaroo Paw' ventilation design* (not available on all part numbers)

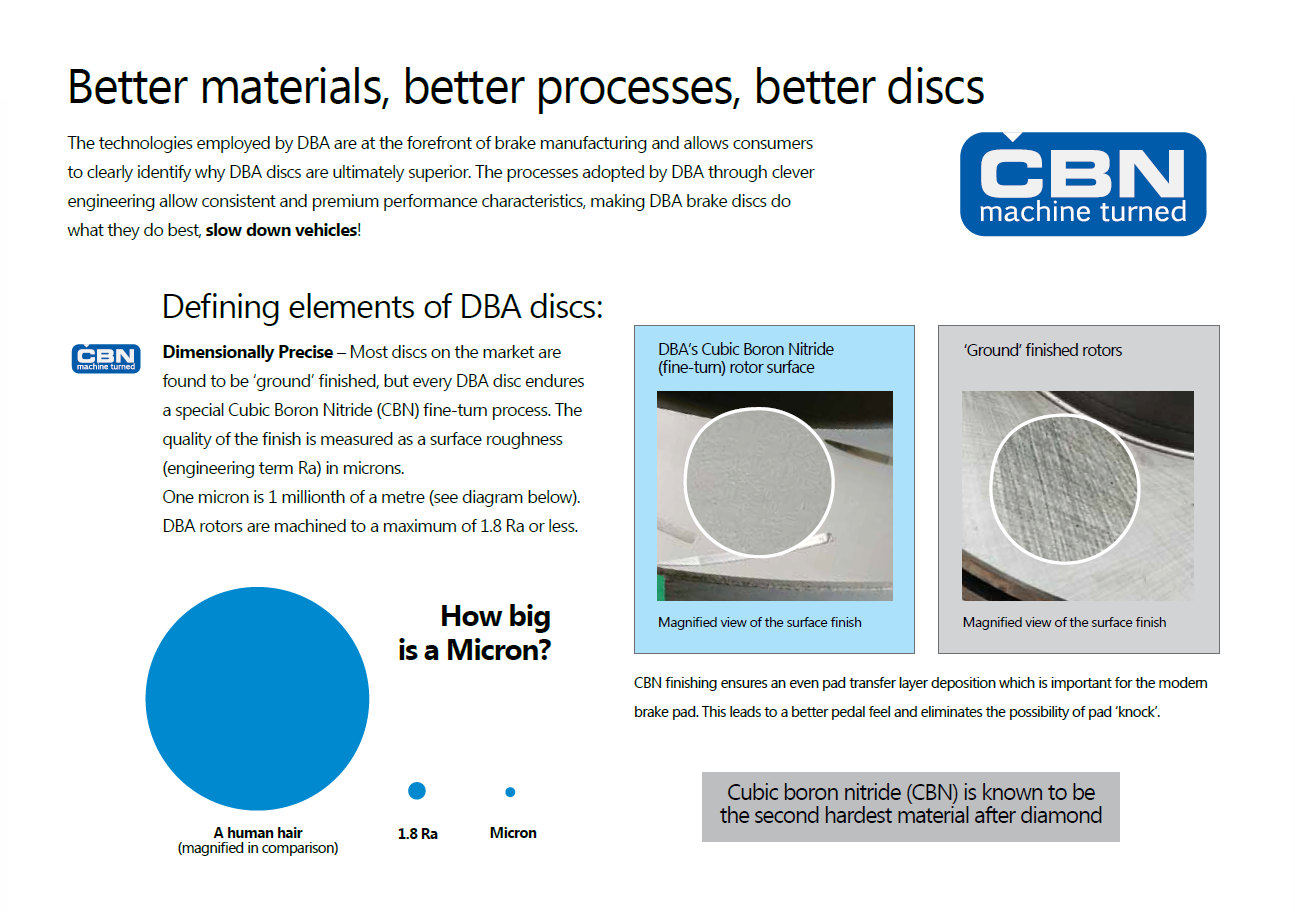

  • CBN (Cubic Boron Nitride) machine turned
  • Moisture proof corrosion protection packaging
  • En-Shield anti-rust coating available on selected part numbers



*Due to some vehicles being fitted with different discs from factory, please confirm your current standard disc specs with the specifications provided below.



Disc Brakes Australia - 100% confidence in fitment every time, not the cheap inferior alternative!  Australian engineered and quality assured to the highest possible standards for the safety of drivers the world over!  Manufacturing to OEM standards are our minimum requiremennts.  With more than three decades of manufacturing expertise, DBA continues to supply premium performance disc brake rotors from its manufacturing plant in Sydney.  As Australia's most highly awarded manufacturer of automotive aftermarket parts, DBA's performance rotors are distributed in over twenty-four countries.  DBA's OEM replacement rotor series includes Standard, Slotted and Cross-Drilled models with added extras like protective paint coatings, T2 wiper slots extending pad life, En-Shield rust free protection, X Gold catering for the big brake look and Clubspec T3 4000 & 5000 series performance and motorsport rotors!

Specifications

Diameter [mm] 250.5
Height [mm] 34.5
Thickness [mm] 9
Minimum Thickness [mm] 8
Inner Diameter [mm] 55
Weight [kg] 3
Number of Holes 4
Class standard
Disc Vent standard

Compatibility

  • 1991 - 1995 > EUNOS > 30X > Petrol Engine 1.8 i V6 (EC13) EC Coupe 99KW
  • 1990 - 1991 > FORD AUSTRALIA > LASER > Petrol Engine 1.8 i TX3 KF Hatchback 92KW
  • 1990 - 1991 > FORD AUSTRALIA > LASER > Petrol Engine 1.8 i TX3 Turbo KF Hatchback 117KW
  • 1991 - 1994 > FORD AUSTRALIA > LASER > Petrol Engine 1.6 KH Hatchback 64KW
  • 1992 - 1994 > FORD AUSTRALIA > LASER > Petrol Engine 1.8 i KH Hatchback 92KW
  • 1991 - 1993 > FORD AUSTRALIA > LASER > Petrol Engine 1.8 i TX3 Turbo KH Hatchback 117KW
  • 1991 - 1994 > FORD AUSTRALIA > LASER > Petrol Engine 1.6 KH Sedan 64KW
  • 1994 - 1999 > FORD AUSTRALIA > LASER > Petrol Engine 1.6 i KJ,KL Hatchback 80KW
  • 1994 - 1999 > FORD AUSTRALIA > LASER > Petrol Engine 1.8 i KJ,KL Hatchback 92KW
  • 1994 - 1999 > FORD AUSTRALIA > LASER > Petrol Engine 1.8 i KJ,KL Sedan 92KW
  • 1994 - 1999 > FORD AUSTRALIA > LASER > Petrol Engine 1.6 i KJ,KL Sedan 80KW
  • 1994 - 1998 > MAZDA > 323 ASTINA > Petrol Engine 1.8 BA Coupe 92KW
  • 1989 - 1994 > MAZDA > 323 ASTINA > Petrol Engine 1.8 16V (BG8S, BG8P) BG Hatchback 76KW
  • 1989 - 1994 > MAZDA > 323 ASTINA > Petrol Engine 1.8 16V GT (BG8S, BG8P) BG Hatchback 94KW
  • 1994 - 1998 > MAZDA > 323 ASTINA > Petrol Engine 1.8 16V BA Hatchback 92KW
  • 1993 - 1998 > MAZDA > MX-5 > Petrol Engine 1.8 (NA8C) NA Convertible 96KW
  • 1998 - 2005 > MAZDA > MX-5 > Petrol Engine 1.8 16V (NB8C) NB Convertible 103KW
  • 2000 - 2005 > MAZDA > MX-5 > Petrol Engine 1.8 16V (NB8C) NB Convertible 107KW
  • 2000 - 2005 > MAZDA > MX-5 > Petrol Engine 1.8 16V (NB8C) NB Convertible 102KW
  • 2002 - 2005 > MAZDA > MX-5 > Petrol Engine 1.8 i (NB8C) NB Convertible 113KW
  • 1996 - 1997 > MAZDA > EUNOS 30X > Petrol Engine 1.8 i V6 EC Coupe 99KW
  • 1994 - 1998 > MAZDA > 323 PROTEGÉ > Petrol Engine 1.8 Protégé (BA11) BA Sedan 92KW

STREET SERIES - Direct OE Replacement

DBA's Standard Rotor series are direct fitment replacement rotors for all types of vehicles.





Direct OE Replacement - Stage 1 Street Series Specs

  • Patented 'Kangaroo Paw' ventilation design* (not available on all part numbers)
  • CBN (Cubic Boron Nitride) machine turned
  • Moisture proof corrosion protection packaging
  • En-Shield anti-rust coating available on selected part numbers



*Due to some vehicles being fitted with different discs from factory, please confirm your current standard disc specs with the specifications provided below.



Disc Brakes Australia - 100% confidence in fitment every time, not the cheap inferior alternative!  Australian engineered and quality assured to the highest possible standards for the safety of drivers the world over!  Manufacturing to OEM standards are our minimum requiremennts.  With more than three decades of manufacturing expertise, DBA continues to supply premium performance disc brake rotors from its manufacturing plant in Sydney.  As Australia's most highly awarded manufacturer of automotive aftermarket parts, DBA's performance rotors are distributed in over twenty-four countries.  DBA's OEM replacement rotor series includes Standard, Slotted and Cross-Drilled models with added extras like protective paint coatings, T2 wiper slots extending pad life, En-Shield rust free protection, X Gold catering for the big brake look and Clubspec T3 4000 & 5000 series performance and motorsport rotors!

Diameter [mm] 250.5
Height [mm] 34.5
Thickness [mm] 9
Minimum Thickness [mm] 8
Inner Diameter [mm] 55
Weight [kg] 3
Number of Holes 4
Class standard
Disc Vent standard
  • 1991 - 1995 > EUNOS > 30X > Petrol Engine 1.8 i V6 (EC13) EC Coupe 99KW
  • 1990 - 1991 > FORD AUSTRALIA > LASER > Petrol Engine 1.8 i TX3 KF Hatchback 92KW
  • 1990 - 1991 > FORD AUSTRALIA > LASER > Petrol Engine 1.8 i TX3 Turbo KF Hatchback 117KW
  • 1991 - 1994 > FORD AUSTRALIA > LASER > Petrol Engine 1.6 KH Hatchback 64KW
  • 1992 - 1994 > FORD AUSTRALIA > LASER > Petrol Engine 1.8 i KH Hatchback 92KW
  • 1991 - 1993 > FORD AUSTRALIA > LASER > Petrol Engine 1.8 i TX3 Turbo KH Hatchback 117KW
  • 1991 - 1994 > FORD AUSTRALIA > LASER > Petrol Engine 1.6 KH Sedan 64KW
  • 1994 - 1999 > FORD AUSTRALIA > LASER > Petrol Engine 1.6 i KJ,KL Hatchback 80KW
  • 1994 - 1999 > FORD AUSTRALIA > LASER > Petrol Engine 1.8 i KJ,KL Hatchback 92KW
  • 1994 - 1999 > FORD AUSTRALIA > LASER > Petrol Engine 1.8 i KJ,KL Sedan 92KW
  • 1994 - 1999 > FORD AUSTRALIA > LASER > Petrol Engine 1.6 i KJ,KL Sedan 80KW
  • 1994 - 1998 > MAZDA > 323 ASTINA > Petrol Engine 1.8 BA Coupe 92KW
  • 1989 - 1994 > MAZDA > 323 ASTINA > Petrol Engine 1.8 16V (BG8S, BG8P) BG Hatchback 76KW
  • 1989 - 1994 > MAZDA > 323 ASTINA > Petrol Engine 1.8 16V GT (BG8S, BG8P) BG Hatchback 94KW
  • 1994 - 1998 > MAZDA > 323 ASTINA > Petrol Engine 1.8 16V BA Hatchback 92KW
  • 1993 - 1998 > MAZDA > MX-5 > Petrol Engine 1.8 (NA8C) NA Convertible 96KW
  • 1998 - 2005 > MAZDA > MX-5 > Petrol Engine 1.8 16V (NB8C) NB Convertible 103KW
  • 2000 - 2005 > MAZDA > MX-5 > Petrol Engine 1.8 16V (NB8C) NB Convertible 107KW
  • 2000 - 2005 > MAZDA > MX-5 > Petrol Engine 1.8 16V (NB8C) NB Convertible 102KW
  • 2002 - 2005 > MAZDA > MX-5 > Petrol Engine 1.8 i (NB8C) NB Convertible 113KW
  • 1996 - 1997 > MAZDA > EUNOS 30X > Petrol Engine 1.8 i V6 EC Coupe 99KW
  • 1994 - 1998 > MAZDA > 323 PROTEGÉ > Petrol Engine 1.8 Protégé (BA11) BA Sedan 92KW
