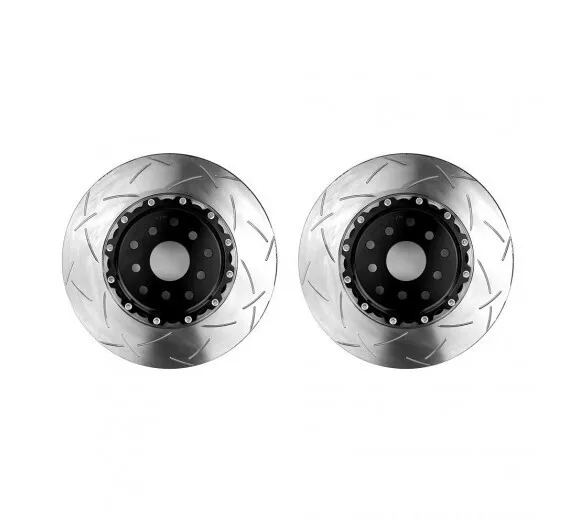

Sharing all the benefits of the 4000 Series, DBA's 5000 Series rotors are a composite 2 piece direct replacement brake rotor. DBA uses only the highest quality materials to ensure optimal performance under the most strenuous circumstances, combining high carbon cast-iron rings with aerospace grade aluminium hats (T6061-T6), held together with National Aerospace Standards (NAS) bolts and crimp nuts.

The 5000 Series share all of the performance technology featured in the 4000 Series, with the added benefits of further weight reduction and improved heat management via aluminium hats.

Wave technology is the latest performance offering from DBA. Inspired by motocross and high-end niche performance vehicles, DBA achieves a Wave finish through individual precision milling of 5000 Series rotors.

The wave is a fresh take on brake rotors that offers a weight reduction benefit over traditional circular rotors plus an impressive look.

DBA has introduced the wave design to an ever-growing range, including European vehicles and other performance models.

5000 Series Wave discs are available in HD and XD variants.



Features:

2-Piece Design with Aerospace grade aluminium hats (T6061-T6)

• The use of aerospace grade aluminium hats reduces the unsprung weight of the brake rotors, while allowing for uniform radial disc expansion through the cast iron rings, and reduced heat transfer from disc to hub via the aluminium hats.

Kangaroo Paw 144 diamond and tear drop pillar ventilation system

• Increased surface area resulting in greater heat dissipation which minimises brake fade and increases braking effectiveness and prolongs service life for both pads and rotors. Reduces mechanical damage and associated costs

XG150 High Carbon Alloyed Iron

• An increase in thermal capacity property allows the rotor to handle constant extremes of heat over extended periods of time which minimises warping and cracking and prolongs the service life of the rotor.
• Special formulation designed to respond to DBA's TSP process.

Thermographic Temperature Monitoring

• Heat paint markings change colour at specific temperature thresholds offers the driver a clear indication of peak braking temperatures.
• When temperature thresholds are exceeded paint markings will permanently change colours allowing the driver to monitor rotor fatigue and decide on rotor replacement and to assist resellers with warranty claims.

Paint protection on non-friction areas

• Reduces corrosion, enhances appearance, stops any unsightly rust formation, adds value to the product.
