Description

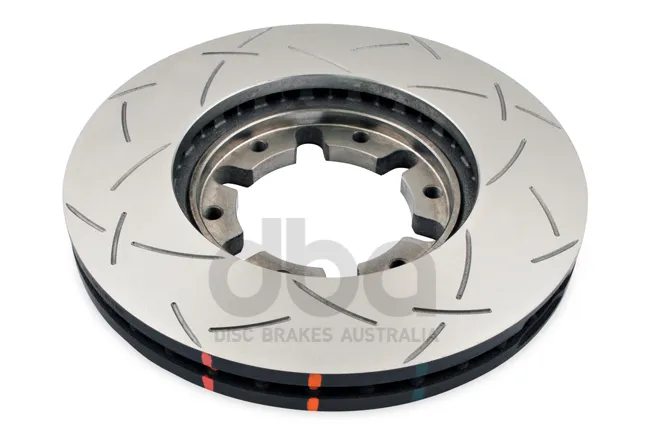

4000 SERIES disc brake rotors are a direct replacement single piece brake rotor, designed for drivers seeking upgraded performance braking above and beyond standard OE levels.

Cast from high carbon alloyed iron and undergoing Thermal Stability Profiling, DBA's metallurgy can handle the increased stress and heat generated under intense braking applications, time and time again.

Featuring DBA's Kangaroo Paw ventilation that implements a series of 144 diamond and teardrop patterned pillars, DBA achieves up to a 30% increase in surface area and 20% improvement in cooling efficiency (as compared to a traditional straight vane design).

4000 SERIES T3 is the ultimate in direct replacement single piece performance brake rotors. Featuring all the benefits of the 4000 Series plus DBA's patented world renowned T3 bi directional slot design.

Built on the foundations of DBA's T2 slot, the T3 slot design features additional, precise, CNC machined tri symmetrical slots, resulting in an even quieter, more responsive and smoother brake pedal feel. The T3 slot increases the number of exit points for brake pad friction dust and gases to escape through, further increasing the consistency and effectiveness of every brake stop.

We recommend a T3 slot for high performance and heavy off-roading applications.

Features

  • Surface Design: Slots and/or chamfered drill holes facilitate the exit of friction dust and gasses, for a quieter and more responsive pedal feel.
  • Anti Rust: Painted non-friction areas to prevent rust and enhance appearance.
  • BI-Directional Use: Symmetrical slotting and/or drilling for universal left/right use.
  • Thermal Stability Profiling: Heat treatment cycles realign the microstructure of the iron, resulting in increased rotor stability and durability.
  • Thermal Efficiency: Centre-split core castings for increased heat transfer and thermal efficiency.
  • CBN: Cubic Boron Nitride (CBN) machine turned finish, minimising disc thickness variation and the potential for pad "knock" and resulting premature wear.
  • Thermographic Heat Paint: Paint markings change colour at specific temperature thresholds to assist with the monitoring of braking temperatures and rotor fatigue.
  • High Carbon Alloyed Iron: Formulation allows for optimal interaction with DBA's thermal stability profiling (TSP). Increases the capacity of the rotor to handle constant and extreme heat over prolonged periods.
  • Kangaroo Paw: Unique Kangaroo Paw vane design for up to 20% better heat dissipation, increasing braking effectiveness and prolonging brake life.

Specifications

  • Quantity: 2 (pair)
  • Product Variant: 4000 Series
  • Product SubVariant: T3
  • Warranty: 12 months/ 20,000km/ 12,000 miles
  • Axle: Front
  • Important Fitment Notes: Reverse Mount
  • Vane Design: KP Vents
  • Outer diameter [mm]: 306
  • Height [mm]: 47
  • Brake Disc Thickness [mm]: 32
  • Minimum Thickness [mm]: 30
  • Centering Diameter [mm]: 109
  • Number of Holes: 6
  • Pitch Circle Diameter: 137.00
  • Surface Design: Slotted
  • Driving Style: 4WD GVM, 4WD Offroad, Performance, Towing < 750kg

What's Included

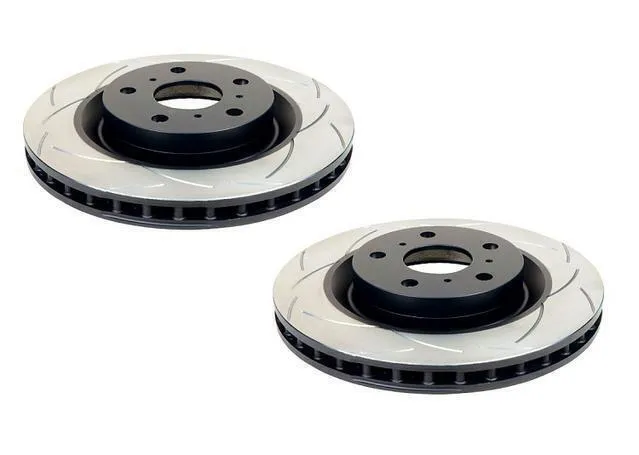

  • 2x Front 4000 Series T3 Brake Rotors

Compatibility

  • 1998-2000 Nissan Patrol DX GU, Y61 (4 Door SUV) 4.2 litre, TD42 16 12V OHV
  • 2007-2017 Nissan Patrol DX Leaf Spring GU, Y61 (2 Door Cab Chassis) 3.0 litre, ZD30DDTi 14 16V DOHC
  • 1999-2003 Nissan Patrol DX, DX PLUS GU, Y61 (2 Door Cab Chassis) 4.2 litre, TD42 16 12V OHV
  • 1999-2007 Nissan Patrol DX, ST DX PLUS, ST PLUS GU, Y61 (2 Door Cab-Chassis) 4.2 litre, TD42T 16 12V OHV
  • 1997-2000 Nissan Patrol DX, ST GU, Y61 (4 Door SUV) 2.8 litre, RD28ETI 16 12V SOHC
  • 1999-2007 Nissan Patrol DX, ST ST-L, ST-S, ST PLUS GU, Y61 (4 Door SUV) 4.2 litre, TD42T 16 12V OHV
  • 2000-2017 Nissan Patrol DX, ST ST-L, ST-S, TI-GU, Y61 (4 Door SUV) 3.0 litre, ZD30DDTi 14 16V DOHC
  • 1998-2002 Nissan Patrol GU, Y61 (4 Door SUV) 4.2 litre, TD42T 16 12V OHV
  • 2007-2017 Nissan Patrol OX, ST Coil Spring.GU, Y61 (2 Door Cab Chassis) 3.0 litre, ZD30DDTi 14 16V DOHC
  • 1997-2001 Nissan Patrol ST, TI GU, Y61 (4 Door-SUV) 4.5 litre, TB45E 16 12V OHV
  • 2013-2017 Nissan Patrol ST-Coil Spring GU, Y61 (2 Door Cab Chassis) 3.0 litre,
  • 1997-2002 Nissan Safari Gran Road Y61 (4 Door SUV) 4.2 litre, TD42T 16 12V OHV
  • 1997-1999 Nissan Safari Spirit Y61 (4 Door SUV) 2.8 litre, RD28ETI 16 12V SOHC
  • 1999-2002 Nissan Safari Super Spirit Y61 (4 Door SUV) 3.0 litre, ZD30DDTI 14 16V DOHC

4000 SERIES disc brake rotors are a direct replacement single piece brake rotor, designed for drivers seeking upgraded performance braking above and beyond standard OE levels.

Cast from high carbon alloyed iron and undergoing Thermal Stability Profiling, DBA's metallurgy can handle the increased stress and heat generated under intense braking applications, time and time again.

Featuring DBA's Kangaroo Paw ventilation that implements a series of 144 diamond and teardrop patterned pillars, DBA achieves up to a 30% increase in surface area and 20% improvement in cooling efficiency (as compared to a traditional straight vane design).

4000 SERIES T3 is the ultimate in direct replacement single piece performance brake rotors. Featuring all the benefits of the 4000 Series plus DBA's patented world renowned T3 bi directional slot design.

Built on the foundations of DBA's T2 slot, the T3 slot design features additional, precise, CNC machined tri symmetrical slots, resulting in an even quieter, more responsive and smoother brake pedal feel. The T3 slot increases the number of exit points for brake pad friction dust and gases to escape through, further increasing the consistency and effectiveness of every brake stop.

We recommend a T3 slot for high performance and heavy off-roading applications.

Features

  • Surface Design: Slots and/or chamfered drill holes facilitate the exit of friction dust and gasses, for a quieter and more responsive pedal feel.
  • Anti Rust: Painted non-friction areas to prevent rust and enhance appearance.
  • BI-Directional Use: Symmetrical slotting and/or drilling for universal left/right use.
  • Thermal Stability Profiling: Heat treatment cycles realign the microstructure of the iron, resulting in increased rotor stability and durability.
  • Thermal Efficiency: Centre-split core castings for increased heat transfer and thermal efficiency.
  • CBN: Cubic Boron Nitride (CBN) machine turned finish, minimising disc thickness variation and the potential for pad "knock" and resulting premature wear.
  • Thermographic Heat Paint: Paint markings change colour at specific temperature thresholds to assist with the monitoring of braking temperatures and rotor fatigue.
  • High Carbon Alloyed Iron: Formulation allows for optimal interaction with DBA's thermal stability profiling (TSP). Increases the capacity of the rotor to handle constant and extreme heat over prolonged periods.
  • Kangaroo Paw: Unique Kangaroo Paw vane design for up to 20% better heat dissipation, increasing braking effectiveness and prolonging brake life.
  • Quantity: 2 (pair)
  • Product Variant: 4000 Series
  • Product SubVariant: T3
  • Warranty: 12 months/ 20,000km/ 12,000 miles
  • Axle: Front
  • Important Fitment Notes: Reverse Mount
  • Vane Design: KP Vents
  • Outer diameter [mm]: 306
  • Height [mm]: 47
  • Brake Disc Thickness [mm]: 32
  • Minimum Thickness [mm]: 30
  • Centering Diameter [mm]: 109
  • Number of Holes: 6
  • Pitch Circle Diameter: 137.00
  • Surface Design: Slotted
  • Driving Style: 4WD GVM, 4WD Offroad, Performance, Towing < 750kg
  • 2x Front 4000 Series T3 Brake Rotors
  • 1998-2000 Nissan Patrol DX GU, Y61 (4 Door SUV) 4.2 litre, TD42 16 12V OHV
  • 2007-2017 Nissan Patrol DX Leaf Spring GU, Y61 (2 Door Cab Chassis) 3.0 litre, ZD30DDTi 14 16V DOHC
  • 1999-2003 Nissan Patrol DX, DX PLUS GU, Y61 (2 Door Cab Chassis) 4.2 litre, TD42 16 12V OHV
  • 1999-2007 Nissan Patrol DX, ST DX PLUS, ST PLUS GU, Y61 (2 Door Cab-Chassis) 4.2 litre, TD42T 16 12V OHV
  • 1997-2000 Nissan Patrol DX, ST GU, Y61 (4 Door SUV) 2.8 litre, RD28ETI 16 12V SOHC
  • 1999-2007 Nissan Patrol DX, ST ST-L, ST-S, ST PLUS GU, Y61 (4 Door SUV) 4.2 litre, TD42T 16 12V OHV
  • 2000-2017 Nissan Patrol DX, ST ST-L, ST-S, TI-GU, Y61 (4 Door SUV) 3.0 litre, ZD30DDTi 14 16V DOHC
  • 1998-2002 Nissan Patrol GU, Y61 (4 Door SUV) 4.2 litre, TD42T 16 12V OHV
  • 2007-2017 Nissan Patrol OX, ST Coil Spring.GU, Y61 (2 Door Cab Chassis) 3.0 litre, ZD30DDTi 14 16V DOHC
  • 1997-2001 Nissan Patrol ST, TI GU, Y61 (4 Door-SUV) 4.5 litre, TB45E 16 12V OHV
  • 2013-2017 Nissan Patrol ST-Coil Spring GU, Y61 (2 Door Cab Chassis) 3.0 litre,
  • 1997-2002 Nissan Safari Gran Road Y61 (4 Door SUV) 4.2 litre, TD42T 16 12V OHV
  • 1997-1999 Nissan Safari Spirit Y61 (4 Door SUV) 2.8 litre, RD28ETI 16 12V SOHC
  • 1999-2002 Nissan Safari Super Spirit Y61 (4 Door SUV) 3.0 litre, ZD30DDTI 14 16V DOHC
