Description

4000 SERIES disc brake rotors are a direct replacement single piece brake rotor, designed for drivers seeking upgraded performance braking above and beyond standard OE levels.

Cast from high carbon alloyed iron and undergoing Thermal Stability Profiling, DBA's metallurgy can handle the increased stress and heat generated under intense braking applications, time and time again.

Featuring DBA's Kangaroo Paw ventilation that implements a series of 144 diamond and teardrop patterned pillars, DBA achieves up to a 30% increase in surface area and 20% improvement in cooling efficiency (as compared to a traditional straight vane design).

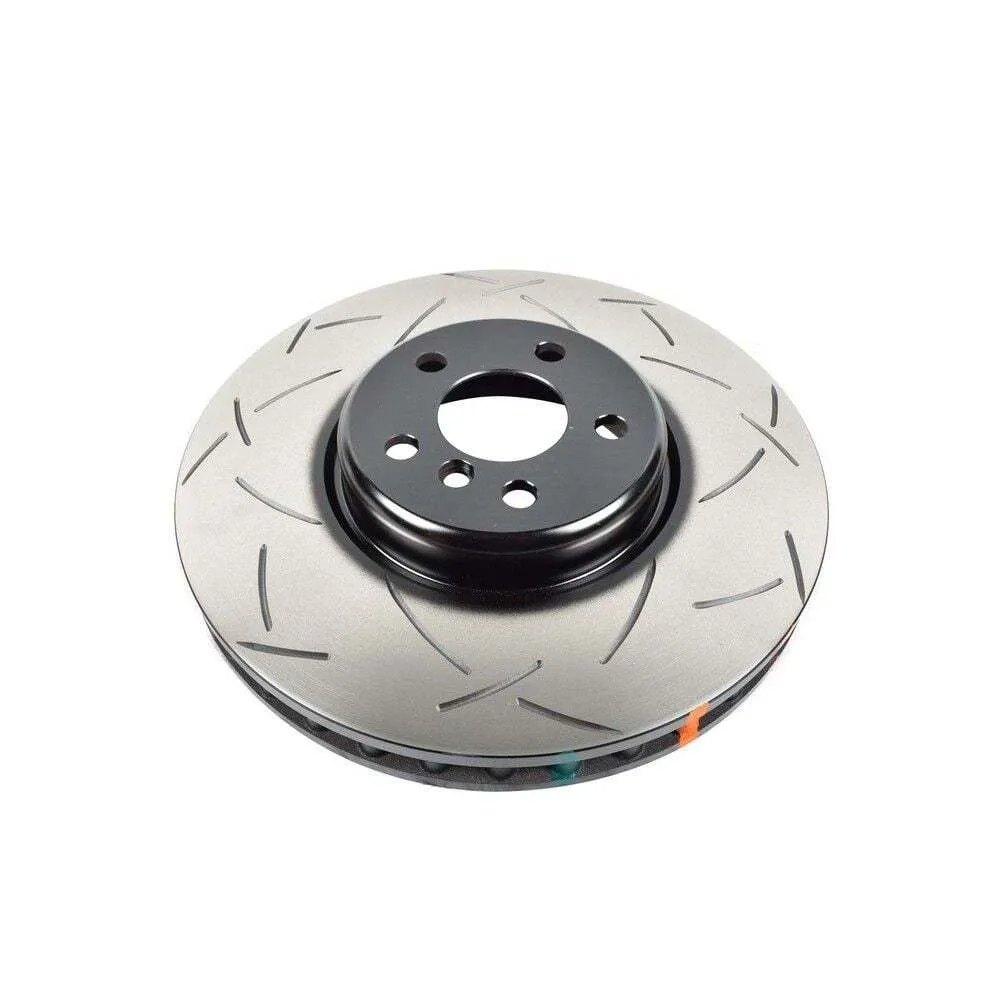

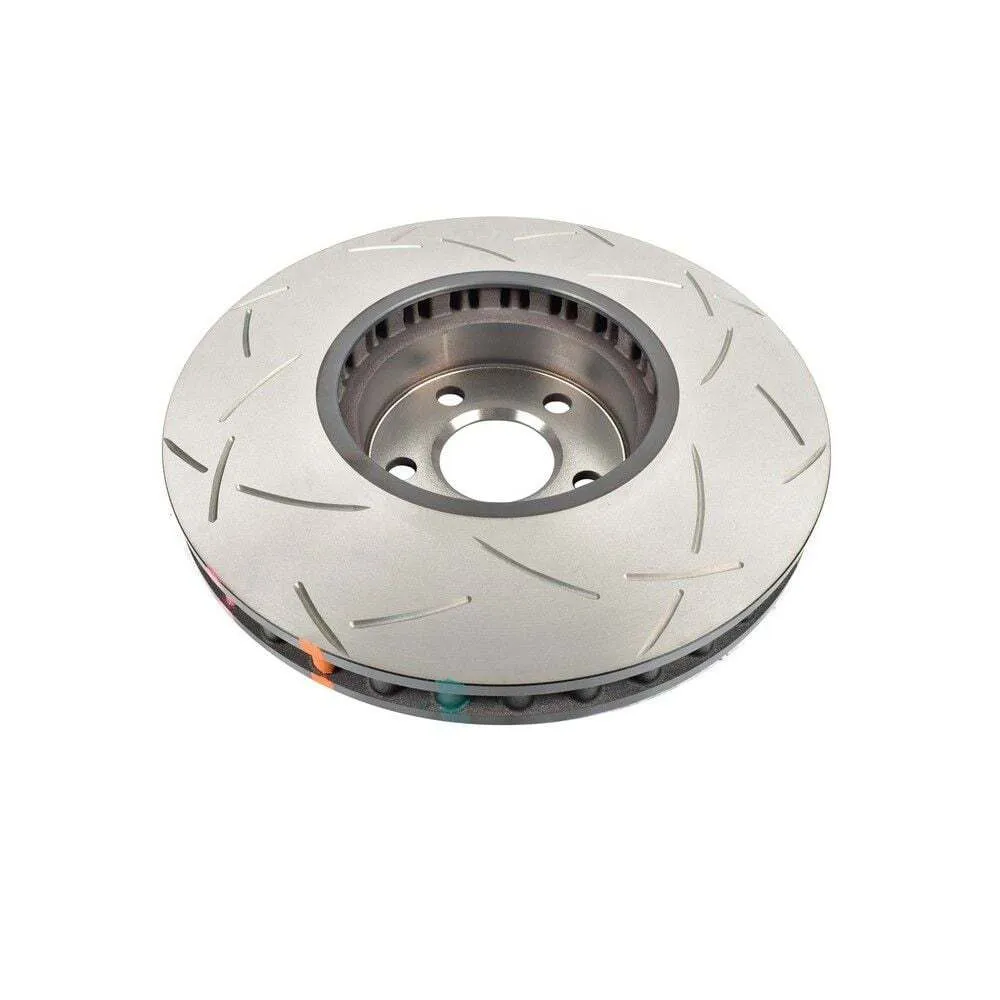

4000 SERIES T3 is the ultimate in direct replacement single piece performance brake rotors. Featuring all the benefits of the 4000 Series plus DBA's patented world renowned T3 bi directional slot design.

Built on the foundations of DBA's T2 slot, the T3 slot design features additional, precise, CNC machined tri symmetrical slots, resulting in an even quieter, more responsive and smoother brake pedal feel. The T3 slot increases the number of exit points for brake pad friction dust and gases to escape through, further increasing the consistency and effectiveness of every brake stop.

We recommend a T3 slot for high performance and heavy off-roading applications.

Features

  • Surface Design: Slots and/or chamfered drill holes facilitate the exit of friction dust and gasses, for a quieter and more responsive pedal feel.
  • Anti Rust: Painted non-friction areas to prevent rust and enhance appearance.
  • BI-Directional Use: Symmetrical slotting and/or drilling for universal left/right use.
  • Thermal Stability Profiling: Heat treatment cycles realign the microstructure of the iron, resulting in increased rotor stability and durability.
  • Thermal Efficiency: Centre-split core castings for increased heat transfer and thermal efficiency.
  • CBN: Cubic Boron Nitride (CBN) machine turned finish, minimising disc thickness variation and the potential for pad "knock" and resulting premature wear.
  • Thermographic Heat Paint: Paint markings change colour at specific temperature thresholds to assist with the monitoring of braking temperatures and rotor fatigue.
  • High Carbon Alloyed Iron: Formulation allows for optimal interaction with DBA's thermal stability profiling (TSP). Increases the capacity of the rotor to handle constant and extreme heat over prolonged periods.
  • Kangaroo Paw: Unique Kangaroo Paw vane design for up to 20% better heat dissipation, increasing braking effectiveness and prolonging brake life.

Specifications

  • Quantity: 2 (pair)
  • Product Variant: 4000 Series
  • Product SubVariant: T3
  • Warranty: 12 months/ 20,000km/ 12,000 miles
  • Axle: Front
  • Outer diameter [mm]: 348
  • Height [mm]: 66.2
  • Brake Disc Thickness [mm]: 36
  • Minimum Thickness [mm]: 34.4
  • Centering Diameter [mm]: 67
  • Number of Holes: 5
  • Pitch Circle Diameter: 112.00
  • Surface Design: Slotted
  • Driving Style: 4WD GVM, 4WD Offroad, Performance, Towing < 750kg

What's Included

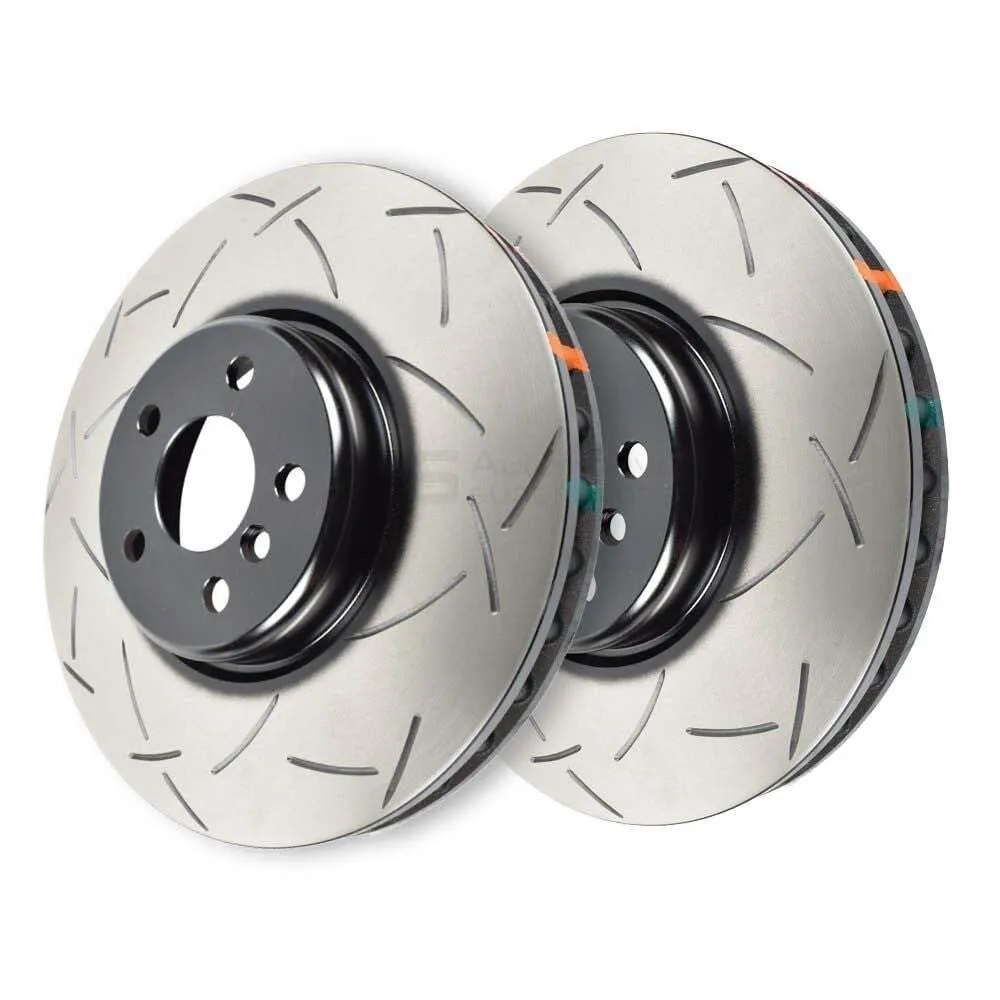

  • 2x Front 4000 Series T3 Brake Rotors

Compatibility

  • 2021-2026 BMW 2 Series Petrol Engine 220 i G42,G87 Coupe 135KW
  • 2021-2026 BMW 2 Series Petrol Engine 230 i G42,G87 Coupe 190KW
  • 2021-2026 BMW 2 Series Petrol Engine M240 i xDrive G42,G87 Coupe 275KW
  • 2022-2026 BMW 2 Series Petrol Engine M240 i G42,G87 Coupe 285KW
  • 2018-2026 BMW 3 Series Diesel 320 d G20,G80,G28 Sedan 140KW - 348x36mm M-Sport
  • 2018-2026 BMW 3 Series Petrol Engine 330 i G20,G80,G28 Sedan 190KW - 348x36mm M-Sport
  • 2019-2026 BMW 3 Series Petrol Engine 320 i G20,G80,G28 Sedan 135KW - 348x36mm M-Sport
  • 2019-2026 BMW 3 Series Petrol Engine 330 i G21,G81 Wagon 190KW - 348x36mm M-Sport
  • 2019-2026 BMW 3 Series Plug-In Hybrid 330 e Plug-in-Hybrid G20,G80,G28 Sedan 215KW - 348x36mm M-Sport
  • 2020-2026 BMW 4 Series Mild Hybrid M 440 i Mild-Hybrid xDrive G23,G83 Convertible 285KW - 348x36mm M-Sport
  • 2020-2026 BMW 4 Series Petrol Engine 420 i G22,G82 Coupe 135KW
  • 2020-2026 BMW 4 Series Petrol Engine 420 i G23,G83 Convertible 135KW
  • 2020-2026 BMW 4 Series Petrol Engine 430 i G22,G82 Coupe 190KW
  • 2020-2026 BMW 4 Series Petrol Engine 430 i G23,G83 Convertible 190KW - 348x36mm M-Sport
  • 2021-2026 BMW 4 Series Electric Motor i4 M50 xDrive G26 Coupe 400KW - 348x36mm M-Sport
  • 2021-2026 BMW 4 Series Electric Motor i4 eDrive40 G26 Coupe 250KW - 348x36mm M-Sport
  • 2021-2026 BMW 4 Series Mild Hybrid M440 i Mild-Hybrid xDrive G26 Coupe 275KW - 348x36mm M-Sport
  • 2021-2026 BMW 4 Series Mild Hybrid M440 i Mild-Hybrid xDrive G26 Coupe 285KW - 348x36mm M-Sport
  • 2021-2026 BMW 4 Series Petrol Engine 420 i G26 Coupe 135KW - 348x36mm M-Sport
  • 2021-2026 BMW 4 Series Petrol Engine 430 i G26 Coupe 180KW - 348x36mm M-Sport
  • 2021-2026 BMW 4 Series Petrol Engine 430 i G26 Coupe 190KW - 348x36mm M-Sport
  • 2016-2019 BMW 5 Series Diesel 520 d G30,F90 Sedan 140KW
  • 2016-2020 BMW 5 Series Diesel 530 d G30,F90 Sedan 195KW
  • 2016-2020 BMW 5 Series Petrol Engine 530 i G30,F90 Sedan 185KW
  • 2016-2020 BMW 5 Series Petrol Engine 540 i G30,F90 Sedan 250KW
  • 2017-2020 BMW 5 Series Diesel 520 d G31 Wagon 140KW
  • 2017-2026 BMW 5 Series Petrol Engine 520 i G30,F90 Sedan 135KW - DIA OF 348MM [ MSPORT ]
  • 2017-2020 BMW 5 Series Petrol Engine 530 i G31 Wagon 185KW
  • 2017-2020 BMW 5 Series Plug-In Hybrid 530 e Plug-in Hybrid G30,F90 Sedan 185KW
  • 2017-2020 BMW 6 Series Petrol Engine 630 i G32 Hatchback 190KW
  • 2017-2020 BMW 6 Series Petrol Engine 640 i xDrive G32 Hatchback 250KW
  • 2018-2020 BMW 6 Series Diesel 620 d G32 Hatchback 140KW
  • 2015-2020 BMW 7 Series Diesel 730 d, Ld G11,G12 Sedan 195KW
  • 2015-2019 BMW 7 Series Petrol Engine 740 i, Li G11,G12 Sedan 240KW
  • 2016-2019 BMW 7 Series Plug-In Hybrid 740 e, Le G11,G12 Sedan 240KW
  • 2019-2022 BMW 7 Series Petrol Engine 740 i, Li G11,G12 Sedan 250KW
  • 2019-2022 BMW 7 Series Plug-In Hybrid 745 e, Le Plug-in-Hybrid G11,G12 Sedan 290KW
  • 2021-2026 BMW Ix Electric Motor xDrive 40 I20 SUV 240KW
  • 2021-2026 BMW Ix Electric Motor xDrive 50 I20 SUV 385KW
  • 2022-2026 BMW Ix Electric Motor xDrive M60 I20 SUV 455KW
  • 2025-2026 BMW Ix Electric Motor xDrive 45 I20 SUV 300KW
  • 2017-2020 BMW X3 Diesel xDrive 20 d G01,F97,G08 SUV 140KW
  • 2017-2020 BMW X3 Diesel xDrive 30 d G01,F97,G08 SUV 195KW
  • 2017-2026 BMW X3 Petrol Engine sDrive 20 i G01,F97,G08 SUV 135KW
  • 2017-2026 BMW X3 Petrol Engine xDrive 30 i G01,F97,G08 SUV 185KW
  • 2017-2019 BMW X3 Petrol Engine xDrive M40 i G01,F97,G08 SUV 265KW
  • 2019-2026 BMW X3 Petrol Engine xDrive M40 i G01,F97,G08 SUV 285KW - 348x36mm M-Sport
  • 2019-2026 BMW X3 Plug-In Hybrid xDrive 30 e Plug-in-Hybrid G01,F97,G08 SUV 215KW - 348x36mm M-Sport
  • 2020-2026 BMW X3 Mild Hybrid xDrive 20 d Mild-Hybrid G01,F97,G08 SUV 140KW - 348x36mm M-Sport
  • 2020-2026 BMW X3 Mild Hybrid xDrive 30 d Mild-Hybrid G01,F97,G08 SUV 210KW - 348x36mm M-Sport
  • 2018-2020 BMW X4 Diesel xDrive 20 d G02,F98 SUV 140KW
  • 2018-2026 BMW X4 Petrol Engine xDrive 20 i G02,F98 SUV 135KW
  • 2018-2026 BMW X4 Petrol Engine xDrive 30 i G02,F98 SUV 185KW
  • 2018-2026 BMW X4 Petrol Engine xDrive M40 i G02,F98 SUV 265KW - 348x36mm M-Sport
  • 2019-2026 BMW X4 Petrol Engine xDrive M40 i G02,F98 SUV 285KW - 348x36mm M-Sport
  • 2021-2026 BMW X4 Mild Hybrid xDrive 30 i Mild Hybrid G02,F98 SUV 180KW - 348x36mm M-Sport
  • 2018-2020 BMW X5 Diesel xDrive 30 d G05,F95 SUV 195KW
  • 2018-2023 BMW X5 Petrol Engine xDrive 40 i G05,F95 SUV 250KW
  • 2019-2023 BMW X5 Diesel xDrive 25 d G05,F95 SUV 170KW - 348x36mm (Some 7 seat & Tow Pack Vehicles)
  • 2019-2023 BMW X5 Plug-In Hybrid xDrive 45 e Plug-in Hybrid G05,F95 SUV 290KW - 348x36mm (Some 7 seat & Tow Pack Vehicles)
  • 2020-2026 BMW X5 Mild Hybrid xDrive 30 d Mild-Hybrid G05,F95 SUV 210KW - 348x36mm (Some 7 seat & Tow Pack Vehicles)
  • 2023-2026 BMW X5 Mild Hybrid xDrive 40 i Mild-Hybrid G05,F95 SUV 280KW - 348x36mm (Some 7 seat & Tow Pack Vehicles)
  • 2023-2026 BMW X5 Plug-In Hybrid xDrive 50 e Plug-in-Hybrid G05,F95 SUV 360KW - 348x36mm (Some 7 seat & Tow Pack Vehicles)
  • 2019-2026 BMW X7 Diesel xDrive 30 d G07 SUV 195KW - DIA OF 348MM [ PLAIN TYPE ]
  • 2022-2026 BMW X7 Mild Hybrid xDrive 40 d Mild-Hybrid G07 SUV 259KW
  • 2022-2026 BMW X7 Mild Hybrid xDrive 40 i Mild Hybrid G07 SUV 280KW
  • 2018 BMW Z4 Petrol Engine M40 i G29 Convertible 250KW
  • 2018-2026 BMW Z4 Petrol Engine sDrive 20 i G29 Convertible 145KW
  • 2018-2026 BMW Z4 Petrol Engine sDrive 30 i G29 Convertible 190KW
  • 2019-2026 BMW Z4 Petrol Engine M40 i G29 Convertible 285KW
  • 2019-2020 Toyota Supra Petrol Engine 3.0 GR (DB42, DB46) DB_ Coupe 250KW
  • 2020-2026 Toyota Supra Petrol Engine 3.0 GR (DB01, DB02, DB03, DB06, DB92) DB_ Coupe 285KW
