Description

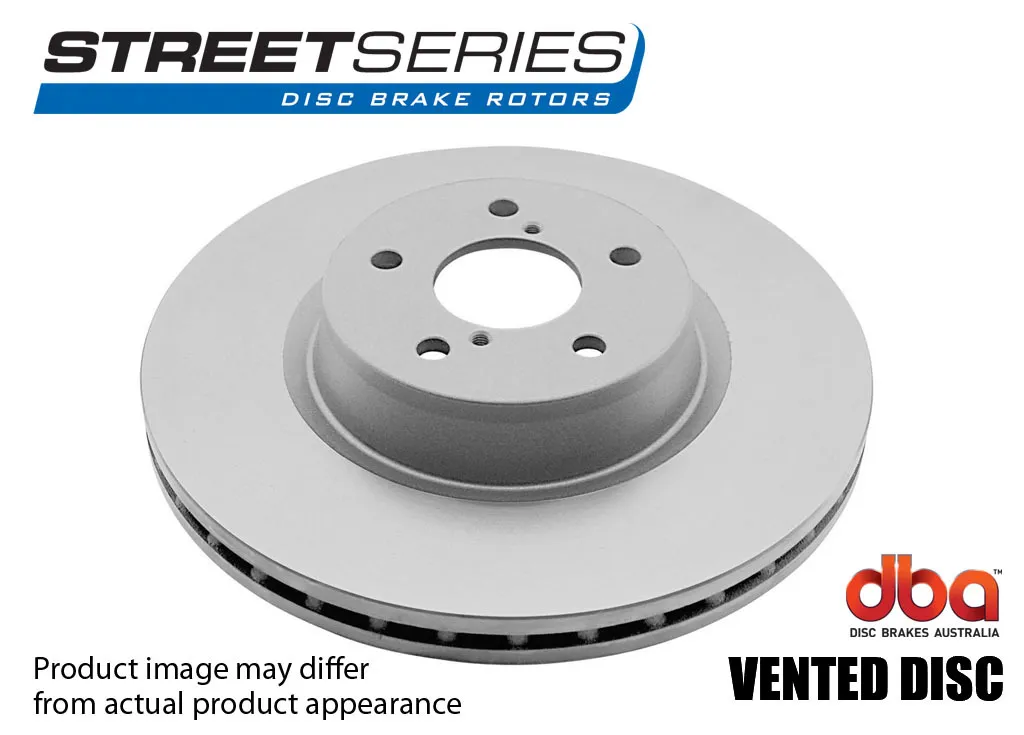

STREET SERIES - Direct OE Replacement

DBA's Standard Rotor series are direct fitment replacement rotors for all types of vehicles.





Direct OE Replacement - Stage 1 Street Series Specs

  • Patented 'Kangaroo Paw' ventilation design* (not available on all part numbers)
  • CBN (Cubic Boron Nitride) machine turned
  • Moisture proof corrosion protection packaging
  • En-Shield anti-rust coating available on selected part numbers



*Due to some vehicles being fitted with different discs from factory, please confirm your current standard disc specs with the specifications provided below.



Disc Brakes Australia - 100% confidence in fitment every time, not the cheap inferior alternative!  Australian engineered and quality assured to the highest possible standards for the safety of drivers the world over!  Manufacturing to OEM standards are our minimum requiremennts.  With more than three decades of manufacturing expertise, DBA continues to supply premium performance disc brake rotors from its manufacturing plant in Sydney.  As Australia's most highly awarded manufacturer of automotive aftermarket parts, DBA's performance rotors are distributed in over twenty-four countries.  DBA's OEM replacement rotor series includes Standard, Slotted and Cross-Drilled models with added extras like protective paint coatings, T2 wiper slots extending pad life, En-Shield rust free protection, X Gold catering for the big brake look and Clubspec T3 4000 & 5000 series performance and motorsport rotors!

Specifications

Diameter [mm] 288
Height [mm] 47
Thickness [mm] 25
Minimum Thickness [mm] 22.4
Inner Diameter [mm] 67
Weight [kg] 6.3
Number of Holes 5
Class standard
Disc Vent standard

Compatibility

  • 1993 - 2000 > MERCEDES-BENZ > C-CLASS > Petrol Engine C 280 (202.028) W202 Sedan 142KW
  • 1996 - 2000 > MERCEDES-BENZ > C-CLASS > Petrol Engine C 200 Kompressor (202.025) W202 Sedan 132KW
  • 1996 - 2000 > MERCEDES-BENZ > C-CLASS > Diesel C 250 Turbo-D (202.128) W202 Sedan 110KW
  • 1996 - 2001 > MERCEDES-BENZ > C-CLASS > Diesel C 250 T Turbo-D (202.188) S202 Wagon 110KW
  • 1997 - 2000 > MERCEDES-BENZ > C-CLASS > Petrol Engine C 230 T Kompressor (202.085) S202 Wagon 142KW
  • 1997 - 2000 > MERCEDES-BENZ > C-CLASS > Petrol Engine C 240 T (202.086) S202 Wagon 125KW
  • 1997 - 2000 > MERCEDES-BENZ > C-CLASS > Petrol Engine C 240 (202.026) W202 Sedan 125KW
  • 1997 - 2000 > MERCEDES-BENZ > C-CLASS > Petrol Engine C 280 (202.029) W202 Sedan 145KW
  • 1996 - 2001 > MERCEDES-BENZ > C-CLASS > Petrol Engine C 200 T Kompressor (202.082) S202 Wagon 141KW
  • 2003 - 2007 > MERCEDES-BENZ > C-CLASS > Diesel C 220 CDI (203.008) W203 Sedan 110KW
  • 2004 - 2008 > MERCEDES-BENZ > C-CLASS > Diesel C 220 CDI (203.708) CL203 Coupe 110KW
  • 2005 - 2008 > MERCEDES-BENZ > C-CLASS > Petrol Engine C 230 (203.752) CL203 Coupe 150KW
  • 2005 - 2007 > MERCEDES-BENZ > C-CLASS > Petrol Engine C 230 (203.052) W203 Sedan 150KW
  • 2005 - 2007 > MERCEDES-BENZ > C-CLASS > Petrol Engine C 230 (203.252) S203 Wagon 150KW
  • 2002 - 2008 > MERCEDES-BENZ > C-CLASS > Petrol Engine C 220 CL203 Coupe 120KW
  • 2000 - 2002 > MERCEDES-BENZ > C-CLASS > Petrol Engine C 180 (203.035) W203 Sedan 95KW
  • 2000 - 2002 > MERCEDES-BENZ > C-CLASS > Petrol Engine C 200 Kompressor (203.045) W203 Sedan 120KW
  • 2004 - 2007 > MERCEDES-BENZ > C-CLASS > Diesel C 220 CDI (203.006, 203.008) W203 Sedan 105KW
  • 2000 - 2001 > MERCEDES-BENZ > C-CLASS > Petrol Engine C 200 T Kompressor (202.087) S202 Wagon 120KW
  • 2001 - 2002 > MERCEDES-BENZ > C-CLASS > Petrol Engine C 180 (203.735) CL203 Coupe 95KW
  • 2001 - 2002 > MERCEDES-BENZ > C-CLASS > Petrol Engine C 200 Kompressor (203.745) CL203 Coupe 120KW
  • 2001 - 2004 > MERCEDES-BENZ > C-CLASS > Diesel C 220 CDI (203.706) CL203 Coupe 105KW
  • 2001 - 2002 > MERCEDES-BENZ > C-CLASS > Petrol Engine C 200 Kompressor (203.245) S203 Wagon 120KW
  • 2001 - 2002 > MERCEDES-BENZ > C-CLASS > Petrol Engine C 180 (203.235) S203 Wagon 95KW
  • 2002 - 2007 > MERCEDES-BENZ > C-CLASS > Petrol Engine C 180 Kompressor (203.046) W203 Sedan 105KW
  • 2002 - 2007 > MERCEDES-BENZ > C-CLASS > Petrol Engine C 200 Kompressor (203.042) W203 Sedan 120KW
  • 2002 - 2007 > MERCEDES-BENZ > C-CLASS > Petrol Engine C 180 Kompressor (203.246) S203 Wagon 105KW
  • 2002 - 2007 > MERCEDES-BENZ > C-CLASS > Petrol Engine C 200 Kompressor (203.242) S203 Wagon 120KW
  • 2004 - 2008 > MERCEDES-BENZ > C-CLASS > Petrol Engine C 180 Kompressor (203.746) CL203 Coupe 105KW
  • 2002 - 2008 > MERCEDES-BENZ > C-CLASS > Petrol Engine C 200 Kompressor (203.742) CL203 Coupe 120KW
  • 2002 - 2008 > MERCEDES-BENZ > C-CLASS > Petrol Engine C 230 Kompressor (203.740) CL203 Coupe 141KW
  • 2003 - 2008 > MERCEDES-BENZ > C-CLASS > Petrol Engine C 200 CGI Kompressor (203.743) CL203 Coupe 125KW
  • 2003 - 2007 > MERCEDES-BENZ > C-CLASS > Petrol Engine C 200 CGI Kompressor (203.043) W203 Sedan 125KW
  • 1996 - 1998 > MERCEDES-BENZ > E-CLASS > Petrol Engine E 230 (210.037) W210 Sedan 110KW
  • 1997 - 2000 > MERCEDES-BENZ > E-CLASS > Petrol Engine E 240 (210.061) W210 Sedan 125KW
  • 1997 - 2003 > MERCEDES-BENZ > E-CLASS > Petrol Engine E 240 T (210.261) S210 Wagon 125KW
  • 2000 - 2002 > MERCEDES-BENZ > E-CLASS > Petrol Engine E 200 Kompressor (210.048) W210 Sedan 120KW
  • 2000 - 2002 > MERCEDES-BENZ > E-CLASS > Petrol Engine E 240 (210.062) W210 Sedan 125KW
  • 2000 - 2003 > MERCEDES-BENZ > E-CLASS > Petrol Engine E 240 T (210.262) S210 Wagon 125KW
  • 1996 - 1997 > MERCEDES-BENZ > E-CLASS > Petrol Engine E 230 T (210.237) S210 Wagon 110KW
  • 1997 - 2002 > MERCEDES-BENZ > CLK > Petrol Engine CLK 200 (208.335) C208 Coupe 100KW
  • 1997 - 2000 > MERCEDES-BENZ > CLK > Petrol Engine CLK 230 Kompressor (208.347) C208 Coupe 142KW
  • 1998 - 2002 > MERCEDES-BENZ > CLK > Petrol Engine CLK 200 (208.435) A208 Convertible 100KW
  • 2000 - 2002 > MERCEDES-BENZ > CLK > Petrol Engine CLK 200 Kompressor (208.344) C208 Coupe 120KW
  • 2004 - 2011 > MERCEDES-BENZ > SLK > Petrol Engine 200 Kompressor (171.442) R171 Convertible 120KW
  • 2000 - 2004 > MERCEDES-BENZ > SLK > Petrol Engine 200 Kompressor (170.444) R170 Convertible 120KW
  • 2000 - 2000 > MERCEDES-BENZ > SLK > Petrol Engine 230 Kompressor (170.449) R170 Convertible 145KW
  • 1997 - 2000 > MERCEDES-BENZ > SLK > Petrol Engine 200 (170.435) R170 Convertible 100KW
  • 1996 - 2000 > MERCEDES-BENZ > SLK > Petrol Engine 230 Kompressor (170.447) R170 Convertible 142KW

STREET SERIES - Direct OE Replacement

DBA's Standard Rotor series are direct fitment replacement rotors for all types of vehicles.





Direct OE Replacement - Stage 1 Street Series Specs

  • Patented 'Kangaroo Paw' ventilation design* (not available on all part numbers)
  • CBN (Cubic Boron Nitride) machine turned
  • Moisture proof corrosion protection packaging
  • En-Shield anti-rust coating available on selected part numbers



*Due to some vehicles being fitted with different discs from factory, please confirm your current standard disc specs with the specifications provided below.



Disc Brakes Australia - 100% confidence in fitment every time, not the cheap inferior alternative!  Australian engineered and quality assured to the highest possible standards for the safety of drivers the world over!  Manufacturing to OEM standards are our minimum requiremennts.  With more than three decades of manufacturing expertise, DBA continues to supply premium performance disc brake rotors from its manufacturing plant in Sydney.  As Australia's most highly awarded manufacturer of automotive aftermarket parts, DBA's performance rotors are distributed in over twenty-four countries.  DBA's OEM replacement rotor series includes Standard, Slotted and Cross-Drilled models with added extras like protective paint coatings, T2 wiper slots extending pad life, En-Shield rust free protection, X Gold catering for the big brake look and Clubspec T3 4000 & 5000 series performance and motorsport rotors!

Diameter [mm] 288
Height [mm] 47
Thickness [mm] 25
Minimum Thickness [mm] 22.4
Inner Diameter [mm] 67
Weight [kg] 6.3
Number of Holes 5
Class standard
Disc Vent standard
  • 1993 - 2000 > MERCEDES-BENZ > C-CLASS > Petrol Engine C 280 (202.028) W202 Sedan 142KW
  • 1996 - 2000 > MERCEDES-BENZ > C-CLASS > Petrol Engine C 200 Kompressor (202.025) W202 Sedan 132KW
  • 1996 - 2000 > MERCEDES-BENZ > C-CLASS > Diesel C 250 Turbo-D (202.128) W202 Sedan 110KW
  • 1996 - 2001 > MERCEDES-BENZ > C-CLASS > Diesel C 250 T Turbo-D (202.188) S202 Wagon 110KW
  • 1997 - 2000 > MERCEDES-BENZ > C-CLASS > Petrol Engine C 230 T Kompressor (202.085) S202 Wagon 142KW
  • 1997 - 2000 > MERCEDES-BENZ > C-CLASS > Petrol Engine C 240 T (202.086) S202 Wagon 125KW
  • 1997 - 2000 > MERCEDES-BENZ > C-CLASS > Petrol Engine C 240 (202.026) W202 Sedan 125KW
  • 1997 - 2000 > MERCEDES-BENZ > C-CLASS > Petrol Engine C 280 (202.029) W202 Sedan 145KW
  • 1996 - 2001 > MERCEDES-BENZ > C-CLASS > Petrol Engine C 200 T Kompressor (202.082) S202 Wagon 141KW
  • 2003 - 2007 > MERCEDES-BENZ > C-CLASS > Diesel C 220 CDI (203.008) W203 Sedan 110KW
  • 2004 - 2008 > MERCEDES-BENZ > C-CLASS > Diesel C 220 CDI (203.708) CL203 Coupe 110KW
  • 2005 - 2008 > MERCEDES-BENZ > C-CLASS > Petrol Engine C 230 (203.752) CL203 Coupe 150KW
  • 2005 - 2007 > MERCEDES-BENZ > C-CLASS > Petrol Engine C 230 (203.052) W203 Sedan 150KW
  • 2005 - 2007 > MERCEDES-BENZ > C-CLASS > Petrol Engine C 230 (203.252) S203 Wagon 150KW
  • 2002 - 2008 > MERCEDES-BENZ > C-CLASS > Petrol Engine C 220 CL203 Coupe 120KW
  • 2000 - 2002 > MERCEDES-BENZ > C-CLASS > Petrol Engine C 180 (203.035) W203 Sedan 95KW
  • 2000 - 2002 > MERCEDES-BENZ > C-CLASS > Petrol Engine C 200 Kompressor (203.045) W203 Sedan 120KW
  • 2004 - 2007 > MERCEDES-BENZ > C-CLASS > Diesel C 220 CDI (203.006, 203.008) W203 Sedan 105KW
  • 2000 - 2001 > MERCEDES-BENZ > C-CLASS > Petrol Engine C 200 T Kompressor (202.087) S202 Wagon 120KW
  • 2001 - 2002 > MERCEDES-BENZ > C-CLASS > Petrol Engine C 180 (203.735) CL203 Coupe 95KW
  • 2001 - 2002 > MERCEDES-BENZ > C-CLASS > Petrol Engine C 200 Kompressor (203.745) CL203 Coupe 120KW
  • 2001 - 2004 > MERCEDES-BENZ > C-CLASS > Diesel C 220 CDI (203.706) CL203 Coupe 105KW
  • 2001 - 2002 > MERCEDES-BENZ > C-CLASS > Petrol Engine C 200 Kompressor (203.245) S203 Wagon 120KW
  • 2001 - 2002 > MERCEDES-BENZ > C-CLASS > Petrol Engine C 180 (203.235) S203 Wagon 95KW
  • 2002 - 2007 > MERCEDES-BENZ > C-CLASS > Petrol Engine C 180 Kompressor (203.046) W203 Sedan 105KW
  • 2002 - 2007 > MERCEDES-BENZ > C-CLASS > Petrol Engine C 200 Kompressor (203.042) W203 Sedan 120KW
  • 2002 - 2007 > MERCEDES-BENZ > C-CLASS > Petrol Engine C 180 Kompressor (203.246) S203 Wagon 105KW
  • 2002 - 2007 > MERCEDES-BENZ > C-CLASS > Petrol Engine C 200 Kompressor (203.242) S203 Wagon 120KW
  • 2004 - 2008 > MERCEDES-BENZ > C-CLASS > Petrol Engine C 180 Kompressor (203.746) CL203 Coupe 105KW
  • 2002 - 2008 > MERCEDES-BENZ > C-CLASS > Petrol Engine C 200 Kompressor (203.742) CL203 Coupe 120KW
  • 2002 - 2008 > MERCEDES-BENZ > C-CLASS > Petrol Engine C 230 Kompressor (203.740) CL203 Coupe 141KW
  • 2003 - 2008 > MERCEDES-BENZ > C-CLASS > Petrol Engine C 200 CGI Kompressor (203.743) CL203 Coupe 125KW
  • 2003 - 2007 > MERCEDES-BENZ > C-CLASS > Petrol Engine C 200 CGI Kompressor (203.043) W203 Sedan 125KW
  • 1996 - 1998 > MERCEDES-BENZ > E-CLASS > Petrol Engine E 230 (210.037) W210 Sedan 110KW
  • 1997 - 2000 > MERCEDES-BENZ > E-CLASS > Petrol Engine E 240 (210.061) W210 Sedan 125KW
  • 1997 - 2003 > MERCEDES-BENZ > E-CLASS > Petrol Engine E 240 T (210.261) S210 Wagon 125KW
  • 2000 - 2002 > MERCEDES-BENZ > E-CLASS > Petrol Engine E 200 Kompressor (210.048) W210 Sedan 120KW
  • 2000 - 2002 > MERCEDES-BENZ > E-CLASS > Petrol Engine E 240 (210.062) W210 Sedan 125KW
  • 2000 - 2003 > MERCEDES-BENZ > E-CLASS > Petrol Engine E 240 T (210.262) S210 Wagon 125KW
  • 1996 - 1997 > MERCEDES-BENZ > E-CLASS > Petrol Engine E 230 T (210.237) S210 Wagon 110KW
  • 1997 - 2002 > MERCEDES-BENZ > CLK > Petrol Engine CLK 200 (208.335) C208 Coupe 100KW
  • 1997 - 2000 > MERCEDES-BENZ > CLK > Petrol Engine CLK 230 Kompressor (208.347) C208 Coupe 142KW
  • 1998 - 2002 > MERCEDES-BENZ > CLK > Petrol Engine CLK 200 (208.435) A208 Convertible 100KW
  • 2000 - 2002 > MERCEDES-BENZ > CLK > Petrol Engine CLK 200 Kompressor (208.344) C208 Coupe 120KW
  • 2004 - 2011 > MERCEDES-BENZ > SLK > Petrol Engine 200 Kompressor (171.442) R171 Convertible 120KW
  • 2000 - 2004 > MERCEDES-BENZ > SLK > Petrol Engine 200 Kompressor (170.444) R170 Convertible 120KW
  • 2000 - 2000 > MERCEDES-BENZ > SLK > Petrol Engine 230 Kompressor (170.449) R170 Convertible 145KW
  • 1997 - 2000 > MERCEDES-BENZ > SLK > Petrol Engine 200 (170.435) R170 Convertible 100KW
  • 1996 - 2000 > MERCEDES-BENZ > SLK > Petrol Engine 230 Kompressor (170.447) R170 Convertible 142KW
