Description

Important: Please see notes in compatibilty section regarding vehicle fitment.

DBA’s Street Series T2 rotor provides all the benefits of DBA’s Street Series direct replacement rotors with the added benefit of performance braking through the introduction of DBA’s patented T2 slot design.

The T2 slot design features precise CNC machined bi-symmetrical slots, resulting in a quieter, more responsive and smoother brake pedal feel. The T2 slot increases the number of exit points, allowing friction dust and gases to escape and enhancing the pad bite.

DBA’s revolutionary universal slot design also eliminates the need for separate left and right slot designs seen in traditional rotor designs.

We recommend the T2 slot design for more intensive braking applications.



Description Advantage Benefit
"Kangaroo Paw* – 144 diamond and tear drop pillar ventilation system" Increased surface area resulting in greater heat dissipation Minimises brake fade and increases braking effectiveness
    Increased surface area resulting in greater heat dissipation
CBN (Cubic Boron Nitride) machine turned Reduced DTV (Disc thickness variation) and parallelism Less occurrence of brake shudder or brake pedal ‘judder’



Specifications

Diameter [mm] 316
Height [mm] 56.7
Thickness [mm] 30
Minimum Thickness [mm] 28
Inner Diameter [mm] 58
Number of Holes 10
Weight [kg] 9.69
Pitch Circle Ø [mm] 114.3
Disc Vent V

What's Included

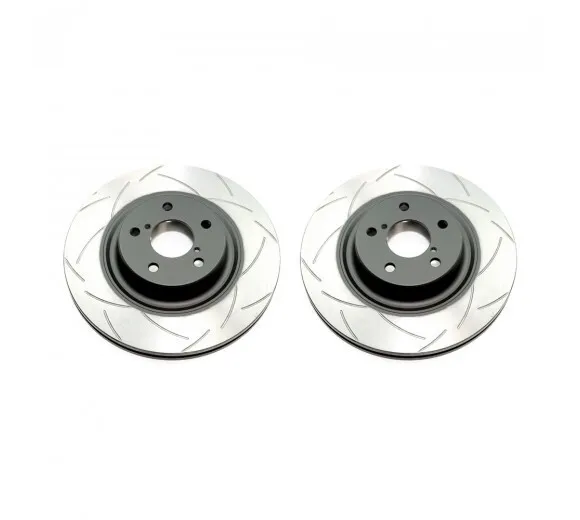

  • 2 x DBA T2 STreet Series Front Rotors

Compatibility

  • 2006 - 2009 > SUBARU > LIBERTY > Petrol Engine 2.5 T AWD (BL9) BL Sedan 184KW
  • 2006 - 2009 > SUBARU > LIBERTY > Petrol Engine 2.5 T AWD (BP9) B13,BP,BP9 Wagon 184KW
  • 2009 - 2014 > SUBARU > LIBERTY > Petrol Engine 3.6 AWD (BMF) BM Sedan 191KW
  • 2005 - 2007 > SUBARU > LIBERTY > Petrol Engine 2.0 AWD (BP5) B13,BP,BP5 Wagon 121KW
  • 2004 - 2009 > SUBARU > LIBERTY > Petrol Engine 3.0 R AWD (BLE) BL Sedan 180KW
  • 2004 - 2009 > SUBARU > LIBERTY > Petrol Engine 3.0 R AWD (BPE) B13,BP,BPE Wagon 180KW
  • 2010 - 2014 > SUBARU > LIBERTY > Petrol Engine 2.5 GT AWD (BM9) BM Sedan 195KW
  • 2010 - 2014 > SUBARU > LIBERTY > Petrol Engine 2.5 GT AWD (BR9) BR Wagon 195KW
  • 2003 - 2006 > SUBARU > LIBERTY > Petrol Engine 2.0 Turbo AWD (BL5) BL Sedan 180KW
  • 2003 - 2009 > SUBARU > LIBERTY > Petrol Engine 2.0 Turbo AWD (BP5) B13,BP,BP5 Wagon 180KW
  • 2004 - 2009 > SUBARU > LIBERTY > Petrol Engine 2.0 GT Tuned By STI AWD (BL5) BL Sedan 190KW
  • 2004 - 2009 > SUBARU > LIBERTY > Petrol Engine 2.0 GT AWD (BP5) B13,BP,BP5 Wagon 190KW
  • 2004 - 2009 > SUBARU > LIBERTY > Petrol Engine 2.0 GT Tuned By STI AWD (BL5) BL Sedan 200KW
  • 2006 - 2009 > SUBARU > LIBERTY > Petrol Engine 2.0 GT AWD (BP5) B13,BP,BP5 Wagon 200KW
  • 2006 - 2007 > SUBARU > TRIBECA > Petrol Engine 3.0 (WXE) B9 SUV 180KW
  • 2007 - 2013 > SUBARU > TRIBECA > Petrol Engine 3.6 (WXF) B9 SUV 190KW
  • 2009 - 2015 > SUBARU > OUTBACK > Petrol Engine 3.6 R AWD (BRF) BR Wagon 191KW
  • 2014 - 2020 > SUBARU > OUTBACK > Petrol Engine 2.5 AWD (BS9) BS Wagon 129KW
  • 2014 - 2020 > SUBARU > OUTBACK > Petrol Engine 3.6 AWD (BSF) BS Wagon 191KW
  • 2014 - 2020 > SUBARU > OUTBACK > Diesel 2.0 D AWD (BSD) BS Wagon 110KW
  • 2013 - 2018 > SUBARU > FORESTER > Petrol Engine 2.0 i AWD (SJ5) SJ_ SUV 110KW
  • 2013 - 2018 > SUBARU > FORESTER > Diesel 2.0 D AWD (SJD) SJ_ SUV 108KW
  • 2013 - 2018 > SUBARU > FORESTER > Petrol Engine 2.0 XT AWD (SJG) SJ_ SUV 177KW
  • 2012 - 2018 > SUBARU > FORESTER > Petrol Engine 2.5 AWD (SJ9) SJ_ SUV 126KW
  • 2016 - 2020 > SUBARU > LEVORG > Petrol Engine 2.0 AWD (VMG) EK(V1) Wagon 197KW
  • 2013 - 2022 > SUBARU > WRX > Petrol Engine 2.0 AWD (VAG) VA Sedan 197KW
