Description

STREET SERIES - Direct OE Replacement

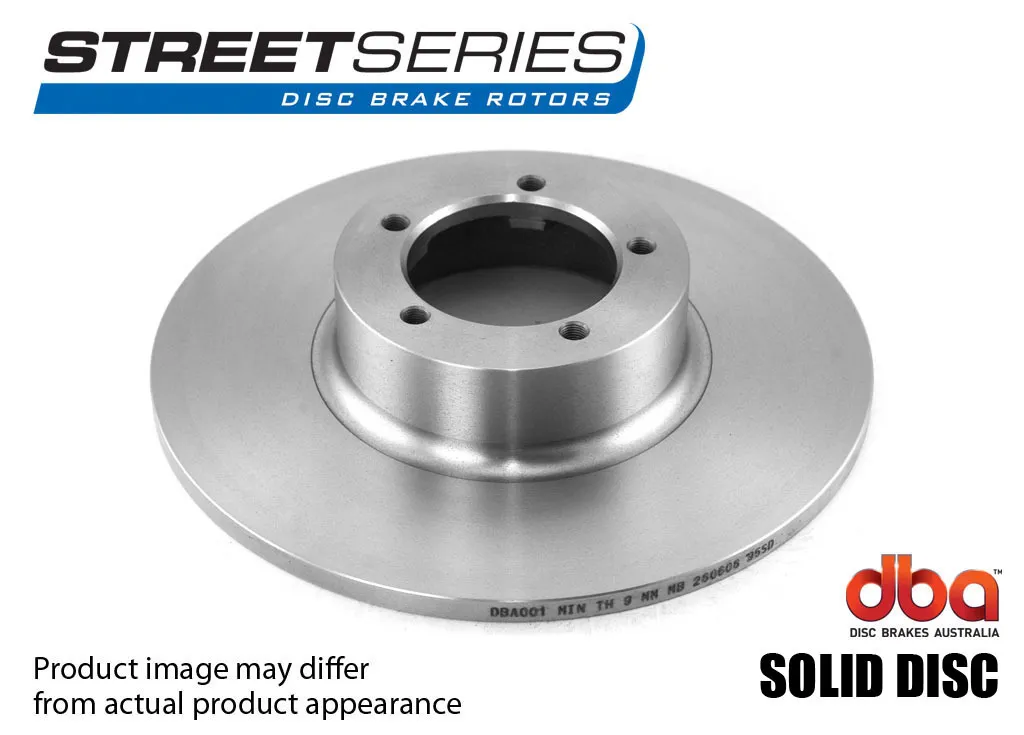

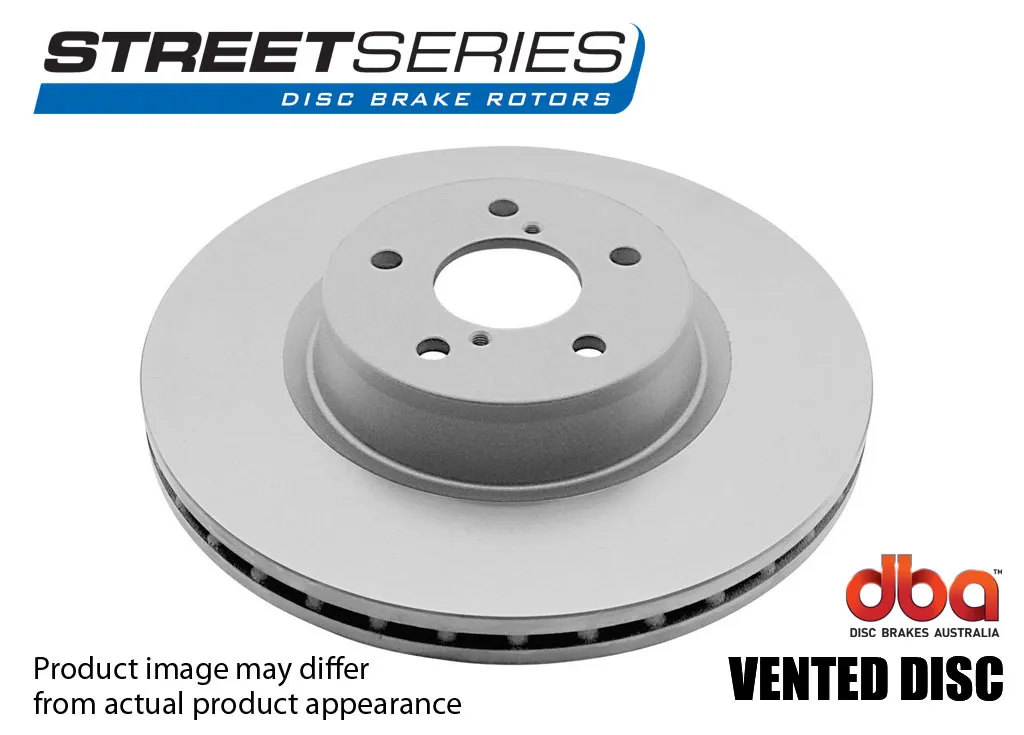

DBA's Standard Rotor series are direct fitment replacement rotors for all types of vehicles.





Direct OE Replacement - Stage 1 Street Series Specs

  • Patented 'Kangaroo Paw' ventilation design* (not available on all part numbers)
  • CBN (Cubic Boron Nitride) machine turned

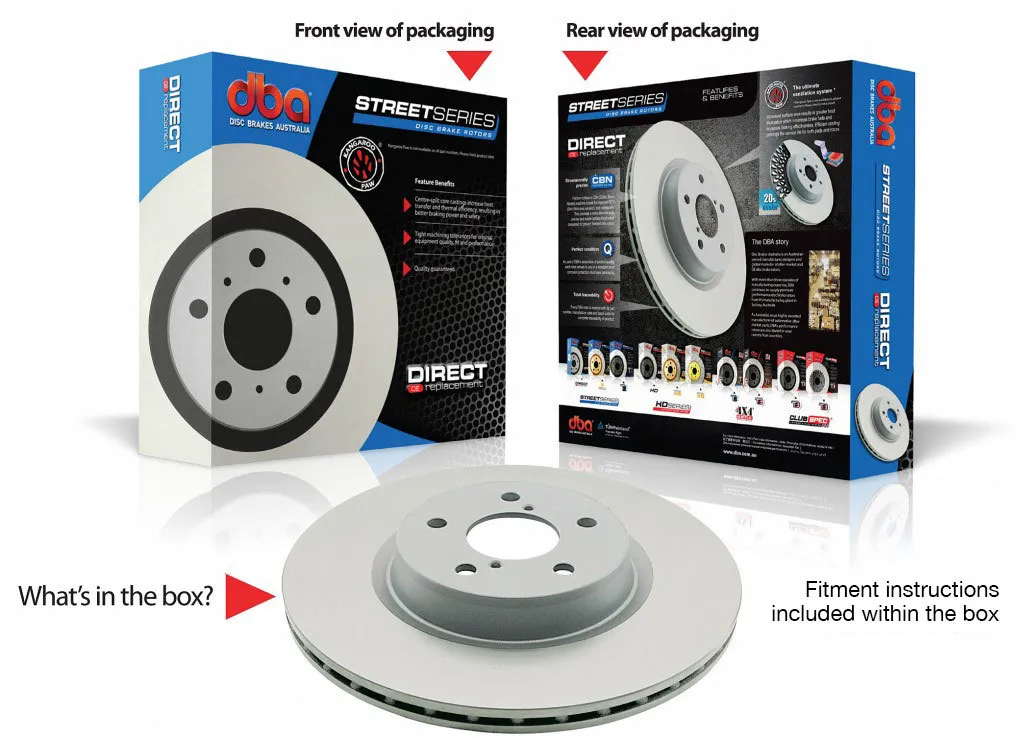

  • Moisture proof corrosion protection packaging
  • En-Shield anti-rust coating available on selected part numbers



*Due to some vehicles being fitted with different discs from factory, please confirm your current standard disc specs with the specifications provided below.



Disc Brakes Australia - 100% confidence in fitment every time, not the cheap inferior alternative!  Australian engineered and quality assured to the highest possible standards for the safety of drivers the world over!  Manufacturing to OEM standards are our minimum requiremennts.  With more than three decades of manufacturing expertise, DBA continues to supply premium performance disc brake rotors from its manufacturing plant in Sydney.  As Australia's most highly awarded manufacturer of automotive aftermarket parts, DBA's performance rotors are distributed in over twenty-four countries.  DBA's OEM replacement rotor series includes Standard, Slotted and Cross-Drilled models with added extras like protective paint coatings, T2 wiper slots extending pad life, En-Shield rust free protection, X Gold catering for the big brake look and Clubspec T3 4000 & 5000 series performance and motorsport rotors!

Specifications

Diameter [mm] 286
Height [mm] 50.3
Thickness [mm] 26
Minimum Thickness [mm] 23
Inner Diameter [mm] 68
Weight [kg] 6.9
Number of Holes 5
Class standard
Disc Vent standard

Compatibility

  • 1998 - 2006 > VOLVO > S80 > Petrol Engine 2.9 184 Sedan 150KW
  • 1998 - 2001 > VOLVO > S80 > Petrol Engine T6 184 Sedan 200KW
  • 2003 - 2006 > VOLVO > S80 > Petrol Engine 2.5 T 184 Sedan 154KW
  • 1999 - 2006 > VOLVO > S80 > Petrol Engine 2.9 184 Sedan 147KW
  • 1999 - 2006 > VOLVO > S80 > Petrol Engine 2.0 T 184 Sedan 132KW
  • 2001 - 2006 > VOLVO > S80 > Petrol Engine 3.0 184 Sedan 144KW
  • 2001 - 2006 > VOLVO > S80 > Petrol Engine T6 184 Sedan 200KW
  • 2004 - 2006 > VOLVO > S80 > Petrol Engine 2.5 T AWD 184 Sedan 154KW
  • 2003 - 2010 > VOLVO > S60 > Petrol Engine 2.5 T 384 Sedan 154KW
  • 2002 - 2010 > VOLVO > S60 > Petrol Engine 2.5 T AWD 384 Sedan 154KW
  • 2000 - 2010 > VOLVO > S60 > Petrol Engine 2.4 384 Sedan 103KW
  • 2001 - 2010 > VOLVO > S60 > Petrol Engine 2.4 384 Sedan 125KW
  • 2001 - 2010 > VOLVO > S60 > Petrol Engine 2.4 T 384 Sedan 147KW
  • 2001 - 2010 > VOLVO > S60 > Petrol Engine T5 384 Sedan 184KW
  • 2001 - 2010 > VOLVO > S60 > Petrol Engine 2.4 T AWD 384 Sedan 147KW
  • 2000 - 2010 > VOLVO > S60 > Petrol Engine 2.0 T 384 Sedan 132KW
  • 2001 - 2008 > VOLVO > V70 > Petrol Engine 2.5 T 285 Wagon 154KW
  • 2000 - 2004 > VOLVO > V70 > Petrol Engine 2.3 AWD 285 Wagon 195KW
  • 1997 - 2000 > VOLVO > V70 > Petrol Engine 2.3 T AWD 875,876 Wagon 184KW
  • 1999 - 2008 > VOLVO > V70 > Petrol Engine T5 285 Wagon 184KW
  • 1999 - 2008 > VOLVO > V70 > Petrol Engine 2.4 T 285 Wagon 147KW
  • 2000 - 2008 > VOLVO > V70 > Petrol Engine 2.4 285 Wagon 103KW
  • 2000 - 2008 > VOLVO > V70 > Petrol Engine 2.4 285 Wagon 125KW
  • 2001 - 2008 > VOLVO > V70 > Petrol Engine 2.4 T AWD 285 Wagon 147KW
  • 2002 - 2008 > VOLVO > V70 > Petrol Engine 2.5 T AWD 285 Wagon 154KW
  • 2000 - 2004 > VOLVO > V70 > Petrol Engine 2.3 285 Wagon 195KW
  • 2005 - 2007 > VOLVO > XC70 > Diesel D5 AWD 295 Wagon 136KW
  • 2000 - 2002 > VOLVO > XC70 > Petrol Engine 2.4 T XC AWD 295 Wagon 147KW
  • 2002 - 2007 > VOLVO > XC70 > Diesel D5 XC AWD 295 Wagon 120KW
  • 2002 - 2007 > VOLVO > XC70 > Petrol Engine 2.5 T XC AWD 295 Wagon 154KW

STREET SERIES - Direct OE Replacement

DBA's Standard Rotor series are direct fitment replacement rotors for all types of vehicles.





Direct OE Replacement - Stage 1 Street Series Specs

  • Patented 'Kangaroo Paw' ventilation design* (not available on all part numbers)
  • CBN (Cubic Boron Nitride) machine turned
  • Moisture proof corrosion protection packaging
  • En-Shield anti-rust coating available on selected part numbers



*Due to some vehicles being fitted with different discs from factory, please confirm your current standard disc specs with the specifications provided below.



Disc Brakes Australia - 100% confidence in fitment every time, not the cheap inferior alternative!  Australian engineered and quality assured to the highest possible standards for the safety of drivers the world over!  Manufacturing to OEM standards are our minimum requiremennts.  With more than three decades of manufacturing expertise, DBA continues to supply premium performance disc brake rotors from its manufacturing plant in Sydney.  As Australia's most highly awarded manufacturer of automotive aftermarket parts, DBA's performance rotors are distributed in over twenty-four countries.  DBA's OEM replacement rotor series includes Standard, Slotted and Cross-Drilled models with added extras like protective paint coatings, T2 wiper slots extending pad life, En-Shield rust free protection, X Gold catering for the big brake look and Clubspec T3 4000 & 5000 series performance and motorsport rotors!

Diameter [mm] 286
Height [mm] 50.3
Thickness [mm] 26
Minimum Thickness [mm] 23
Inner Diameter [mm] 68
Weight [kg] 6.9
Number of Holes 5
Class standard
Disc Vent standard
  • 1998 - 2006 > VOLVO > S80 > Petrol Engine 2.9 184 Sedan 150KW
  • 1998 - 2001 > VOLVO > S80 > Petrol Engine T6 184 Sedan 200KW
  • 2003 - 2006 > VOLVO > S80 > Petrol Engine 2.5 T 184 Sedan 154KW
  • 1999 - 2006 > VOLVO > S80 > Petrol Engine 2.9 184 Sedan 147KW
  • 1999 - 2006 > VOLVO > S80 > Petrol Engine 2.0 T 184 Sedan 132KW
  • 2001 - 2006 > VOLVO > S80 > Petrol Engine 3.0 184 Sedan 144KW
  • 2001 - 2006 > VOLVO > S80 > Petrol Engine T6 184 Sedan 200KW
  • 2004 - 2006 > VOLVO > S80 > Petrol Engine 2.5 T AWD 184 Sedan 154KW
  • 2003 - 2010 > VOLVO > S60 > Petrol Engine 2.5 T 384 Sedan 154KW
  • 2002 - 2010 > VOLVO > S60 > Petrol Engine 2.5 T AWD 384 Sedan 154KW
  • 2000 - 2010 > VOLVO > S60 > Petrol Engine 2.4 384 Sedan 103KW
  • 2001 - 2010 > VOLVO > S60 > Petrol Engine 2.4 384 Sedan 125KW
  • 2001 - 2010 > VOLVO > S60 > Petrol Engine 2.4 T 384 Sedan 147KW
  • 2001 - 2010 > VOLVO > S60 > Petrol Engine T5 384 Sedan 184KW
  • 2001 - 2010 > VOLVO > S60 > Petrol Engine 2.4 T AWD 384 Sedan 147KW
  • 2000 - 2010 > VOLVO > S60 > Petrol Engine 2.0 T 384 Sedan 132KW
  • 2001 - 2008 > VOLVO > V70 > Petrol Engine 2.5 T 285 Wagon 154KW
  • 2000 - 2004 > VOLVO > V70 > Petrol Engine 2.3 AWD 285 Wagon 195KW
  • 1997 - 2000 > VOLVO > V70 > Petrol Engine 2.3 T AWD 875,876 Wagon 184KW
  • 1999 - 2008 > VOLVO > V70 > Petrol Engine T5 285 Wagon 184KW
  • 1999 - 2008 > VOLVO > V70 > Petrol Engine 2.4 T 285 Wagon 147KW
  • 2000 - 2008 > VOLVO > V70 > Petrol Engine 2.4 285 Wagon 103KW
  • 2000 - 2008 > VOLVO > V70 > Petrol Engine 2.4 285 Wagon 125KW
  • 2001 - 2008 > VOLVO > V70 > Petrol Engine 2.4 T AWD 285 Wagon 147KW
  • 2002 - 2008 > VOLVO > V70 > Petrol Engine 2.5 T AWD 285 Wagon 154KW
  • 2000 - 2004 > VOLVO > V70 > Petrol Engine 2.3 285 Wagon 195KW
  • 2005 - 2007 > VOLVO > XC70 > Diesel D5 AWD 295 Wagon 136KW
  • 2000 - 2002 > VOLVO > XC70 > Petrol Engine 2.4 T XC AWD 295 Wagon 147KW
  • 2002 - 2007 > VOLVO > XC70 > Diesel D5 XC AWD 295 Wagon 120KW
  • 2002 - 2007 > VOLVO > XC70 > Petrol Engine 2.5 T XC AWD 295 Wagon 154KW
