Description

STREET SERIES - Direct OE Replacement

DBA's Standard Rotor series are direct fitment replacement rotors for all types of vehicles.





Direct OE Replacement - Stage 1 Street Series Specs

  • Patented 'Kangaroo Paw' ventilation design* (not available on all part numbers)
  • CBN (Cubic Boron Nitride) machine turned
  • Moisture proof corrosion protection packaging
  • En-Shield anti-rust coating available on selected part numbers



*Due to some vehicles being fitted with different discs from factory, please confirm your current standard disc specs with the specifications provided below.



Disc Brakes Australia - 100% confidence in fitment every time, not the cheap inferior alternative!  Australian engineered and quality assured to the highest possible standards for the safety of drivers the world over!  Manufacturing to OEM standards are our minimum requiremennts.  With more than three decades of manufacturing expertise, DBA continues to supply premium performance disc brake rotors from its manufacturing plant in Sydney.  As Australia's most highly awarded manufacturer of automotive aftermarket parts, DBA's performance rotors are distributed in over twenty-four countries.  DBA's OEM replacement rotor series includes Standard, Slotted and Cross-Drilled models with added extras like protective paint coatings, T2 wiper slots extending pad life, En-Shield rust free protection, X Gold catering for the big brake look and Clubspec T3 4000 & 5000 series performance and motorsport rotors!

Specifications

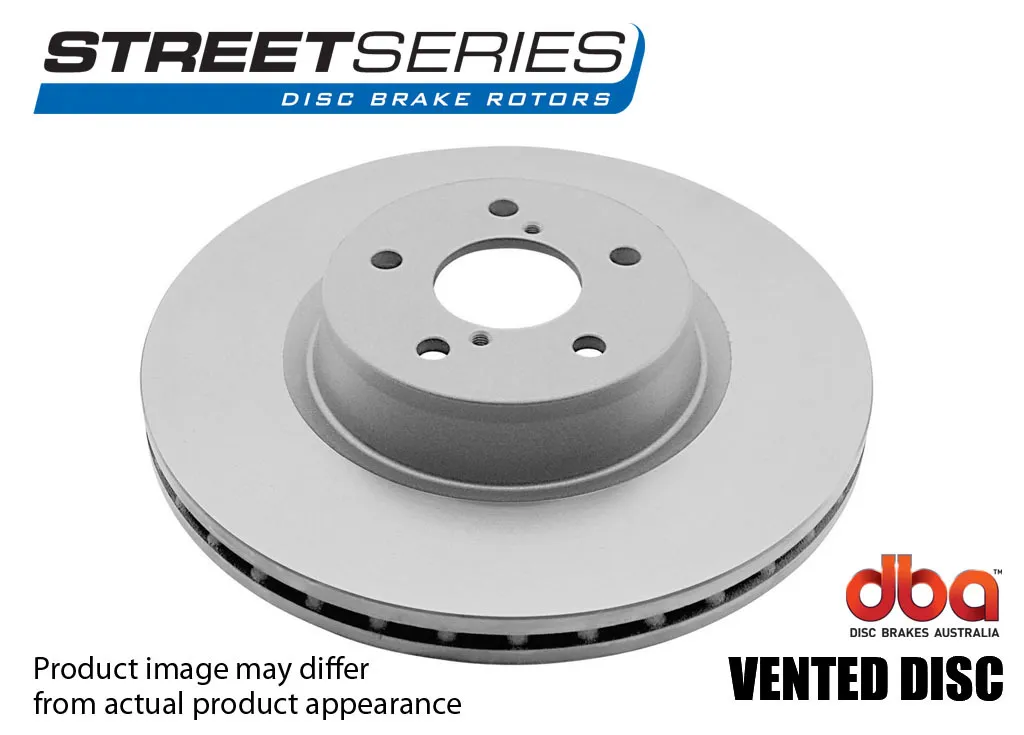

Disc Vent V
Diameter [mm] 303
Height [mm] 93
Thickness [mm] 28
Minimum Thickness [mm] 26
Inner Diameter [mm] 120
Number of Holes 6
Weight [kg] 10.5

Compatibility

  • 2006 - 2009 > MERCEDES-BENZ > SPRINTER 5-t > Diesel 511 CDI (906.653, 906.655, 906.657) B906 Van 80KW
  • 2006 - 2009 > MERCEDES-BENZ > SPRINTER 5-t > Diesel 515 CDI (906.653, 906.655, 906.657) B906 Van 110KW
  • 2009 - 2018 > MERCEDES-BENZ > SPRINTER 5-t > Diesel 519 CDI / BlueTEC (906.653, 906.655, 906.657) B906 Van 140KW
  • 2009 - 2018 > MERCEDES-BENZ > SPRINTER 5-t > Diesel 519 CDI / BlueTEC (906.153, 906.155, 906.253, 906.255) B906 Platform/Chassis 140KW
  • 2009 - 2018 > MERCEDES-BENZ > SPRINTER 5-t > Diesel 516 CDI (906.153, 906.155, 906.253, 906.255) B906 Platform/Chassis 120KW
  • 2009 - 2018 > MERCEDES-BENZ > SPRINTER 5-t > Diesel 516 CDI (906.653, 906.655, 906.657) B906 Van 120KW
  • 2009 - 2018 > MERCEDES-BENZ > SPRINTER 4,6-t > Diesel 416 CDI (906.653, 906.655, 906.657, 906.633, 906.635,... B906 Van 120KW
  • 2009 - 2018 > MERCEDES-BENZ > SPRINTER 4,6-t > Diesel 419 CDI (906.653, 906.655, 906.657) B906 Van 140KW
  • 2011 - 2016 > VW > CRAFTER 30-50 > Diesel 2.0 TDI 2E_ Van 80KW
  • 2011 - 2016 > VW > CRAFTER 30-50 > Diesel 2.0 TDI 2E_ Van 120KW
  • 2011 - 2016 > VW > CRAFTER 30-50 > Diesel 2.0 TDI 2F_ Platform/Chassis 120KW
  • 2011 - 2016 > VW > CRAFTER 30-50 > Diesel 2.0 TDI 2F_ Platform/Chassis 105KW
  • 2011 - 2016 > VW > CRAFTER 30-50 > Diesel 2.0 TDI 2E_ Van 105KW
  • 2006 - 2013 > VW > CRAFTER 30-50 > Diesel 2.5 TDI 2E_ Van 80KW
  • 2006 - 2013 > VW > CRAFTER 30-50 > Diesel 2.5 TDI 2E_ Van 100KW
  • 2006 - 2011 > VW > CRAFTER 30-50 > Diesel 2.5 TDI 2E_ Van 120KW
  • 2006 - 2013 > VW > CRAFTER 30-50 > Diesel 2.5 TDI 2F_ Platform/Chassis 80KW
  • 2006 - 2013 > VW > CRAFTER 30-50 > Diesel 2.5 TDI 2F_ Platform/Chassis 100KW
  • 2006 - 2011 > VW > CRAFTER 30-50 > Diesel 2.5 TDI 2F_ Platform/Chassis 120KW
  • 2006 - 2012 > VW > CRAFTER 30-35 > Diesel 2.5 TDI 2E_ Bus 100KW

STREET SERIES - Direct OE Replacement

DBA's Standard Rotor series are direct fitment replacement rotors for all types of vehicles.





Direct OE Replacement - Stage 1 Street Series Specs

  • Patented 'Kangaroo Paw' ventilation design* (not available on all part numbers)
  • CBN (Cubic Boron Nitride) machine turned
  • Moisture proof corrosion protection packaging
  • En-Shield anti-rust coating available on selected part numbers



*Due to some vehicles being fitted with different discs from factory, please confirm your current standard disc specs with the specifications provided below.



Disc Brakes Australia - 100% confidence in fitment every time, not the cheap inferior alternative!  Australian engineered and quality assured to the highest possible standards for the safety of drivers the world over!  Manufacturing to OEM standards are our minimum requiremennts.  With more than three decades of manufacturing expertise, DBA continues to supply premium performance disc brake rotors from its manufacturing plant in Sydney.  As Australia's most highly awarded manufacturer of automotive aftermarket parts, DBA's performance rotors are distributed in over twenty-four countries.  DBA's OEM replacement rotor series includes Standard, Slotted and Cross-Drilled models with added extras like protective paint coatings, T2 wiper slots extending pad life, En-Shield rust free protection, X Gold catering for the big brake look and Clubspec T3 4000 & 5000 series performance and motorsport rotors!

Disc Vent V
Diameter [mm] 303
Height [mm] 93
Thickness [mm] 28
Minimum Thickness [mm] 26
Inner Diameter [mm] 120
Number of Holes 6
Weight [kg] 10.5
  • 2006 - 2009 > MERCEDES-BENZ > SPRINTER 5-t > Diesel 511 CDI (906.653, 906.655, 906.657) B906 Van 80KW
  • 2006 - 2009 > MERCEDES-BENZ > SPRINTER 5-t > Diesel 515 CDI (906.653, 906.655, 906.657) B906 Van 110KW
  • 2009 - 2018 > MERCEDES-BENZ > SPRINTER 5-t > Diesel 519 CDI / BlueTEC (906.653, 906.655, 906.657) B906 Van 140KW
  • 2009 - 2018 > MERCEDES-BENZ > SPRINTER 5-t > Diesel 519 CDI / BlueTEC (906.153, 906.155, 906.253, 906.255) B906 Platform/Chassis 140KW
  • 2009 - 2018 > MERCEDES-BENZ > SPRINTER 5-t > Diesel 516 CDI (906.153, 906.155, 906.253, 906.255) B906 Platform/Chassis 120KW
  • 2009 - 2018 > MERCEDES-BENZ > SPRINTER 5-t > Diesel 516 CDI (906.653, 906.655, 906.657) B906 Van 120KW
  • 2009 - 2018 > MERCEDES-BENZ > SPRINTER 4,6-t > Diesel 416 CDI (906.653, 906.655, 906.657, 906.633, 906.635,... B906 Van 120KW
  • 2009 - 2018 > MERCEDES-BENZ > SPRINTER 4,6-t > Diesel 419 CDI (906.653, 906.655, 906.657) B906 Van 140KW
  • 2011 - 2016 > VW > CRAFTER 30-50 > Diesel 2.0 TDI 2E_ Van 80KW
  • 2011 - 2016 > VW > CRAFTER 30-50 > Diesel 2.0 TDI 2E_ Van 120KW
  • 2011 - 2016 > VW > CRAFTER 30-50 > Diesel 2.0 TDI 2F_ Platform/Chassis 120KW
  • 2011 - 2016 > VW > CRAFTER 30-50 > Diesel 2.0 TDI 2F_ Platform/Chassis 105KW
  • 2011 - 2016 > VW > CRAFTER 30-50 > Diesel 2.0 TDI 2E_ Van 105KW
  • 2006 - 2013 > VW > CRAFTER 30-50 > Diesel 2.5 TDI 2E_ Van 80KW
  • 2006 - 2013 > VW > CRAFTER 30-50 > Diesel 2.5 TDI 2E_ Van 100KW
  • 2006 - 2011 > VW > CRAFTER 30-50 > Diesel 2.5 TDI 2E_ Van 120KW
  • 2006 - 2013 > VW > CRAFTER 30-50 > Diesel 2.5 TDI 2F_ Platform/Chassis 80KW
  • 2006 - 2013 > VW > CRAFTER 30-50 > Diesel 2.5 TDI 2F_ Platform/Chassis 100KW
  • 2006 - 2011 > VW > CRAFTER 30-50 > Diesel 2.5 TDI 2F_ Platform/Chassis 120KW
  • 2006 - 2012 > VW > CRAFTER 30-35 > Diesel 2.5 TDI 2E_ Bus 100KW
