Description

STREET SERIES - Direct OE Replacement

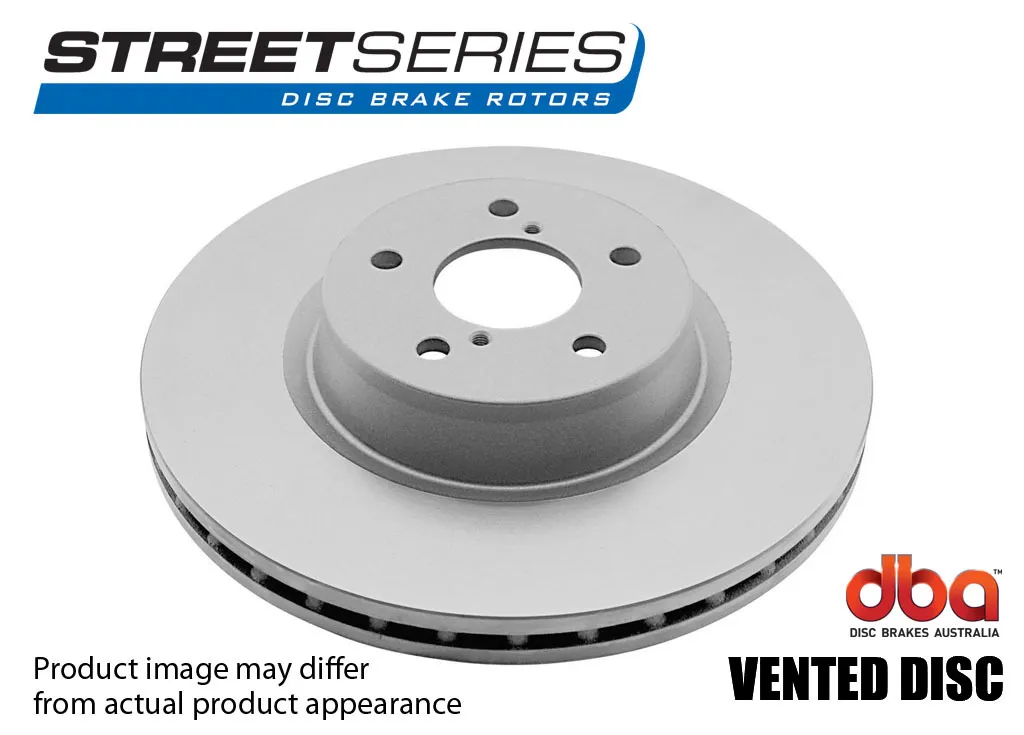

DBA's Standard Rotor series are direct fitment replacement rotors for all types of vehicles.





Direct OE Replacement - Stage 1 Street Series Specs

  • Patented 'Kangaroo Paw' ventilation design* (not available on all part numbers)
  • CBN (Cubic Boron Nitride) machine turned
  • Moisture proof corrosion protection packaging
  • En-Shield anti-rust coating available on selected part numbers



*Due to some vehicles being fitted with different discs from factory, please confirm your current standard disc specs with the specifications provided below.



Disc Brakes Australia - 100% confidence in fitment every time, not the cheap inferior alternative!  Australian engineered and quality assured to the highest possible standards for the safety of drivers the world over!  Manufacturing to OEM standards are our minimum requiremennts.  With more than three decades of manufacturing expertise, DBA continues to supply premium performance disc brake rotors from its manufacturing plant in Sydney.  As Australia's most highly awarded manufacturer of automotive aftermarket parts, DBA's performance rotors are distributed in over twenty-four countries.  DBA's OEM replacement rotor series includes Standard, Slotted and Cross-Drilled models with added extras like protective paint coatings, T2 wiper slots extending pad life, En-Shield rust free protection, X Gold catering for the big brake look and Clubspec T3 4000 & 5000 series performance and motorsport rotors!

Specifications

Disc Vent V
Diameter [mm] 300
Height [mm] 68.5
Thickness [mm] 22
Minimum Thickness [mm] 19.4
Inner Diameter [mm] 67
Number of Holes 5
Weight [kg] 7

Compatibility

  • 2011 - 2013 > MERCEDES-BENZ > CLS > Petrol Engine CLS 350 (218.359) C218 Coupe 225KW
  • 2011 - 2013 > MERCEDES-BENZ > CLS > Diesel CLS 350 CDI / d (218.323) C218 Coupe 195KW
  • 2005 - 2010 > MERCEDES-BENZ > CLS > Petrol Engine CLS 350 (219.356) C219 Coupe 200KW
  • 2005 - 2010 > MERCEDES-BENZ > CLS > Petrol Engine CLS 500 (219.375) C219 Coupe 225KW
  • 2006 - 2010 > MERCEDES-BENZ > CLS > Petrol Engine CLS 500 (219.372) C219 Coupe 285KW
  • 2011 - 2013 > MERCEDES-BENZ > CLS > Diesel CLS 350 CDI / d 4-matic (218.393) C218 Coupe 195KW
  • 2011 - 2013 > MERCEDES-BENZ > E-CLASS > Diesel E 250 CDI / BlueTEC 4-matic (212.082, 212.097) W212 Sedan 150KW
  • 2011 - 2015 > MERCEDES-BENZ > E-CLASS > Diesel E 300 CDI / BlueTEC (212.020, 212.021, 212.027) W212 Sedan 170KW
  • 2011 - 2013 > MERCEDES-BENZ > E-CLASS > Diesel E 350 CDI (212.023) W212 Sedan 195KW
  • 2005 - 2008 > MERCEDES-BENZ > E-CLASS > Petrol Engine E 280 (211.054) W211 Sedan 170KW
  • 2005 - 2008 > MERCEDES-BENZ > E-CLASS > Petrol Engine E 350 (211.056) W211 Sedan 200KW
  • 2005 - 2008 > MERCEDES-BENZ > E-CLASS > Diesel E 280 CDI (211.020) W211 Sedan 140KW
  • 2005 - 2009 > MERCEDES-BENZ > E-CLASS > Diesel E 280 T CDI (211.220) S211 Wagon 140KW
  • 2005 - 2009 > MERCEDES-BENZ > E-CLASS > Petrol Engine E 280 T (211.254) S211 Wagon 170KW
  • 2005 - 2009 > MERCEDES-BENZ > E-CLASS > Petrol Engine E 350 T (211.256) S211 Wagon 200KW
  • 2006 - 2008 > MERCEDES-BENZ > E-CLASS > Petrol Engine E 200 Kompressor (211.041) W211 Sedan 135KW
  • 2006 - 2009 > MERCEDES-BENZ > E-CLASS > Petrol Engine E 500 T (211.272) S211 Wagon 285KW
  • 2006 - 2008 > MERCEDES-BENZ > E-CLASS > Petrol Engine E 500 (211.072) W211 Sedan 285KW
  • 2007 - 2008 > MERCEDES-BENZ > E-CLASS > Petrol Engine E 350 CGI (211.057) W211 Sedan 215KW
  • 2011 - 2013 > MERCEDES-BENZ > E-CLASS > Diesel E 350 CDI (212.223) S212 Wagon 195KW
  • 2011 - 2013 > MERCEDES-BENZ > E-CLASS > Petrol Engine E 350 (212.259) S212 Wagon 225KW
  • 2011 - 2013 > MERCEDES-BENZ > E-CLASS > Petrol Engine E 350 4-matic (212.288) S212 Wagon 225KW
  • 2011 - 2013 > MERCEDES-BENZ > E-CLASS > Petrol Engine E 350 4-matic (212.088) W212 Sedan 225KW
  • 2011 - 2013 > MERCEDES-BENZ > E-CLASS > Petrol Engine E 350 (212.059) W212 Sedan 225KW
  • 2002 - 2008 > MERCEDES-BENZ > E-CLASS > Petrol Engine E 320 (211.065) W211 Sedan 165KW
  • 2002 - 2008 > MERCEDES-BENZ > E-CLASS > Petrol Engine E 500 (211.070) W211 Sedan 225KW
  • 2003 - 2008 > MERCEDES-BENZ > E-CLASS > Petrol Engine E 240 (211.061) W211 Sedan 130KW
  • 2002 - 2008 > MERCEDES-BENZ > E-CLASS > Diesel E 270 CDI (211.016) W211 Sedan 130KW
  • 2003 - 2009 > MERCEDES-BENZ > E-CLASS > Petrol Engine E 240 T (211.261) S211 Wagon 130KW
  • 2003 - 2009 > MERCEDES-BENZ > E-CLASS > Petrol Engine E 320 T (211.265) S211 Wagon 165KW
  • 2004 - 2008 > MERCEDES-BENZ > E-CLASS > Petrol Engine E 200 Kompressor (211.042) W211 Sedan 120KW
  • 2003 - 2009 > MERCEDES-BENZ > E-CLASS > Petrol Engine E 500 T (211.270) S211 Wagon 225KW
  • 2003 - 2009 > MERCEDES-BENZ > E-CLASS > Petrol Engine E 500 T 4-matic (211.283) S211 Wagon 225KW
  • 2009 - 2016 > MERCEDES-BENZ > E-CLASS > Diesel E 250 CDI / BlueTEC (212.003, 212.004) W212 Sedan 150KW
  • 2009 - 2013 > MERCEDES-BENZ > E-CLASS > Diesel E 350 CDI (212.025) W212 Sedan 170KW
  • 2009 - 2016 > MERCEDES-BENZ > E-CLASS > Diesel E 250 CDI / BlueTEC (212.203, 212.204) S212 Wagon 150KW
  • 2009 - 2013 > MERCEDES-BENZ > E-CLASS > Petrol Engine E 350 (212.056) W212 Sedan 200KW
  • 2011 - 2016 > MERCEDES-BENZ > E-CLASS > Full Hybrid E 300 Hybrid / BlueTEC Hybrid (212.298) S212 Wagon 150KW
  • 2012 - 2013 > MERCEDES-BENZ > E-CLASS > Diesel E 350 BlueTEC 4-matic (212.294) S212 Wagon 185KW
  • 2009 - 2016 > MERCEDES-BENZ > E-CLASS > Diesel E 300 CDI / BlueTEC (212.227, 212.221) S212 Wagon 170KW

STREET SERIES - Direct OE Replacement

DBA's Standard Rotor series are direct fitment replacement rotors for all types of vehicles.





Direct OE Replacement - Stage 1 Street Series Specs

  • Patented 'Kangaroo Paw' ventilation design* (not available on all part numbers)
  • CBN (Cubic Boron Nitride) machine turned
  • Moisture proof corrosion protection packaging
  • En-Shield anti-rust coating available on selected part numbers



*Due to some vehicles being fitted with different discs from factory, please confirm your current standard disc specs with the specifications provided below.



Disc Brakes Australia - 100% confidence in fitment every time, not the cheap inferior alternative!  Australian engineered and quality assured to the highest possible standards for the safety of drivers the world over!  Manufacturing to OEM standards are our minimum requiremennts.  With more than three decades of manufacturing expertise, DBA continues to supply premium performance disc brake rotors from its manufacturing plant in Sydney.  As Australia's most highly awarded manufacturer of automotive aftermarket parts, DBA's performance rotors are distributed in over twenty-four countries.  DBA's OEM replacement rotor series includes Standard, Slotted and Cross-Drilled models with added extras like protective paint coatings, T2 wiper slots extending pad life, En-Shield rust free protection, X Gold catering for the big brake look and Clubspec T3 4000 & 5000 series performance and motorsport rotors!

Disc Vent V
Diameter [mm] 300
Height [mm] 68.5
Thickness [mm] 22
Minimum Thickness [mm] 19.4
Inner Diameter [mm] 67
Number of Holes 5
Weight [kg] 7
  • 2011 - 2013 > MERCEDES-BENZ > CLS > Petrol Engine CLS 350 (218.359) C218 Coupe 225KW
  • 2011 - 2013 > MERCEDES-BENZ > CLS > Diesel CLS 350 CDI / d (218.323) C218 Coupe 195KW
  • 2005 - 2010 > MERCEDES-BENZ > CLS > Petrol Engine CLS 350 (219.356) C219 Coupe 200KW
  • 2005 - 2010 > MERCEDES-BENZ > CLS > Petrol Engine CLS 500 (219.375) C219 Coupe 225KW
  • 2006 - 2010 > MERCEDES-BENZ > CLS > Petrol Engine CLS 500 (219.372) C219 Coupe 285KW
  • 2011 - 2013 > MERCEDES-BENZ > CLS > Diesel CLS 350 CDI / d 4-matic (218.393) C218 Coupe 195KW
  • 2011 - 2013 > MERCEDES-BENZ > E-CLASS > Diesel E 250 CDI / BlueTEC 4-matic (212.082, 212.097) W212 Sedan 150KW
  • 2011 - 2015 > MERCEDES-BENZ > E-CLASS > Diesel E 300 CDI / BlueTEC (212.020, 212.021, 212.027) W212 Sedan 170KW
  • 2011 - 2013 > MERCEDES-BENZ > E-CLASS > Diesel E 350 CDI (212.023) W212 Sedan 195KW
  • 2005 - 2008 > MERCEDES-BENZ > E-CLASS > Petrol Engine E 280 (211.054) W211 Sedan 170KW
  • 2005 - 2008 > MERCEDES-BENZ > E-CLASS > Petrol Engine E 350 (211.056) W211 Sedan 200KW
  • 2005 - 2008 > MERCEDES-BENZ > E-CLASS > Diesel E 280 CDI (211.020) W211 Sedan 140KW
  • 2005 - 2009 > MERCEDES-BENZ > E-CLASS > Diesel E 280 T CDI (211.220) S211 Wagon 140KW
  • 2005 - 2009 > MERCEDES-BENZ > E-CLASS > Petrol Engine E 280 T (211.254) S211 Wagon 170KW
  • 2005 - 2009 > MERCEDES-BENZ > E-CLASS > Petrol Engine E 350 T (211.256) S211 Wagon 200KW
  • 2006 - 2008 > MERCEDES-BENZ > E-CLASS > Petrol Engine E 200 Kompressor (211.041) W211 Sedan 135KW
  • 2006 - 2009 > MERCEDES-BENZ > E-CLASS > Petrol Engine E 500 T (211.272) S211 Wagon 285KW
  • 2006 - 2008 > MERCEDES-BENZ > E-CLASS > Petrol Engine E 500 (211.072) W211 Sedan 285KW
  • 2007 - 2008 > MERCEDES-BENZ > E-CLASS > Petrol Engine E 350 CGI (211.057) W211 Sedan 215KW
  • 2011 - 2013 > MERCEDES-BENZ > E-CLASS > Diesel E 350 CDI (212.223) S212 Wagon 195KW
  • 2011 - 2013 > MERCEDES-BENZ > E-CLASS > Petrol Engine E 350 (212.259) S212 Wagon 225KW
  • 2011 - 2013 > MERCEDES-BENZ > E-CLASS > Petrol Engine E 350 4-matic (212.288) S212 Wagon 225KW
  • 2011 - 2013 > MERCEDES-BENZ > E-CLASS > Petrol Engine E 350 4-matic (212.088) W212 Sedan 225KW
  • 2011 - 2013 > MERCEDES-BENZ > E-CLASS > Petrol Engine E 350 (212.059) W212 Sedan 225KW
  • 2002 - 2008 > MERCEDES-BENZ > E-CLASS > Petrol Engine E 320 (211.065) W211 Sedan 165KW
  • 2002 - 2008 > MERCEDES-BENZ > E-CLASS > Petrol Engine E 500 (211.070) W211 Sedan 225KW
  • 2003 - 2008 > MERCEDES-BENZ > E-CLASS > Petrol Engine E 240 (211.061) W211 Sedan 130KW
  • 2002 - 2008 > MERCEDES-BENZ > E-CLASS > Diesel E 270 CDI (211.016) W211 Sedan 130KW
  • 2003 - 2009 > MERCEDES-BENZ > E-CLASS > Petrol Engine E 240 T (211.261) S211 Wagon 130KW
  • 2003 - 2009 > MERCEDES-BENZ > E-CLASS > Petrol Engine E 320 T (211.265) S211 Wagon 165KW
  • 2004 - 2008 > MERCEDES-BENZ > E-CLASS > Petrol Engine E 200 Kompressor (211.042) W211 Sedan 120KW
  • 2003 - 2009 > MERCEDES-BENZ > E-CLASS > Petrol Engine E 500 T (211.270) S211 Wagon 225KW
  • 2003 - 2009 > MERCEDES-BENZ > E-CLASS > Petrol Engine E 500 T 4-matic (211.283) S211 Wagon 225KW
  • 2009 - 2016 > MERCEDES-BENZ > E-CLASS > Diesel E 250 CDI / BlueTEC (212.003, 212.004) W212 Sedan 150KW
  • 2009 - 2013 > MERCEDES-BENZ > E-CLASS > Diesel E 350 CDI (212.025) W212 Sedan 170KW
  • 2009 - 2016 > MERCEDES-BENZ > E-CLASS > Diesel E 250 CDI / BlueTEC (212.203, 212.204) S212 Wagon 150KW
  • 2009 - 2013 > MERCEDES-BENZ > E-CLASS > Petrol Engine E 350 (212.056) W212 Sedan 200KW
  • 2011 - 2016 > MERCEDES-BENZ > E-CLASS > Full Hybrid E 300 Hybrid / BlueTEC Hybrid (212.298) S212 Wagon 150KW
  • 2012 - 2013 > MERCEDES-BENZ > E-CLASS > Diesel E 350 BlueTEC 4-matic (212.294) S212 Wagon 185KW
  • 2009 - 2016 > MERCEDES-BENZ > E-CLASS > Diesel E 300 CDI / BlueTEC (212.227, 212.221) S212 Wagon 170KW
